8350

Very High Power Cinema Surround Speaker for Digital Applications

8350
较大的图像

Very High Power Cinema Surround Speaker for Digital Applications

The 8350 Cinema Surround Speaker offers very high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8350’s reliability and performance features position it as the ideal high power surround for the extended dynamic range required by digital sound formats.



特点

  • 60 Hz to 19 kHz Frequency Range
  • High Sensitivity, 97 dB SPL, 1 W, 1 m (3.3 ft)
  • High Power Handling Capability: 350 watts continuous pink noise
  • Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
  • Special cabinet shape incorporates 20° angled front baffle
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight, rigid molded enclosure
  • Input terminals located on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX® Approved


下载

  Version Language Size Uploaded
Data Sheets
file type icon 2516 Quick-Mount Fixed-Angle Bracket for JBL 8320, 8340A and 8350 Loudspeakers
updated: 10月 2019
    696.7 KB 10月 2019
Compliances
file type icon Cinema Sound - Surround Systems Declaration of Conformity
updated: 10月 2019
    86.1 KB 10月 2019
Owner's Manuals
file type icon 8350 Information
updated: 10月 2020
    335.7 KB 10月 2020
Information documents
file type icon JBL Digital Surround Series Cinema Loudspeakers
updated: 10月 2019
    128.0 KB 10月 2019
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022
Spec Sheets
file type icon 8350 Spec Sheet
updated: 10月 2020
    335.7 KB 10月 2020
HI-RES IMAGEs

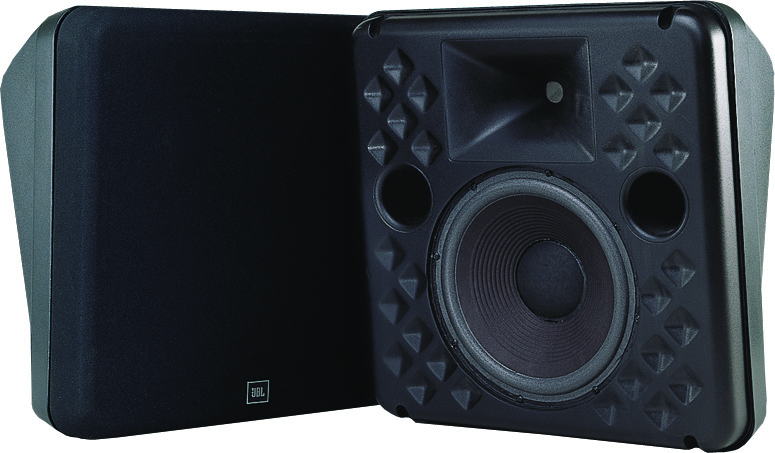

file type icon 8350 Front Angle
updated: 10月 2020
    767.4 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 60 Hz - 19 kHz
Frequency Response (±3 dB) 75 Hz - 17 kHz
额定功率 350 watts continuouspink noise1400 watts peak

灵敏度

99 dB-SPL half-space / wall-mounted97 dB-SPL free-field
最大SPL峰值 130 dB/1m
标称阻抗 8 ohms
水平覆盖角度 (-6dB) 100° averaged 400 Hz to 12 kHz
垂直覆盖角度 (-6dB) 80° averaged 400 Hz to 12 kHz
Directivity Factor (Q) 7 averaged 400 Hz to 12 kHz
Directivity Index (DI) 8.4 dB averaged 400 Hz to 12 kHz
分频点 1.4 kHz
高频率轮廓 ISO2969 Curve X surround contour
极性 EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal Diameter 250 mm (10 in)64 mm (2.5 in) voice coil
High Freq Transducer Nominal Diameter 25 mm (1 in) exit38 mm (1.5 in) voice coil
辐射角 Nominal 20° when mounted flush on back panel
音箱材料 Textured Black H.I.P.S. Plastic
网罩 Black
输入接口 5-way binding posts
尺寸(高 x 宽 x 厚) 457 mm x 457 mm x 260 mm(18 in x 18 in x 10.25 in)
净重量 9.5 kg (21 lb)

accessories

2516 Bracket | 2516 Quick-Mount® Fixed-Angle Bracket
2516 Bracket Main photo
较大的图像

2516 Quick-Mount® Fixed-Angle Bracket

Quick-Mount® Fixed-Angle Bracket

  • Cost-effective wall-mount bracket
  • Designed for 8320, 8340A, and 8350 surrounds
  • Packed two brackets to a carton

Documentation
2517 Speaker Mount | 2517 Speaker MountPan and Tilt Rotations
2517 Speaker Mount Main photo
较大的图像

2517 Speaker Mount Pan and Tilt Rotations

2517 Speaker Mount Pan and Tilt Rotations

  • Alloy steel
  • Black powder coat paint
  • Designed for 8320, 8340A, and 8350 surrounds

Documentation
