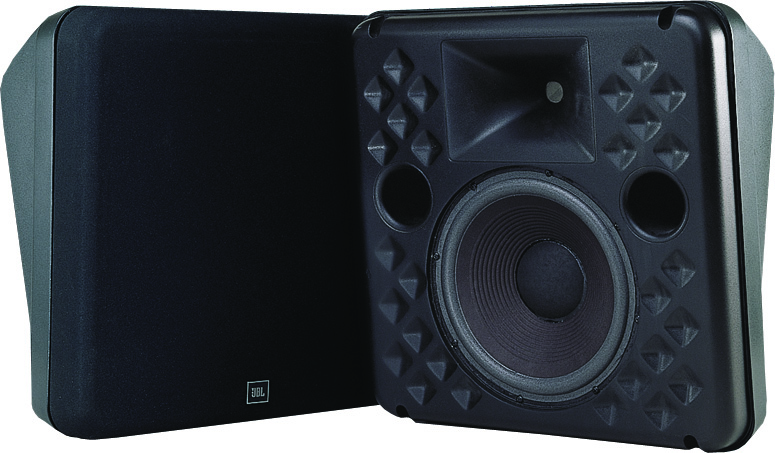

Speaker Surround Sinematik 8350 menawarkan penanganan daya sangat tinggi, sensitivitas tinggi, dan respons bass yang luas dalam enclosure yang sangat kompak. Keandalan dan fitur performa dua arah 8350 memposisikannya sebagai surround daya tinggi ideal untuk jangkauan dinamis yang luas yang diperlukan oleh format suara digital.
| Ukuran | |
|
|
697 KB |
| Ukuran | |
|
|
86,1 KB |
| Ukuran | |
|
|
21 MB |
| Ukuran | |
|
|
336 KB |
| Ukuran | |
|
|
128 KB |
| Ukuran | |
|
|
336 KB |
| Ukuran | |
|
|
767 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
| Frequency Range (-10dB) | 60 Hz - 19 kHz |
| Frequency Response (±3 dB) | 75 Hz - 17 kHz |
| Power Rating | 350 watts continuouspink noise1400 watts peak |
| Sensitivity | 99 dB-SPL half-space / wall-mounted97 dB-SPL free-field |
| Maximum Peak SPL | 130 dB/1m |
| Nominal Impedance | 8 ohms |
| Horizontal Coverage Angle (-6dB) | 100° averaged 400 Hz to 12 kHz |
| Vertical Coverage Angle (-6dB) | 80° averaged 400 Hz to 12 kHz |
| Directivity Factor (Q) | 7 averaged 400 Hz to 12 kHz |
| Directivity Index (DI) | 8.4 dB averaged 400 Hz to 12 kHz |
| Crossover Frequency | 1.4 kHz |
| High Frequency Contour | ISO2969 Curve X surround contour |
| Polarity | EIA (Positive voltage to RED terminal gives forward cone motion) |
| Low Freq Transducer Nominal Diameter | 250 mm (10 in)64 mm (2.5 in) voice coil |
| High Freq Transducer Nominal Diameter | 25 mm (1 in) exit38 mm (1.5 in) voice coil |
| Downward Firing Angle | Nominal 20° when mounted flush on back panel |
| Enclosure Material | Textured Black H.I.P.S. Plastic |
| Grille Color | Black |
| Input Connectors | 5-way binding posts |
| Dimensions (H x W x D) | 457 mm x 457 mm x 260 mm(18 in x 18 in x 10.25 in) |
| Net Weight | 9.5 kg (21 lb) |
Braket Sudut Tetap Quick-Mount®
Rotasi Pan dan Tilt Speaker Mount 2517
2517 Speaker Mount
[143 KB]
2517 Cinema Surround Bracket CAD drawing
[1,39 MB]
