SRX918SF

18-tommers aktivt flyvbart subwoofer

SRX918SF

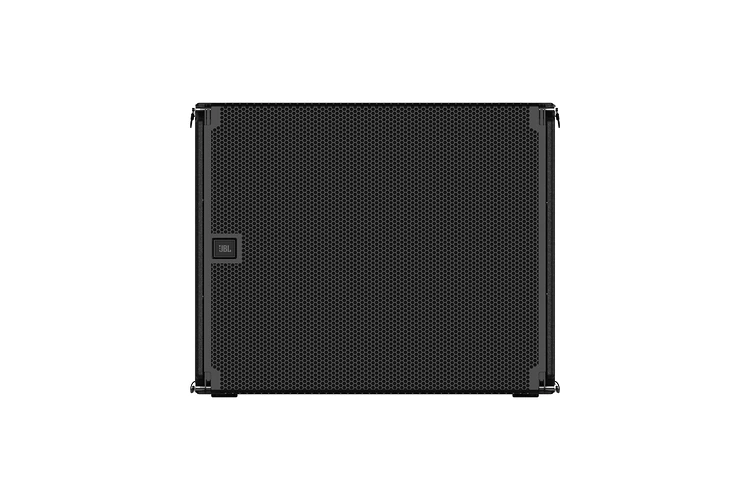

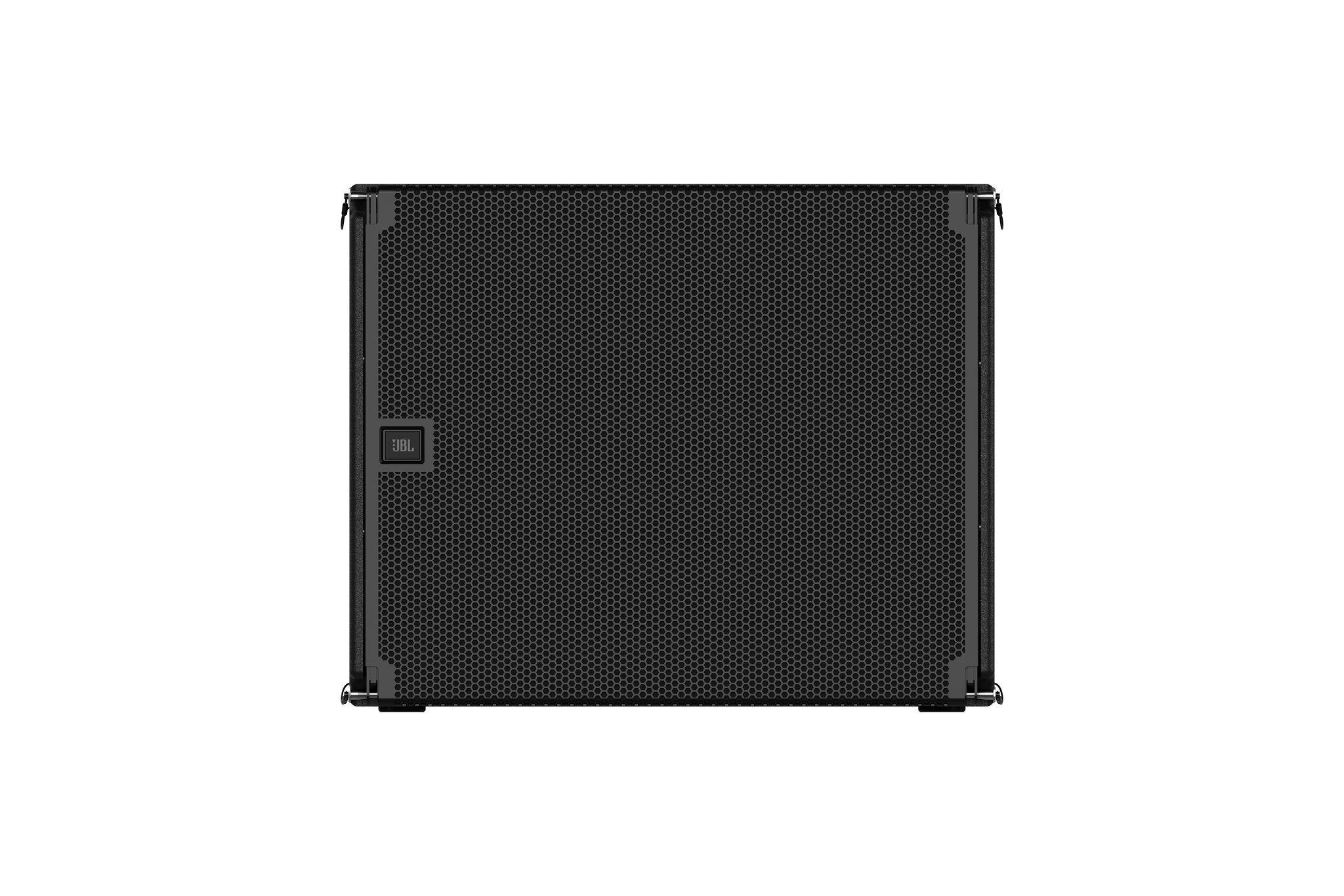

The SRX918SF is a powered, flyable single 18-inch subwoofer designed to be deployed in suspended or ground-stacked configurations to complement SRX900 Series full-range systems. The integrated three-point rigging system in the SRX918SF allows units to be suspended in standalone arrays or in combination with SRX910LA cabinets in mixed-array configurations.

The subwoofer houses a JBL 2279-1 18-inch woofer featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs. Built-in DSP and amplification offer a plug-and-play experience while providing consistency and optimum performance anywhere in the world.

The SRX918SF incorporates a large low-frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A reinforced 18 mm birch plywood cabinet ensures enhanced strength and durability. A full-featured software package gives users complete control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here.

Funktioner

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion and class-leading output
  • Built-in, passively-cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Complete control and configuration with JBL Performance software over HARMAN's HControl protocol
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides access to control features
  • Reinforced birch plywood enclosures
  • M20 threaded mount for pole mounting or ground stacking full range components
  • Integrated three-point rigging system

Downloads

Specifications
  Version Sprog Størrelse Uploadet
file type icon SRX918SF Spec Sheet
en version A, opdateret: jan 2025
en  443 kB jan 2025
Manuals
  Version Sprog Størrelse Uploadet
file type icon SRX900 Series User Manual
en version D, opdateret: jan 2026
en  12 MB jan 2026
file type icon SRX900LA Rigging Manual
en version F, opdateret: feb 2026
en  48,3 MB feb 2026
file type icon SRX900PS Rigging Manual
en version A, opdateret: jan 2026
en  8,28 MB jan 2026
file type icon Assembly Instructions - powerCON TRUE1
en version 4.0, opdateret: jan 2025
4.0  en  8,64 MB jan 2025
CAD Drawings
  Version Størrelse Uploadet
file type icon SRX918SF Customer Drawings
version B, opdateret: jan 2025
1,99 MB jan 2025
file type icon SRX900 Series Revit/BIM Files
version 3.0, opdateret: feb 2026
3.0  74,2 MB feb 2026
file type icon SRX900 Series Sketchup Files
version 3.0, opdateret: feb 2026
3.0  10 MB feb 2026
Software
  Version Størrelse Uploadet
download icon for Venue Synthesis Venue Synthesis
udgivet: jan 2025
  jan 2025
download icon for ArrayLink ArrayLink
udgivet: jan 2025
  jan 2025
download icon for Performance Software Performance Software
udgivet: jan 2025
  jan 2025
download icon for SRX900 Module for AMX SRX900 Module for AMX
udgivet: jan 2025
  jan 2025
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
version 1.2.0.0, opdateret: mar 2026
1.2.0.0   4,15 MB mar 2026
Firmware
  Version Sprog Størrelse Uploadet
file type icon SRX900 Series Firmware Changelog
en version 2.0.1, opdateret: mar 2026
2.0.1  en  123 kB mar 2026
Simulation Data
  Version Størrelse Uploadet
file type icon SRX900LA - EASE GLL
version 2.0, opdateret: jan 2026
2.0  20,6 MB jan 2026
file type icon SRX900PS - EASE GLL
version 1.0, opdateret: jan 2026
1.0  10,2 MB jan 2026
Declaration of Conformity
  Version Sprog Størrelse Uploadet
file type icon SRX900 Series - EU Declaration of Conformity
en version D, opdateret: mar 2026
en  512 kB mar 2026
file type icon SRX900 Series - UKCA Declaration of Conformity
en version D, opdateret: mar 2026
en  441 kB mar 2026
file type icon SRX900 Series - CB Certificate of Compliance
en version D, opdateret: feb 2026
en  699 kB feb 2026
file type icon SRX900 Series - UL Certificate of Compliance
en version D, opdateret: feb 2026
en  1,55 MB feb 2026
file type icon SRX900 Series - CQC Certificate of Compliance
zh version C, opdateret: feb 2026
zh  2,11 MB feb 2026
file type icon SRX900 Series - KC Certificate of Compliance
ko version C, opdateret: mar 2026
ko  2,56 MB mar 2026
file type icon SRX900 Series - Taiwan RoHS Documentation
zh version B, opdateret: jun 2025
zh  137 kB jun 2025
Service Notes
  Version Sprog Størrelse Uploadet
file type icon SRX918SF Spare Parts
en version A, opdateret: feb 2026
en  115 kB feb 2026

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (-10dB) 35 Hz -100 Hz
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL 134 dB
System Type Active Subwoofer
Amplifier Design Class-D
Continuous Power Rating 1,100 Watts
LF Driver (1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure Exterior grade birch plywood, Black DuraFlex finish
Dimensions (H x W x D) 575 mm x 710 mm x 683 mm
(22.6 in x 28.0 in x 26.9 in)
Net Weight (each) 54.4 kg (120 lbs)

Tilbehør

SRX910LA AF | Rammesystem til SRX910LA og SRX918SF
SRX910LA AF Main photo
Større billeder
SRX910LA AF detail thumbnail #1 SRX910LA AF detail thumbnail #2 SRX910LA AF detail thumbnail #3 SRX910LA AF detail thumbnail #4

Højdepunkter:

  • Kompakt og letvægts design
  • Kompatibel med SRX910LA og SRX918SF
  • Præcisions optagelsespunkt-opløsning
  • Tvedelt sammenklappelig design
  • Understøttelse af laser-inklinometre fra tredjeparter
  • Kompatibel spændebøjle størrelse: 1/2 in

Inkluderet:

  • (1) Sprederstang
  • (1) Forlængelsesstang
  • (1) 1/2-tommer spændebøjle
  • (1) Laserbakke og hardware

Dokumentation
ACK1 | Accessory Caster Kit
ACK1 Main photo
Større billeder
ACK1 detail thumbnail #1 ACK1 detail thumbnail #2 ACK1 detail thumbnail #3 ACK1 detail thumbnail #4

Highlights:

  • Universal caster kit for JBL products
  • Compatible with all SRX900 Series subwoofers
  • Black housing for discreet look
  • Black polyurethane wheel
  • Anti-rattle features for vibration-free operation

Included:

  • (4) Casters + Installation Hardware

Dokumentation
SRX918SF CVR | Cover for SRX918SF
SRX918SF CVR Main photo
Større billeder
SRX918SF CVR detail thumbnail #1 SRX918SF CVR detail thumbnail #2 SRX918SF CVR detail thumbnail #3 SRX918SF CVR detail thumbnail #4

Highlights:

  • Heavy duty soft cover for SRX918SF subwoofer
  • Handle cutouts for easy transportation
  • Includes folding feature for storage
  • Internally reinforced for grille protection

Included:

  • (1) Cover

Notes:

  • The SRX918SF CVR is not compatible with the SRX918S subwoofer
  • Use the SRX918S CVR for the SRX918S

Dokumentation
SRX918S VT | Vertical Transporter for SRX918S/SF
SRX918S VT Main photo
Større billeder
SRX918S VT detail thumbnail #1 SRX918S VT detail thumbnail #2 SRX918S VT detail thumbnail #3 SRX918S VT detail thumbnail #4

Highlights:

  • Vertical transport cart for SRX918S/SRX918SF
  • Support for up to three cabinets
  • Truck-friendly dimensions
  • Built-in stacking features for easy storage
  • Heavy duty casters
  • One black ratchet strap included

Included:

  • (1) SRX918S VT
  • (1) Black Ratchet Strap

Dokumentation
SRX918S VT CVR | Vertical Transporter Cover for SRX918S/SF
SRX918S VT CVR Main photo
Større billeder
SRX918S VT CVR detail thumbnail #1 SRX918S VT CVR detail thumbnail #2 SRX918S VT CVR detail thumbnail #3 SRX918S VT CVR detail thumbnail #4

Highlights:

  • Heavy duty soft cover for SRX918S/SRX918SF
  • Covers two or three enclosures
  • Includes amplifier flaps for testing purposes
  • Handle cutouts for easy transportation
  • Heavy duty industrial-grade zippers
  • Foldable design for storage

Included:

  • (1) Cover

Dokumentation
SRX900 RC1 | Rain Cover, compatible with all SRX900 models
SRX900 RC1 Main photo
Større billeder
SRX900 RC1 detail thumbnail #1 SRX900 RC1 detail thumbnail #2 SRX900 RC1 detail thumbnail #3 SRX900 RC1 detail thumbnail #4

Highlights:

  • Universal rain cover for SRX900 products
  • Flexible material for conforming to cables
  • Covers LCD, audio, and data connections
  • Unfolds for easy cable and LCD access
  • Designed to remain attached

Compatibility:

  • SRX906LA
  • SRX910LA
  • SRX915SF
  • SRX918SF
  • SRX918S
  • SRX928S

Included:

  • (1) Rain Cover
  • (5) T15 M3.5 Screws

Dokumentation
