Control 412C/T

3" højtaler med fuldt frekvensspektrum til loft

Control 412C/T
Større billeder

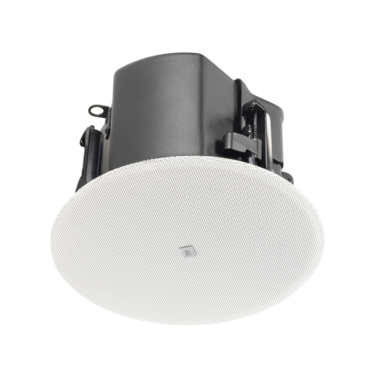

The JBL Control 412C/T, part of the Control 400 Standard Coverage Series, is a full-range ceiling loudspeaker, featuring a 3” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 412C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 412C/T supports both 70V/100V and low impedance applications.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

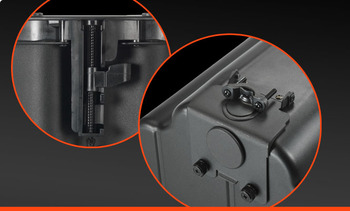

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

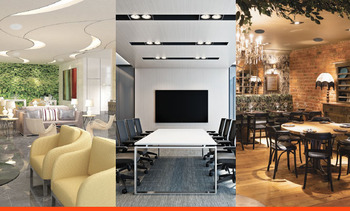

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Funktioner

  • 76 mm (3 in) full-range driver
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated

Downloads

Specifications
  Sprog Størrelse Uploadet
file type icon Control 412C/T - Spec Sheet
en opdateret: aug 2025
en  775 kB aug 2025
Manuals
  Version Størrelse Uploadet
6,81 MB aug 2025
Brochures
  Størrelse Uploadet
file type icon 2025 Control 400 Family Brochure
opdateret: aug 2025
3,9 MB aug 2025
CAD Drawings
  Størrelse Uploadet
9,11 MB aug 2025
Compliances
  Størrelse Uploadet
537 kB jan 2026
466 kB jan 2026
Software
  Version Størrelse Uploadet
Windows download icon Distributed System Design (DSD)
version 3.9, opdateret: nov 2025
3.9   612 kB nov 2025
Technical Papers
  Størrelse Uploadet
768 kB nov 2025
Ease Data
  Størrelse Uploadet
file type icon Control 412C/T – CLF File
opdateret: okt 2025
326 kB okt 2025
file type icon Control 412C/T - EASE GLL
opdateret: aug 2025
746 kB aug 2025
Speaker Tunings
  Størrelse Uploadet
441 kB aug 2025

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (-10 dB) 68Hz - 17kHz
Power Capacity 30W (120W Peak) Cont. Pink Noise (2 hrs)
20W (80W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W) 84dB
Coverage Angle 160° conical
Maximum SPL (1m) 99 dB continuous pink noise (105 dB peak)
Nominal Impedance
Transformer Taps 70 V: 15 W, 7.5 W, 3.8 W & 1.9 W
100 V: 15 W, 7.5 W, 3.8 W
Drivers 76 mm (3 in) full range driver with paper cone and SBR surround
Ceiling Cutout Size 168 mm (6.6 in)
Dimensions 143 mm (5.7 in) H x 203 mm (8.1 in) dia.
134 mm (5.4 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories JBL-MTC-414BG black (RAL9004) round grille
JBL-MTC-414SG white (RAL9003) square grille
JBL-MTC-414WG white (RAL9003) weather grille
JBL-MTC-424NC new construction bracket
JBL-MTC-424MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 1.75 kg (3.86 lbs)
Shipping Weight (pair) 7.92 kg (17.46 lbs)
SKU Numbers JBL-C412C/T
