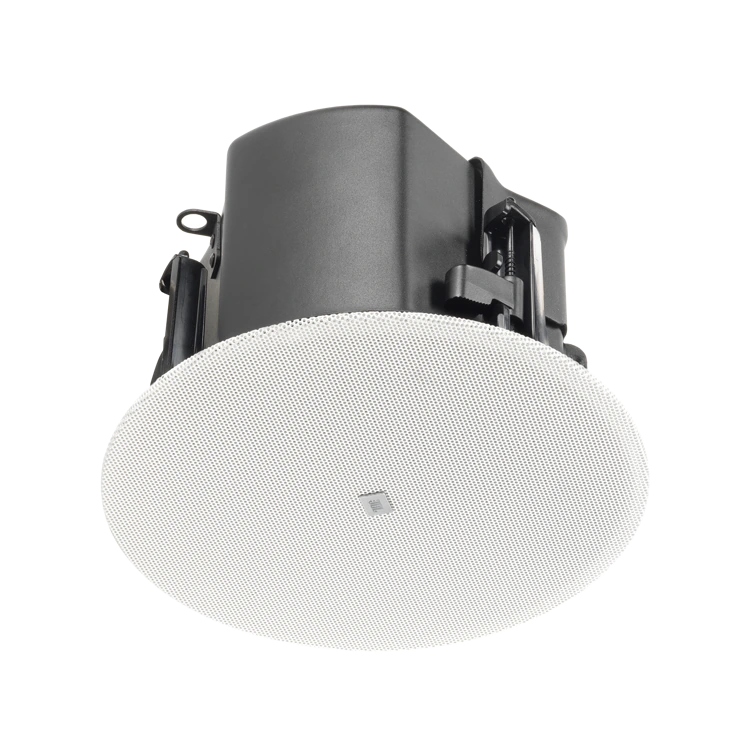

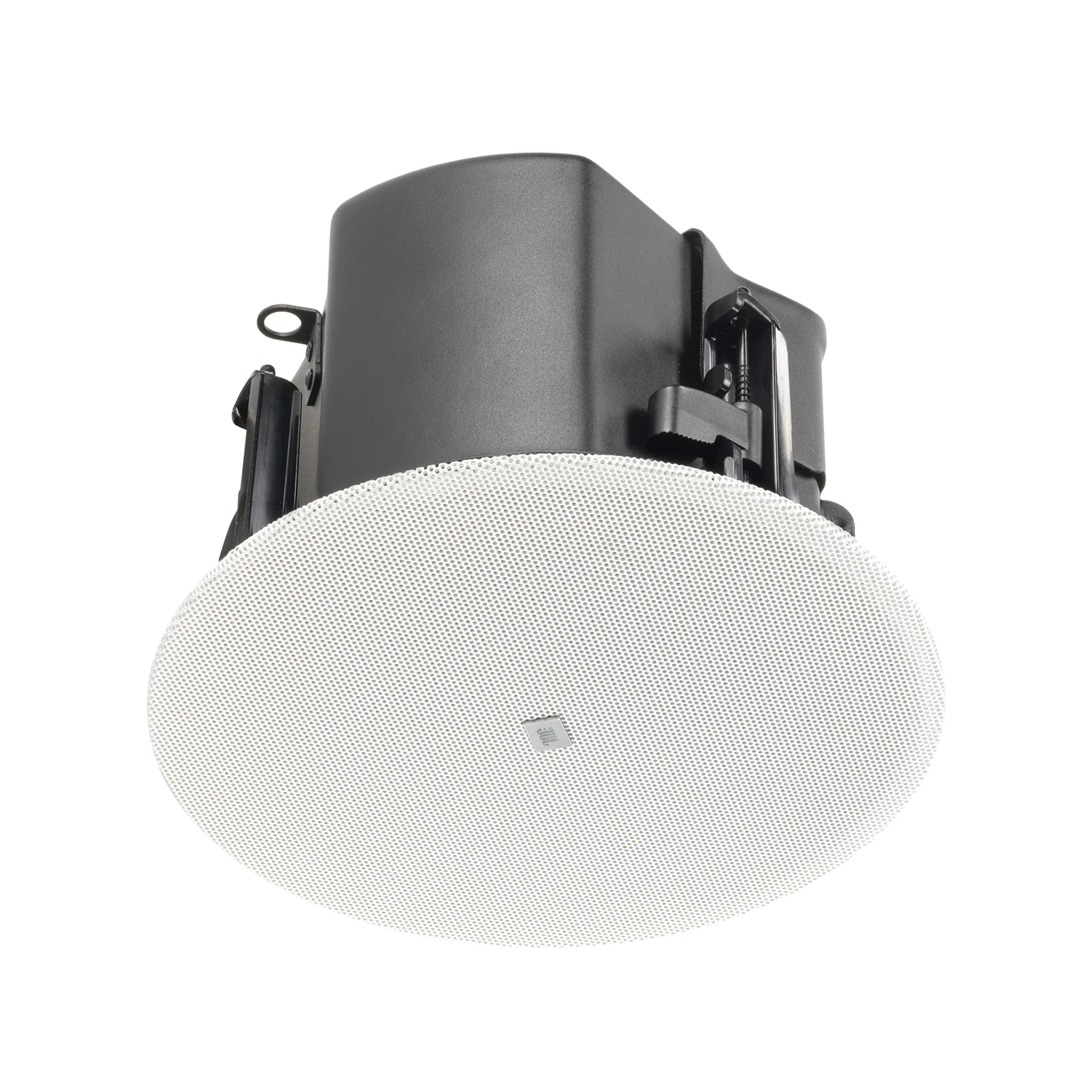

JBL Professional Control 412C/T

큰 이미지

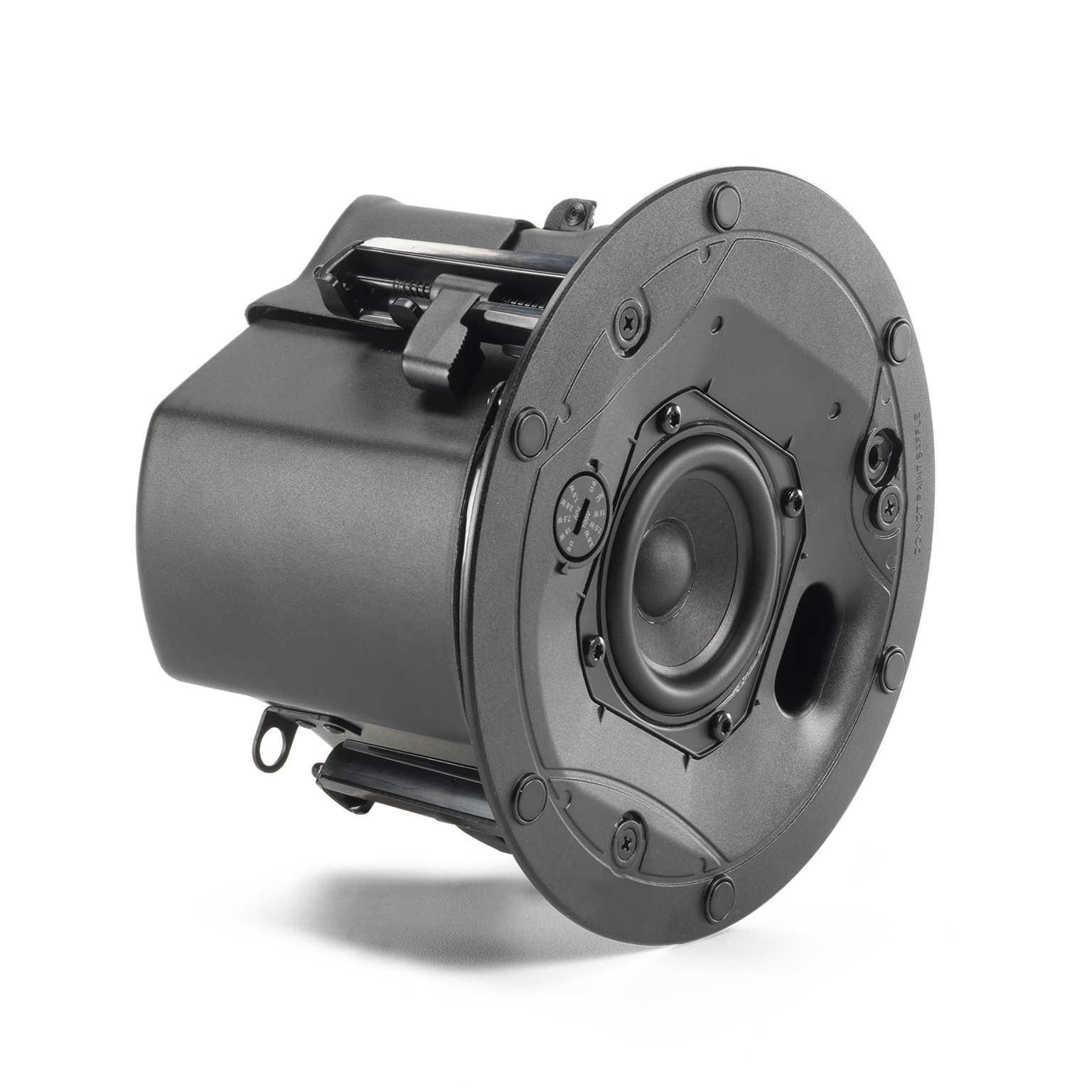

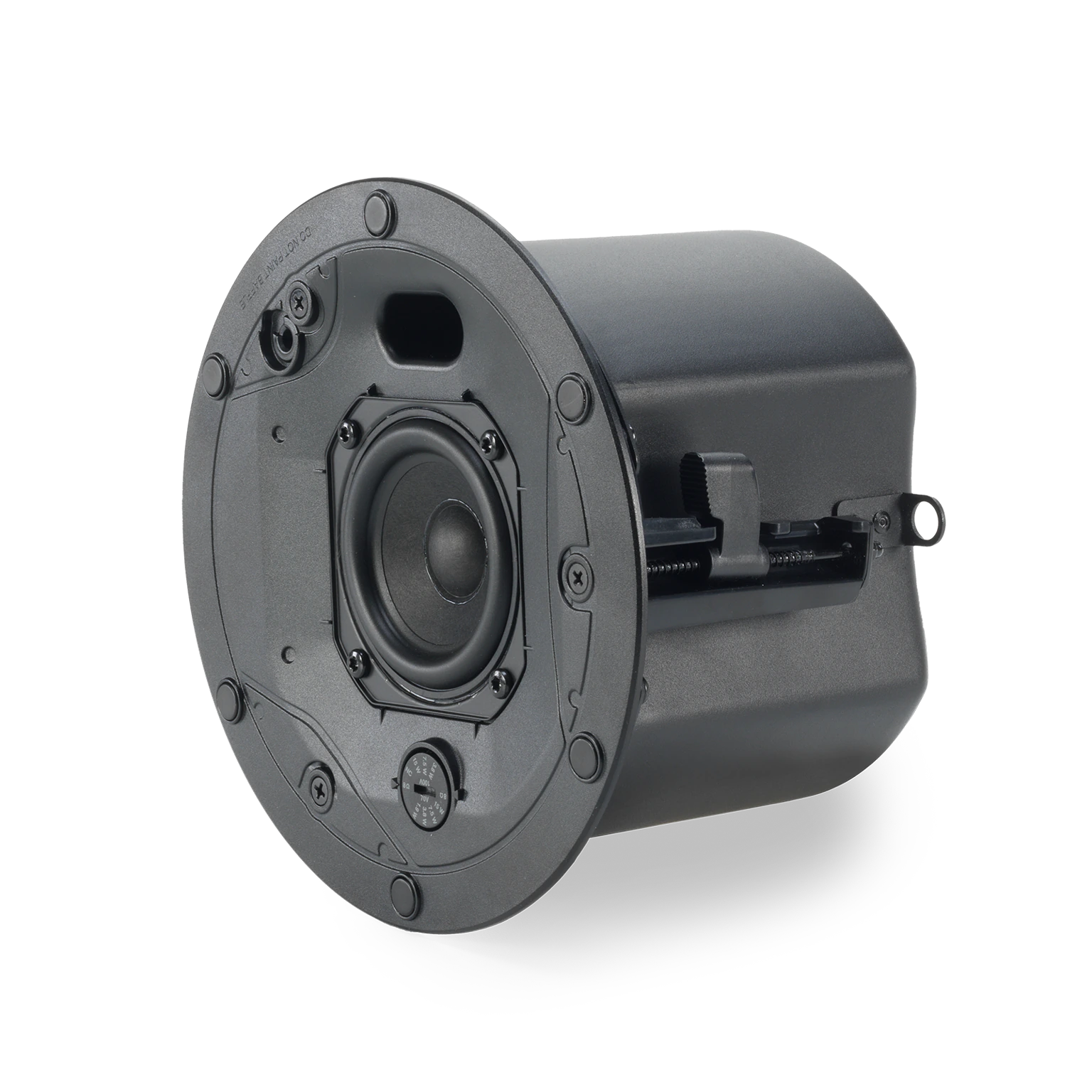

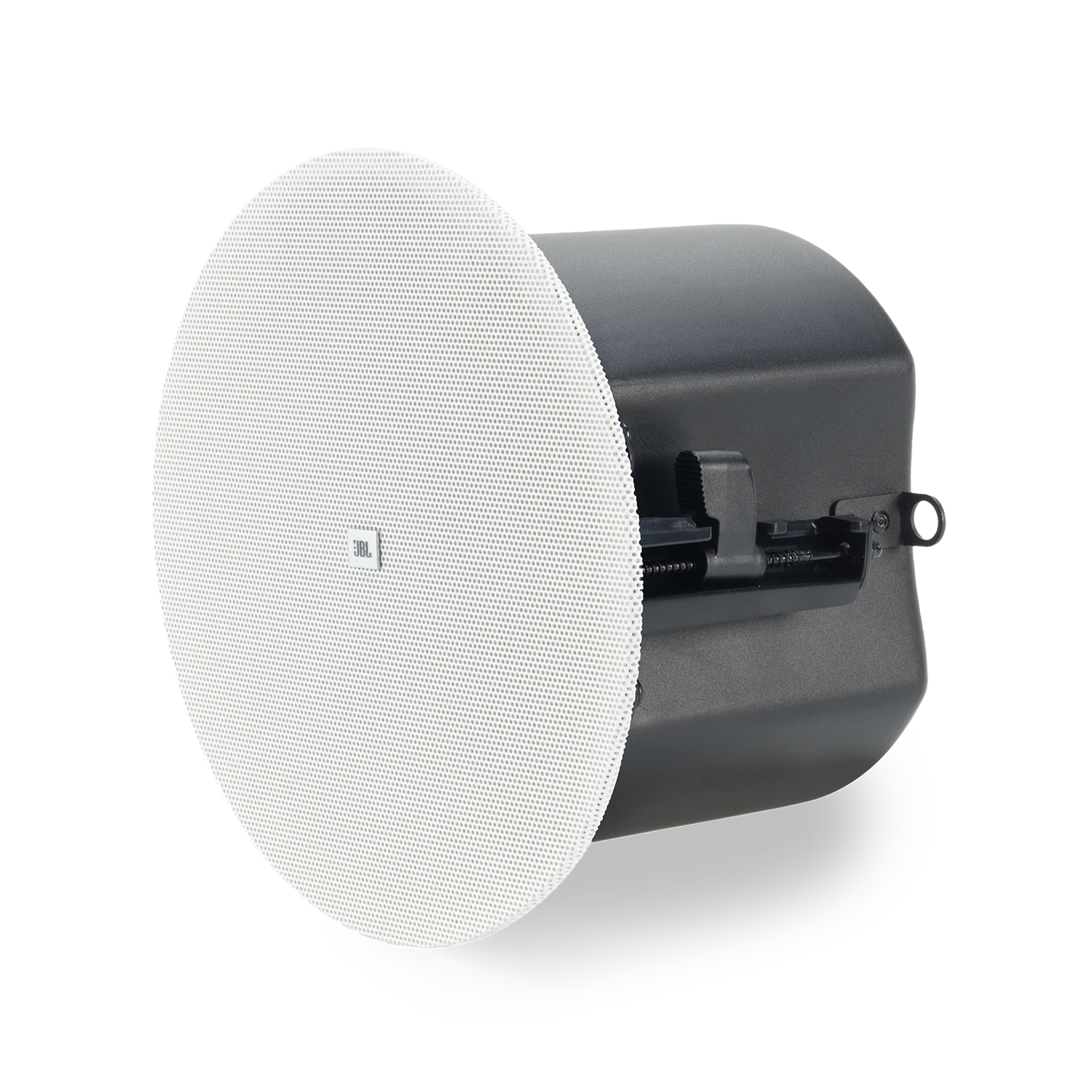

The JBL Control 412C/T, part of the Control 400 Standard Coverage Series, is a full-range ceiling loudspeaker, featuring a 3” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 412C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 412C/T supports both 70V/100V and low impedance applications.

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.
REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

특징

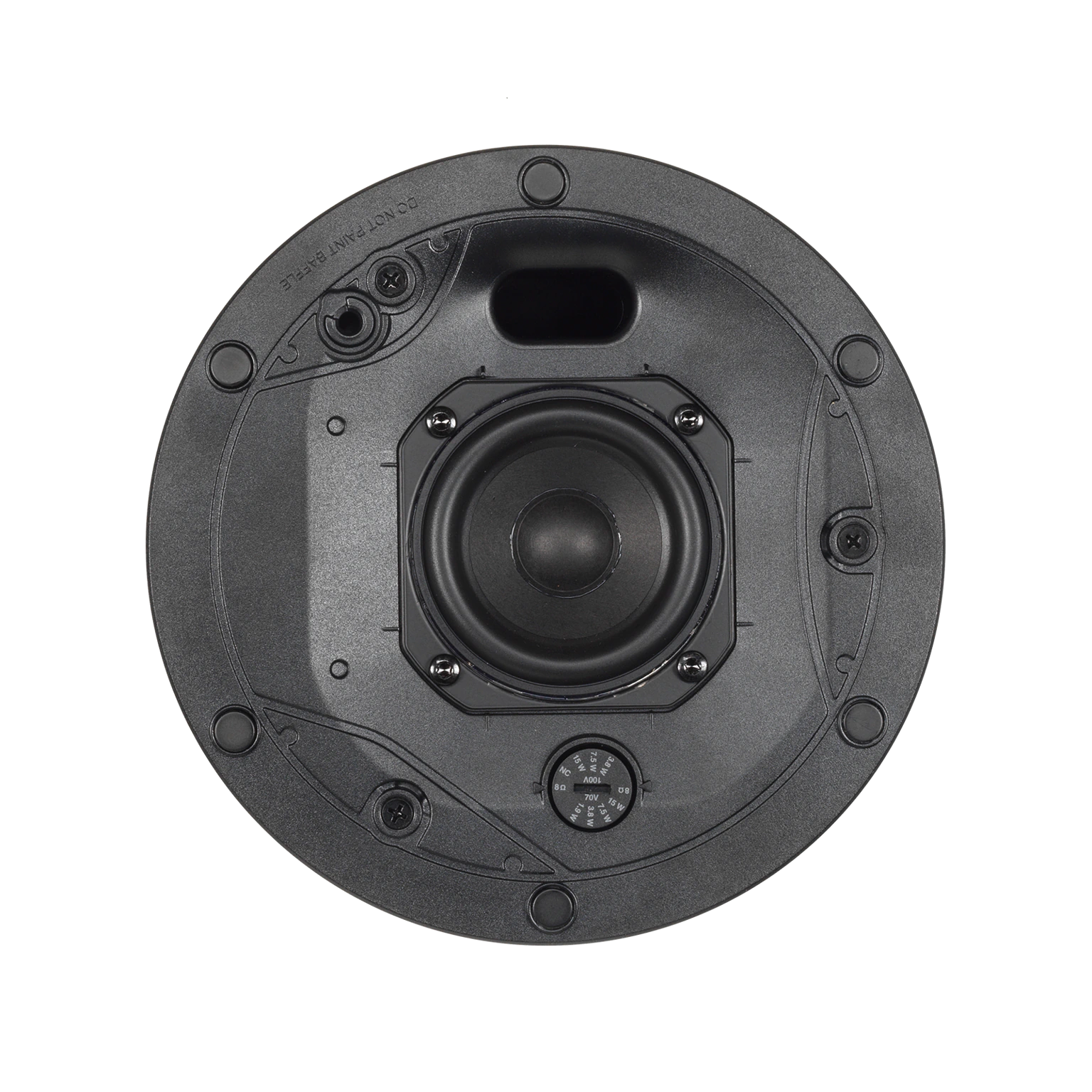

76 mm (3 in) full-range driver
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

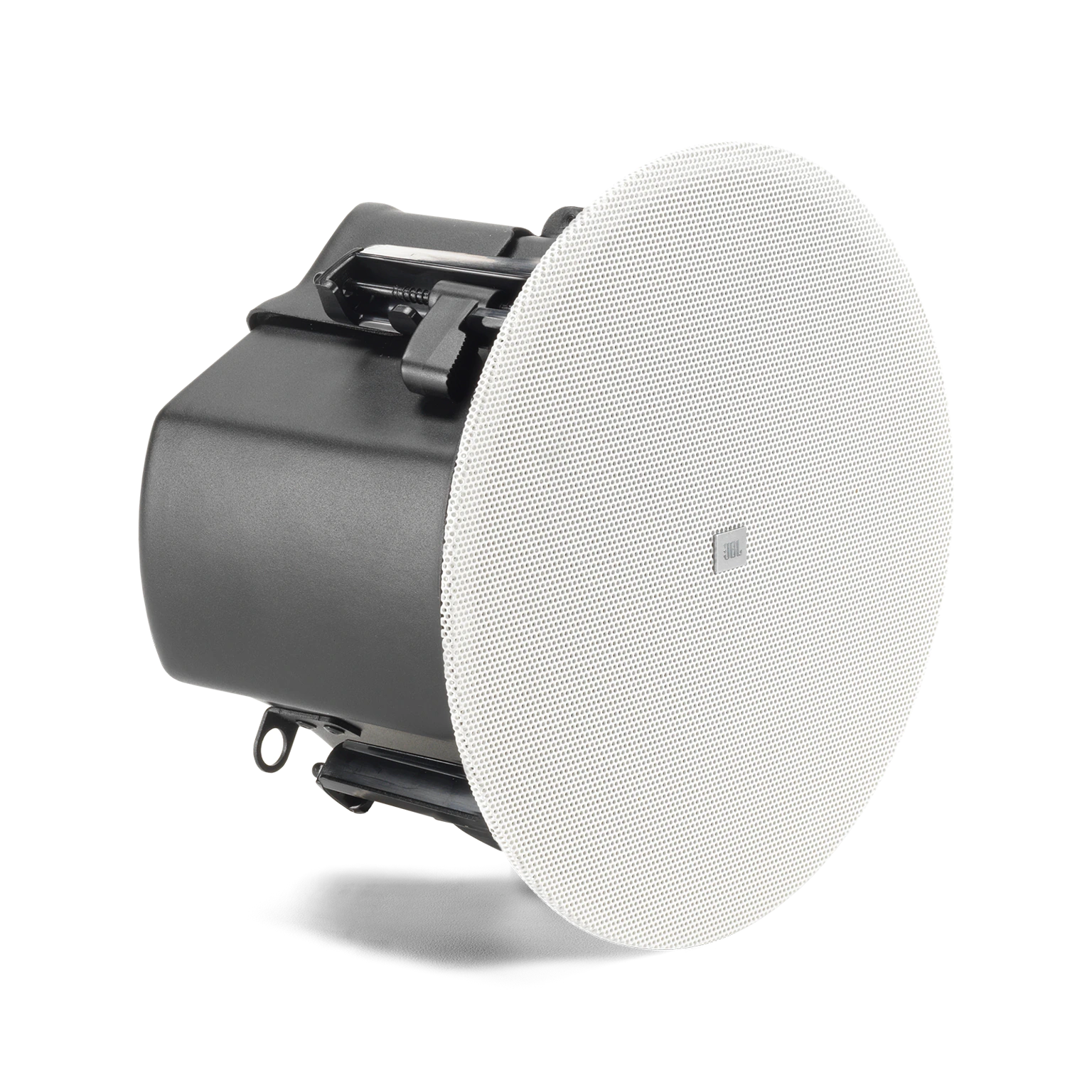

Full-face, easily paintable magnetic grilles

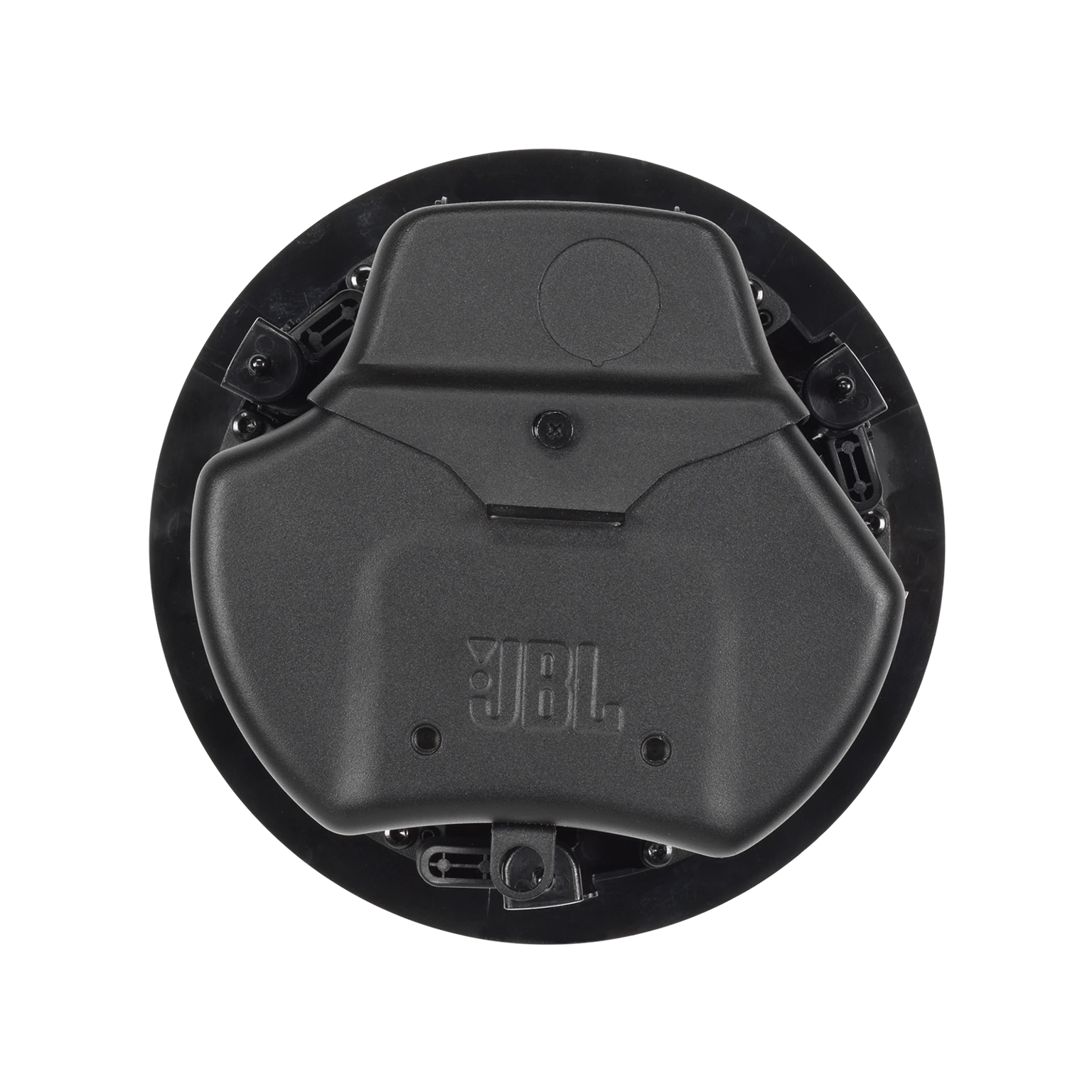

Top and side cable entry options

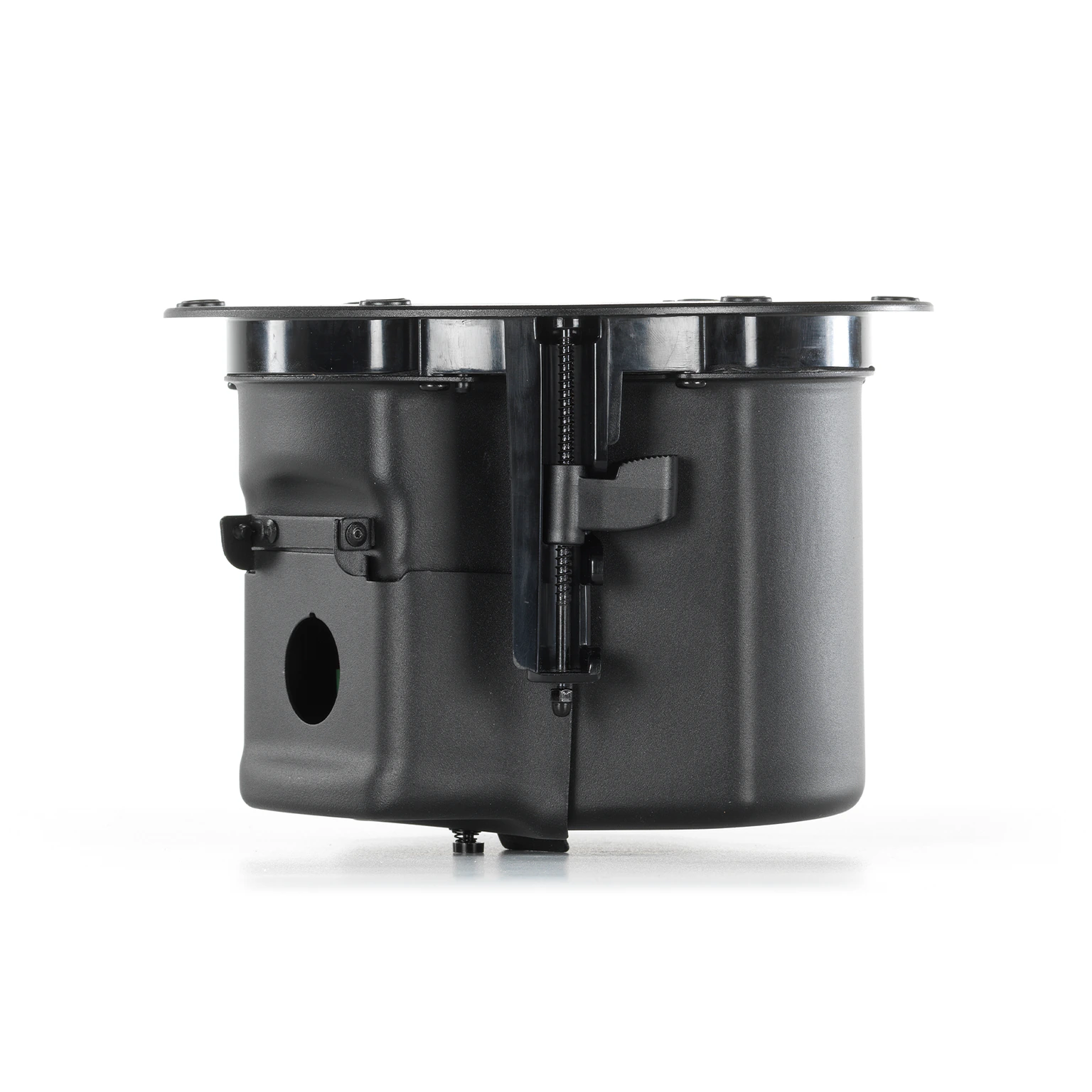

Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated

다운로드

Specifications

	언어	크기	업로드 날짜
Control 412C/T - Spec Sheet 업데이트: 2025년 8월		775KB	2025년 8월

Manuals

	버전	크기	업로드 날짜
Control 400 Standard Coverage Series - Owner's Manual 버전 A, 업데이트: 2025년 8월	A	6.81MB	2025년 8월

Brochures

	크기	업로드 날짜
2025 Control 400 Family Brochure 업데이트: 2025년 8월	3.9MB	2025년 8월

CAD Drawings

	크기	업로드 날짜
Control 412C/T - Customer Drawings 업데이트: 2025년 8월	9.11MB	2025년 8월

Compliances

	크기	업로드 날짜
Control 400 Standard Coverage Series – UKCA Declaration of Conformity 업데이트: 2026년 1월	466KB	2026년 1월
Control 400 Standard Coverage Series – CE Declaration of Conformity 업데이트: 2026년 1월	537KB	2026년 1월

Software

	버전	크기	업로드 날짜
Distributed System Design (DSD) 버전 3.9, 업데이트: 2025년 11월	3.9	612KB	2025년 11월

Technical Papers

	크기	업로드 날짜
Technology Overview - Directivity Control in Ceiling Loudspeakers 업데이트: 2025년 11월	768KB	2025년 11월

Ease Data

	크기	업로드 날짜
Control 412C/T – CLF File 업데이트: 2025년 10월	326KB	2025년 10월
Control 412C/T - EASE GLL 업데이트: 2025년 8월	746KB	2025년 8월

Speaker Tunings

	크기	업로드 날짜
Control 400 Standard Coverage Series - Recommended DSP Tunings 업데이트: 2025년 8월	441KB	2025년 8월

Accessories

	버전	크기	업로드 날짜
Ceiling Speaker Accessory Guide 버전 2026-04, 업데이트: 2026년 5월	2026-04	570KB	2026년 5월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

부품 및 서비스

사양

Frequency Range (-10 dB)	68Hz - 17kHz
Power Capacity	30W (120W Peak) Cont. Pink Noise (2 hrs) 20W (80W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)	84dB
Coverage Angle	160° conical
Maximum SPL (1m)	99 dB continuous pink noise (105 dB peak)
Nominal Impedance	8Ω
Transformer Taps	70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W
Drivers	76 mm (3 in) full range driver with paper cone and SBR surround
Ceiling Cutout Size	168 mm (6.6 in)
Dimensions	143 mm (5.7 in) H x 203 mm (8.1 in) dia. 134 mm (5.4 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating	Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental	IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Optional Accessories	JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color	Stock grille is White (RAL9003), paintable
Net Weight (ea)	1.75 kg (3.86 lbs)
Shipping Weight (pair)	7.92 kg (17.46 lbs)
SKU Numbers	JBL-C412C/T
