JBL Professional Control 412C/T

较大的图像

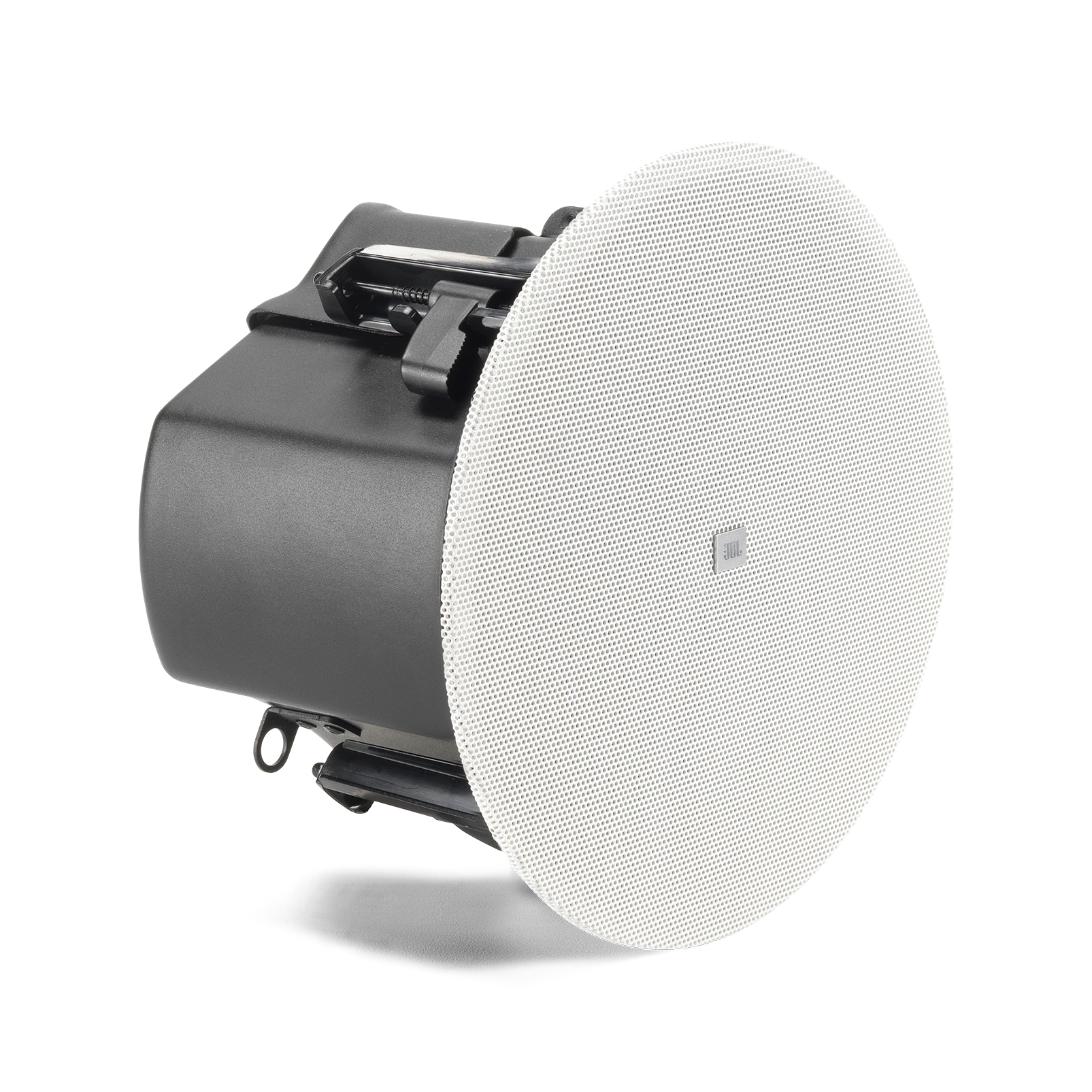

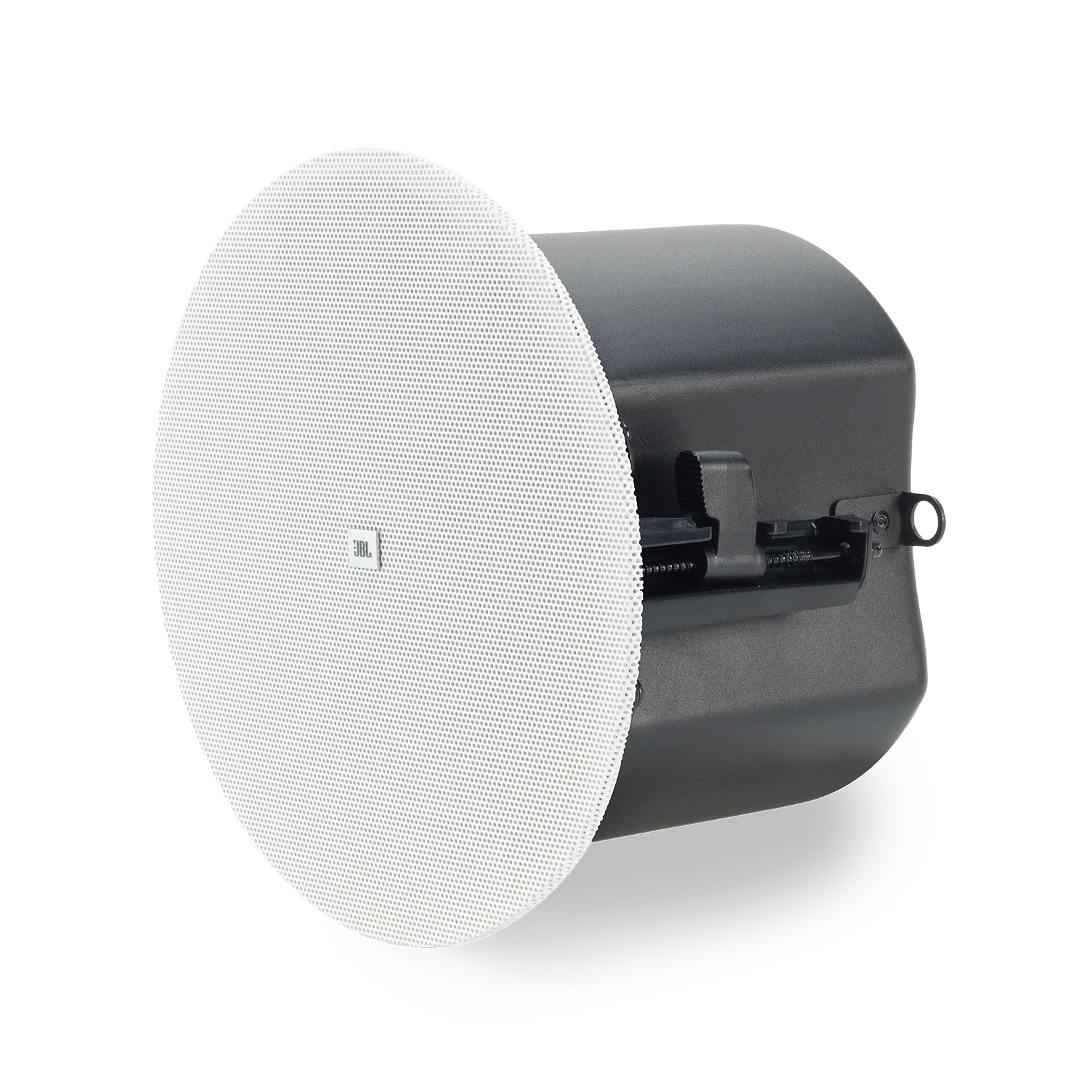

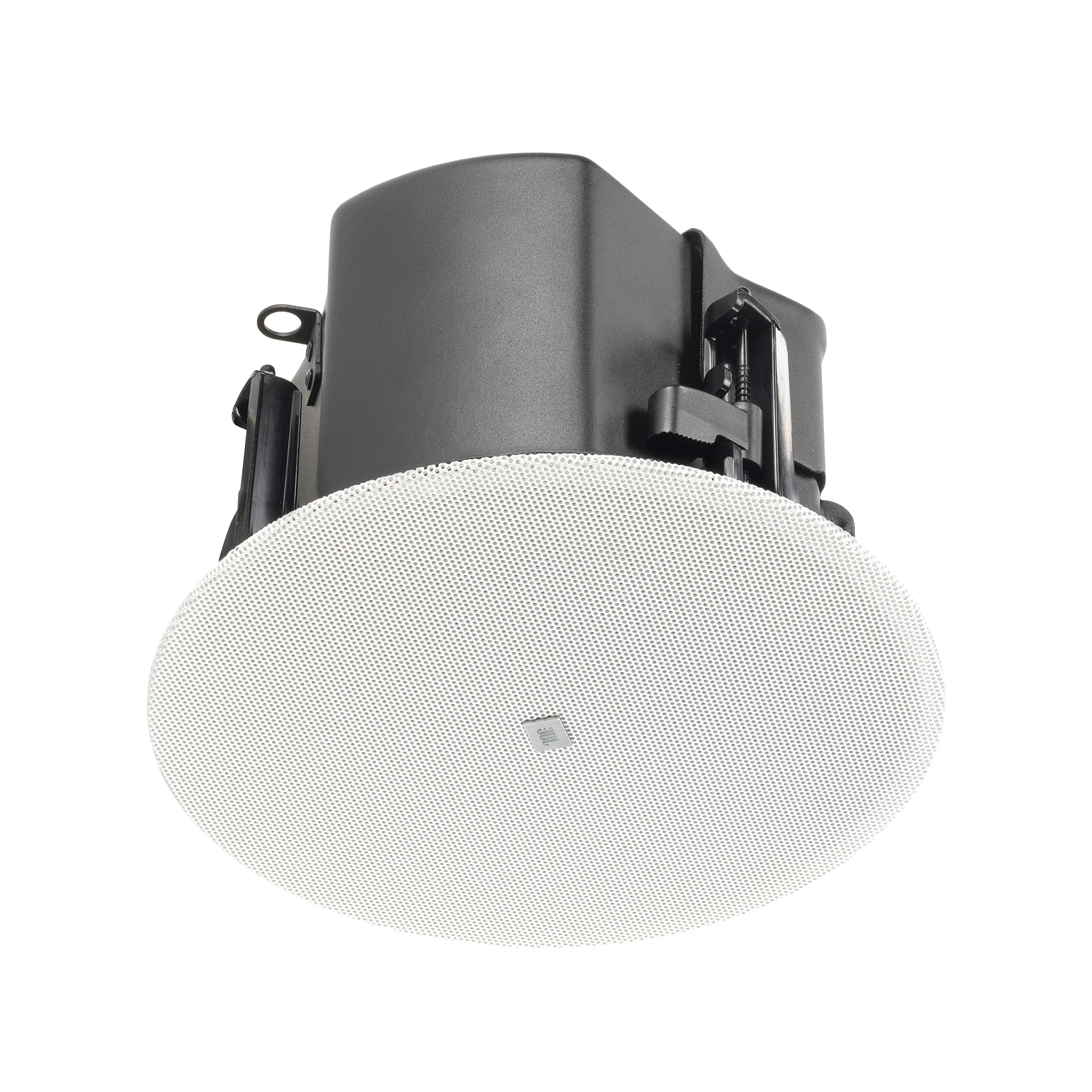

JBL Control 412C/T，作为Control 400标准覆盖系列的一部分，是一款全频吊顶扬声器，配备3寸驱动单元和集成外壳，非常适合安装在大多数吊顶气流空间中。

所有Control 400系列型号均旨在无缝融入现代室内环境。随附的全面磁性网罩可进行喷漆，以便与任何装饰风格相结合，同时提供的黑色圆形和白色方形网罩则提供了额外的定制选项。

Control 412C/T具备经过精心设计的安装特性，以提高安全性、效率和可重复性。端子盖允许方便的顶部或侧面电缆接入，可靠的固定狗耳设计适应各种吊顶厚度，确保在任何环境下的多功能性。此外，Control 412C/T支持70V/100V和低阻抗应用。

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.
REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

特点

76 mm (3 in) full-range driver
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
Full-face, easily paintable magnetic grilles

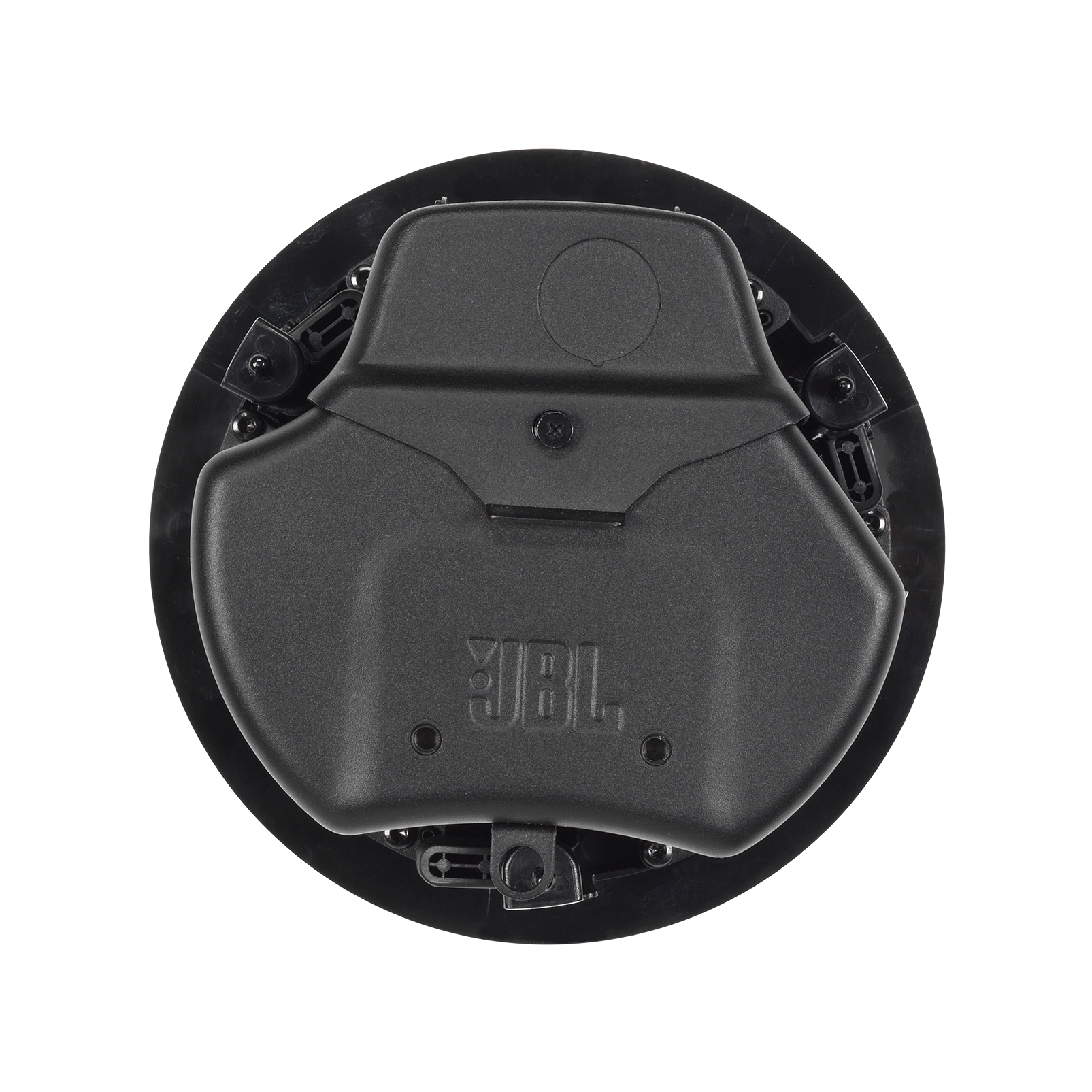

Top and side cable entry options

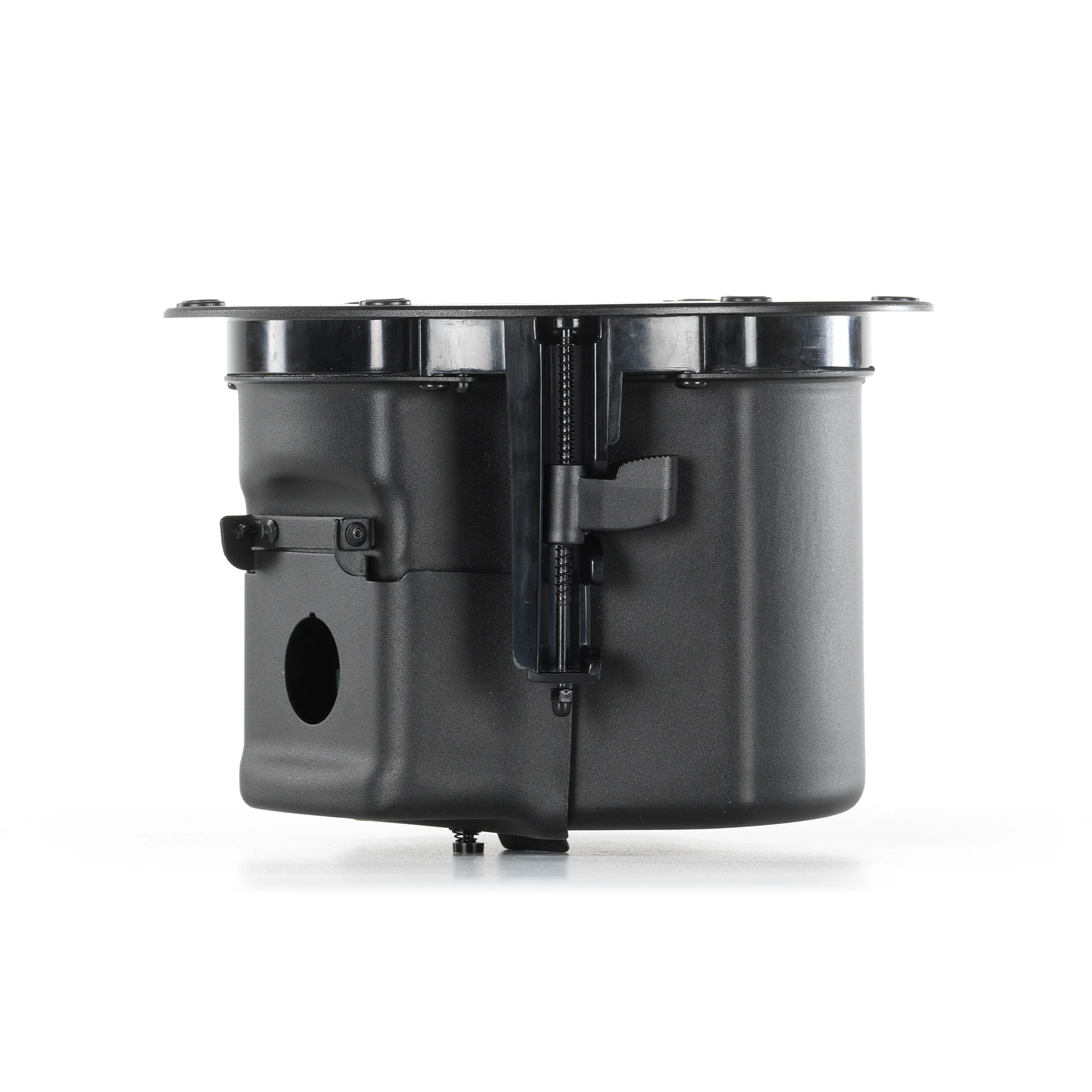

Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated

下载

Specifications

	语言	大小	上传日期
Control 412C/T - Spec Sheet 更新: 8月 2025		774.8 KB	8月 2025

Manuals

	版本	大小	上传日期
Control 400 Standard Coverage Series - Owner's Manual 版本 A, 更新: 8月 2025	A	6.8 MB	8月 2025

Brochures

	大小	上传日期
2025 Control 400 Family Brochure 更新: 8月 2025	3.9 MB	8月 2025

CAD Drawings

	大小	上传日期
Control 412C/T - Customer Drawings 更新: 8月 2025	9.1 MB	8月 2025

Compliances

	大小	上传日期
Control 400 Standard Coverage Series – UKCA Declaration of Conformity 更新: 1月 2026	465.8 KB	1月 2026
Control 400 Standard Coverage Series – CE Declaration of Conformity 更新: 1月 2026	537.3 KB	1月 2026

Software

	版本	大小	上传日期
Distributed System Design (DSD) 版本 3.9, 更新: 11月 2025	3.9	611.8 KB	11月 2025

Technical Papers

	大小	上传日期
Technology Overview - Directivity Control in Ceiling Loudspeakers 更新: 11月 2025	768.1 KB	11月 2025

Ease Data

	大小	上传日期
Control 412C/T – CLF File 更新: 10月 2025	326.2 KB	10月 2025
Control 412C/T - EASE GLL 更新: 8月 2025	746.4 KB	8月 2025

Speaker Tunings

	大小	上传日期
Control 400 Standard Coverage Series - Recommended DSP Tunings 更新: 8月 2025	440.6 KB	8月 2025

Accessories

	版本	大小	上传日期
Ceiling Speaker Accessory Guide 版本 2026-04, 更新: 5月 2026	2026-04	570.0 KB	5月 2026

如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。

零件与服务

性能

Frequency Range (-10 dB)	68Hz - 17kHz
功率容量	30W (120W Peak) Cont. Pink Noise (2 hrs) 20W (80W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)	84dB
覆盖角度	160° conical
Maximum SPL (1m)	99 dB continuous pink noise (105 dB peak)
标称阻抗	8Ω
变压器抽头	70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W

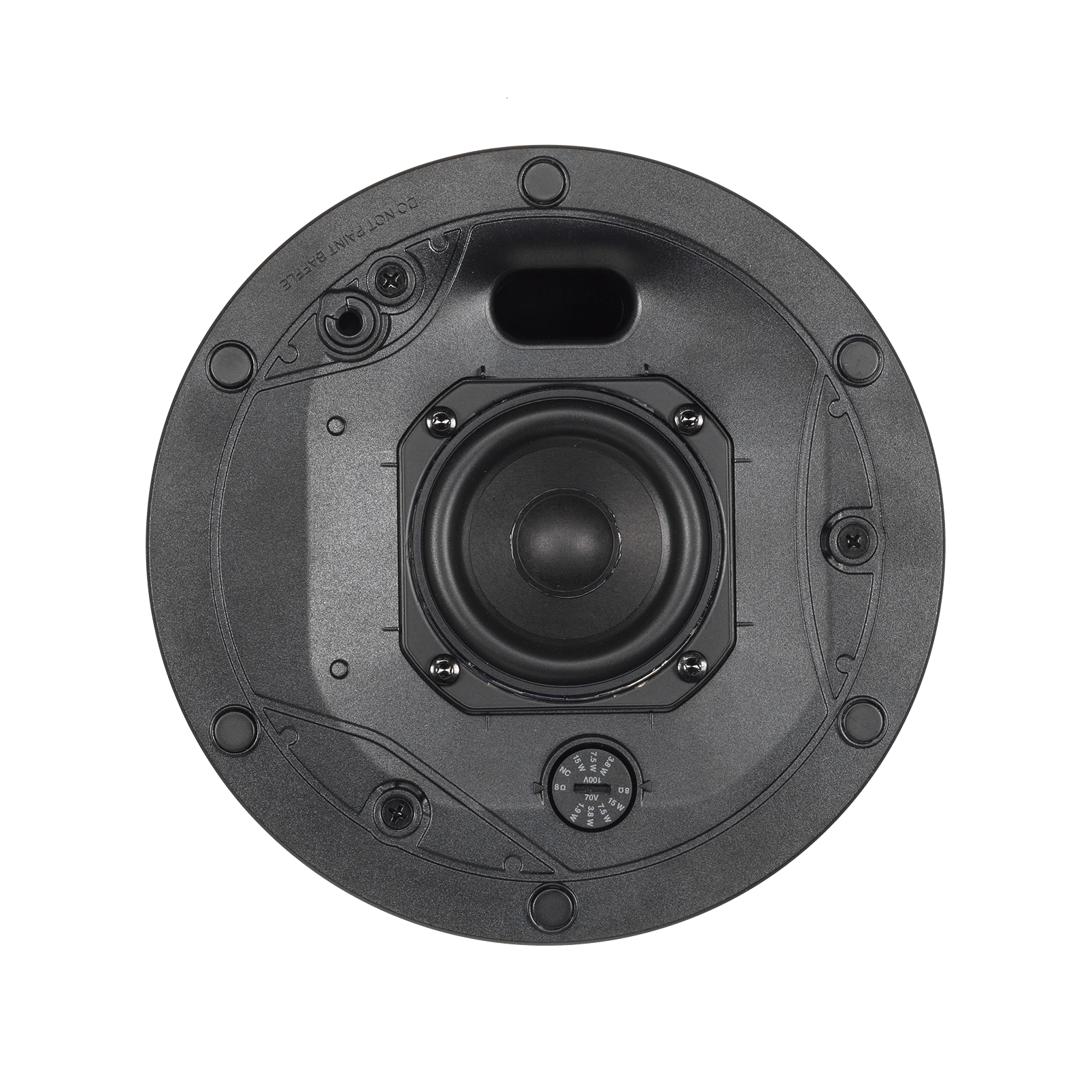

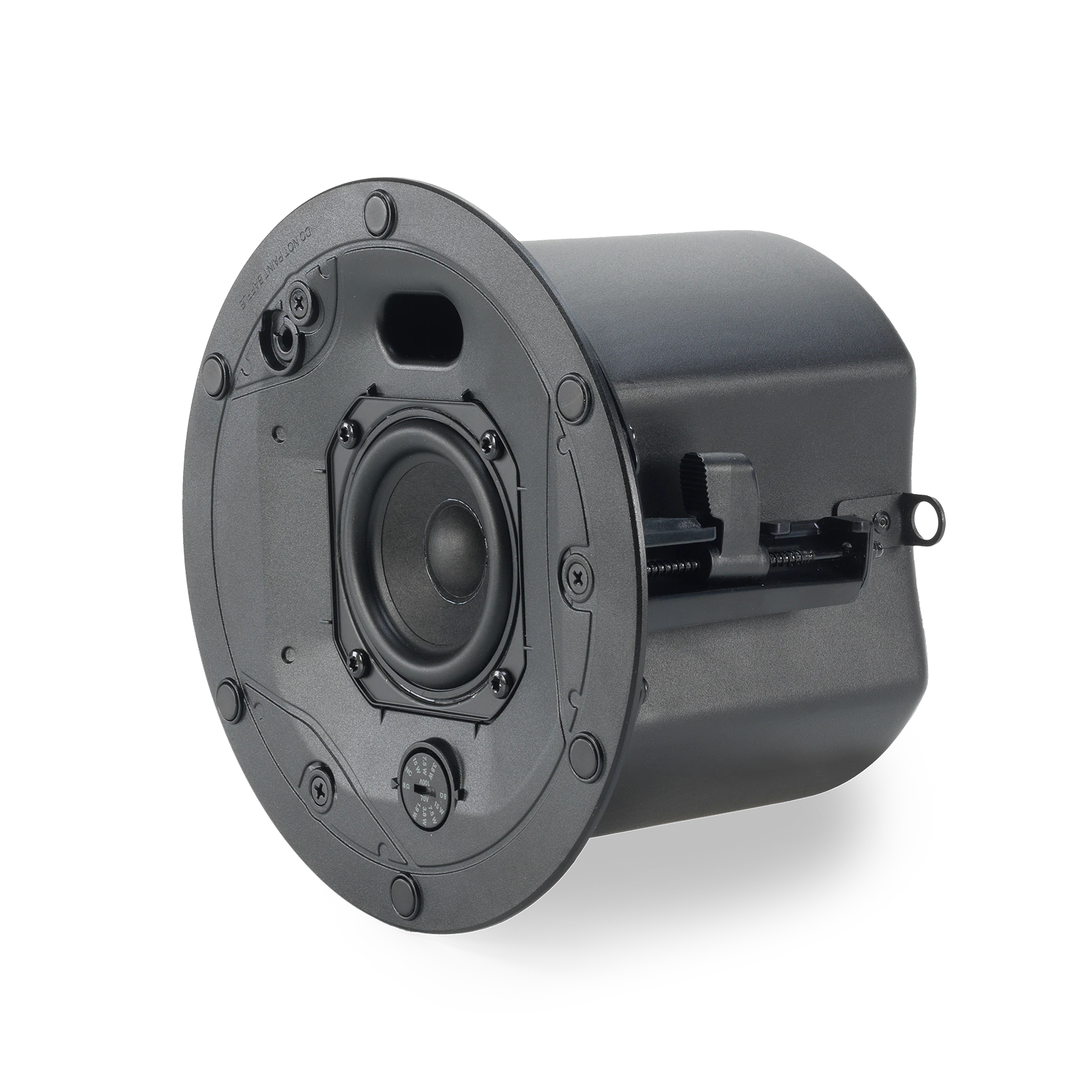

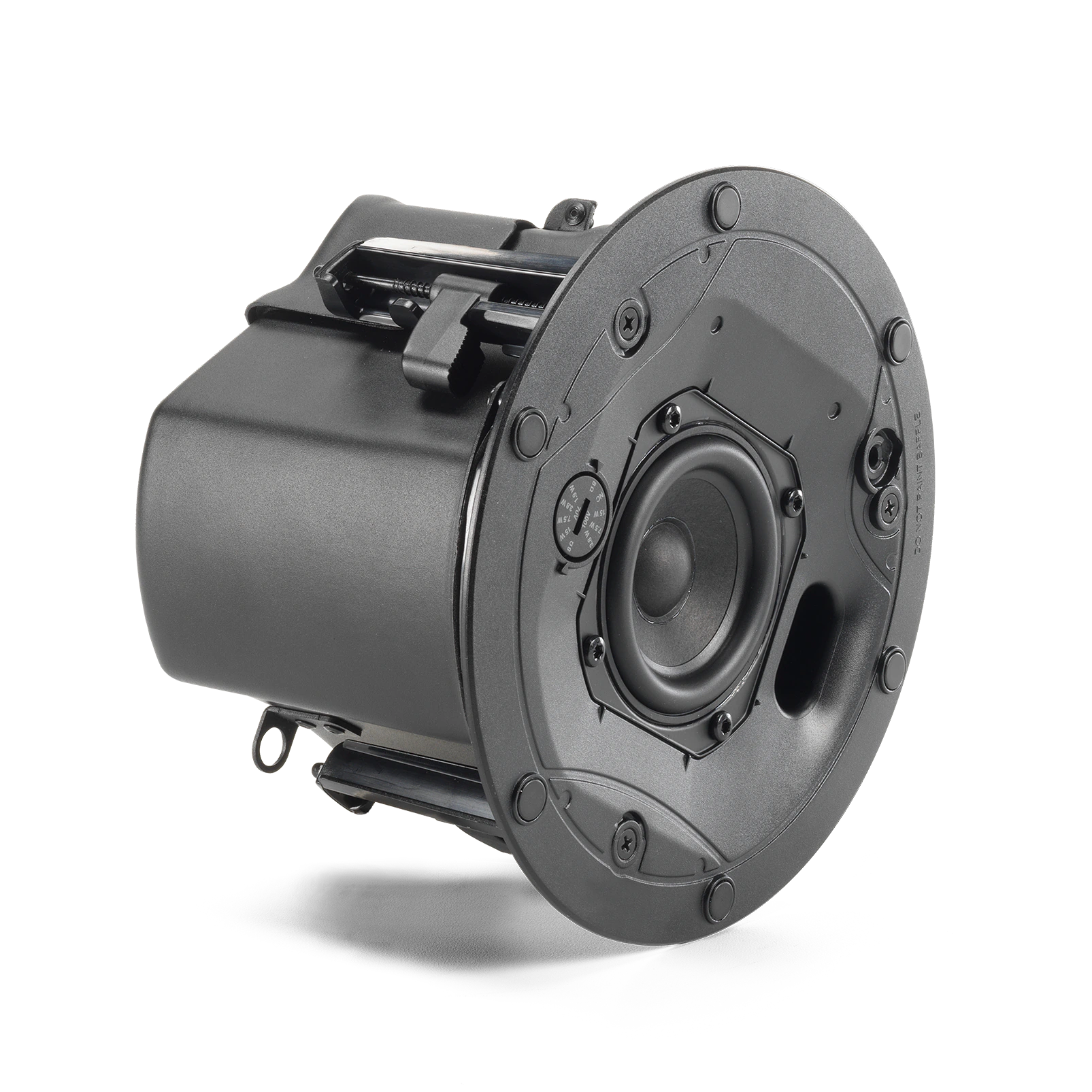

Drivers	76 mm (3 in) full range driver with paper cone and SBR surround
Ceiling Cutout Size	168 mm (6.6 in)
尺寸	143 mm (5.7 in) H x 203 mm (8.1 in) dia. 134 mm (5.4 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating	Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
环境	IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Optional Accessories	JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
颜色	Stock grille is White (RAL9003), paintable
Net Weight (ea)	1.75 kg (3.86 lbs)
Shipping Weight (pair)	7.92 kg (17.46 lbs)
SKU Numbers	JBL-C412C/T
