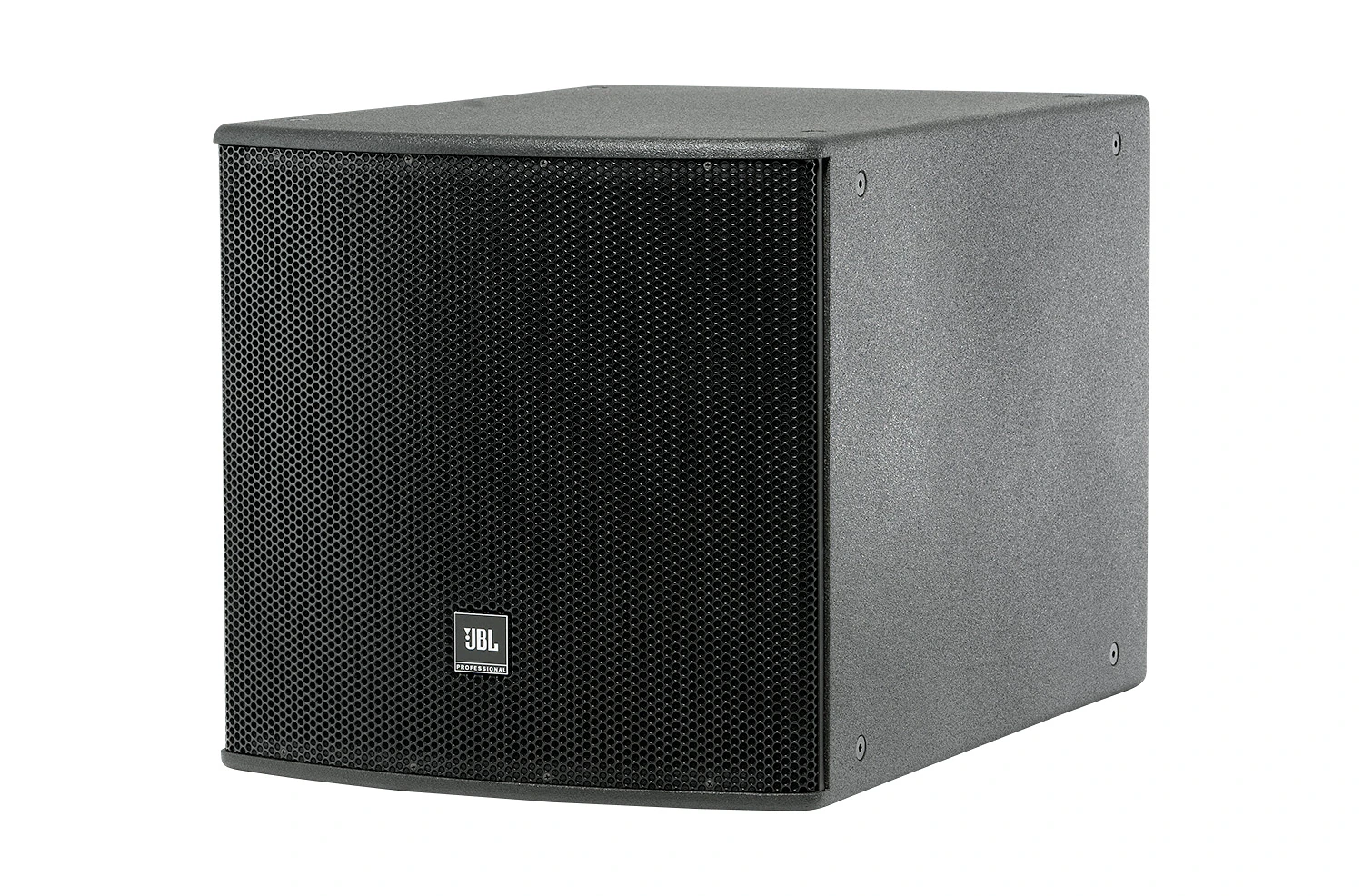

JBL Professional ASB7118

Større billeder

Ultra Long Excursion High Power 18-tommer subwoofer

ASB7118 er et højeffekt, letvægts front-ladet ventileret subwoofer-kabinet med JBL's eksklusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. Denne woofer har neodymiummagneter, dobbelte stemmeruller og dobbelte spalter, JBL's eksklusive Vented Gap Cooling™ og ultrarobust compositekone til høj excursion og ekstra langt levetid. Woofer kan levere en top-til-top maksimal excursion på 89 mm (3,5").

Funktioner

2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
2000 watts kontinuerlig pink noise,
8000 watts peak power handling capacity
Ultra Long Excursion
Stort ventilationsområde for høj output med lav forvrængning
FIR Tuning Set matcher faseprofil til Full-Range modeller
Til ground-stacked eller suspended applications i standalone arrays eller i kombination med andre
AE Series produkter

For at forbedre pålideligheden under vejrforhold og reducere vandindtrængning kan kabinet dimensioner på WRC & WRX modeller være forskellige fra standard model dimensioner. Kontakt CustomAudio@harman.com for tegninger og/eller dimensionsinformationer for WRC & WRX modeller.

Downloads

Specifications

	Størrelse	Uploadet
ASB7118 Spec Sheet opdateret: dec 2020	518 kB	dec 2020

Manuals

	Version	Sprog	Størrelse	Uploadet
Weather Resistant Configurations version A, opdateret: maj 2023	A		86,1 kB	maj 2023
AE/PD Connector Pinout Guide opdateret: okt 2019			8,25 kB	okt 2019

Brochures

	Størrelse	Uploadet
AM Brochure opdateret: okt 2020	1,54 MB	okt 2020
AE Series Brochure opdateret: okt 2020	4,05 MB	okt 2020

CAD Drawings

	Version	Størrelse	Uploadet
AE Series - Revit/BIM Files version 11.0, opdateret: jul 2024	11.0	730 kB	jul 2024
AE Series - Customer Drawings version 2.0, opdateret: maj 2024	2.0	2,69 MB	maj 2024
AE Series - WR Models Customer Drawings version 3.0, opdateret: apr 2026	3.0	3,8 MB	apr 2026

Compliances

	Størrelse	Uploadet
AE Series ASB - Declaration of Conformity opdateret: jul 2024	93,5 kB	jul 2024

Preset Libraries

	Størrelse	Uploadet
AE Series DCi Series Preset Library opdateret: maj 2024	471 kB	maj 2024

Application Guides

	Sprog	Størrelse	Uploadet
Directional Bass Using 3-Element Arrays opdateret: aug 2021		570 kB	aug 2021

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (-10dB)	22 Hz - 1 kHz
Frequency Response (±3 dB)	34 Hz - 1 kHz
Transducer Power Rating (AES)	2000 W (8000 W peak), 2 hrs
System Power Rating	1200 W (4800 W peak), 100 hrs.
Maximum SPL (1m)	25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity	25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
LF Driver	1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Environmental	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation)	546 x 560 x 815 mm(21.5 x 22.0 x 32.1 in)
Net Weight (each)	42.9 kg (94.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance	8 ohms
