ASB7118

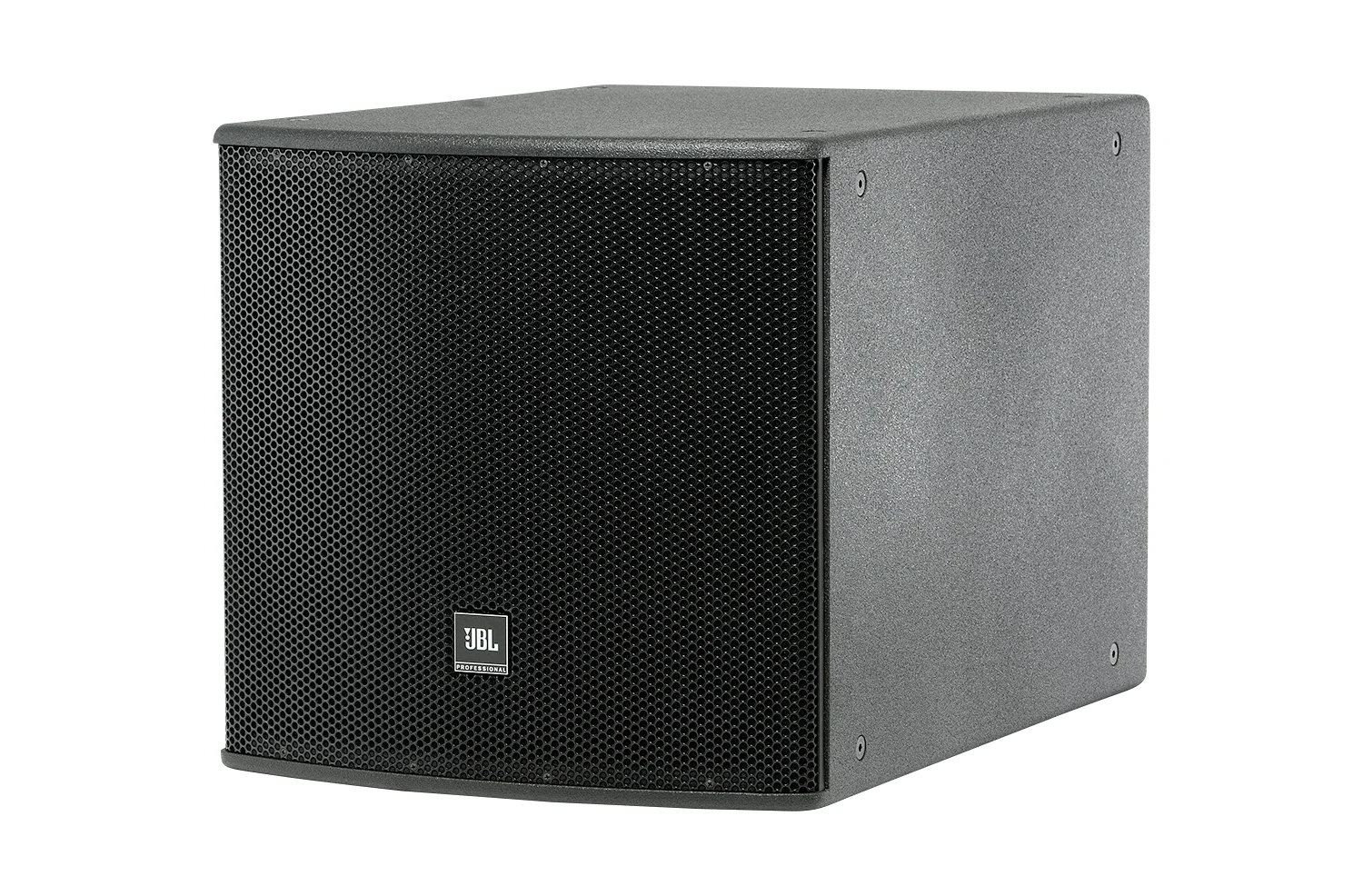

Subwoofer 18 Inci Daya Tinggi

ASB7118
Gambar Lebih Besar

Subwoofer 18-inci Daya Tinggi dengan Eksursi Ultra Panjang

ASB7118 adalah penggemar subwoofer berventilasi bermuatan depan bertenaga tinggi dan ringan yang menampung woofer Differential Drive® Ultra Long Excursion 18" eksklusif JBL 2269H. Woofer ini menampilkan magnet neodimium, koil suara ganda dan celah ganda, Pendinginan Celah Berventilasi™ eksklusif JBL, dan kerucut komposit yang sangat kokoh untuk eksursi tinggi dan umur panjang yang ekstrasehingga. Woofer mampu mencapai eksursi maksimum puncak-ke-puncak 89 mm (3,5").



Fitur

  • Transduser magnet neodimium dual gap dual voice coil Differential Drive® 2269H 18"
  • 2000 watt continuous pink noise,
    kapasitas penanganan daya puncak 8000 watt
  • Ultra Long Excursion
  • Area ventilasi besar untuk output tinggi dengan distorsi rendah
  • FIR Tuning Set Mencocokkan Profil Fase ke Model Full-Range
  • Untuk aplikasi ground-stacked atau suspended dalam array standalone atau dikombinasikan dengan
    produk AE Series lainnya

Untuk meningkatkan keandalan dalam kondisi cuaca dan mengurangi penetrasi air, dimensi kabinet model WRC & WRX mungkin berbeda dari dimensi model standar. Hubungi CustomAudio@harman.com untuk gambar dan/atau informasi dimensi model WRC & WRX.



Unduhan

Specifications
  Ukuran Diunggah
file type icon ASB7118 Spec Sheet
diperbarui: Des 2020
518 KB Des 2020
Manuals
  Versi Bahasa Ukuran Diunggah
file type icon Weather Resistant Configurations
en versi A, diperbarui: Mei 2023
en  86,1 KB Mei 2023
file type icon AE/PD Connector Pinout Guide
diperbarui: Okt 2019
    8,25 KB Okt 2019
Brochures
  Ukuran Diunggah
file type icon AM Brochure
diperbarui: Okt 2020
1,54 MB Okt 2020
file type icon AE Series Brochure
diperbarui: Okt 2020
4,05 MB Okt 2020
CAD Drawings
  Versi Ukuran Diunggah
file type icon AE Series - Revit/BIM Files
versi 11.0, diperbarui: Jul 2024
11.0  730 KB Jul 2024
file type icon AE Series - Customer Drawings
versi 2.0, diperbarui: Mei 2024
2.0  2,69 MB Mei 2024
file type icon AE Series - WR Models Customer Drawings
versi 3.0, diperbarui: Apr 2026
3.0  3,8 MB Apr 2026
Compliances
  Ukuran Diunggah
93,5 KB Jul 2024
Preset Libraries
  Ukuran Diunggah
471 KB Mei 2024
Application Guides
  Bahasa Ukuran Diunggah
en  570 KB Agu 2021

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10dB) 22 Hz - 1 kHz
Frequency Response (±3 dB) 34 Hz - 1 kHz
Transducer Power Rating (AES) 2000 W (8000 W peak), 2 hrs
System Power Rating 1200 W (4800 W peak), 100 hrs.
Maximum SPL (1m) 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8 ohms
LF Driver 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
Finish Black DuraFlex™ finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 546 x 560 x 815 mm(21.5 x 22.0 x 32.1 in)
Net Weight (each) 42.9 kg (94.5 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance 8 ohms
