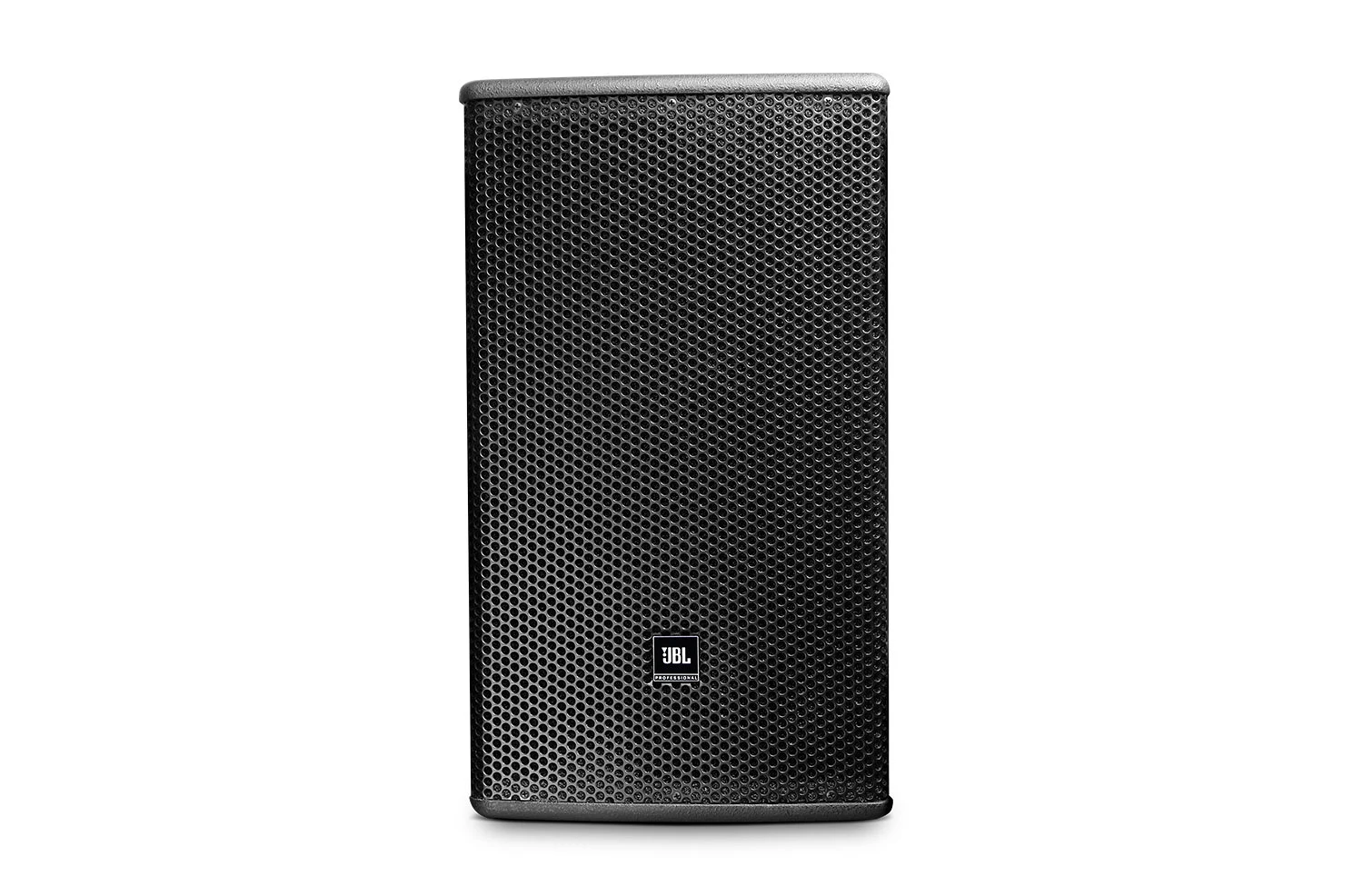

JBL Professional AC195

Større billeder

10-tommer 2-værs højtaler med 90° x 50° horn

AC195 er et kompakt 2-værs fuldængde højttalersystem, der består af en 258 mm (10 in) lavfrekvensdriver og en 25 mm (1 in) udgang/35 mm (1.5 in) stemmespole kompressionsdriver. Den roterbare PT™ Progressive Transition waveguide giver 90° ved 50° dækning i vertikal kabinetposition. Højtydende passive crossover'en minimerer båndoverlap og sikrer en velkontrolleret off-axis respons.

Kabinettet er udstyret med M10 gevindtrådsophængspunkter. Fire gevindindsatser placeret på bagsiden af kabinettet muliggør fastgørelse af en MultiMount® eller en tilsvarende type montering.

AC195 er en del af JBL's AE Application Engineered Series, en alsidig familie af højttalere til en bred vifte af faste installationsanvendelser.

Funktioner

Compact enclosure
258 mm (10 in) LF transducer
90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
Dual Neutrik NL4 connectors plus screw terminals
Multiple attachment points for ultimate flexibility

Applications

Performing Spaces
Clubs & Bars
Houses of Worship
Multi Media Spaces
Retail & Hospitality Spaces
Presentation Suites
Educational Facilities

Downloads

Specifications

	Størrelse	Uploadet
AC195 Spec Sheet opdateret: apr 2019	519 kB	apr 2019

Brochures

	Sprog	Størrelse	Uploadet
Loudspeakers for Sports Facilities opdateret: jul 2024		5,71 MB	jul 2024

CAD Drawings

	Version	Størrelse	Uploadet
AE Expansion Series Customer Drawings version 1.0, opdateret: mar 2025	1.0	5,73 MB	mar 2025
AE Expansion Series Brackets Customer Drawings version 1.0, opdateret: mar 2025	1.0	438 kB	mar 2025

Simulation Data

	Version	Størrelse	Uploadet
AE Expansion Series - EASE GLL version 1.0, opdateret: mar 2025	1.0	315 kB	mar 2025
AE Expansion Series - CLF Files version 1.0, opdateret: mar 2025	1.0	785 kB	mar 2025

Declaration of Conformity

	Version	Sprog	Størrelse	Uploadet
AE Expansion Series - EU Declaration of Conformity version 1.0, opdateret: mar 2025	1.0		76 kB	mar 2025

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (-10dB)	68 Hz - 20 kHz
Frequency Response (±3 dB)	85 Hz - 18kHz
System Sensitivity (1w @ 1m)	95 dB
Nominal Impedance	8 ohms
Maximum SPL (1m)	118 dB (124 dB peak)
System Power Rating	300W (1200W peak), 2 hrs (AES rated)
Coverage Pattern	90° x 50° (H x V)
Crossover	1.8 kHz
LF Driver	1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
HF Driver	1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector	Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure	15 mm multi-ply hardwood plywood
Grille	Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish	Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment	14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D)	535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in
Net Weight (each)	13.1 kg (28.8 lbs)
Nominal LF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
