| Frequency Range (-10dB) |
42 Hz – 20 kHz |
| Power Rating |
LF: 1600 W / MF: 350 WHF: 75 WUHF: 130 W |
| Coverage Pattern |
90° x 50°, rotatable waveguide |
| Frequency Response (±3 dB) |
48 Hz – 19 kHz |
| Directivity Factor (Q) |
10 |
| Directivity Index (DI) |
10 dB |
| Crossover Modes |
Quad-amp |
| Crossover Frequencies |
270 Hz, 2.7 kHz, 10 kHz |
| System Impedance |
LF: 4 Ohms MF: 8 Ohms HF: 8 OhmsUHF: 4 Ohms |
| System Power Rating |
LF: 1100 W (4400 W peak), 100 hrsMF: 200 W, 100 hrsHF: 50 W, 100 hrsUHF: 35 W, 100 hrs |
| Maximum SPL (1m) |
LF: 130 dB-SPL cont avg (136 dB peak)MF: 133 dB-SPL cont avg (139 dB peak)HF: 132 dB-SPL cont avg (138 dB peak)UHF: 128 dB-SPL cont avg (134 dB peak) |

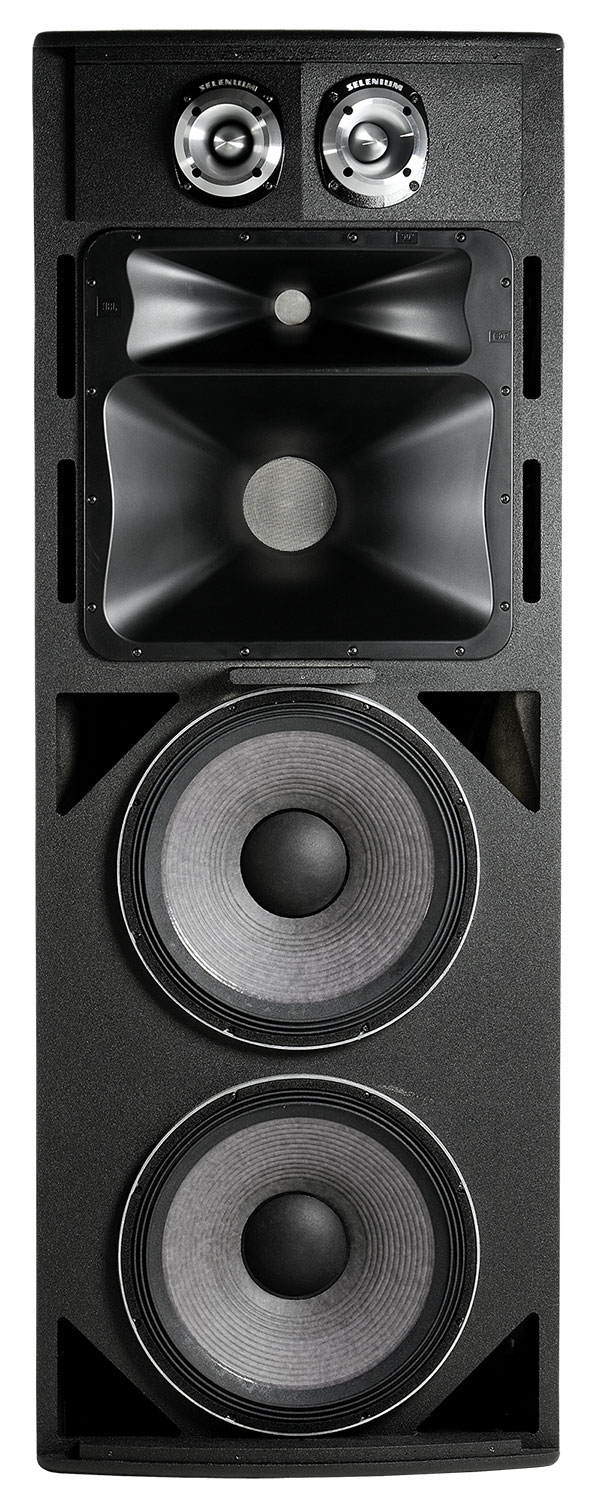

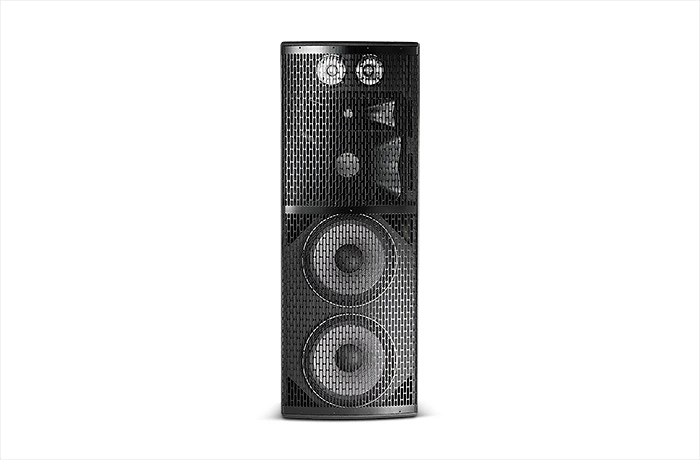

| LF Driver |
2 x JBL 2265H 380 mm (15 in ) Differential Drive driver with 75 mm (3 in) dual voice coil |
| Nominal LF Driver Impedance |
4 ohms |
| LFD Sensitivity |
101 dB SPL, s.83V (2W) @ 1m (3.3 ft) |
| Midrange Driver |
JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice-coil internal driver |
| MD Nominal Impedance |
8 ohms |
| MD Sensitivity |
112 dB SPL, 2.83V (1W) @ 1m (3.3 ft) |
| HF Driver |
JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal HF Driver Impedance |
8 ohms |
| HFD Sensitivity |
113 dB SPL, 2.83V (1W) @ 1m (3.3 ft) |
| Waveguide |
PT-K95MH |
| Super Tweeter |
2 x JBL Selenium ST400 Super Tweeter |
| ST Nominal Impedance |
4 ohms |
| ST Sensitivity (1W @ 1m) |
112 dB SPL, 2.83V (2W) @ 1m (3.3 ft) |
| Enclosure |
Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment |
13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Finish |
Black DuraFlex™ finish. |

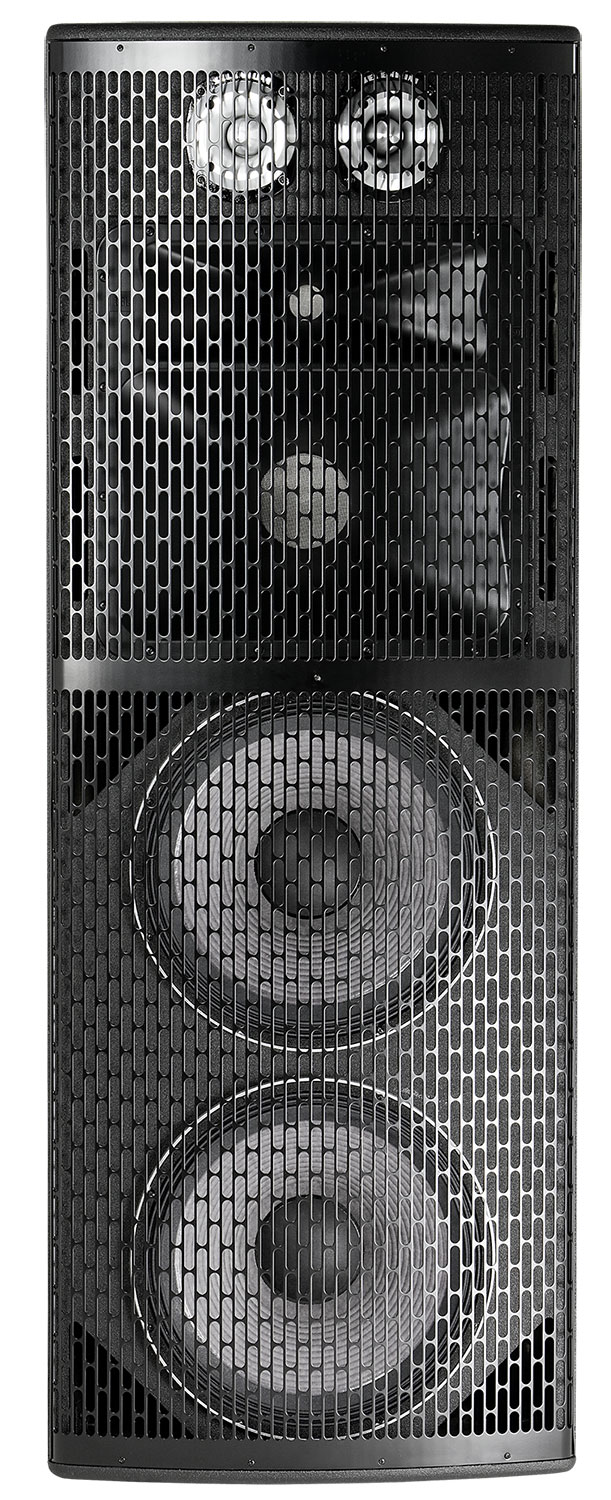

| Grille |
Powder coated 14 gauge perforated steel. |
| Input Connector |
NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through. |
| Dimensions (H x W x D in vertical orientation) |
1524.0 x 559.8 x 655.3 mm(60.0 x 22 x 25.8 in) |
| Net Weight |
65.8 kg (145 lb) |
| Optional Accessories |
M10 x 35 mm forged shoulder eyebolts with washers. |
