PRX425

15" Two-Way Loudspeaker System

较大的图像

15" Two-Way Loudspeaker System

PRX425 dual fifteen-inch, two-way is the perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.



特点

  • Dual 15" two-way design
  • 90° x 50° coverage
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Applications

  • Live sound reinforcement for vocals and musical instruments
  • The perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.


下载

  Version Language Size Uploaded
Specifications
PRX425 Spec Sheet
updated: 4月29日
    725.5 KB 4月29日
Brochures
PRX400 Brochure
updated: 4月29日
    990.9 KB 4月29日
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日
Portable Sound Full Line 2015 Catalog
updated: 10月23日
    2.5 MB 10月23日
Compliances
PRX400 Series Declaration of Conformity
updated: 10月18日
    144.2 KB 10月18日
Images

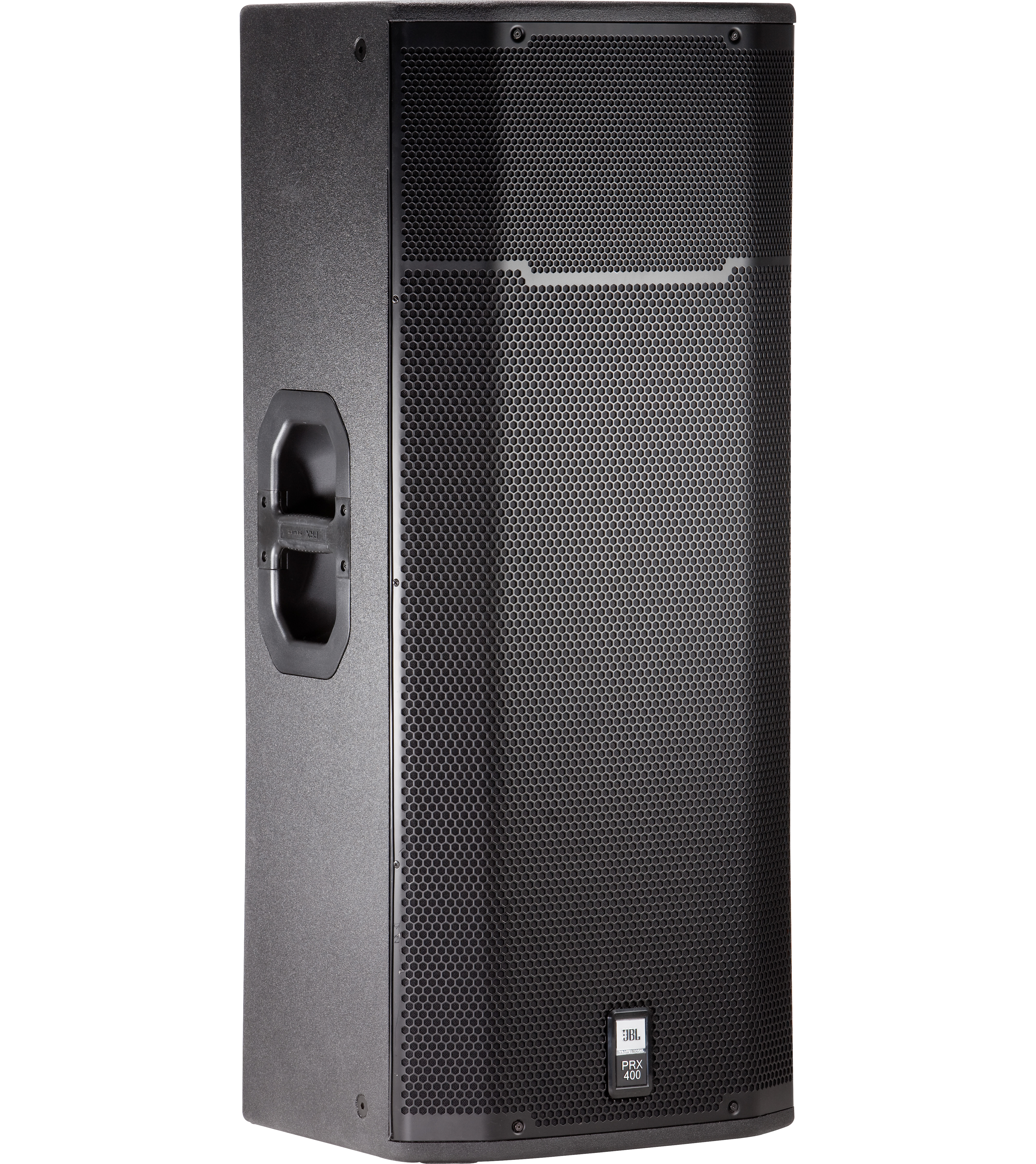

PRX425 Front Angle
updated: 4月29日
    4.5 MB 4月29日

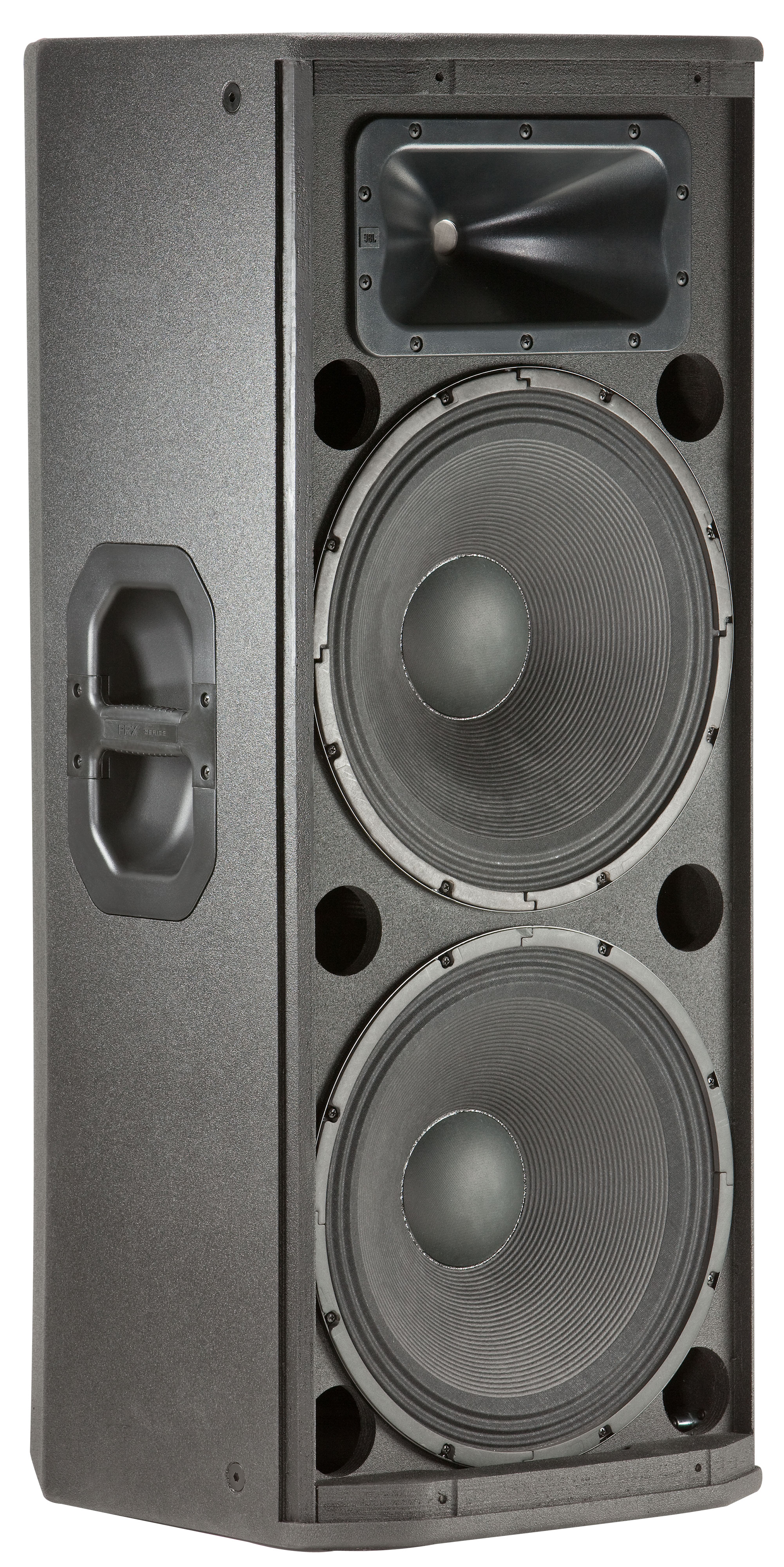

PRX425 Fr Angle No Grill
updated: 4月29日
    2.2 MB 4月29日
Speaker Tunings
PRX400 Series Tunings
updated: 10月02日
    41.2 KB 10月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (-10dB) 48 Hz – 19 kHz
Frequency Response (±3 dB) 61 Hz – 16 kHz
覆盖范围 90° x 50° nominal
System Sensitivity 100 dB SPL (1w@1m)
Power Rating, Pink Noise 600 W / 1200 W / 2400 W(Continuous/Program/Peak)
Maximum SPL (1m) 134 dB SPL peak
标称阻抗 4 ohms
尺寸(高 x 宽 x 厚) 1044 mm x 429 mm x 521 mm (41.1" x 16.9" x 20.5")
净重量 33.5 kg (74 lbs.)
输入通道 Neutrik® Speakon® NL-2 ¼" combination (x2)
Enclosure Duraflex coated plywood

Accessories

PRX425-CVR | Padded Cover for PRX425
PRX425-CVR Main photo
较大的图像

Padded Cover for PRX425. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.


JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
较大的图像

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
较大的图像
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
较大的图像

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
较大的图像

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
