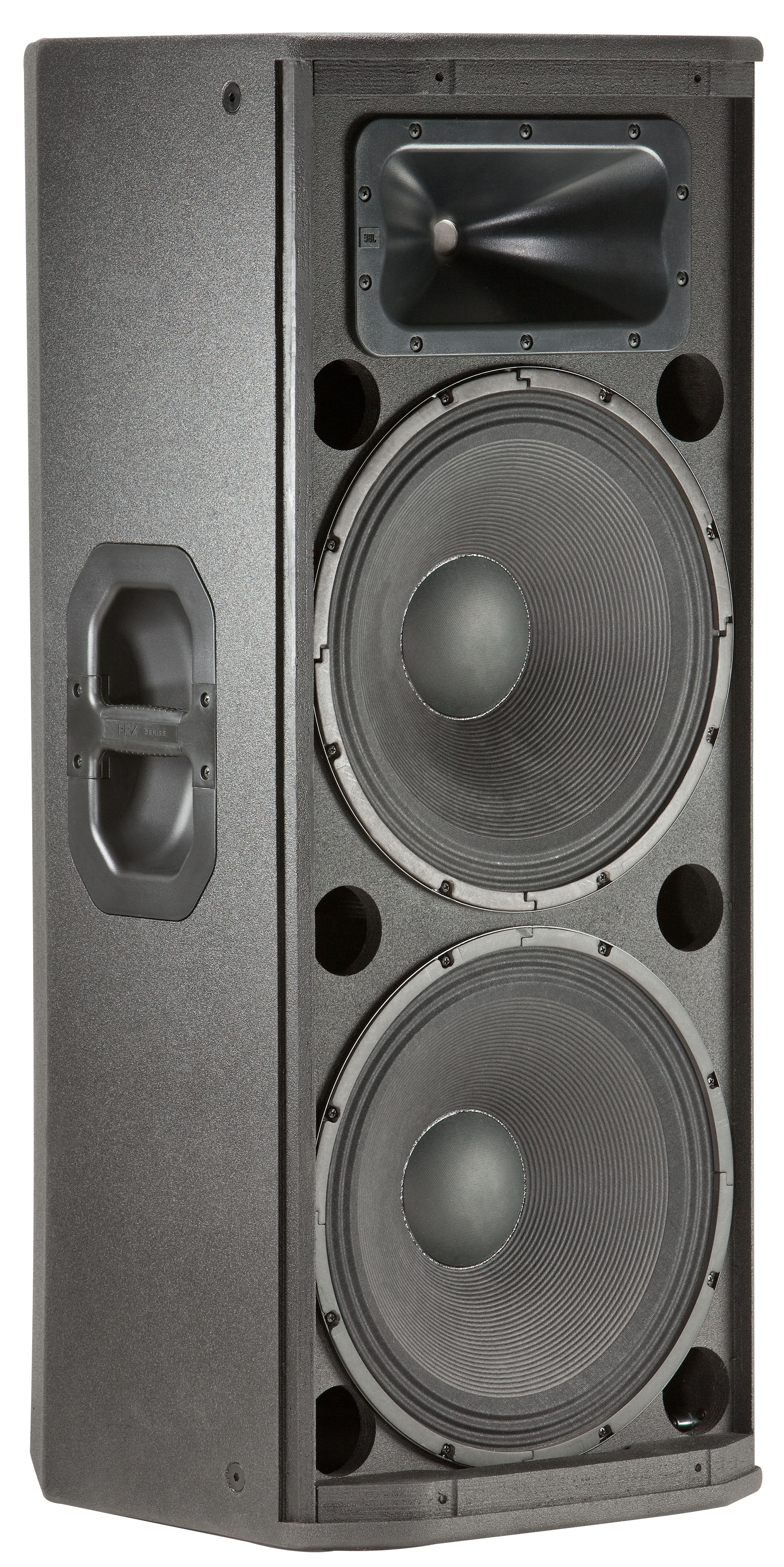

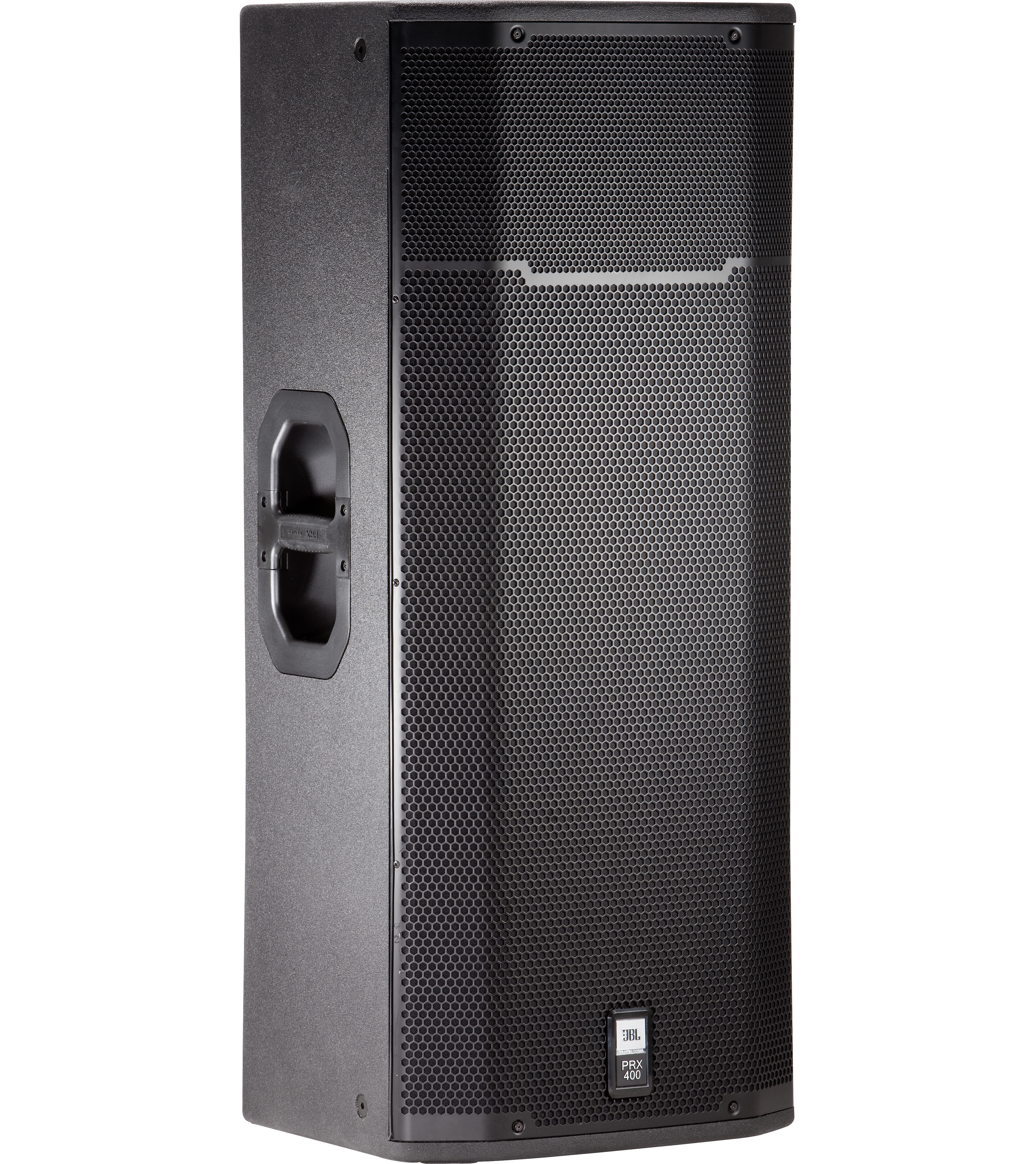

Sistema de Altifalante de Duas Vias de 15"
O PRX425 com dois altifalantes de quinze polegadas, duas vias, é a escolha perfeita para DJs e bandas que necessitam de extensão de baixas frequências com a conveniência de um gabinete autónomo.
Imagens maiores
Características
- Dual 15" two-way design
- 90° x 50° coverage
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Applications
- Live sound reinforcement for vocals and musical instruments
- The perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.
Descarregamentos
Specifications
| Tamanho | |
|
|
700 KB |
Brochures
| Tamanho | |
|
|
1000 KB |
|
|
3 MB |
|
|
8 MB |
versão B,
atualizado: ago 2025
Compliances
| Tamanho | |
|
|
100 KB |
Images
| Tamanho | |
|
|
5 MB |
|
|
2 MB |
Speaker Tunings
| Tamanho | |
|
|
40 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
Peças e serviço
Especificações
| Frequency Range (-10dB) | 48 Hz – 19 kHz |
| Frequency Response (±3 dB) | 61 Hz – 16 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 100 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 600 W / 1200 W / 2400 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 134 dB SPL peak |
| Nominal Impedance | 4 ohms |
| Dimensions (H x W x D) | 1044 mm x 429 mm x 521 mm (41.1" x 16.9" x 20.5") |
| Net Weight | 33.5 kg (74 lbs.) |
| Inputs | Neutrik® Speakon® NL-2 ¼" combination (x2) |
| Enclosure | Duraflex coated plywood |
Acessórios

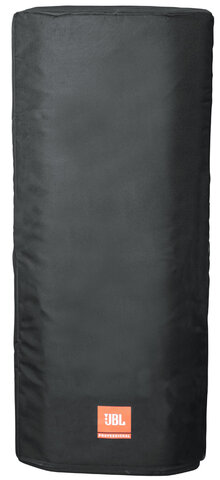

PRX425-CVR | Capa Acolchoada para PRX425
Imagens maiores
Padded Cover for PRX425. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
JBLPOLE-GA | JBL Gas Assist Speaker Pole
Imagens maiores
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Documentação
-
JBL pole Gas Assist
[40 KB]
-
JBL pole Gas Assist detail
[70 KB]
-
JBLPOLE-GA Data Sheet
[300 KB]
JBLTRIPOD-GA | Trípode para Coluna JBL com Assistência de Gás
Imagens maiores
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Documentação
-
JBLTRIPOD-GA Data Sheet
[200 KB]
-
JBL Tripod Gas Assist Closed
[40 KB]
-
JBL Tripod Gas Assist Closed Extended
[30 KB]
-
JBL Tripod Gas Assist Open
[40 KB]
-
JBL Tripod Manual Adjust Open
[40 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Imagens maiores
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Documentação
-
JBLTRIPOD-MA Data Sheet
[200 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Imagens maiores
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Documentação
-
JBLPOLE-MA Data Sheet
[300 KB]
-
JBL pole Manual Adjust
[40 KB]
-
JBL pole Manual Adjust Detail
[90 KB]
