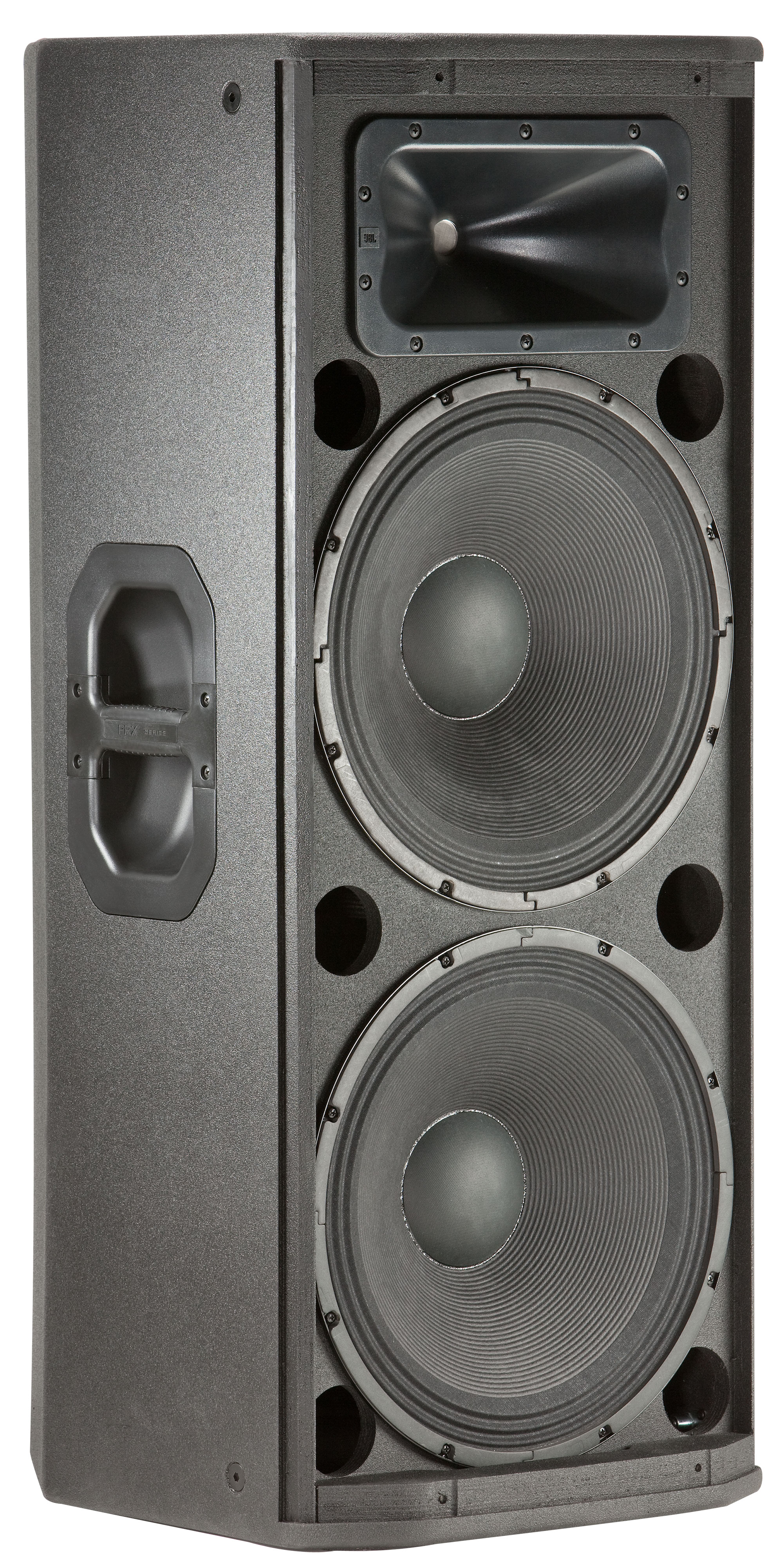

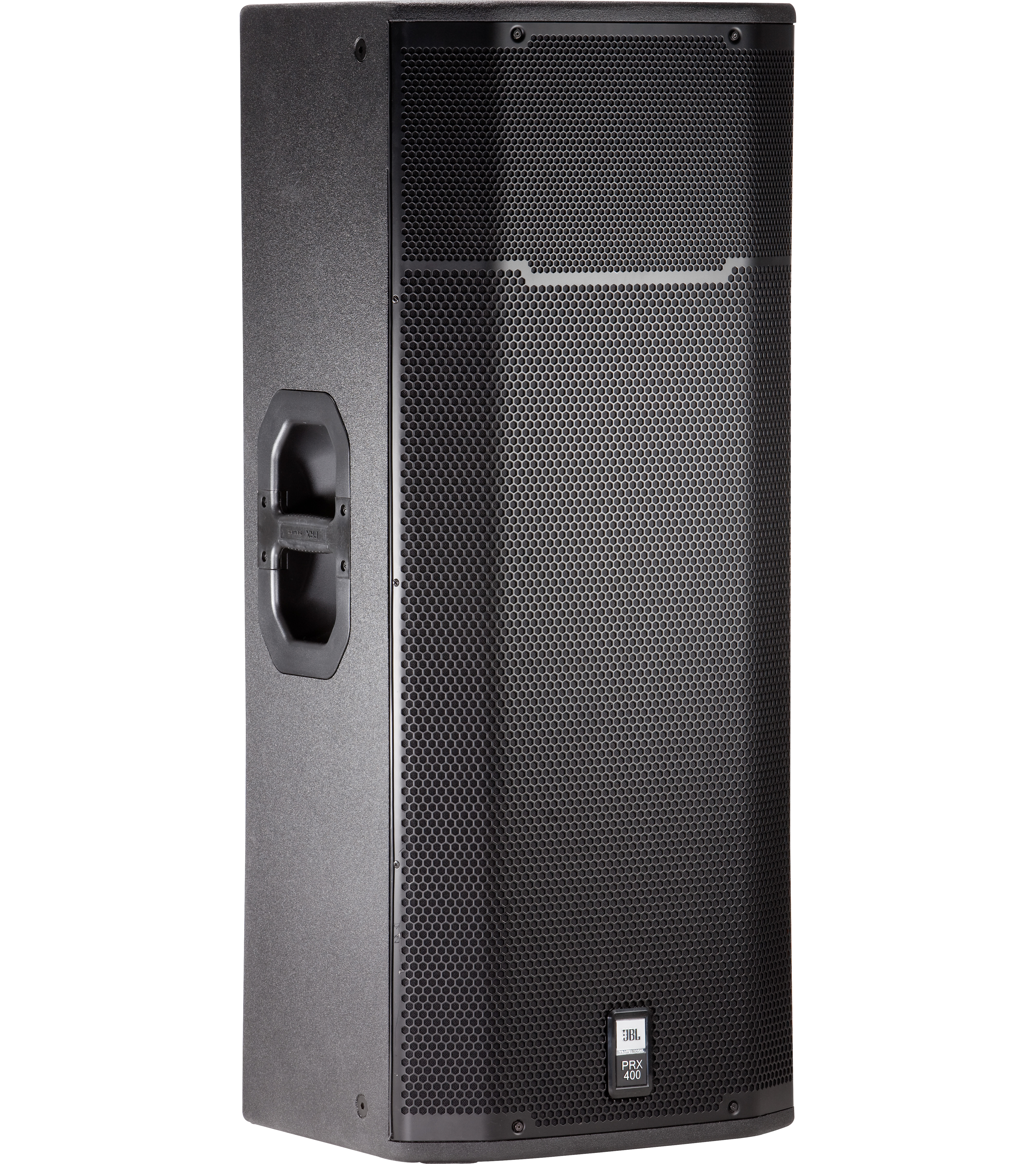

15" Two-Way Loudspeaker System
PRX425 dual fifteen-inch, two-way is the perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.
Gambar Lebih Besar
Fitur
- Dual 15" two-way design
- 90° x 50° coverage
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Applications
- Live sound reinforcement for vocals and musical instruments
- The perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.
Unduhan
Specifications
| Ukuran | |
|
|
726 KB |
Brochures
| Ukuran | |
|
|
991 KB |
|
|
2,54 MB |
|
|
8,45 MB |
versi B,
diperbarui: Agu 2025
Compliances
| Ukuran | |
|
|
144 KB |
Images
| Ukuran | |
|
|
4,53 MB |
|
|
2,19 MB |
Speaker Tunings
| Ukuran | |
|
|
41,2 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Suku Cadang & Servis
Spesifikasi
| Frequency Range (-10dB) | 48 Hz – 19 kHz |
| Frequency Response (±3 dB) | 61 Hz – 16 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 100 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 600 W / 1200 W / 2400 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 134 dB SPL peak |
| Nominal Impedance | 4 ohms |
| Dimensions (H x W x D) | 1044 mm x 429 mm x 521 mm (41.1" x 16.9" x 20.5") |
| Net Weight | 33.5 kg (74 lbs.) |
| Inputs | Neutrik® Speakon® NL-2 ¼" combination (x2) |
| Enclosure | Duraflex coated plywood |
Aksesori
PRX425-CVR | Padded Cover for PRX425
Gambar Lebih Besar
Padded Cover for PRX425. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.

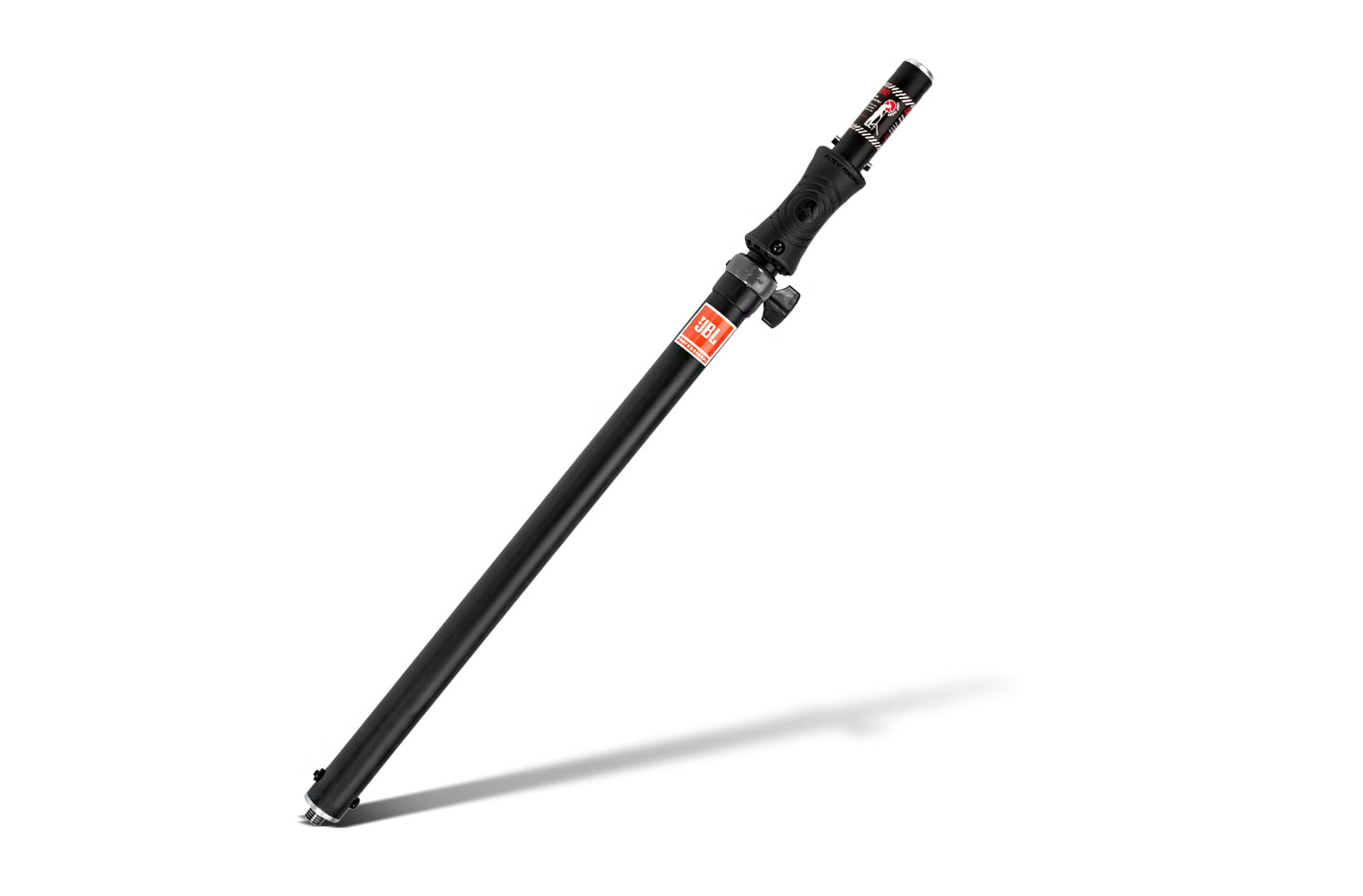

JBLPOLE-GA | JBL Gas Assist Speaker Pole
Gambar Lebih Besar
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentasi
-
JBL pole Gas Assist
[41,6 KB]
-
JBL pole Gas Assist detail
[70,2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]

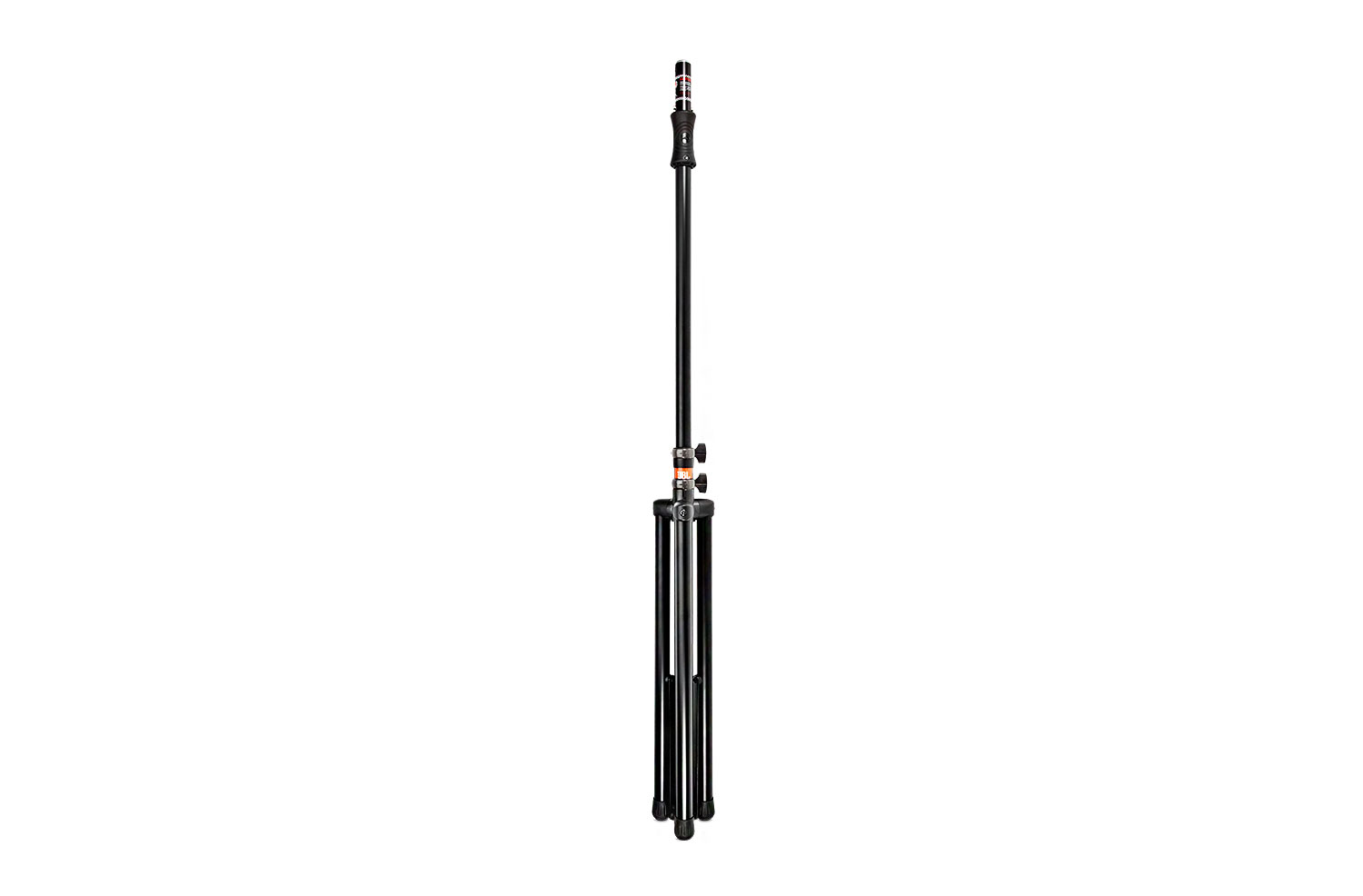

JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Gambar Lebih Besar
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentasi
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36,2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30,5 KB]
-
JBL Tripod Gas Assist Open
[41,7 KB]
-
JBL Tripod Manual Adjust Open
[39,5 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Gambar Lebih Besar
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentasi
-
JBLTRIPOD-MA Data Sheet
[228 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Gambar Lebih Besar
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Dokumentasi
-
JBLPOLE-MA Data Sheet
[258 KB]
-
JBL pole Manual Adjust
[40,7 KB]
-
JBL pole Manual Adjust Detail
[87,7 KB]
