PRX425

15" Two-Way Loudspeaker System

Köp nu
PRX425
Större bilder

15" Two-Way Loudspeaker System

PRX425 dual fifteen-inch, two-way is the perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.



Funktioner

  • Dual 15" two-way design
  • 90° x 50° coverage
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Applications

  • Live sound reinforcement for vocals and musical instruments
  • The perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.


Nedladdningar

Specifications
  Storlek Uppladdat
file type icon PRX425 Spec Sheet
uppdaterad: apr 2019
726 KB apr 2019
Brochures
  Version Språk Storlek Uppladdat
file type icon PRX400 Brochure
uppdaterad: jan 2021
    991 KB jan 2021
file type icon Portable Sound Full Line 2015 Catalog
uppdaterad: okt 2020
    2,54 MB okt 2020
file type icon JBL 2025 PPA Brochure
en version B, uppdaterad: aug 2025
B  en  8,45 MB aug 2025
Compliances
  Storlek Uppladdat
file type icon PRX400 Series Declaration of Conformity
uppdaterad: okt 2020
144 KB okt 2020
Images
  Storlek Uppladdat

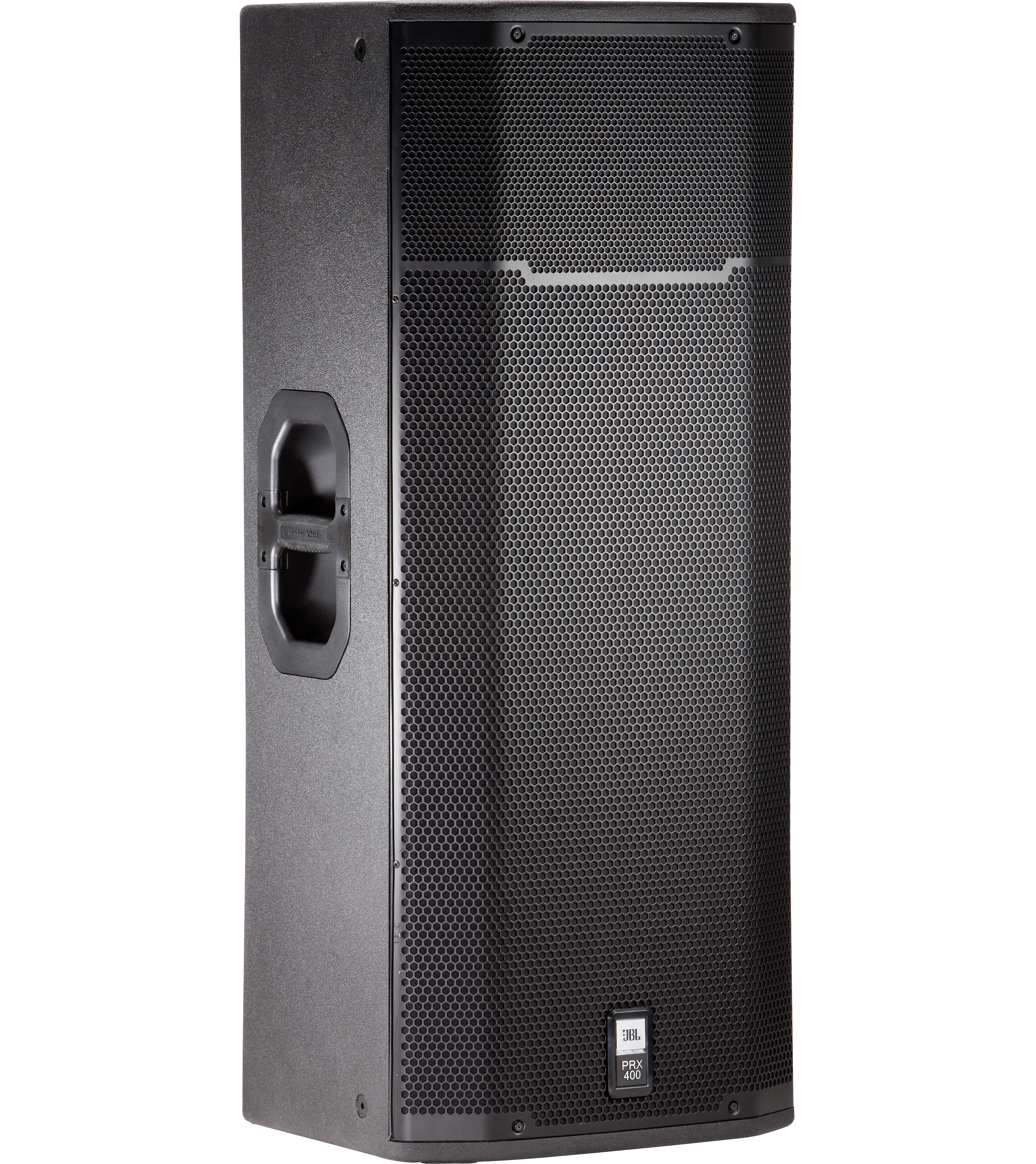

file type icon PRX425 Front Angle
uppdaterad: apr 2019
4,53 MB apr 2019

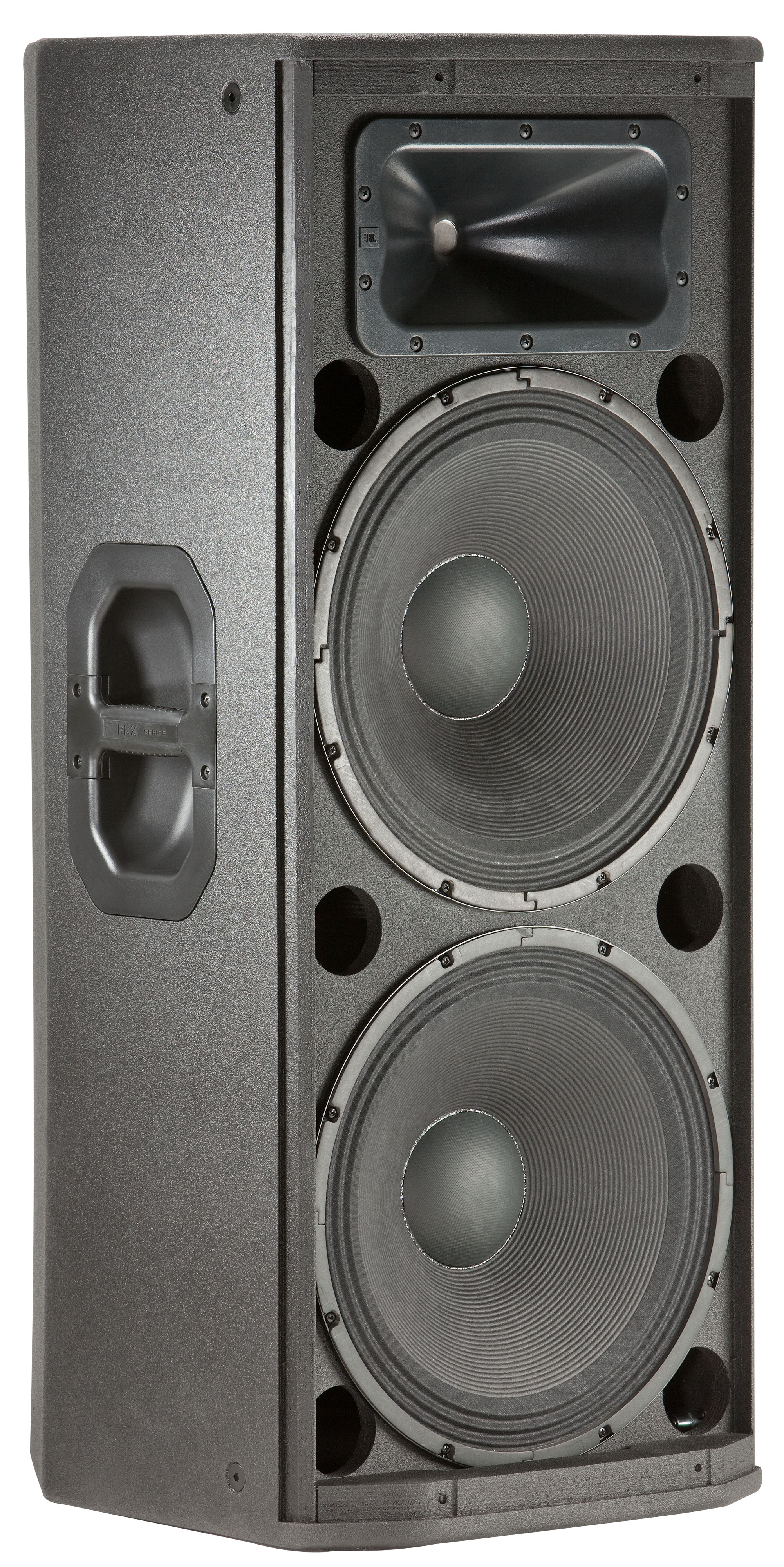

file type icon PRX425 Fr Angle No Grill
uppdaterad: apr 2019
2,19 MB apr 2019
Speaker Tunings
  Storlek Uppladdat
file type icon PRX400 Series Tunings
uppdaterad: okt 2020
41,2 KB okt 2020

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range (-10dB) 48 Hz – 19 kHz
Frequency Response (±3 dB) 61 Hz – 16 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 100 dB SPL (1w@1m)
Power Rating, Pink Noise 600 W / 1200 W / 2400 W(Continuous/Program/Peak)
Maximum SPL (1m) 134 dB SPL peak
Nominal Impedance 4 ohms
Dimensions (H x W x D) 1044 mm x 429 mm x 521 mm (41.1" x 16.9" x 20.5")
Net Weight 33.5 kg (74 lbs.)
Inputs Neutrik® Speakon® NL-2 ¼" combination (x2)
Enclosure Duraflex coated plywood

Tillbehör

PRX425-CVR | Padded Cover for PRX425
PRX425-CVR Main photo
Större bilder
PRX425-CVR detail thumbnail #1 PRX425-CVR detail thumbnail #2 PRX425-CVR detail thumbnail #3 PRX425-CVR detail thumbnail #4

Padded Cover for PRX425. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.

JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Större bilder
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Större bilder
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Större bilder
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Större bilder
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Dokumentation
