4-inch, Full-range, In-Ceiling Loudspeaker

较大的图像

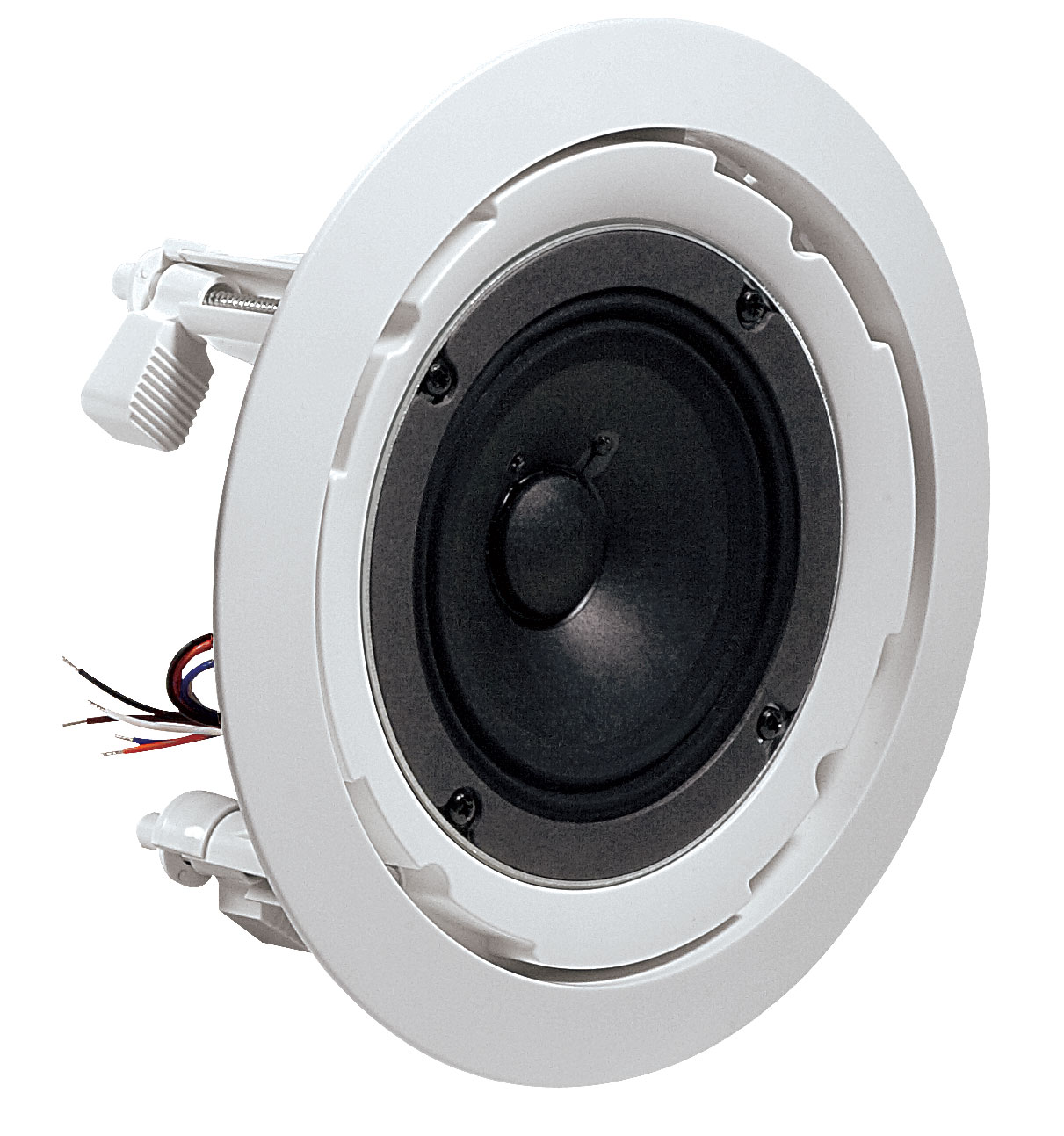

4-inch, Full-range, In-Ceiling Loudspeaker

The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.

特点

  • Clear, High-Fidelity Performance
  • Dog-ears for easy Blind Mount Installations
  • High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
  • 6W Transformer for use of 70V / 100V Distributed Lines

下载

  Version Language Size Uploaded
Specifications
8100 Series Spec Sheet
updated: 10月22日
    88.5 KB 10月22日
Manuals
Ceiling Speaker Accessory Guide
updated: 10月18日
    126.9 KB 10月18日
Brochures
8100 Series Bochure
updated: 10月22日
    820.1 KB 10月22日
Compliances
    80.2 KB 10月22日
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 1月14日
3.6.2     804.8 KB 1月14日
Images
8124 Hi Res Photo
updated: 10月22日
    194.7 KB 10月22日
Speaker Tunings
    557.0 KB 10月22日
Clf Files
CLF Files
version 03-16-20, updated: 3月16日
03-16-20    22.5 MB 3月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Drivers 4 in (100 mm), Full-range Driver
频率范围 60 Hz – 18 kHz

灵敏度

93 dB (1 kHz – 8 kHz)
覆盖角度 130° conical
变压器抽头 6W, 3W, 1.5W (0.75W at 70V only)
输入连接器 Bare wires
Dimensions (Diameter x Depth) 8.1 in (206mm) x 3.5 in (89mm)
重量 2.5lb (1.2kg)

随附配件

Sculpted Grille
Optional Accessories MTC-8124C C-ring, MTC- Rail tile rails
额定功率 See transformer taps
Maximum SPL (1m) 101 dB ave. (top 70V/100V tap)
颜色 White
Baffle/Rim Plastic
Ceiling Cutout Size 175 mm diameter (6.9 in)
Plenum Usage Not intended for use in return air plenums
Backcan No

Accessories

MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 Main photo
较大的图像

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

  • Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
    Includes (at product release):
    • Control 24C/CT Micro & 24CT MicroPlus
    • Control 24C/CT, 26C/CT, 19CS/CST
    • Control 47C/T, 47LP, 47HC, 40CS/T, 42C
    • Control 226C/T
    • 8124/8128
    • Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
  • Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
  • 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
  • Multiple C-ring mounting holes. Additional hole locations drillable by installer.
  • One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
