覆盖范围一致 低音扩展
Control 47C/T 采用扩展低音设计，120° 的宽覆盖范围使用更少的扬声器即可覆盖大空间。该产品适用于多种应用场景，完美满足餐厅、零售、大型赌场等各类场所的需求。

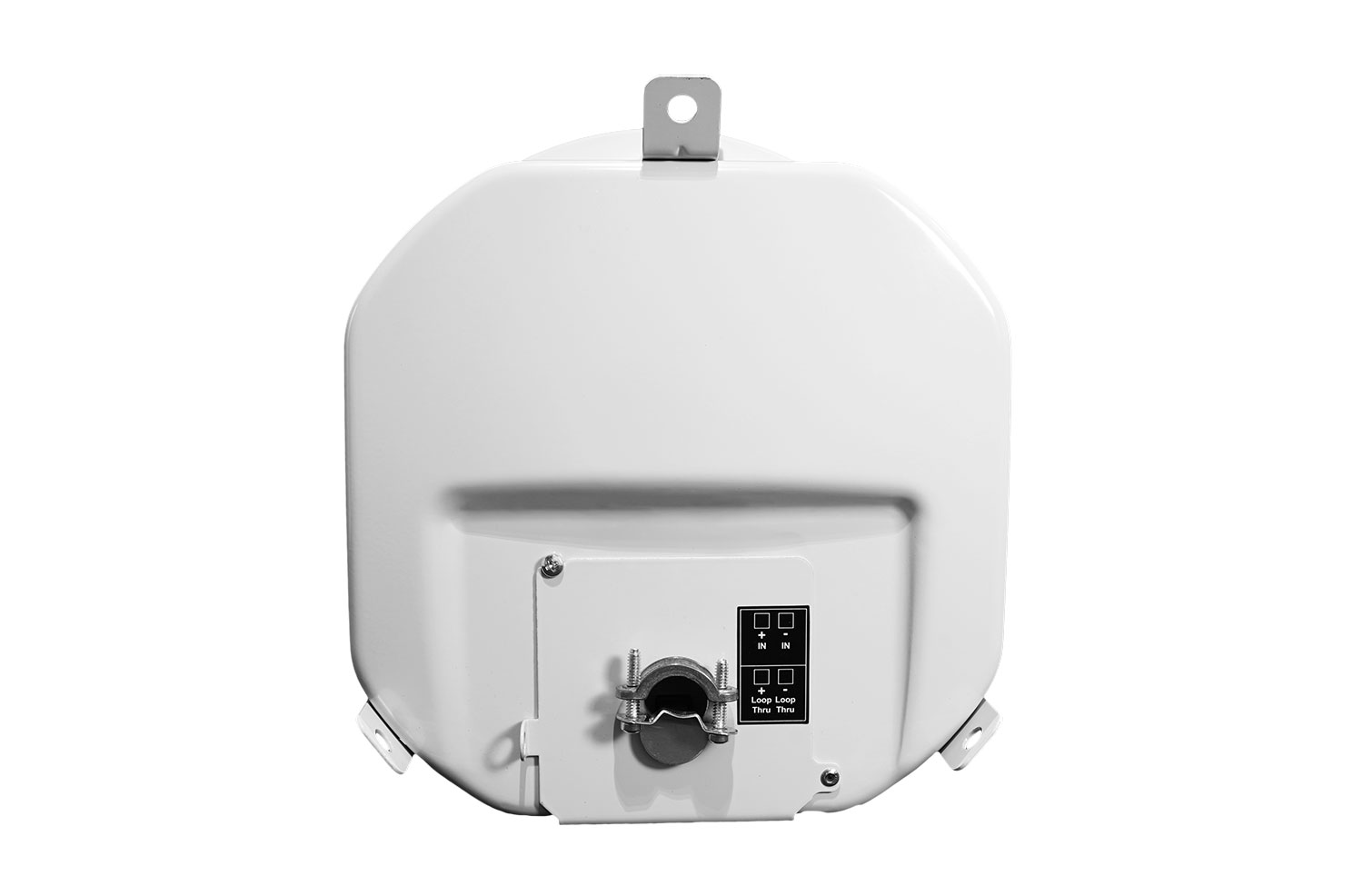

较大的图像
特点
- 专有圆锥形 RBI® 技术提供宽广一致的覆盖范围
- 平坦频率响应和卓越的性能
- 大型后腔体实现 55 Hz 低频响应
- 优雅设计适配任何装饰风格
下载
Data Sheets
| 大小 | |
|
|
932.3 KB |
Manuals
| 大小 | |
|
|
126.9 KB |
Brochures
| 大小 | |
|
|
21.0 MB |
|
|
23.0 MB |
|
|
14.0 MB |
|
|
716.0 KB |
更新: 3月 2026
CAD Drawings
| 大小 | |
|
|
1.7 MB |
|
|
202.5 KB |
Compliances
| 大小 | |
|
|
154.0 KB |
|
|
179.3 KB |
Software
| 大小 | |
|
|
611.8 KB |
User Guides
| 大小 | |
|
|
934.1 KB |
Accessories
| 大小 | |
|
|
203.7 KB |
Technical Papers
| 大小 | |
|
|
1.0 MB |
Ease Data
| 大小 | |
|
|
1.2 MB |
|
|
11.5 MB |
Images
| 大小 | |
|
|
47.8 KB |
|
|
56.4 KB |
|
|
136.4 KB |
|
|
60.2 KB |
|
|
263.8 KB |
Speaker Tunings
| 大小 | |
|
|
557.0 KB |
如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。
零件与服务
性能
| 频率范围 | 55 Hz - 20 kHz |
| 额定功率 | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), hrs |
灵敏度 |
91 dB (1kHz - 16 kHz) |
| 变压器抽头 | 60W, 30W, 15W (7.5W at 70V only) |
| 覆盖角度 | 120° conical, constant directivity |
| 阻抗 | 8 ohms (in bypass mode) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in) |
| 输入接口 | Two removeable locking 2-pin connectors with screwdown terminals. |
随附配件 |
C-rings, tile rails, paint shield, cutout template, Grille |
| Suspension Tabs | Three, on top panel |
| Dimensions (Diameter x Depth) | 305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2 in) |
| Maximum SPL (1m) | 110 dB (low-impedance, 116 dB peak) 109 dB (top 70V/100V tap) |
| 颜色 | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 282 mm Diameter (11.1 in) (cardboard cutout template included) |
| Optional Accessories | MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
配件
MTC-48TRx12 | 4' x 4' 吊顶瓷砖用导轨
较大的图像
4' x 4' 天花板瓷砖用导轨
MTC-48TRx12 是用于将 JBL 多款吸顶扬声器安装到悬挂式天花板中 4 英尺 x 4 英尺
(1200 x 1200 毫米；48 x 48 英寸)天花板瓷砖的配件导轨。
- 可与任何采用 C 型环/瓷砖导轨安装系统的 JBL 吸顶音箱配合使用。
包括（产品发布时）：
• Control 24C/CT Micro 和 24CT MicroPlus
• Control 24C/CT、26C/CT、19CS/CST
• Control 47C/T、47LP、47HC、40CS/T、42C
• Control 226C/T
• 8124/8128
• 不适用于采用瓷砖桥安装的 JBL 音箱（如 CSS 系列、8138、C227C/CT、C300 系列型号）。如需最新兼容性列表，请联系 JBL Professional 客户服务部门。 - 倒 V 形沟槽在瓷砖失效情况下为瓷砖导轨网格提供支撑，同时减少振动向天花板瓷砖网格系统的传递以及由此产生的噪音。
- 1.2 毫米（0.05 英寸）厚金属材料为大跨距提供必要的额外支撑。
- 多个 C 型环安装孔。安装人员可在其他位置进行钻孔。
- 一个 MTC-48TRx12 装包包含 12 根瓷砖导轨，可供 6 个音箱使用（每个 2 根）。
