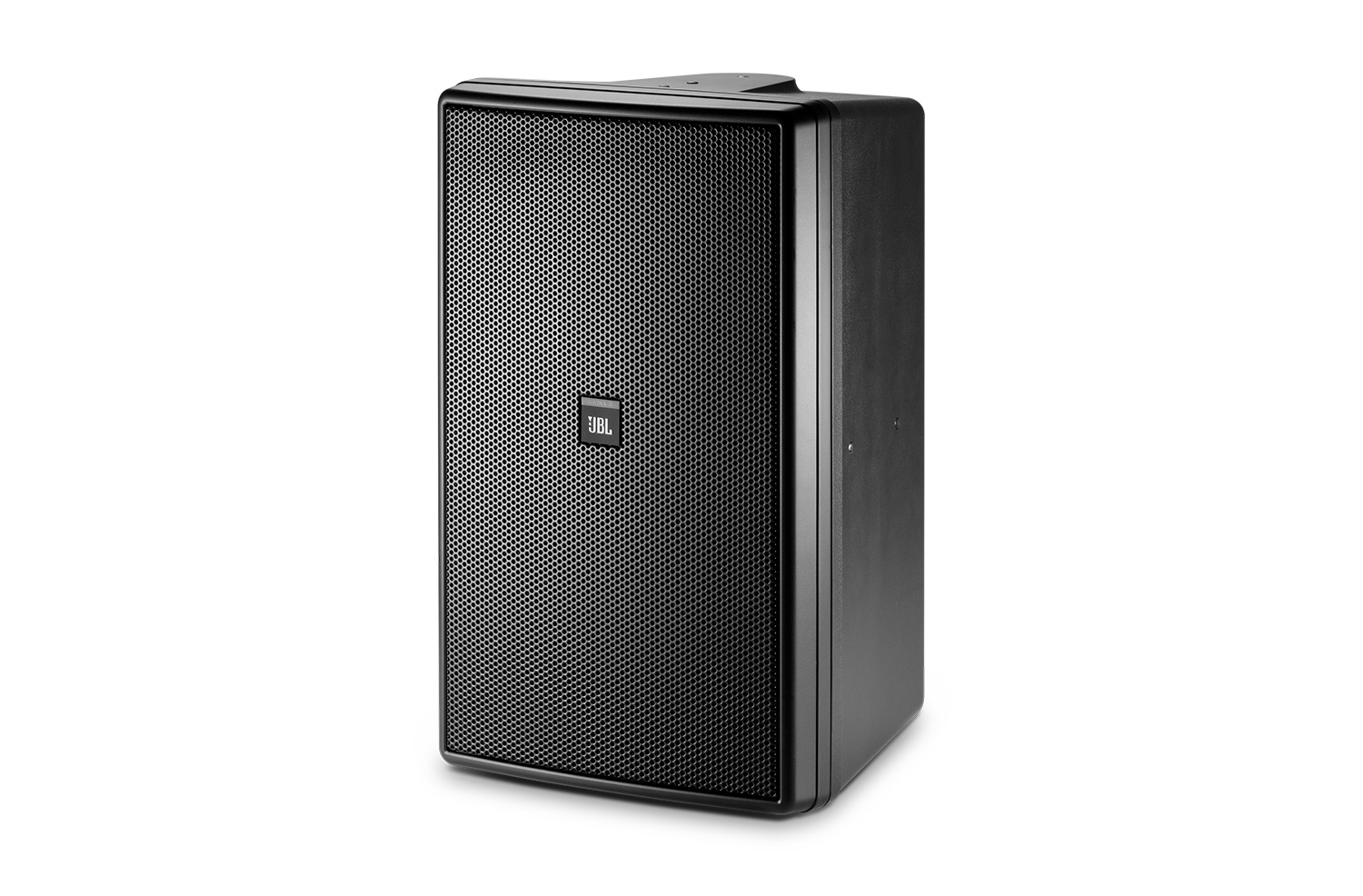

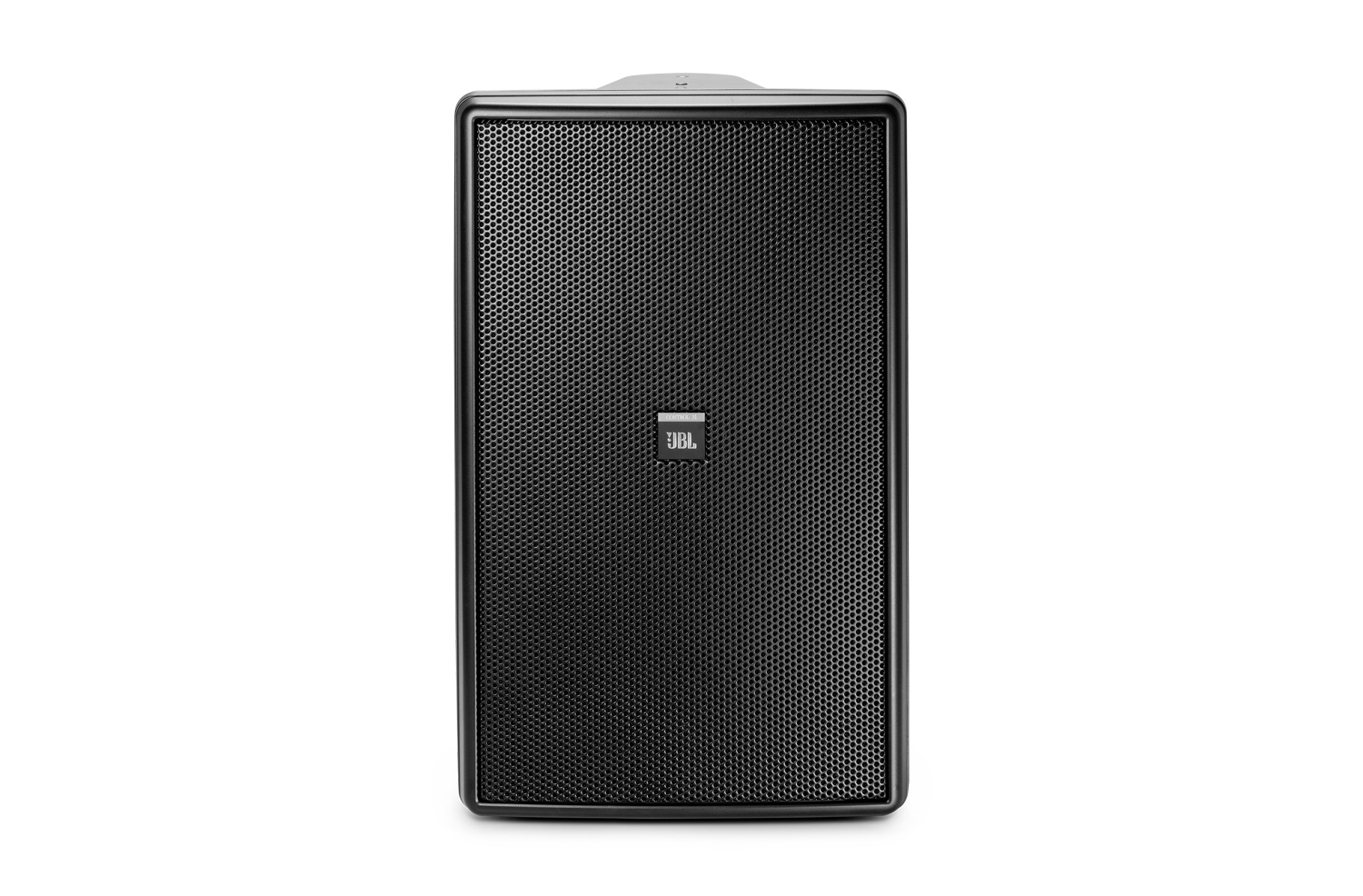

双向高输出室内外监听音箱
较大的图像
特点
- 组件：

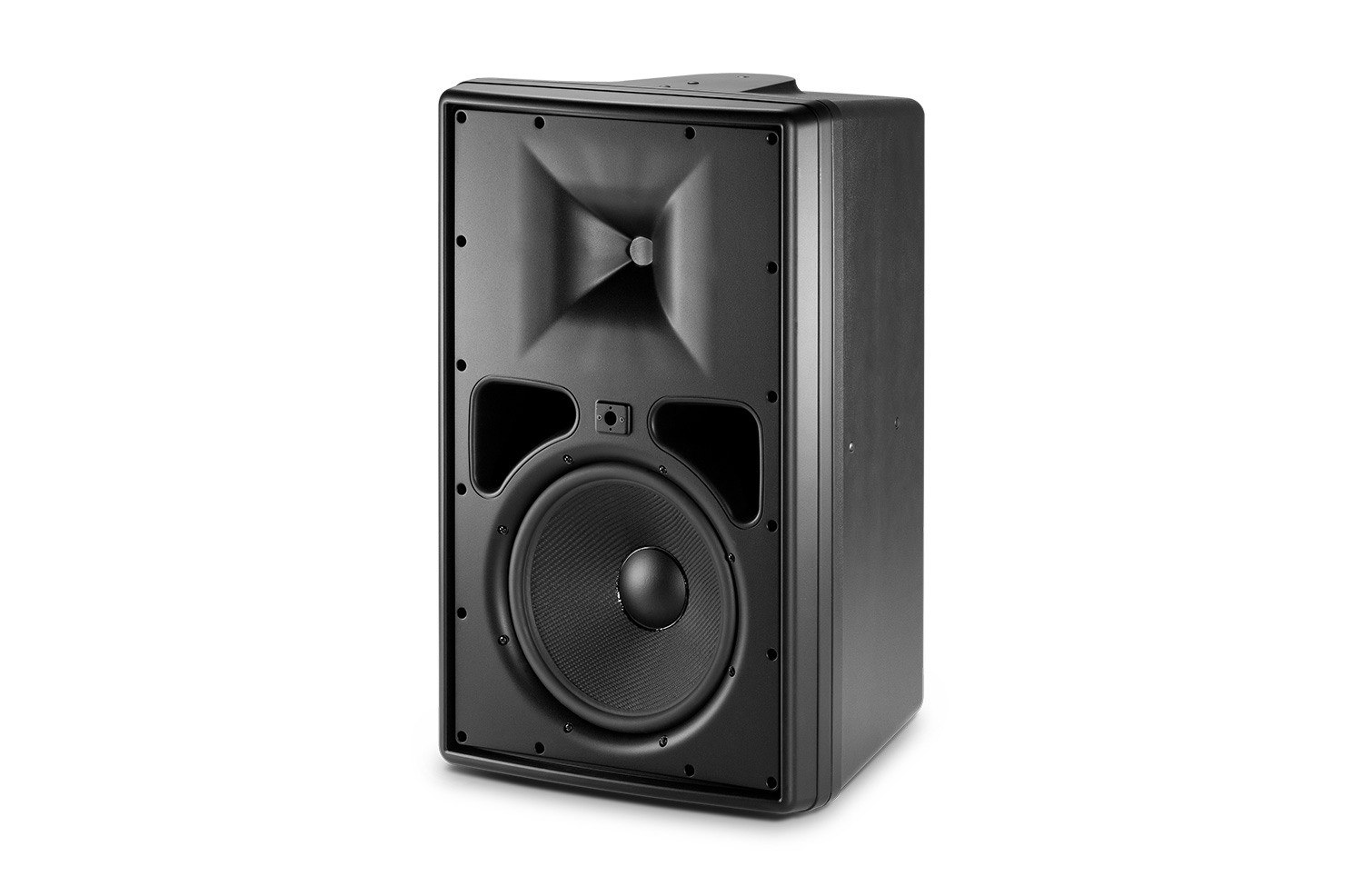

• 250 毫米（10 英寸）织物玻璃纤维锥形低频扬声器驱动单元，带 52 毫米（2 英寸）音圈。
• 高输出 2414H-C 压缩驱动单元，配 25 毫米（1 英寸）出口、独特（获专利）设计和高温聚合物振膜。 - 250 瓦特功率能力（8Ω 直通设置），加上 150 瓦特变压器用于 70V 或 100V 分布线路，
具有 8Ω 直通旁路。 - 扩展带宽，极其平顺的频率响应
- 高度防外界环境设计，配备内含 WeatherMax™ 多层栅栏和可选盐雾环境用海洋套件栅栏。
- 110° x 110° 对称覆盖。
- 包括 InvisiBall® 安装硬件，加上十个 6 毫米附件点用于悬挂和可选 U 形支架。
- 包括密封输入面板盖和螺钉紧固输入端子，确保安全连接。
下载
Data Sheets
| 大小 | |
|
|
372.6 KB |
Brochures
| 大小 | |
|
|
5.7 MB |
|
|
14.0 MB |
|
|
23.0 MB |
|
|
21.0 MB |
更新: 7月 2024
BIM Objects
| 大小 | |
|
|
Compliances
| 大小 | |
|
|
179.3 KB |
|
|
130.9 KB |
Simulation Data
| 大小 | |
|
|
24.0 MB |
|
|
21.0 MB |
Install Guides
| 大小 | |
|
|
87.7 KB |
|
|
377.3 KB |
|
|
58.7 KB |
|
|
52.4 KB |
Speaker Tunings
| 大小 | |
|
|
557.0 KB |
Ease Data
| 大小 | |
|
|
103.7 KB |
Images
| 大小 | |
|
|
260.1 KB |
|
|
138.9 KB |
|
|
270.4 KB |
Accessories
| 大小 | |
|
|
632.3 KB |
如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。
零件与服务
性能
| 频率范围 (-10dB) | 33Hz – 19kHz |
| Frequency Response (±3 dB) | 42Hz – 14kHz |
| Power Ratings | 250 W (1000 W peak), 2 hrs. 200 W (800 W peak), 100 hrs. |
| Maximum SPL (1m) | 116 dB continuous (123 dB peak) |
灵敏度 |
92 dB |
| 覆盖角度 | 110°H x110°V |
| Directivity Factor (Q) | 5.7, averaged 500 Hz to 10 kHz |
| Directivity Index (DI) | 7.3 dB, averaged 500 Hz to 10 kHz |
| 阻抗 | 8 ohms |
| Crossover Type | 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry. |
| 变压器抽头 | 70V: 150W, 75W, 38W, 19W 100V: 150W, 75W, 38W Insertion Loss: <0.65 dB at any tap setting Thru Setting: 8Ω nominal |
| Recommended High-Pass | Protective 40 Hz high-pass (24 dB/oct) for any transformer tap and for 8Ω operation |
| Drivers | LF: 250 mm (10 in) woven-fiberglass cone with pure butyl rubber surround, 52 mm (2 in) voice coil on high-temperature fiberglass voice coil former, optimized cone geometry, linear suspension spider, FEA-optimized motor construction, aluminum ring on pole piece. HF: JBL 2414H-C compression driver with 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, JBL-patented design, fluid-cooled. |
| Enclosure | High impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold for additional cabinet density. |
| 网罩 | Zinc-plated and thermoset-composite coated steel, WeatherMax™ multi-layer foam with tight-weave mesh vapor barrier. |
| Mounting hardware | InvisiBall wall-mounting system included. Ten 6 mm attachment points on cabinet for suspending or for optional U-bracket. One 6 mm secondary safety attachment point (for forged shoulder steel eyebolt, not included) on back panel. |
| Outdoor Capability | IP-55 per IEC529. Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray. Optional MTC-30MK marine-kit grille increases longevity in highly corrosive environments. |
| 输入接口 | Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). |
| Safety Agency | Transformer is listed per UL1876 |
| Colors | Black (RAL9004) or white (-WH, RAL9003) |
| 尺寸（高 x 宽 x 厚） | 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in) |
| Net Weight (each) | 18.8 kg (41.5lb) |
| Shipping Weight (ea) | 22.0 kg (48.5 lb) |
随附配件 |
1 pc MTC-PC2 input panel cover, InvisiBall wall-mounting system, 6 mm x 305 mm InvisiBall hex wrench. |
| Optional Accessories | MTC-30MK Marine-Kit Grille in black or white (-WH), consisting of grille and protective covers for baffle screws. MTC-30CM (&-WH) Ceiling-Mount Adapter for installing speaker down from the ceiling. MTC-30UB (&-WH) U-Bracket |
