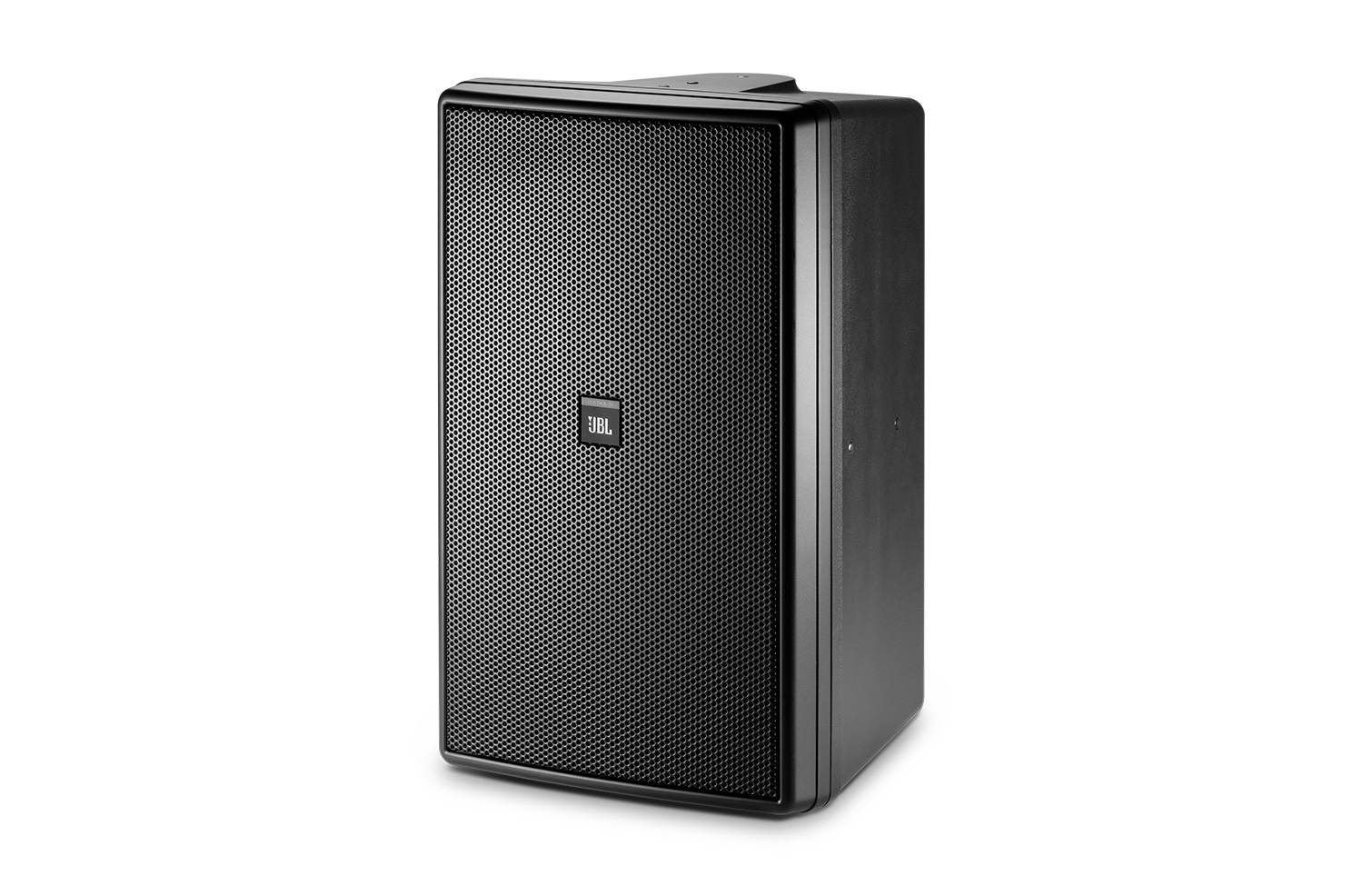

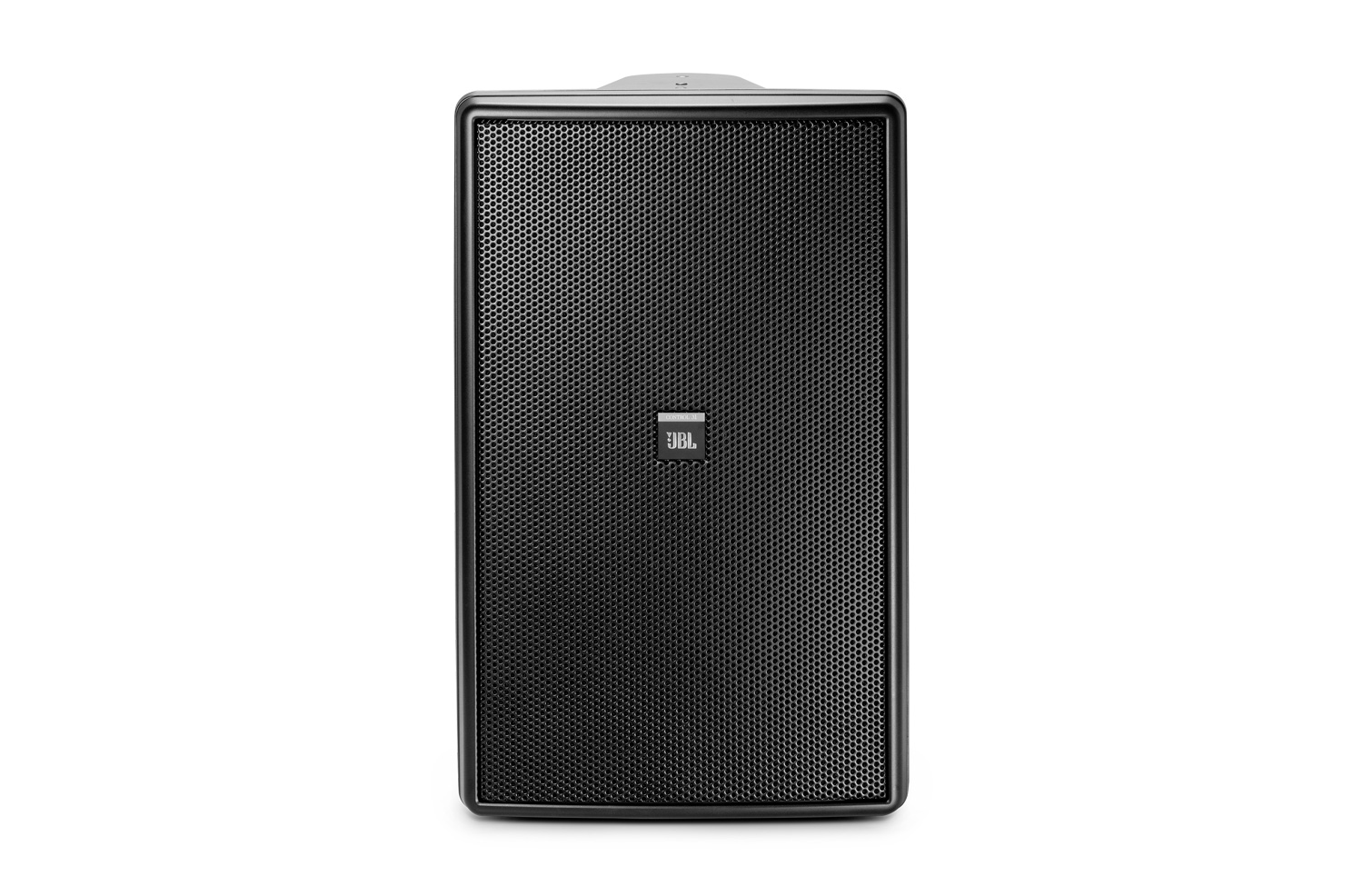

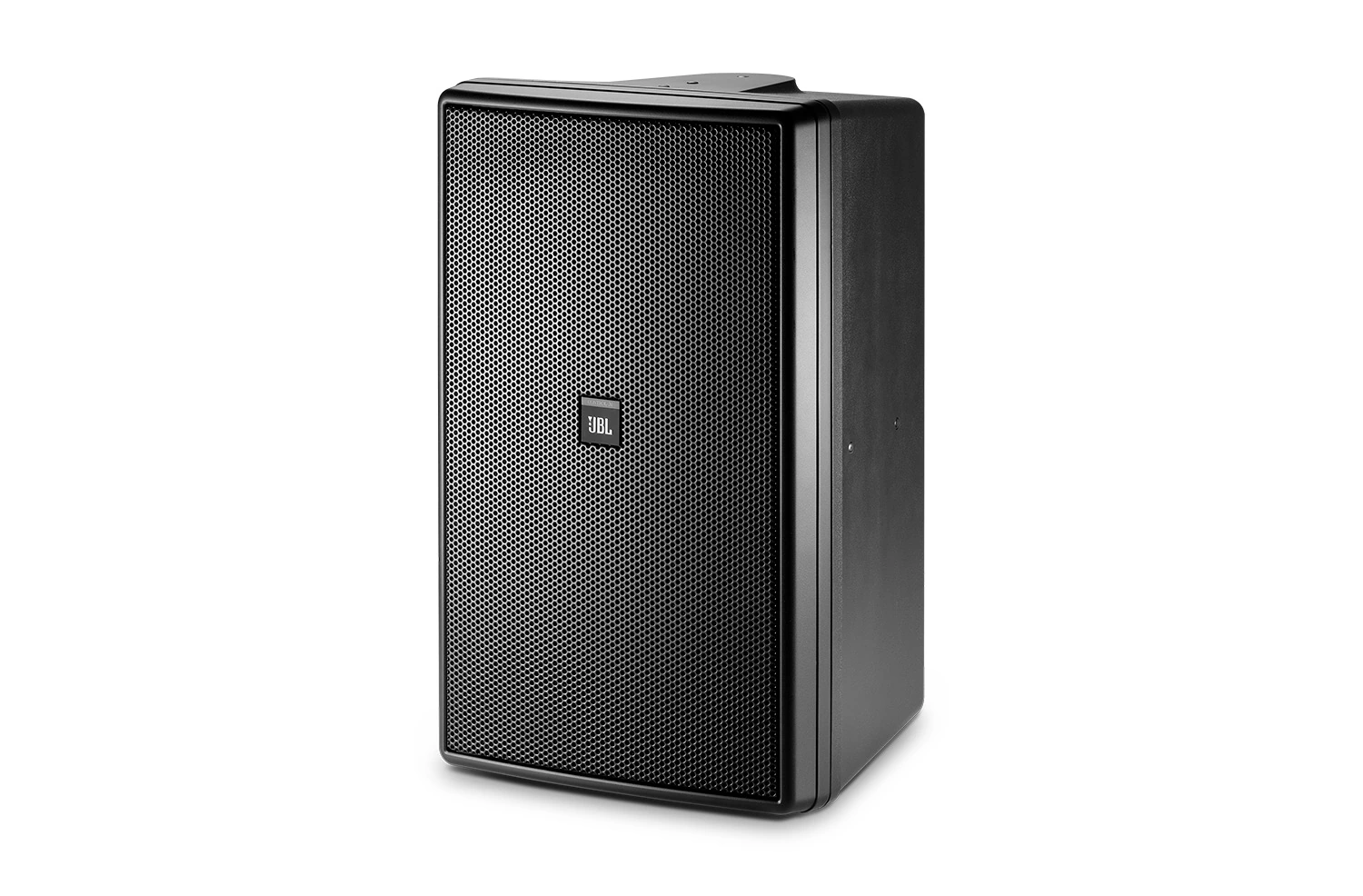

Caractéristiques
- Composants :

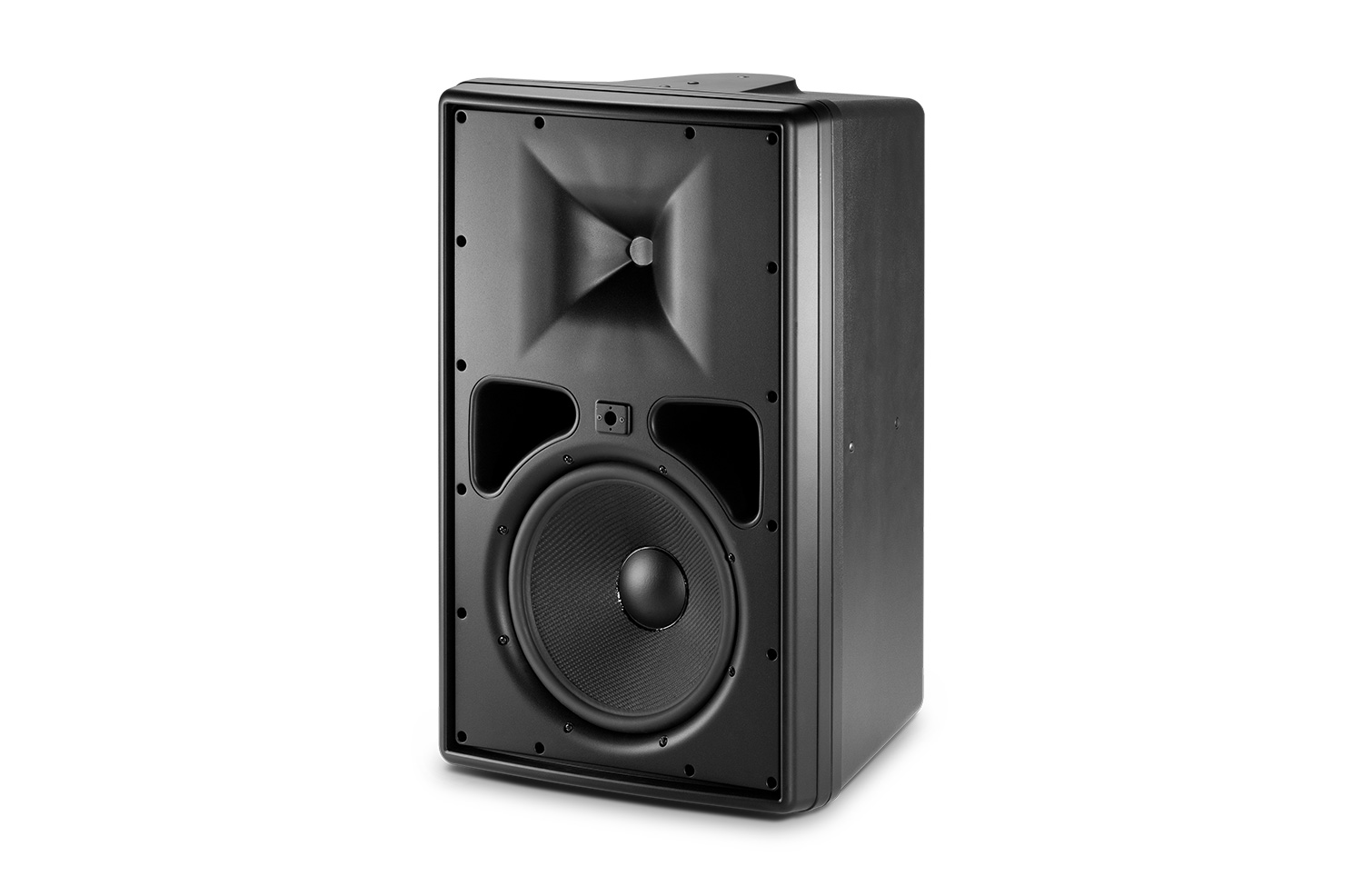

• Haut-parleur de grave à cône en fibre de verre tissée 250 mm (10 po) avec bobine mobile de 52 mm (2 po).
• Haut-parleur de compression haute puissance 2414H-C avec sortie 25 mm (1 po), conception unique (brevétée) et diaphragme en polymère haute température. - Capacité 250 Watts (en configuration traversante 8Ω), plus transformateur 150 Watts pour lignes distribuées 70 V ou 100 V,
avec contournement traversant 8Ω. - Bande passante étendue, réponse en fréquence extrêmement lisse
- Conception hautement adaptée aux environnements extérieurs avec grille multi-couche WeatherMax™ incluse et grille kit marin optionnel pour environnements marins salés.
- Couverture symétrique 110° x 110°.
- Quincaillerie de montage InvisiBall® incluse plus dix points de fixation 6 mm pour suspension et support en U optionnel.
- Couvercle de panneau d'entrée scellé inclus et bornes d'entrée avec vis de serrage pour connexion sécurisée.
Téléchargements
Data Sheets
| Taille | |
|
|
373 ko |
Brochures
| Taille | |
|
|
5,71 Mo |
|
|
14 Mo |
|
|
23 Mo |
|
|
21 Mo |
mis à jour : juil. 2024
BIM Objects
| Taille | |
|
|
Compliances
| Taille | |
|
|
179 ko |
|
|
131 ko |
Simulation Data
| Taille | |
|
|
24 Mo |
|
|
21 Mo |
Install Guides
| Taille | |
|
|
87,7 ko |
|
|
377 ko |
|
|
58,7 ko |
|
|
52,4 ko |
Speaker Tunings
| Taille | |
|
|
557 ko |
Ease Data
| Taille | |
|
|
104 ko |
Images
| Taille | |
|
|
260 ko |
|
|
139 ko |
|
|
270 ko |
Accessories
| Taille | |
|
|
632 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Range (-10dB) | 33Hz – 19kHz |
| Frequency Response (±3 dB) | 42Hz – 14kHz |
| Power Ratings | 250 W (1000 W peak), 2 hrs. 200 W (800 W peak), 100 hrs. |
| Maximum SPL (1m) | 116 dB continuous (123 dB peak) |
| Sensitivity | 92 dB |
| Coverage Angle | 110°H x110°V |
| Directivity Factor (Q) | 5.7, averaged 500 Hz to 10 kHz |
| Directivity Index (DI) | 7.3 dB, averaged 500 Hz to 10 kHz |
| Impedance | 8 ohms |
| Crossover Type | 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry. |
| Transformer Taps | 70V: 150W, 75W, 38W, 19W 100V: 150W, 75W, 38W Insertion Loss: <0.65 dB at any tap setting Thru Setting: 8Ω nominal |
| Recommended High-Pass | Protective 40 Hz high-pass (24 dB/oct) for any transformer tap and for 8Ω operation |
| Drivers | LF: 250 mm (10 in) woven-fiberglass cone with pure butyl rubber surround, 52 mm (2 in) voice coil on high-temperature fiberglass voice coil former, optimized cone geometry, linear suspension spider, FEA-optimized motor construction, aluminum ring on pole piece. HF: JBL 2414H-C compression driver with 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, JBL-patented design, fluid-cooled. |
| Enclosure | High impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold for additional cabinet density. |
| Grille | Zinc-plated and thermoset-composite coated steel, WeatherMax™ multi-layer foam with tight-weave mesh vapor barrier. |
| Mounting hardware | InvisiBall wall-mounting system included. Ten 6 mm attachment points on cabinet for suspending or for optional U-bracket. One 6 mm secondary safety attachment point (for forged shoulder steel eyebolt, not included) on back panel. |
| Outdoor Capability | IP-55 per IEC529. Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray. Optional MTC-30MK marine-kit grille increases longevity in highly corrosive environments. |
| Input Connectors | Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). |
| Safety Agency | Transformer is listed per UL1876 |
| Colors | Black (RAL9004) or white (-WH, RAL9003) |
| Dimensions (H x W x D) | 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in) |
| Net Weight (each) | 18.8 kg (41.5lb) |
| Shipping Weight (ea) | 22.0 kg (48.5 lb) |
| Included Accessories | 1 pc MTC-PC2 input panel cover, InvisiBall wall-mounting system, 6 mm x 305 mm InvisiBall hex wrench. |
| Optional Accessories | MTC-30MK Marine-Kit Grille in black or white (-WH), consisting of grille and protective covers for baffle screws. MTC-30CM (&-WH) Ceiling-Mount Adapter for installing speaker down from the ceiling. MTC-30UB (&-WH) U-Bracket |
