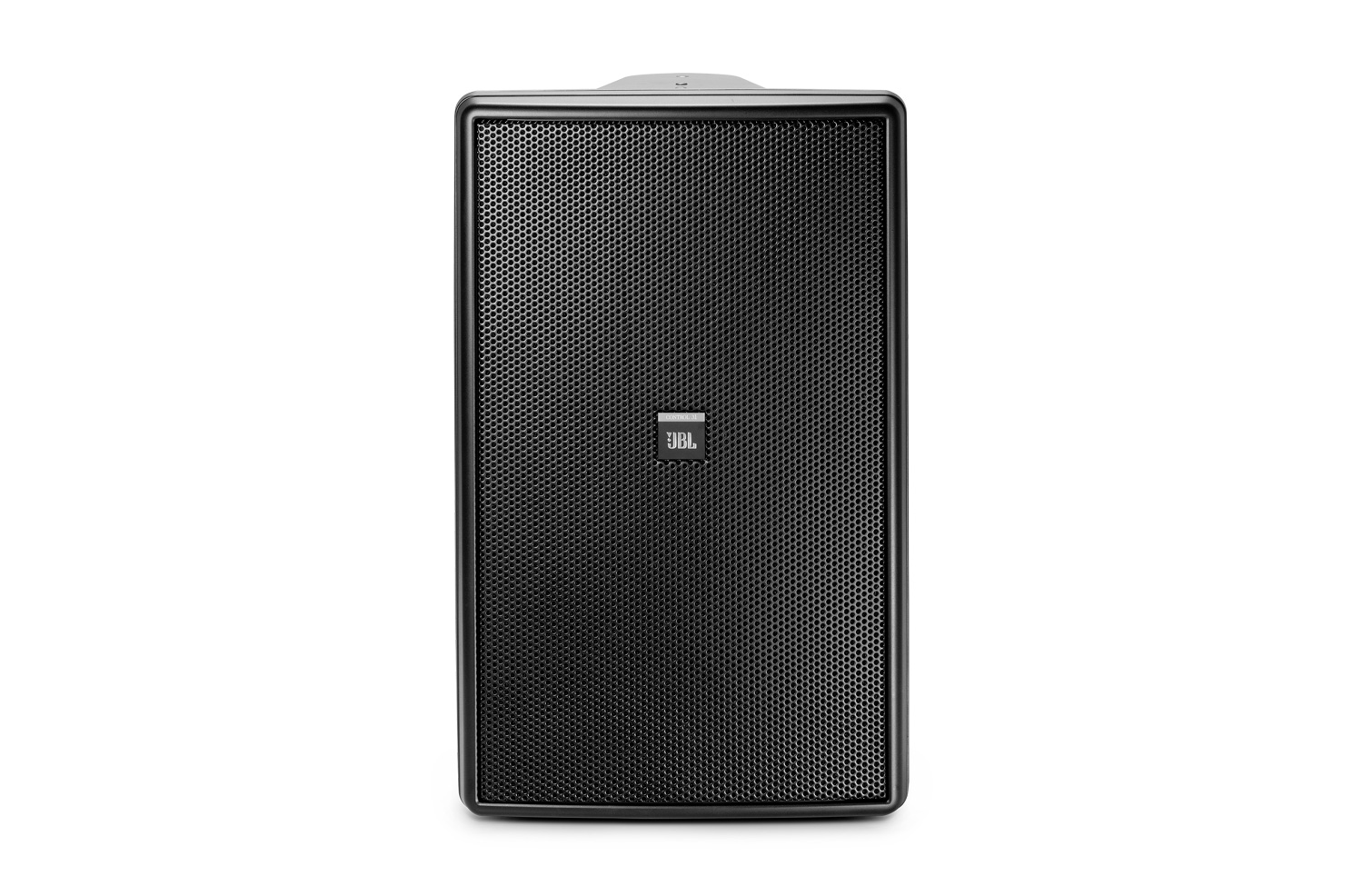

2ウェイ高出力屋内外兼用モニタースピーカー
画像を拡大
特長
- コンポーネント:

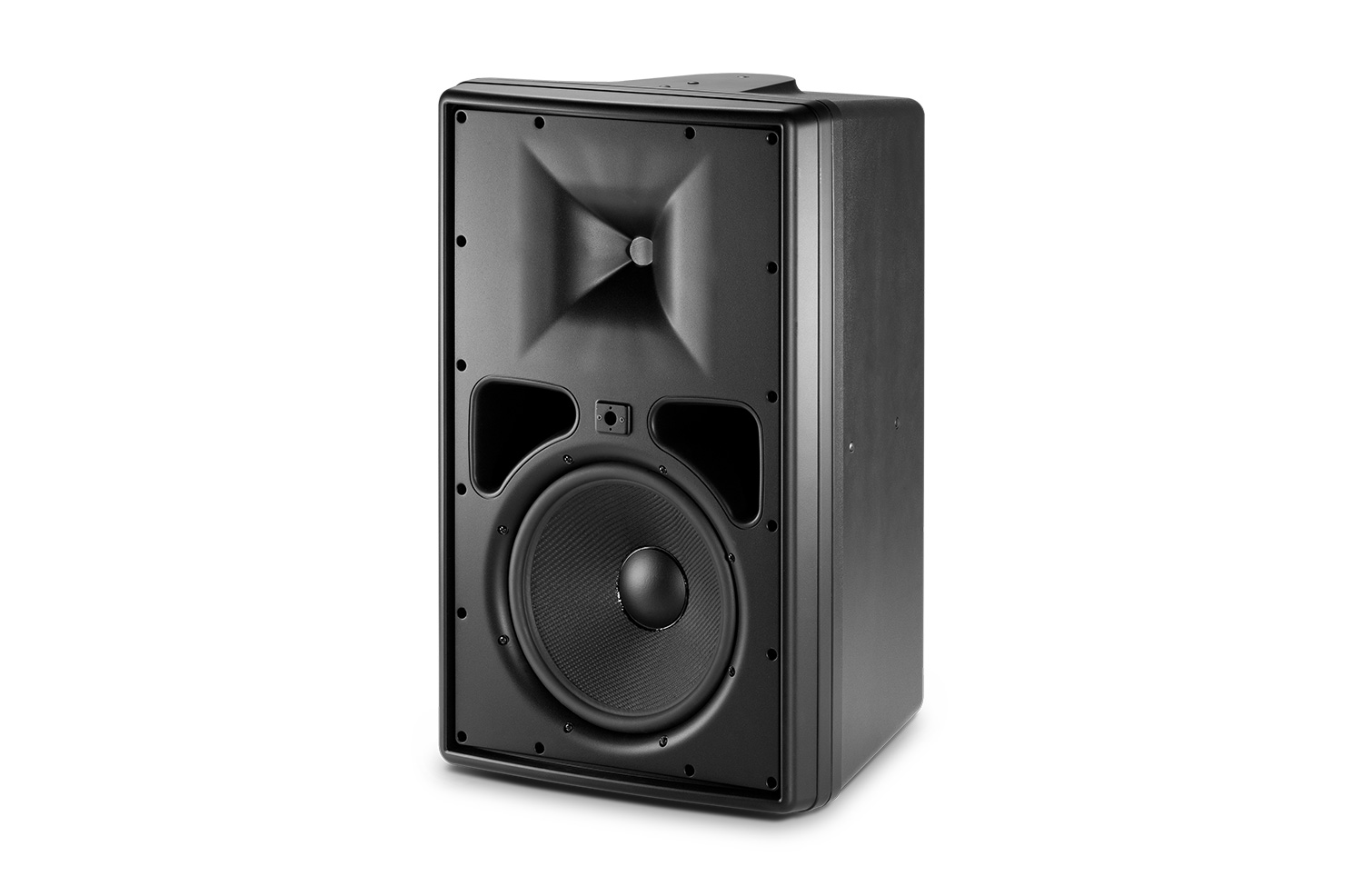

• 52 mm (2 in) ボイスコイル付き250 mm (10 in) ウーブン・ファイバーグラス・コーンLFドライバー
• 25 mm (1 in) 出口、ユニークな (特許取得済み) デザイン、高温ポリマー・ダイアフラム搭載の高出力2414H-Cコンプレッション・ドライバー - 250 W対応 (8Ωスルー設定時)、および70Vまたは100V分散配線用150 Wトランス、
8Ωスルー・バイパス付き - 拡張帯域幅、極めてスムーズな周波数特性

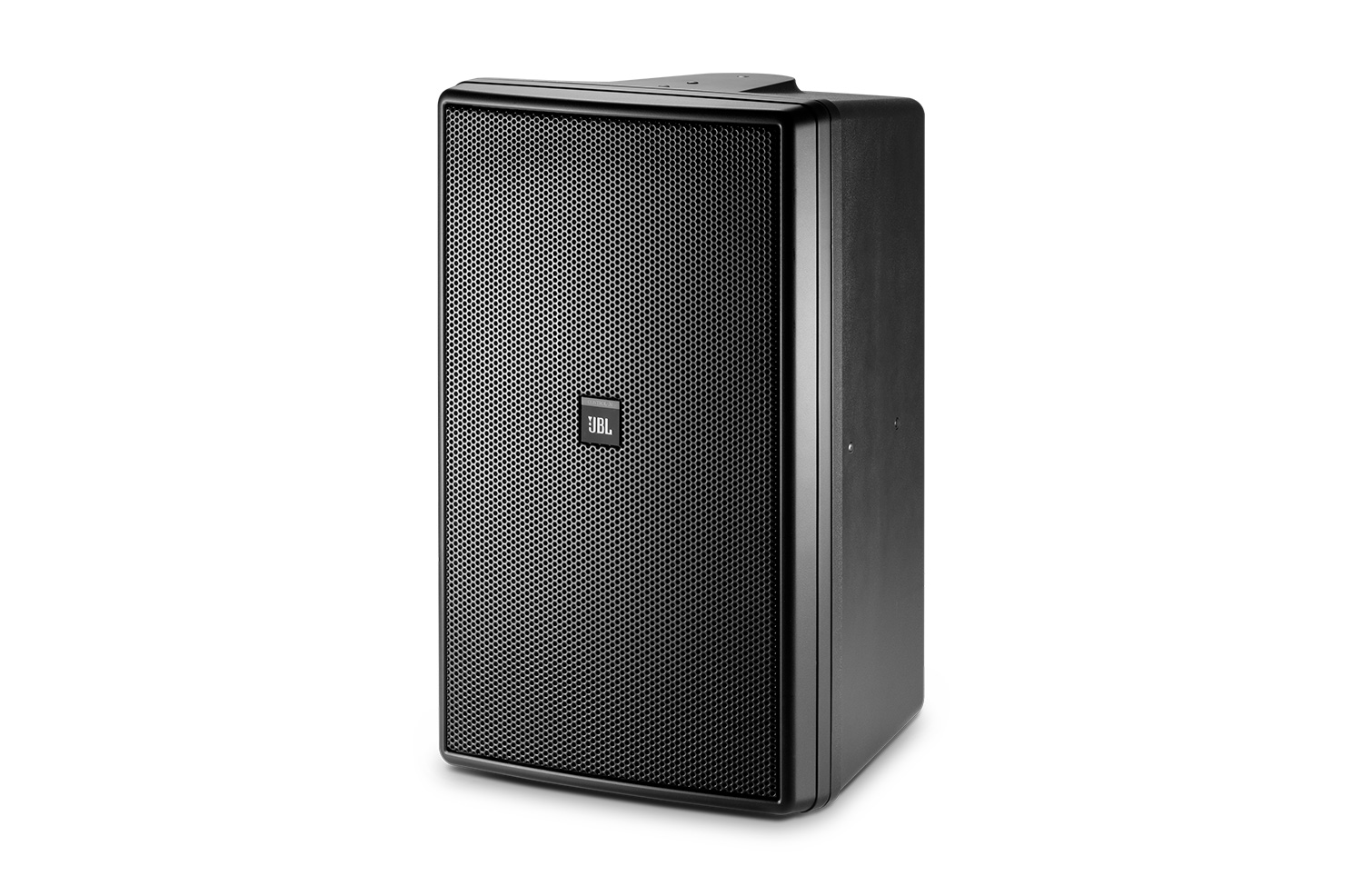

- 付属のWeatherMax™マルチレイヤー・グリル、および塩害環境用オプション・マリン・キット・グリル搭載の優れた屋外対応設計
- 110° x 110° 対称カバレッジ
- InvisiBall®マウンティング・ハードウェア、および吊り下げ用とオプションUブラケット用の10個の6 mmアタッチメント・ポイントを含む
- 付属のシールド入力パネル・カバーとスクリューダウン入力ターミナルで確実な接続を実現
ダウンロード
Data Sheets
| サイズ | |
|
|
373KB |
Brochures
| サイズ | |
|
|
5.71MB |
|
|
14MB |
|
|
23MB |
|
|
21MB |
更新: 2024年7月
BIM Objects
| サイズ | |
|
|
Compliances
| サイズ | |
|
|
179KB |
|
|
131KB |
Simulation Data
| サイズ | |
|
|
24MB |
|
|
21MB |
Install Guides
| サイズ | |
|
|
87.7KB |
|
|
377KB |
|
|
58.7KB |
|
|
52.4KB |
Speaker Tunings
| サイズ | |
|
|
557KB |
Ease Data
| サイズ | |
|
|
104KB |
Images
| サイズ | |
|
|
260KB |
|
|
139KB |
|
|
270KB |
Accessories
| サイズ | |
|
|
632KB |
上記のリンクをクリックしてブラウザで文字化けが発生する場合は、ファイルを右クリックしてコンピューターに保存してください。
パーツ＆サービス
仕様
| Frequency Range (-10dB) | 33Hz – 19kHz |
| Frequency Response (±3 dB) | 42Hz – 14kHz |
| Power Ratings | 250 W (1000 W peak), 2 hrs. 200 W (800 W peak), 100 hrs. |
| Maximum SPL (1m) | 116 dB continuous (123 dB peak) |
| Sensitivity | 92 dB |
| Coverage Angle | 110°H x110°V |
| Directivity Factor (Q) | 5.7, averaged 500 Hz to 10 kHz |
| Directivity Index (DI) | 7.3 dB, averaged 500 Hz to 10 kHz |
| Impedance | 8 ohms |
| Crossover Type | 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry. |
| Transformer Taps | 70V: 150W, 75W, 38W, 19W 100V: 150W, 75W, 38W Insertion Loss: <0.65 dB at any tap setting Thru Setting: 8Ω nominal |
| Recommended High-Pass | Protective 40 Hz high-pass (24 dB/oct) for any transformer tap and for 8Ω operation |
| Drivers | LF: 250 mm (10 in) woven-fiberglass cone with pure butyl rubber surround, 52 mm (2 in) voice coil on high-temperature fiberglass voice coil former, optimized cone geometry, linear suspension spider, FEA-optimized motor construction, aluminum ring on pole piece. HF: JBL 2414H-C compression driver with 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, JBL-patented design, fluid-cooled. |
| Enclosure | High impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold for additional cabinet density. |
| Grille | Zinc-plated and thermoset-composite coated steel, WeatherMax™ multi-layer foam with tight-weave mesh vapor barrier. |
| Mounting hardware | InvisiBall wall-mounting system included. Ten 6 mm attachment points on cabinet for suspending or for optional U-bracket. One 6 mm secondary safety attachment point (for forged shoulder steel eyebolt, not included) on back panel. |
| Outdoor Capability | IP-55 per IEC529. Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray. Optional MTC-30MK marine-kit grille increases longevity in highly corrosive environments. |
| Input Connectors | Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). |
| Safety Agency | Transformer is listed per UL1876 |
| Colors | Black (RAL9004) or white (-WH, RAL9003) |
| Dimensions (H x W x D) | 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in) |
| Net Weight (each) | 18.8 kg (41.5lb) |
| Shipping Weight (ea) | 22.0 kg (48.5 lb) |
| Included Accessories | 1 pc MTC-PC2 input panel cover, InvisiBall wall-mounting system, 6 mm x 305 mm InvisiBall hex wrench. |
| Optional Accessories | MTC-30MK Marine-Kit Grille in black or white (-WH), consisting of grille and protective covers for baffle screws. MTC-30CM (&-WH) Ceiling-Mount Adapter for installing speaker down from the ceiling. MTC-30UB (&-WH) U-Bracket |
