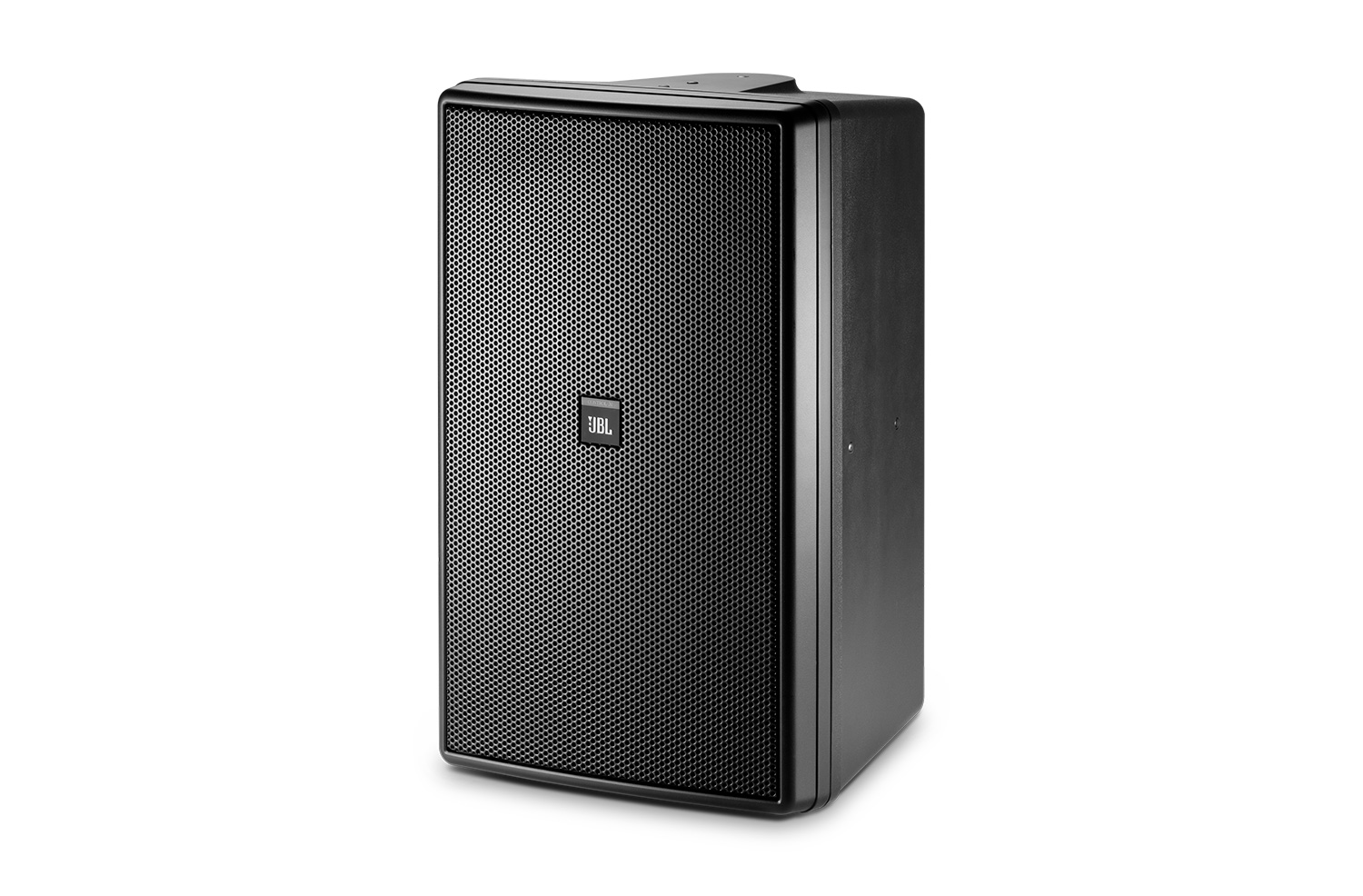

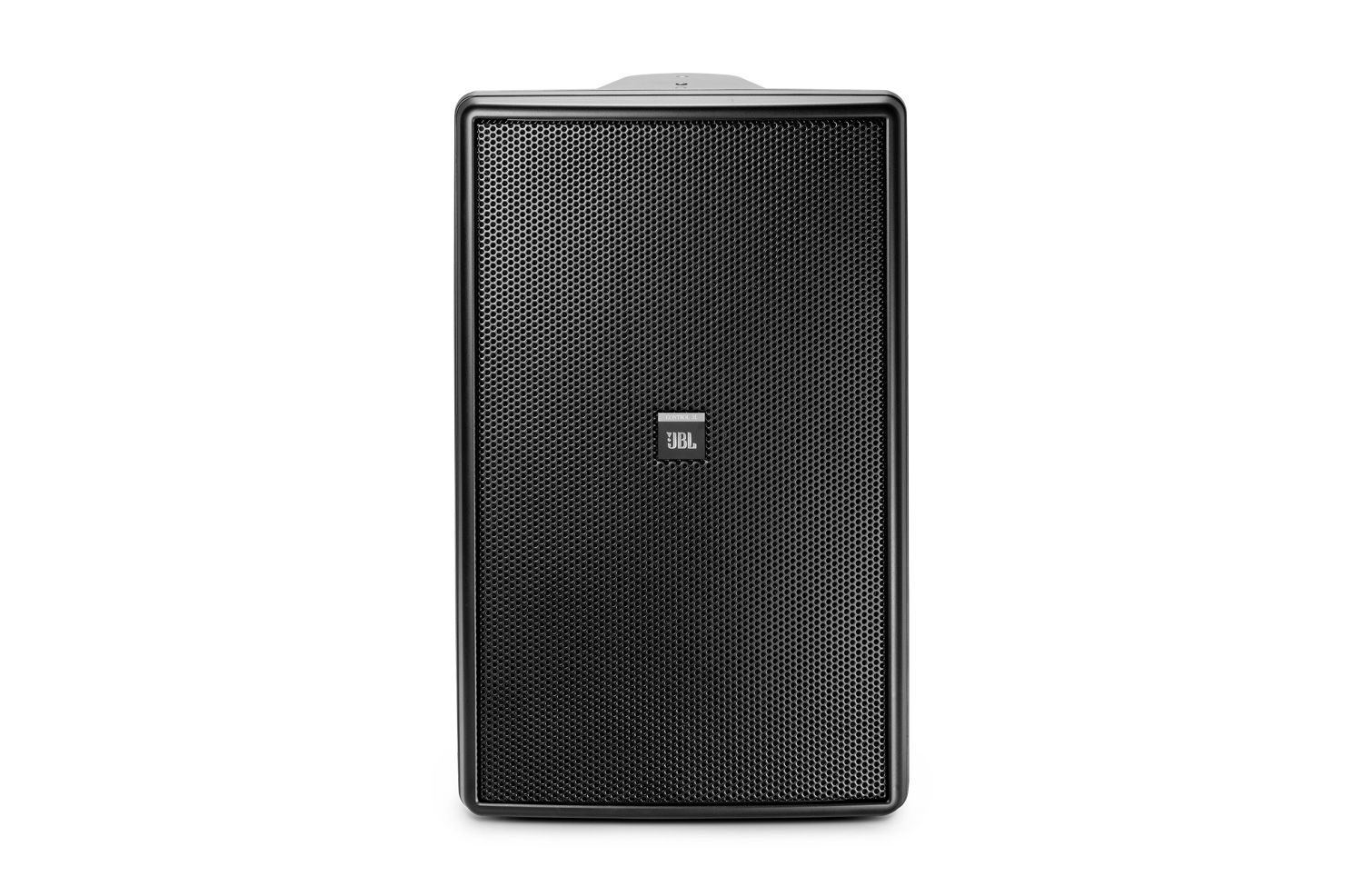

2웨이 고출력 실내외 모니터 스피커
더 큰 이미지
기능
- 구성품:

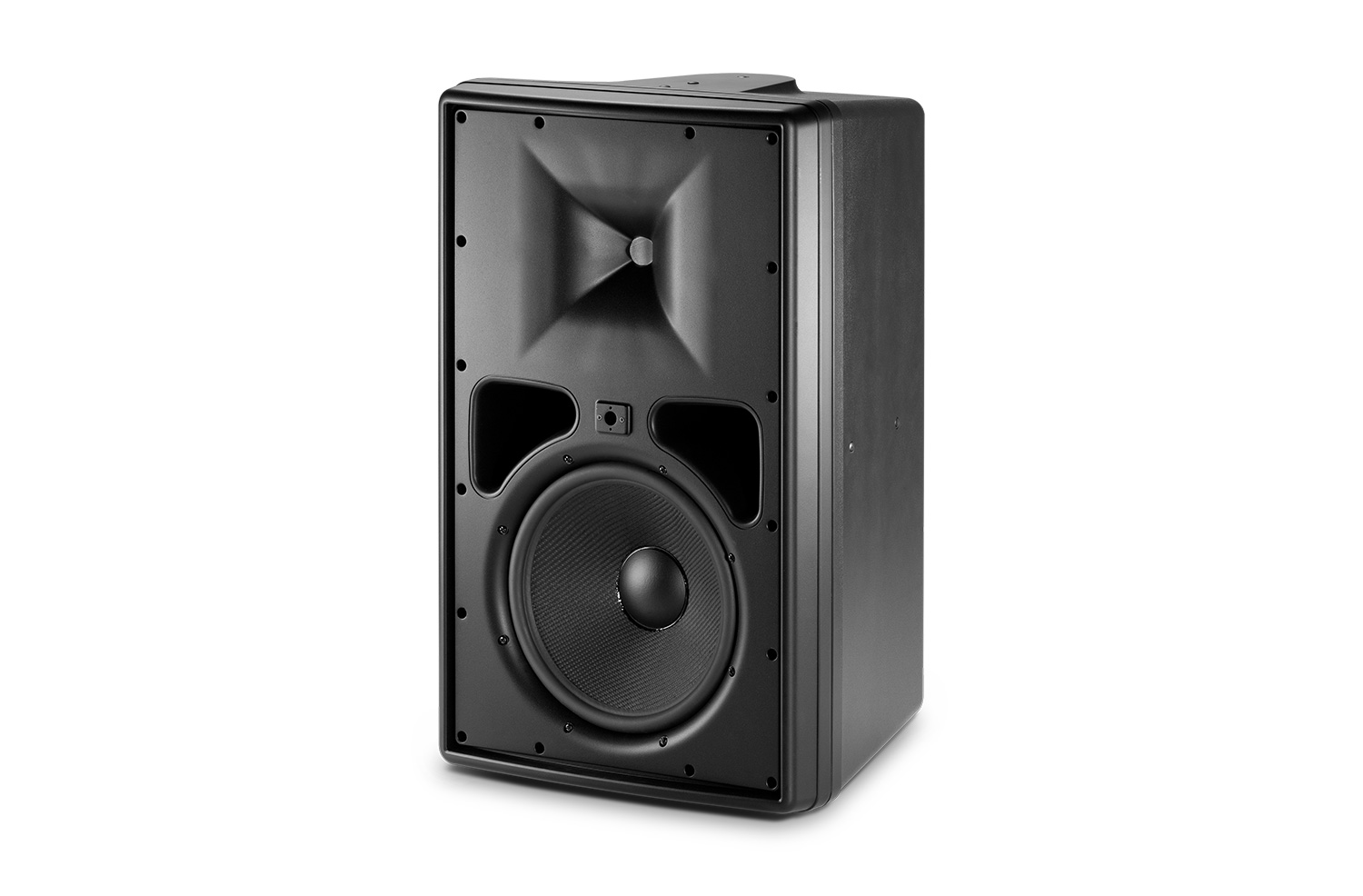

• 52mm(2인치) 보이스코일이 장착된 250mm(10인치) 직조 유리섬유 콘 저주파 드라이버.
• 25mm(1인치) 출구, 고유한 (특허) 설계 및 고온 폴리머 다이어프램을 갖춘 고출력 2414H-C 컴프레션 드라이버. - 250W 용량(8Ω 통과 설정), 플러스 70V 또는 100V 분산 라인용 150W 트랜스포머,
8Ω 통과 바이패스 포함. - 확장된 대역폭, 매우 부드러운 주파수 응답
- 포함된 WeatherMax™ 다층 그릴 및 염분 환경용 선택 사양 해양 키트 그릴이 포함된 고도의 실외 설계.
- 110° x 110° 대칭 커버리지.
- InvisiBall® 마운팅 하드웨어 및 서스펜션용 10개의 6mm 부착 지점과 선택 사양 U자형 브래킷 포함.
- 밀폐된 입력 패널 커버 및 안전한 연결을 위한 나사식 입력 터미널 포함.
다운로드
Data Sheets
| 크기 | |
|
|
373KB |
Brochures
| 크기 | |
|
|
5.71MB |
|
|
14MB |
|
|
23MB |
|
|
21MB |
업데이트됨: 2024년 7월월
BIM Objects
| 크기 | |
|
|
Compliances
| 크기 | |
|
|
179KB |
|
|
131KB |
Simulation Data
| 크기 | |
|
|
24MB |
|
|
21MB |
Install Guides
| 크기 | |
|
|
87.7KB |
|
|
377KB |
|
|
58.7KB |
|
|
52.4KB |
Speaker Tunings
| 크기 | |
|
|
557KB |
Ease Data
| 크기 | |
|
|
104KB |
Images
| 크기 | |
|
|
260KB |
|
|
139KB |
|
|
270KB |
Accessories
| 크기 | |
|
|
632KB |
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하십시오.
부품 및 서비스
사양
| Frequency Range (-10dB) | 33Hz – 19kHz |
| Frequency Response (±3 dB) | 42Hz – 14kHz |
| Power Ratings | 250 W (1000 W peak), 2 hrs. 200 W (800 W peak), 100 hrs. |
| Maximum SPL (1m) | 116 dB continuous (123 dB peak) |
| Sensitivity | 92 dB |
| Coverage Angle | 110°H x110°V |
| Directivity Factor (Q) | 5.7, averaged 500 Hz to 10 kHz |
| Directivity Index (DI) | 7.3 dB, averaged 500 Hz to 10 kHz |
| Impedance | 8 ohms |
| Crossover Type | 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry. |
| Transformer Taps | 70V: 150W, 75W, 38W, 19W 100V: 150W, 75W, 38W Insertion Loss: <0.65 dB at any tap setting Thru Setting: 8Ω nominal |
| Recommended High-Pass | Protective 40 Hz high-pass (24 dB/oct) for any transformer tap and for 8Ω operation |
| Drivers | LF: 250 mm (10 in) woven-fiberglass cone with pure butyl rubber surround, 52 mm (2 in) voice coil on high-temperature fiberglass voice coil former, optimized cone geometry, linear suspension spider, FEA-optimized motor construction, aluminum ring on pole piece. HF: JBL 2414H-C compression driver with 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, JBL-patented design, fluid-cooled. |
| Enclosure | High impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold for additional cabinet density. |
| Grille | Zinc-plated and thermoset-composite coated steel, WeatherMax™ multi-layer foam with tight-weave mesh vapor barrier. |
| Mounting hardware | InvisiBall wall-mounting system included. Ten 6 mm attachment points on cabinet for suspending or for optional U-bracket. One 6 mm secondary safety attachment point (for forged shoulder steel eyebolt, not included) on back panel. |
| Outdoor Capability | IP-55 per IEC529. Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray. Optional MTC-30MK marine-kit grille increases longevity in highly corrosive environments. |
| Input Connectors | Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). |
| Safety Agency | Transformer is listed per UL1876 |
| Colors | Black (RAL9004) or white (-WH, RAL9003) |
| Dimensions (H x W x D) | 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in) |
| Net Weight (each) | 18.8 kg (41.5lb) |
| Shipping Weight (ea) | 22.0 kg (48.5 lb) |
| Included Accessories | 1 pc MTC-PC2 input panel cover, InvisiBall wall-mounting system, 6 mm x 305 mm InvisiBall hex wrench. |
| Optional Accessories | MTC-30MK Marine-Kit Grille in black or white (-WH), consisting of grille and protective covers for baffle screws. MTC-30CM (&-WH) Ceiling-Mount Adapter for installing speaker down from the ceiling. MTC-30UB (&-WH) U-Bracket |
