Control 12C/T

Loa Trần Nhỏ Gọn

Control 12C/T
Hình ảnh lớn hơn

Loa Âm Trần Compact

Control 12C/T là một loa âm trần toàn dải tần gồm một trình điều khiển hình nón rộng dải thông (76 mm/3 inch) được lắp trong một baffle thông khí, có thể sơn được, làm từ vật liệu chịu tia UV UL94-V0, với backcan tích hợp để lắp đặt nhanh chóng và dễ dàng.

Tính năng

  • Trình phát toàn dải 76 mm (3 in)
  • Backcan tích hợp để cài đặt nhanh chóng và dễ dàng
  • Hoạt động kết hợp 70V/100V và trở kháng thấp trực tiếp
    • 20 Watts ở mức định mức 8Ω
    • 15W đa vòi ở 70V/100V
  • Băng thông 68 Hz – 17 kHz với phạm vi phủ sóng rộng 130°
  • Trắng hoặc đen (-BK)

Tải xuống

Specifications
  Phiên bản Kích thước Đã tải lên
file type icon Control 12C/T Spec Sheet
phiên bản C, cập nhật: Thg 4 2020
300 KB Thg 4 2020
Manuals
  Phiên bản Kích thước Đã tải lên
file type icon Ceiling Speaker Accessory Guide
phiên bản A, cập nhật: Thg 5 2026
100 KB Thg 5 2026
Brochures
  Phiên bản Ngôn ngữ Kích thước Đã tải lên
file type icon Control Contractor Brochure (2026)
en cập nhật: Thg 3 2026
  en  20 MB Thg 3 2026
file type icon Control Contractor Brochure (2025)
en phiên bản A, cập nhật: Thg 3 2026
en  20 MB Thg 3 2026
file type icon Control Contractor Brochure (2024)
en phiên bản D, cập nhật: Thg 2 2024
en  10 MB Thg 2 2024
CAD Drawings
  Kích thước Đã tải lên
file type icon Control and Control Contractor Series
cập nhật: Thg 10 2019
2 MB Thg 10 2019
file type icon Control 12C/T CAD Drawings
cập nhật: Thg 10 2020
900 KB Thg 10 2020
BIM Objects
  Kích thước Đã tải lên
file type icon CONTROL 12C/T BIM Object
cập nhật: Thg 8 2019
Thg 8 2019
Compliances
  Kích thước Đã tải lên
100 KB Thg 10 2019
file type icon JBL Control Series Passive Speakers DoC
cập nhật: Thg 12 2019
200 KB Thg 12 2019
Software
  Phiên bản Kích thước Đã tải lên
Windows download icon Distributed System Design (DSD)
phiên bản 3.9, cập nhật: Thg 11 2025
3.9   600 KB Thg 11 2025
Simulation Data
  Phiên bản Kích thước Đã tải lên
file type icon Ease SPK/DLL Files - Full JBL Pro Line
cập nhật: Thg 5 2024
  20 MB Thg 5 2024
file type icon JBL Pro ALL CLF Files
phiên bản 12-10-21, cập nhật: Thg 5 2023
12-10-21  20 MB Thg 5 2023
Owner's Manuals
  Kích thước Đã tải lên
file type icon Control 10 Series Owner's Manual
cập nhật: Thg 10 2020
400 KB Thg 10 2020
Accessories
  Kích thước Đã tải lên
200 KB Thg 9 2021
file type icon MTC-14WG/16WG High Humidity Grille
cập nhật: Thg 10 2020
800 KB Thg 10 2020
Ease Data
  Phiên bản Kích thước Đã tải lên
file type icon Authorized EASE ADDRESS files
cập nhật: Thg 8 2021
  1 MB Thg 8 2021
file type icon Full EASE ADDRESS Software with JBL Speaker Data
phiên bản A, cập nhật: Thg 12 2021
10 MB Thg 12 2021
file type icon Control 10 Series Ease Data
cập nhật: Thg 10 2020
  300 KB Thg 10 2020
Images
  Kích thước Đã tải lên

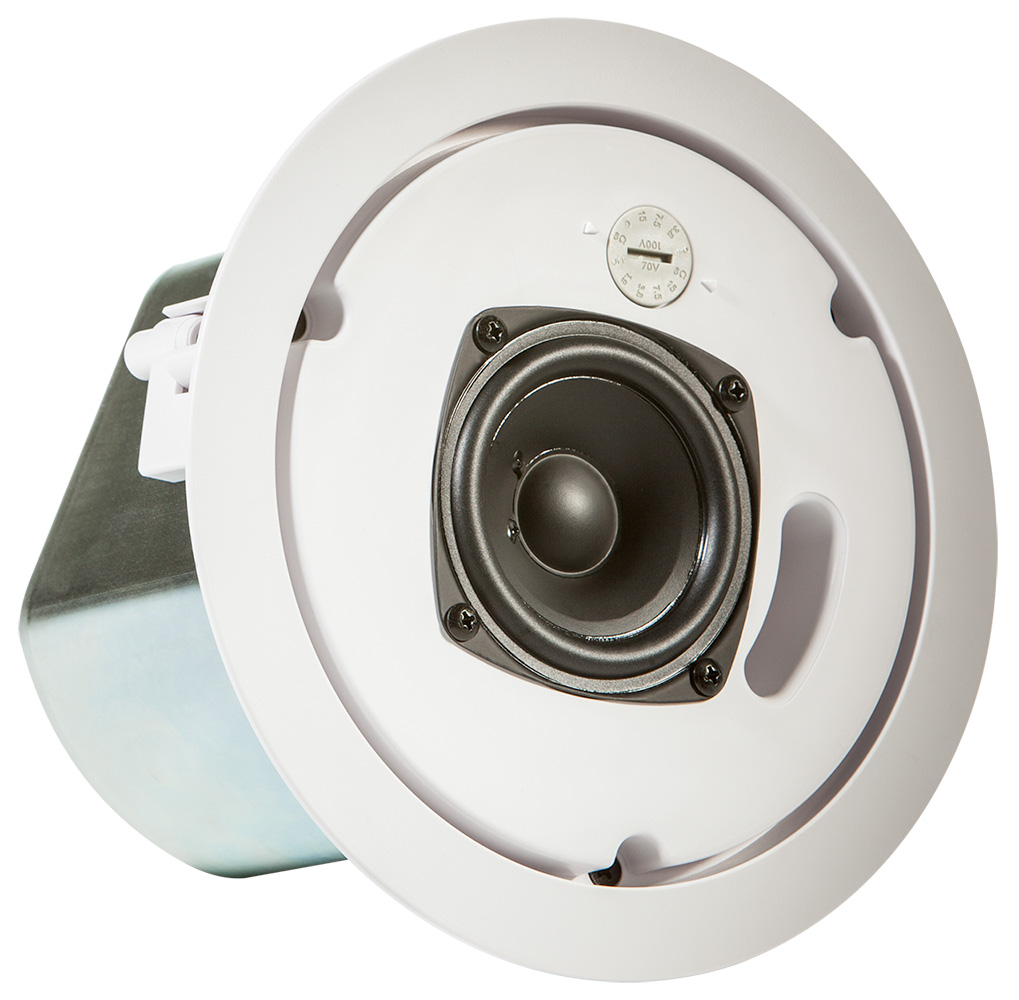

file type icon Control 12C/T White No Grill
cập nhật: Thg 10 2020
200 KB Thg 10 2020

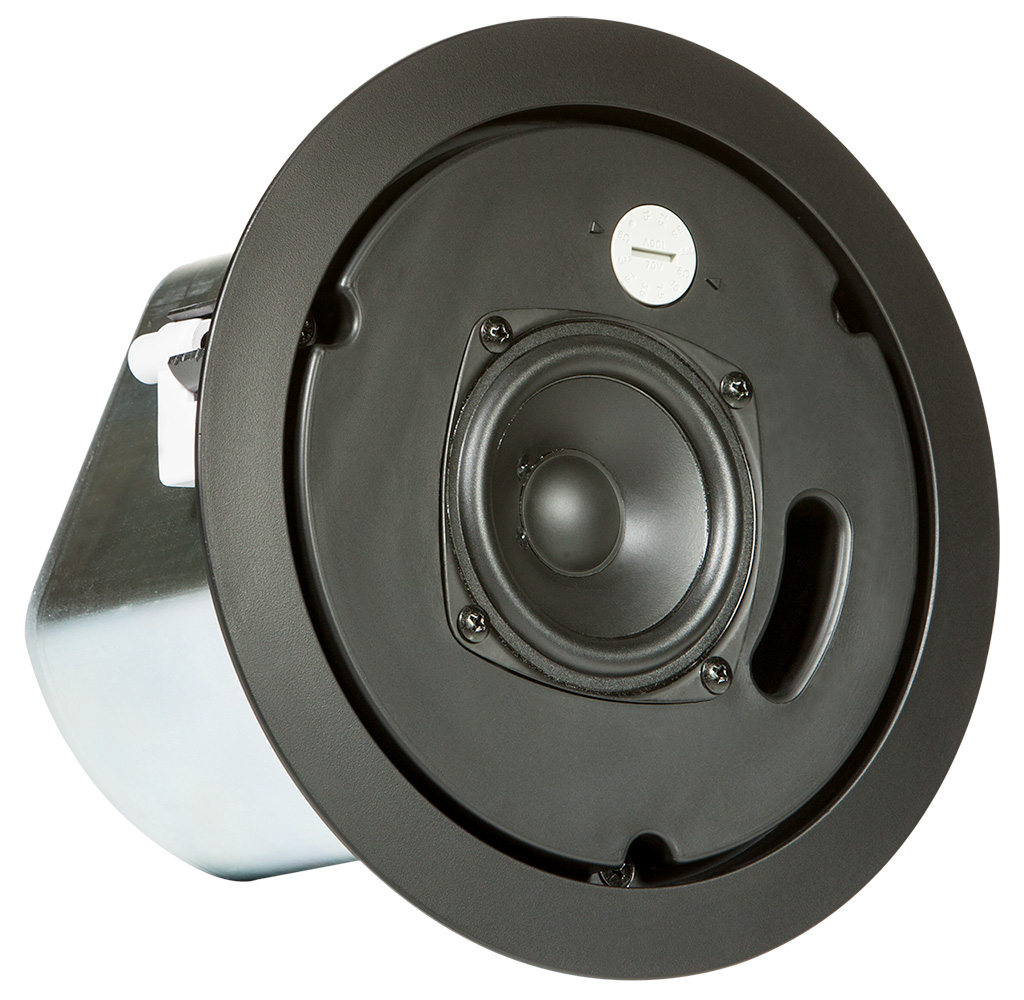

file type icon Control 12C/T Black No Grill
cập nhật: Thg 10 2020
200 KB Thg 10 2020

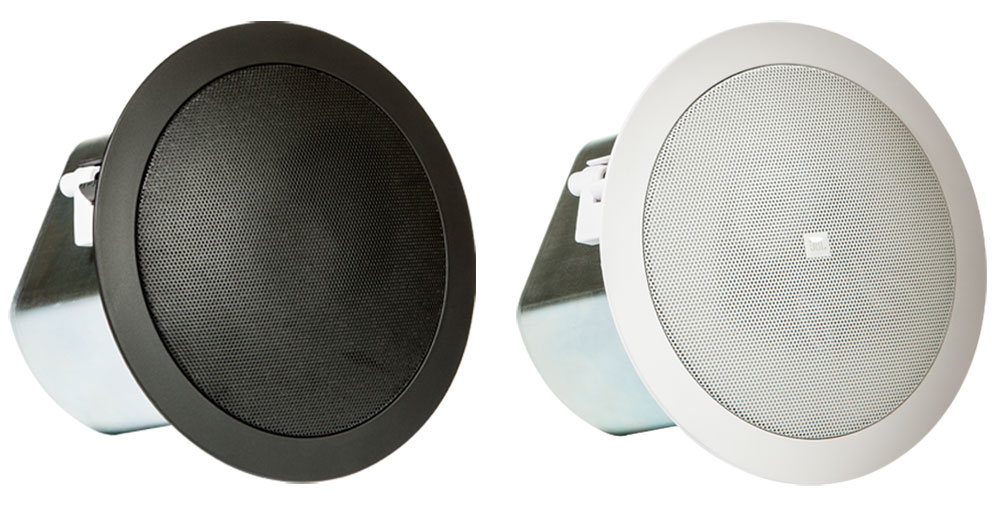

file type icon Control 12C/T Black and White
cập nhật: Thg 10 2020
90 KB Thg 10 2020
Speaker Tunings
  Phiên bản Kích thước Đã tải lên
file type icon Commercial, CBT, and AWC Tunings 220616
phiên bản A, cập nhật: Thg 5 2023
600 KB Thg 5 2023

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Phụ tùng & Dịch vụ

Thông số kỹ thuật

Frequency Range (-10dB) 68 Hz – 17 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
40 Watts Continuous Program Power
20 Watts Continuous Pink Noise (80W peak), 100 hr
Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (±3 dB) 95 Hz – 15 kHz
Sensitivity 84 dB (1kHz - 16 kHz)
Coverage Angle 130° conical
Directivity Factor (Q) 9.8
Directivity Index (DI) 7.4 dB
Maximum SPL (1m) 97 dB (low-impedance, 103 dB peak)
96 dB (top 70V/100V tap)
Impedance 8 ohms (in direct/bypass 8Ω setting)
Drivers 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
Ceiling Cutout Size 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
Safety Seismic Attachment One point, top surface
Net Weight 1.6 kg (3.5 lbs, one speaker)
Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
Optional Accessories MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
Color White or Black
Backcan formed steel
Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Plenum Usage Yes, integrated backcan
