COL600
รูปภาพขนาดใหญ่

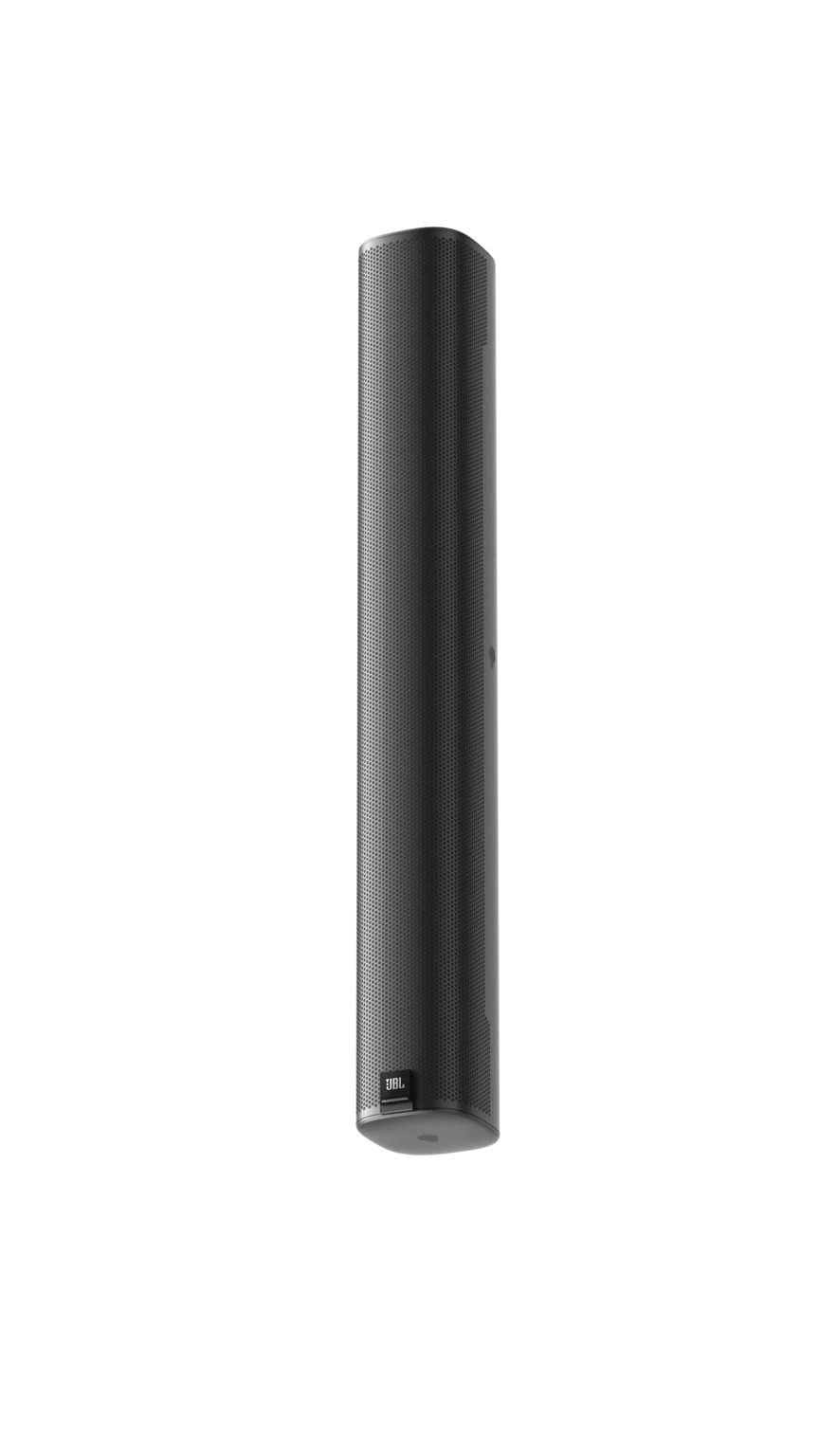

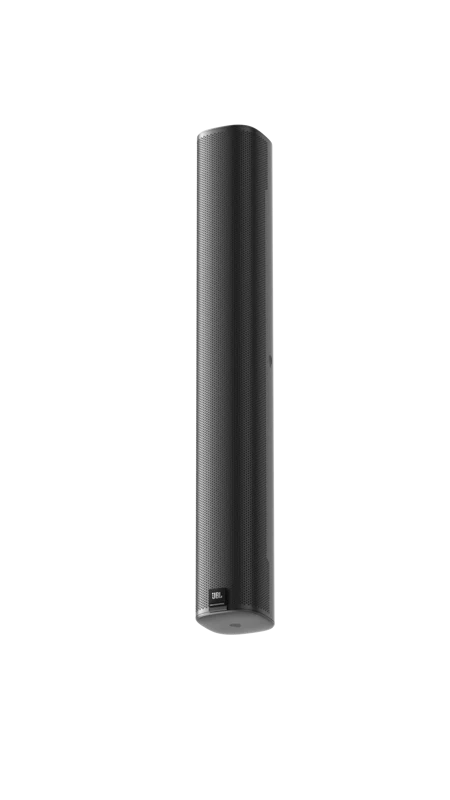

JBL COL600 เป็นลำโพงคอลัมน์สลิมหรูหราขนาด 24 นิ้ว (600 มม.) ที่ให้ความครอบคลุมแนวนอนกว้างและแนวตั้งแคบ พร้อมการเอียงลง 10° ในตัวเพื่อให้ความครอบคลุมที่เหมาะสมสำหรับพื้นที่ฟังเสียงส่วนใหญ่ขณะเดียวกันอนุญาตให้ติดตั้งลำโพงแบนชิดผนัง ดีไซน์สลิมและกะทัดรัด—ผู้ชนะรางวัลดีไซน์นานาชาติด้านความเป็นเลิศในการออกแบบอุตสาหกรรม—เข้ากันได้กับการตกแต่งสถาปัตยกรรมเกือบทั้งหมด

การผสมผสานระหว่างดีไซน์ที่ทันสมัยและคุณลักษณะประสิทธิภาพที่โดดเด่นทำให้ COL600 เหมาะสำหรับการใช้งานที่หลากหลาย เช่น ห้องประชุม หอประชุม ร้านค้าปลีก ทางเดินสาธารณะ พื้นที่โอนย้าย การเติมเสียง เสียงสำหรับวิดีโอ และการใช้งานอื่นที่ต้องการดีไซน์สลิมและกะทัดรัดพร้อมประสิทธิภาพสูง

ลำโพงวูฟเฟอร์แบบแทร็กแรค 5 นิ้ว × 2.25 นิ้ว จำนวนสองตัว ให้พื้นที่รังสีสูงสุดในรูปแบบคอลัมน์ ทวีตเตอร์อยู่ที่ด้านบนของแถวเพื่อให้ความครอบคลุมของพื้นที่ฟังเสียงที่ไม่อุดตัน และเล็งเป้าในมุมเอียงลงเพื่ออนุญาตให้ความครอบคลุมเอียงลงได้แม้ว่าตู้แคบินจะแบนชิดผนัง ความลึกตู้แคบิน 3.7 นิ้ว (93 มม.) ตรงตามข้อกำหนด ADA (พระราชกฤษฎีกาสหรัฐอเมริกาว่าด้วยคนพิการ) สำหรับโครงการเมื่อติดตั้งโดยให้ด้านหลังของตู้แคบินแบนชิดผนัง

หม้อแปลงแบบมัลติแท็พ 20 วัตต์ อนุญาตให้ใช้ได้ทั้งกับสายลำโพงแบบกระจาย 70V หรือ 100V ในขณะเดียวกันลำโพงสามารถสลับสำหรับการทำงานโดยตรง 8 โอห์มพร้อมความสามารถในการรับกำลัง 80W ต่อเนื่อง (320W แถบ 2 ชั่วโมง) ช่วงความถี่ 70 Hz ถึง 20 kHz ให้เสียงที่สะอาดและชัดเจนสำหรับเพลงหรือคำพูด

การติดตั้งอเนกประสงค์ได้รับการสนับสนุนโดยวงเล็บ L สองชุดที่มีให้ ซึ่งสามารถติดตั้งได้บนแผงด้านบนและด้านล่าง (สำหรับการกวาดแนวนอน) หรือบนแผงด้านซ้ายและขวา ทั้งสองตำแหน่งอนุญาตให้ติดตั้งใกล้ชิดผนัง นอกจากนี้ยังมีวงเล็บผนังแบบหมุน/เอียงโปรไฟล์ต่ำเพิ่มเติม เพื่อเพิ่มการเอียงลง 10° ให้กับการเล็งเป้าของตู้แคบิน (นอกเหนือจากการเอียงลง 10° ในตัวเมื่อลำโพงติดตั้งแบนชิดผนัง)

COL600 มีอัตรา IP54 (ตาม IEC60529) เพื่อป้องกันฝุ่นและน้ำไม่ให้เข้าไปในตัว ไดรเวอร์ได้รับการปฏิบัติต่อน้ำ กระแสมีการป้องกันน้ำ และมีฝาครอบเพื่อป้องกันขั้วเข้า มีให้เลือกได้ในสีดำ (JBL-COL600-BK) หรือสีขาว (JBL-COL600-WH)

คุณสมบัติ

  • ลำโพงวูฟเฟอร์แบบ Racetrack 2 ตัว ขนาด 5 x 2.25 นิ้ว และทวิตเตอร์ 1 นิ้ว
  • ความสูง 24 นิ้ว พร้อมความลึกตู้คณะเพียง 3.7 นิ้ว
  • การครอบคลุมแนวนอนกว้าง 160° และแนวตั้งโฟกัส 110°
  • ความเอียงลงด้านล่าง 10° เพื่อครอบคลุมพื้นที่ฟังส่วนใหญ่โดยไม่ต้องเอียงตู้คณะแบบกายภาพ
  • การจัดการกำลัง Pink Noise ต่อเนื่อง 80W (ยอด 320W)
  • ช่วงความถี่ 70 Hz – 20 kHz
  • หม้อแปลงหลายแทป 70V/100V ขนาด 20W ในตัว พร้อมอินพุตโดยตรง 8 โอห์ม
  • SPL ยอด 111 dB (ต่อเนื่อง 105 dB) ที่ 2 ชั่วโมง
  • ทวิตเตอร์ติดตั้งใกล้ด้านบนของคอลัมน์เพื่อการครอบคลุมพื้นที่ฟังแบบไม่มีสิ่งกีดขวาง
  • แบร็กเก็ตการติดตั้งอเนกประสงค์รวมอยู่ด้วย

รายละเอียดเพิ่มเติม

ลำโพงแบบเรียวสำหรับวางแนวตั้ง JBL COL600 เหมาะสำหรับการใช้งานหลากหลาย เช่น ห้องประชุม/ห้องสัมมนา ห้องบรรยาย ร้านค้าปลีก โถงทางผ่าน พื้นที่โดยสาร การใช้งานเติมเต็มเสียง เสียงประกอบวิดีโอ และการใช้งานอื่น ๆ ที่ต้องการการออกแบบเรียวบาง ขนาดกะทัดรัด และประสิทธิภาพสูง

การดาวน์โหลด

Brochures
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon Control Contractor Brochure (2024)
en เวอร์ชัน D, อัปเดต: ก.พ. 2024
en  14 เมกะไบต์ ก.พ. 2024
CAD Drawings
  ภาษา ขนาด อัปโหลดแล้ว
file type icon COL600 2D and 3D Drawings
en อัปเดต: ก.ค. 2023
en  2.92 เมกะไบต์ ก.ค. 2023
file type icon COL Wall Bracket 2D and 3D Drawings
en อัปเดต: ก.ค. 2023
en  17.2 เมกะไบต์ ก.ค. 2023
BIM Objects
  ขนาด อัปโหลดแล้ว
file type icon COL600 BIM Object
อัปเดต: เม.ย. 2024
เม.ย. 2024
Install Guides
  ภาษา ขนาด อัปโหลดแล้ว
file type icon COL600 & COL800 Installation Guide
en อัปเดต: มิ.ย. 2023
en  1.26 เมกะไบต์ มิ.ย. 2023
EASE Files
  ขนาด อัปโหลดแล้ว
file type icon COL600 - EASE File
อัปเดต: ก.ย. 2023
1.18 เมกะไบต์ ก.ย. 2023
CLF Files
  ขนาด อัปโหลดแล้ว
file type icon COL600 - CLF File
อัปเดต: ม.ค. 2024
354 กิโลไบต์ ม.ค. 2024
Spec Sheets
  ภาษา ขนาด อัปโหลดแล้ว
file type icon COL600 Spec Sheet
en อัปเดต: มี.ค. 2025
en  690 กิโลไบต์ มี.ค. 2025
Speaker Tunings
  ขนาด อัปโหลดแล้ว
63.6 กิโลไบต์ ต.ค. 2025

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

อะไหล่และบริการ

ข้อมูลจำเพาะ

Frequency Range (-10 dB)¹ 70 Hz – 20 kHz
Frequency Response (+/-3 dB) 105 Hz – 20 kHz
Power Rating (8Ω setting)2 160W Continuous Program (2 hrs)
80W (320W peak) Continuous Pink Noise (2 hrs)
60W (240W peak) Continuous Pink Noise (100 hrs)
Sensitivity (2.83V @ 1m) 86 dB
Coverage Pattern Vertical 110° [1kHz-4 kHz average];
10° down-tilt to aiming access for+45°/-65° coverage in relation to physical cabinet aim
Horizontal 160° [1kHz – 4 kHz average]
Directivity (Q) 7.8
Directivity Index (DI) 8.9 dB
Rated Maximum SPL 105 dB Continuous (111 dB peak) @ 1m
Nominal Impedance 8Ω (in Thru/direct mode)
Minimum Impedance 7.0 Ω@ 275 Hz
Transformer Taps 20W, 10W, 5W @ both 70V & 100V (plus 2.5W @ 70V), and 8Ω thru, selectable via switch
Transformer Insertion Loss Less than 1 dB for all taps
Maximum Input Voltage 21 V RMS (2 hrs), 42 V peak
Recommended Protective High-Pass 70 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (20W, 10W, 5W and 2.5W).
Drivers Two 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers
One 25 mm (1 in.) tweeter (tweeter located at top of array for better coverage of listening space)
Enclosure Material PC + ABS, UL94-V0 flammability rating
Grille Plated SPCC with polyester powder coat finish
Agency Ratings Transformer UL recognized. RoHS, REACH compliance. LVD for CE.
Environmental Rating IP-54 rated per IEC60529, dust and water protected when installed with included rain cover for input terminal compartment and no physical up-tilt cabinet aiming. UV resistant. [Cycle 1 per ISO 4892.3-2006]
Terminals 4-pin Euroblock connection for bare wire, accepts 24 to 14 AWG gauge wire (0.25 to 2.5 sq mm). Rain cover allows for one or two 2-wire cables, with max cable jacket diameter of 8 mm (0.3 in)
Insert Points

Back Panel: 2 threaded insert points for WALL BRACKET; attaches via included M6 x 20 mm bolts, flat washers, & lock washers; plus 1 threaded insert point for secondary safety cable, M6 threaded x 20 mm deep.

Top & Bottom Caps: 1 threaded insert point on each cap (top & bottom, 2 insert points total) for L-BRACKETS; attach via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points AND remove pre-installed bolts holding end cap in place.) [Note: For installer-specified attachment to these threaded insert points (without L-bracket), threaded insert is M6 x 28 mm deep.]

Side Panels: 1 threaded insert point on each side (left and right, for 2 insert points total) for L-BRACKETS; attach via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points.) [Note: For installer-specified attachment to these threaded insert points (without L-bracket), insert is M6 x 22 mm deep.]

Mounting Multiple mounting methods (see Installation Guide for more details):
  1. Included Swivel (Pan) / Tilt WALL BRACKET provides continuously variable ±95° degree Horizontal left-right swivel (pan) aiming (at 0° down-tilt); continuously adjustable +0°/-10° Vertical tilt (when no interference to wall); WALL and SPEAKER sections of WALL BRACKET ASSEMBLY attach together via included M6 x 12 mm bolts, flat washers, and lock washers.
  2. Two included L-brackets that can be positioned on either top & bottom insert points or side-side insert points.
  3. Top, bottom, and 2 side threaded insert points can be interfaced by installer for installer-supplied mounting methods. Installer responsible for safety of mounting method.
Dimensions (H x W x D) 598 x 102 x 93 mm (23.6 x 4.1 x 3.7 inches)
Net Weight 3.5 kg (7.8 lbs) each
Shipping Weight 4.5 kg (10.0 lbs) each (packed 1 speaker per carton)
Included Accessories Low-profile Swivel (Pan) / Tilt WALL BRACKET; 2 x L-BRACKETS that can be positioned on top/bottom or side/side insert points.
SKU Numbers and Colors JBL-COL600-BK (black, RAL9004), JBL-COL600-WH (white, RAL9016)
