SRX928S

Subwoofer Ativo Duplo de 18 polegadas

SRX928S

Dual 18-inch Powered Subwoofer
The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

The SRX928S is a dual 18-inch active subwoofer designed to complement SRX900 full-range sound reinforcement systems. The sub¬woofer houses two JBL 2279-1 18-inch woofers, featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs.

Built-in DSP and amplification offer a plug and play experience, while providing consistency and optimum performance anywhere in the world. The SRX928S incorporates a large central low frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here.

Características

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
  • Built-in, passively cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Supports HARMAN HControl Ethernet
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides complete access to control features
  • Reinforced 18mm plywood enclosures

Descarregamentos

Specifications
  Versão Idioma Tamanho Carregado
file type icon SRX928S Spec Sheet
en versão C, atualizado: fev 2025
en  500 KB fev 2025
Manuals
  Versão Idioma Tamanho Carregado
file type icon SRX900 Series User Manual
en versão D, atualizado: jan 2026
en  10 MB jan 2026
file type icon SRX900LA Rigging Manual
en versão F, atualizado: fev 2026
en  50 MB fev 2026
file type icon SRX900PS Rigging Manual
en versão A, atualizado: jan 2026
en  8 MB jan 2026
file type icon Assembly Instructions - powerCON TRUE1
en versão 4.0, atualizado: jan 2025
4.0  en  9 MB jan 2025
CAD Drawings
  Versão Idioma Tamanho Carregado
file type icon SRX928S Customer Drawings
en versão A, atualizado: mai 2022
en  8 MB mai 2022
file type icon SRX900 Series Revit/BIM Files
versão 3.0, atualizado: fev 2026
3.0    70 MB fev 2026
file type icon SRX900 Series Sketchup Files
versão 3.0, atualizado: fev 2026
3.0    10 MB fev 2026
Software
  Versão Tamanho Carregado
download icon for Venue Synthesis Venue Synthesis
publicado: jan 2025
  jan 2025
download icon for ArrayLink ArrayLink
publicado: jan 2025
  jan 2025
download icon for Performance Software Performance Software
publicado: jan 2025
  jan 2025
download icon for SRX900 Module for AMX SRX900 Module for AMX
publicado: jan 2025
  jan 2025
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
versão 1.2.0.0, atualizado: mar 2026
1.2.0.0   4 MB mar 2026
Firmware
  Versão Idioma Tamanho Carregado
file type icon SRX900 Series Firmware Changelog
en versão 2.0.1, atualizado: mar 2026
2.0.1  en  100 KB mar 2026
Simulation Data
  Versão Tamanho Carregado
file type icon SRX900LA - EASE GLL
versão 2.0, atualizado: jan 2026
2.0  20 MB jan 2026
file type icon SRX900PS - EASE GLL
versão 1.0, atualizado: jan 2026
1.0  10 MB jan 2026
Declaration of Conformity
  Versão Idioma Tamanho Carregado
file type icon SRX900 Series - EU Declaration of Conformity
en versão D, atualizado: mar 2026
en  500 KB mar 2026
file type icon SRX900 Series - UKCA Declaration of Conformity
en versão D, atualizado: mar 2026
en  400 KB mar 2026
file type icon SRX900 Series - CB Certificate of Compliance
en versão D, atualizado: fev 2026
en  700 KB fev 2026
file type icon SRX900 Series - UL Certificate of Compliance
en versão D, atualizado: fev 2026
en  2 MB fev 2026
file type icon SRX900 Series - CQC Certificate of Compliance
zh versão C, atualizado: fev 2026
zh  2 MB fev 2026
file type icon SRX900 Series - KC Certificate of Compliance
ko versão C, atualizado: mar 2026
ko  3 MB mar 2026
file type icon SRX900 Series - Taiwan RoHS Documentation
zh versão B, atualizado: jun 2025
zh  100 KB jun 2025
Service Notes
  Versão Idioma Tamanho Carregado
file type icon SRX928S Spare Parts
en versão A, atualizado: fev 2026
en  40 KB fev 2026

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range (-10dB) 31 Hz-100 Hz
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL 140 dB
System Type Active Subwoofer
Amplifier Design Class-D
Continuous Power Rating 1,100 Watts
LF Driver (2) JBL 2279H-1, 18 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure Plywood, Black DuraFlex finish, four integral recessed handles
Dimensions (H x W x D) 565 mm x 1,205 mm x 681 mm
(22.2 in x 47.4 in x 26.8 in)
Net Weight (each) 70.3 kg (155 lbs)

Acessórios

ACK1 | Accessory Caster Kit
ACK1 Main photo
Imagens maiores
ACK1 detail thumbnail #1 ACK1 detail thumbnail #2 ACK1 detail thumbnail #3 ACK1 detail thumbnail #4

Destaques:

  • Kit universal de rodízios para produtos JBL
  • Compatível com todos os altifalantes da Série SRX900
  • Caixa preta para aspecto discreto
  • Roda de poliuretano preta
  • Características anti-vibração para operação sem vibrações

Incluído:

  • (4) Rodízios + Hardware de Instalação

Documentação
SRX928S CVR | Accessory Cover Kit for SRX928S
SRX928S CVR Main photo
Imagens maiores
SRX928S CVR detail thumbnail #1 SRX928S CVR detail thumbnail #2 SRX928S CVR detail thumbnail #3

Highlights:

  • Heavy-duty soft cover for SRX928S subwoofer
  • Handle cutouts for easy transportation
  • Includes folding feature for storage
  • Internally reinforced for grille protection

Included:

  • (1) Cover

Documentação

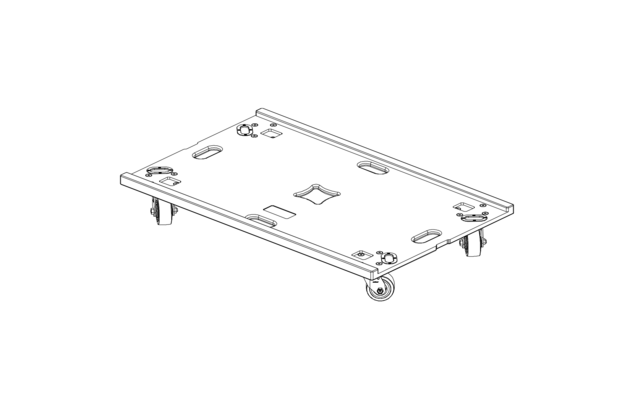

SRX928S VT | Vertical Transporter for SRX928S
SRX928S VT Main photo
Imagens maiores
SRX928S VT detail thumbnail #1 SRX928S VT detail thumbnail #2 SRX928S VT detail thumbnail #3 SRX928S VT detail thumbnail #4

Highlights:

  • Vertical transport cart for SRX928S
  • Support for up to three cabinets
  • Truck-friendly dimensions
  • Built-in stacking features for easy storage
  • Heavy duty casters
  • One black ratchet strap included

Included:

  • (1) SRX928S VT
  • (1) Black Ratchet Strap

Documentação

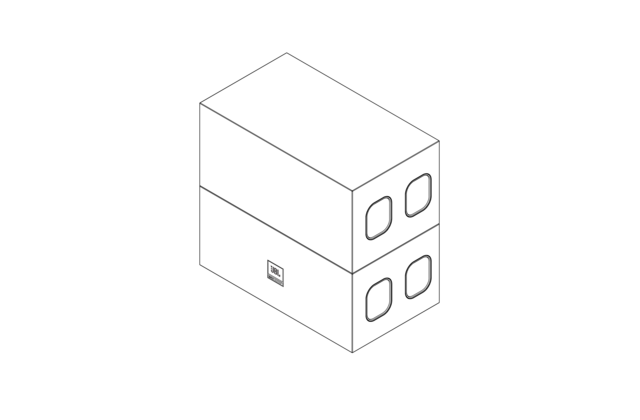

SRX928S VT CVR | Vertical Transporter Cover for SRX928S
SRX928S VT CVR Main photo
Imagens maiores
SRX928S VT CVR detail thumbnail #1 SRX928S VT CVR detail thumbnail #2 SRX928S VT CVR detail thumbnail #3 SRX928S VT CVR detail thumbnail #4

Highlights:

  • Heavy duty soft cover for SRX928S stacks
  • Covers two or three SRX928S enclosures
  • Includes amplifier flaps for testing purposes
  • Handle cutouts for easy transportation
  • Heavy duty industrial-grade zippers
  • Foldable design for storage

Included:

  • (1) Cover

Documentação
SRX900 RC1 | Rain Cover, compatible with all SRX900 models
SRX900 RC1 Main photo
Imagens maiores
SRX900 RC1 detail thumbnail #1 SRX900 RC1 detail thumbnail #2 SRX900 RC1 detail thumbnail #3 SRX900 RC1 detail thumbnail #4

Highlights:

  • Universal rain cover for SRX900 products
  • Flexible material for conforming to cables
  • Covers LCD, audio, and data connections
  • Unfolds for easy cable and LCD access
  • Designed to remain attached

Compatibility:

  • SRX906LA
  • SRX910LA
  • SRX915SF
  • SRX918SF
  • SRX918S
  • SRX928S

Included:

  • (1) Rain Cover
  • (5) T15 M3.5 Screws

Documentação
