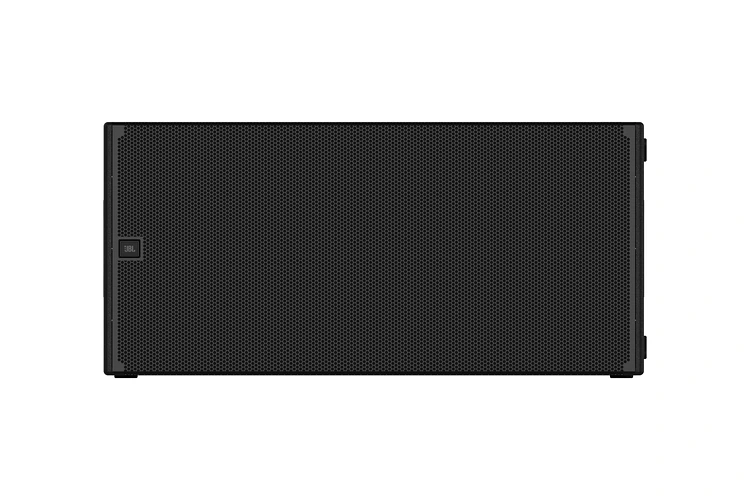

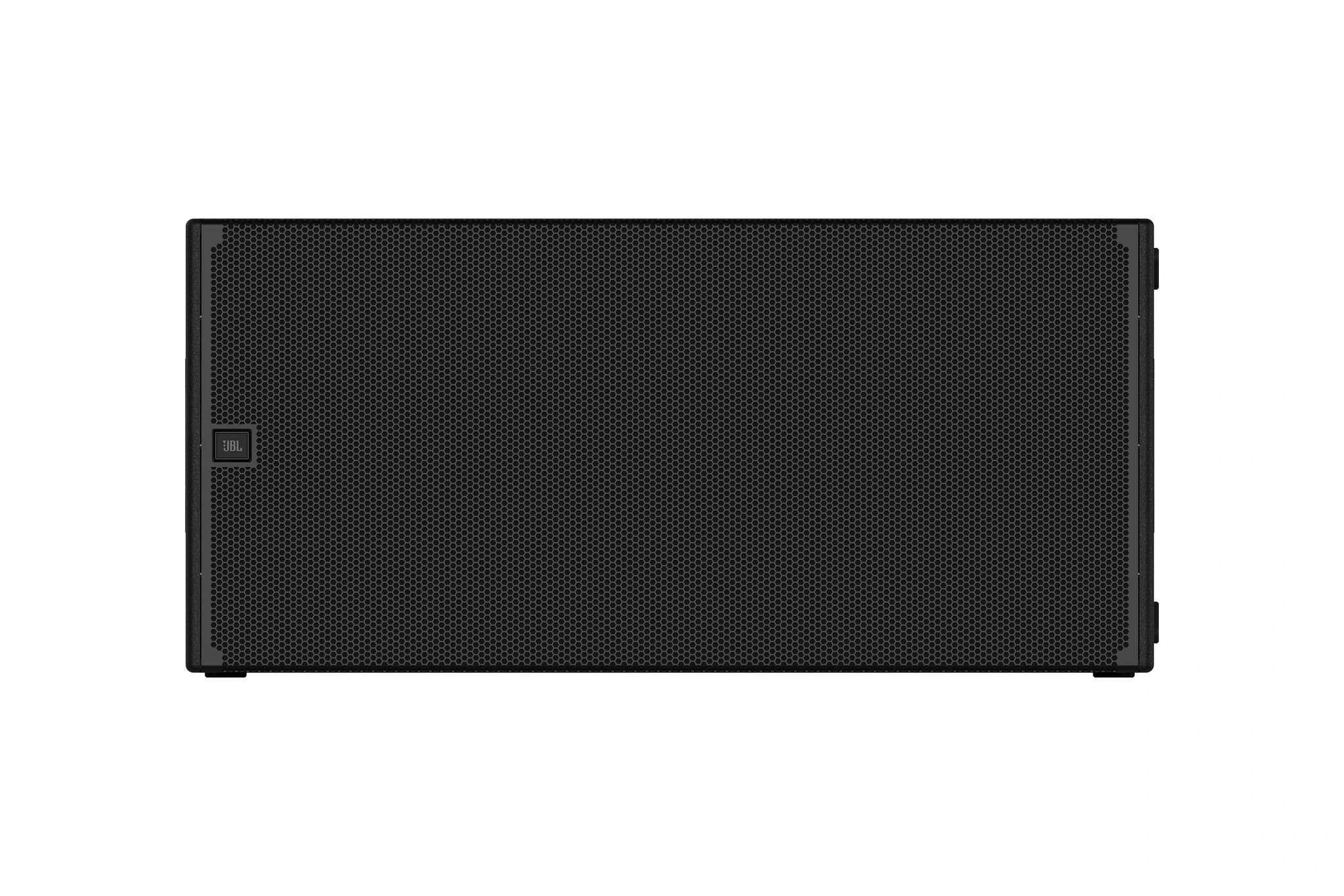

SRX928S

ซับวูฟเฟอร์ขนาด 18 นิ้วแบบคู่ที่มีแอมป์ในตัว

SRX928S
รูปภาพขนาดใหญ่

Dual 18-inch Powered Subwoofer
The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

The SRX928S is a dual 18-inch active subwoofer designed to complement SRX900 full-range sound reinforcement systems. The sub¬woofer houses two JBL 2279-1 18-inch woofers, featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs.

Built-in DSP and amplification offer a plug and play experience, while providing consistency and optimum performance anywhere in the world. The SRX928S incorporates a large central low frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here.

คุณสมบัติ

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
  • Built-in, passively cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Supports HARMAN HControl Ethernet
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides complete access to control features
  • Reinforced 18mm plywood enclosures

การดาวน์โหลด

Specifications
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon SRX928S Spec Sheet
en เวอร์ชัน C, อัปเดต: ก.พ. 2025
en  471 กิโลไบต์ ก.พ. 2025
Manuals
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon SRX900 Series User Manual
en เวอร์ชัน D, อัปเดต: ม.ค. 2026
en  12 เมกะไบต์ ม.ค. 2026
file type icon SRX900LA Rigging Manual
en เวอร์ชัน F, อัปเดต: ก.พ. 2026
en  48.3 เมกะไบต์ ก.พ. 2026
file type icon SRX900PS Rigging Manual
en เวอร์ชัน A, อัปเดต: ม.ค. 2026
en  8.28 เมกะไบต์ ม.ค. 2026
file type icon Assembly Instructions - powerCON TRUE1
en เวอร์ชัน 4.0, อัปเดต: ม.ค. 2025
4.0  en  8.64 เมกะไบต์ ม.ค. 2025
CAD Drawings
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon SRX928S Customer Drawings
en เวอร์ชัน A, อัปเดต: พ.ค. 2022
en  7.63 เมกะไบต์ พ.ค. 2022
file type icon SRX900 Series Revit/BIM Files
เวอร์ชัน 3.0, อัปเดต: ก.พ. 2026
3.0    74.2 เมกะไบต์ ก.พ. 2026
file type icon SRX900 Series Sketchup Files
เวอร์ชัน 3.0, อัปเดต: ก.พ. 2026
3.0    10 เมกะไบต์ ก.พ. 2026
Software
  เวอร์ชัน ขนาด อัปโหลดแล้ว
download icon for Venue Synthesis Venue Synthesis
เผยแพร่: ม.ค. 2025
  ม.ค. 2025
download icon for ArrayLink ArrayLink
เผยแพร่: ม.ค. 2025
  ม.ค. 2025
download icon for Performance Software Performance Software
เผยแพร่: ม.ค. 2025
  ม.ค. 2025
download icon for SRX900 Module for AMX SRX900 Module for AMX
เผยแพร่: ม.ค. 2025
  ม.ค. 2025
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
เวอร์ชัน 1.2.0.0, อัปเดต: มี.ค. 2026
1.2.0.0   4.15 เมกะไบต์ มี.ค. 2026
Firmware
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon SRX900 Series Firmware Changelog
en เวอร์ชัน 2.0.1, อัปเดต: มี.ค. 2026
2.0.1  en  123 กิโลไบต์ มี.ค. 2026
Simulation Data
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon SRX900LA - EASE GLL
เวอร์ชัน 2.0, อัปเดต: ม.ค. 2026
2.0  20.6 เมกะไบต์ ม.ค. 2026
file type icon SRX900PS - EASE GLL
เวอร์ชัน 1.0, อัปเดต: ม.ค. 2026
1.0  10.2 เมกะไบต์ ม.ค. 2026
Declaration of Conformity
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon SRX900 Series - EU Declaration of Conformity
en เวอร์ชัน D, อัปเดต: มี.ค. 2026
en  512 กิโลไบต์ มี.ค. 2026
file type icon SRX900 Series - UKCA Declaration of Conformity
en เวอร์ชัน D, อัปเดต: มี.ค. 2026
en  441 กิโลไบต์ มี.ค. 2026
file type icon SRX900 Series - CB Certificate of Compliance
en เวอร์ชัน D, อัปเดต: ก.พ. 2026
en  699 กิโลไบต์ ก.พ. 2026
file type icon SRX900 Series - UL Certificate of Compliance
en เวอร์ชัน D, อัปเดต: ก.พ. 2026
en  1.55 เมกะไบต์ ก.พ. 2026
file type icon SRX900 Series - CQC Certificate of Compliance
zh เวอร์ชัน C, อัปเดต: ก.พ. 2026
zh  2.11 เมกะไบต์ ก.พ. 2026
file type icon SRX900 Series - KC Certificate of Compliance
ko เวอร์ชัน C, อัปเดต: มี.ค. 2026
ko  2.56 เมกะไบต์ มี.ค. 2026
file type icon SRX900 Series - BIS Certificate of Compliance
en เวอร์ชัน D, อัปเดต: มิ.ย. 2026
en  846 กิโลไบต์ มิ.ย. 2026
file type icon SRX900 Series - Taiwan RoHS Documentation
zh เวอร์ชัน B, อัปเดต: มิ.ย. 2025
zh  137 กิโลไบต์ มิ.ย. 2025
Service Notes
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon SRX928S Spare Parts
en เวอร์ชัน A, อัปเดต: ก.พ. 2026
en  44.4 กิโลไบต์ ก.พ. 2026

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

อะไหล่และบริการ

ข้อมูลจำเพาะ

Frequency Range (-10dB) 31 Hz-100 Hz
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL 140 dB
System Type Active Subwoofer
Amplifier Design Class-D
Continuous Power Rating 1,100 Watts
LF Driver (2) JBL 2279H-1, 18 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure Plywood, Black DuraFlex finish, four integral recessed handles
Dimensions (H x W x D) 565 mm x 1,205 mm x 681 mm
(22.2 in x 47.4 in x 26.8 in)
Net Weight (each) 70.3 kg (155 lbs)

อุปกรณ์เสริม

ACK1 | ชุดล้อเลื่อนอุปกรณ์เสริม
ACK1 Main photo
รูปภาพขนาดใหญ่
ACK1 detail thumbnail #1 ACK1 detail thumbnail #2 ACK1 detail thumbnail #3 ACK1 detail thumbnail #4

ไฮไลต์:

  • ชุดล้อเลื่อนสากลสำหรับผลิตภัณฑ์ JBL
  • เข้ากันได้กับซับวูฟเฟอร์ทั้งหมดของ SRX900 Series
  • ตัวเรือนสีดำสำหรับลุคที่ไม่เด่น
  • ล้อโพลียูรีเทนสีดำ
  • คุณสมบัติป้องกันเสียงดังสำหรับการทำงานที่ปราศจากการสั่นสะเทือน

รวมอยู่ในชุด:

  • (4) ล้อเลื่อน + ฮาร์ดแวร์ติดตั้ง

เอกสารประกอบ

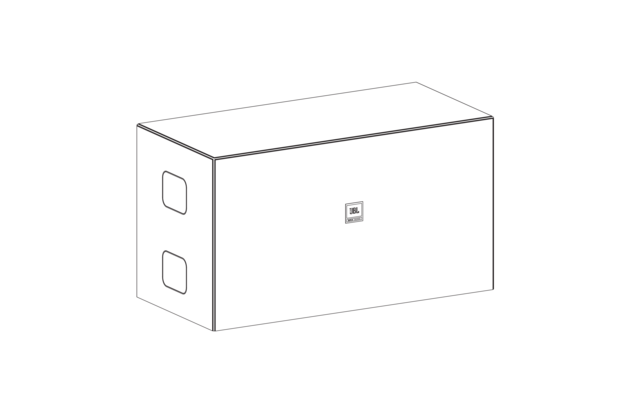

SRX928S CVR | ชุดแผ่นครอบอุปกรณ์เสริมสำหรับ SRX928S
SRX928S CVR Main photo
รูปภาพขนาดใหญ่
SRX928S CVR detail thumbnail #1 SRX928S CVR detail thumbnail #2 SRX928S CVR detail thumbnail #3

จุดเด่น:

  • ฝาครอบอ่อนหนาสำหรับซับวูฟเฟอร์ SRX928S
  • ช่องจับมือสำหรับการขนส่งที่สะดวก
  • มีคุณสมบัติการพับเก็บสำหรับการเก็บรักษา
  • เสริมแรงภายในเพื่อป้องกันตะแกรง

รวมอยู่:

  • (1) ฝาครอบ

เอกสารประกอบ

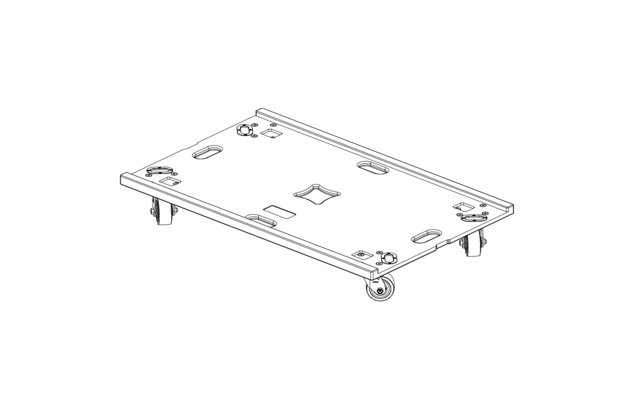

SRX928S VT | ตัวขนส่งแนวตั้งสำหรับ SRX928S
SRX928S VT Main photo
รูปภาพขนาดใหญ่
SRX928S VT detail thumbnail #1 SRX928S VT detail thumbnail #2 SRX928S VT detail thumbnail #3 SRX928S VT detail thumbnail #4

ไฮไลต์:

  • รถเข็นขนส่งแนวตั้งสำหรับ SRX928S
  • รองรับตู้ลำโพงได้ถึงสามตู้
  • ขนาดเหมาะสมสำหรับรถบรรทุก
  • มีฟีเจอร์การซ้อนสแตกในตัวเพื่อการเก็บรักษาที่ง่าย
  • ล้อแบบหนักแบบมีเบรก
  • สายรัดแบบราตเช็ตสีดำ 1 เส้นรวมอยู่ในแพคเกจ

รวมอยู่ในแพคเกจ:

  • (1) SRX928S VT
  • (1) Black Ratchet Strap

เอกสารประกอบ

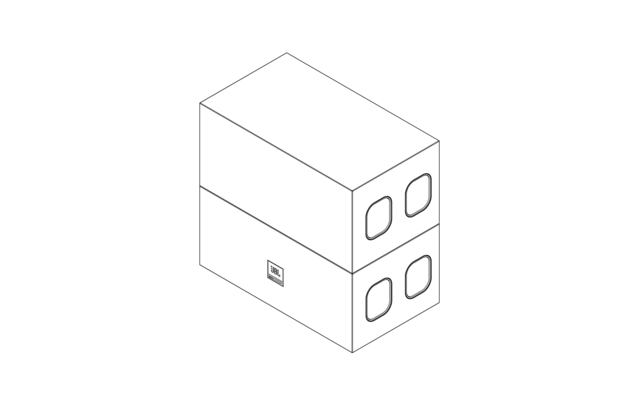

SRX928S VT CVR | Vertical Transporter Cover for SRX928S
SRX928S VT CVR Main photo
รูปภาพขนาดใหญ่
SRX928S VT CVR detail thumbnail #1 SRX928S VT CVR detail thumbnail #2 SRX928S VT CVR detail thumbnail #3 SRX928S VT CVR detail thumbnail #4

Highlights:

  • Heavy duty soft cover for SRX928S stacks
  • Covers two or three SRX928S enclosures
  • Includes amplifier flaps for testing purposes
  • Handle cutouts for easy transportation
  • Heavy duty industrial-grade zippers
  • Foldable design for storage

Included:

  • (1) Cover

เอกสารประกอบ
SRX900 RC1 | ฝาครอบกันฝน, เข้ากันได้กับรุ่น SRX900 ทั้งหมด
SRX900 RC1 Main photo
รูปภาพขนาดใหญ่
SRX900 RC1 detail thumbnail #1 SRX900 RC1 detail thumbnail #2 SRX900 RC1 detail thumbnail #3 SRX900 RC1 detail thumbnail #4

ไฮไลต์:

  • ผ้าคลุมกันฝนสากลสำหรับผลิตภัณฑ์ SRX900
  • วัสดุยืดหยุ่นสำหรับการปรับตัวให้เข้ากับสายเคเบิล
  • คลุมการเชื่อมต่อ LCD เสียง และข้อมูล
  • คลี่ได้เพื่อการเข้าถึงสายเคเบิลและ LCD ได้ง่าย
  • ออกแบบมาเพื่อให้ติดอยู่ได้ตลอดเวลา

ความเข้ากันได้:

  • SRX906LA
  • SRX910LA
  • SRX915SF
  • SRX918SF
  • SRX918S
  • SRX928S

รวมอยู่ด้วย:

  • (1) ผ้าคลุมกันฝน
  • (5) สกรู T15 M3.5

เอกสารประกอบ
