JRX218S

18" CompactSubwoofer

Imagens maiores

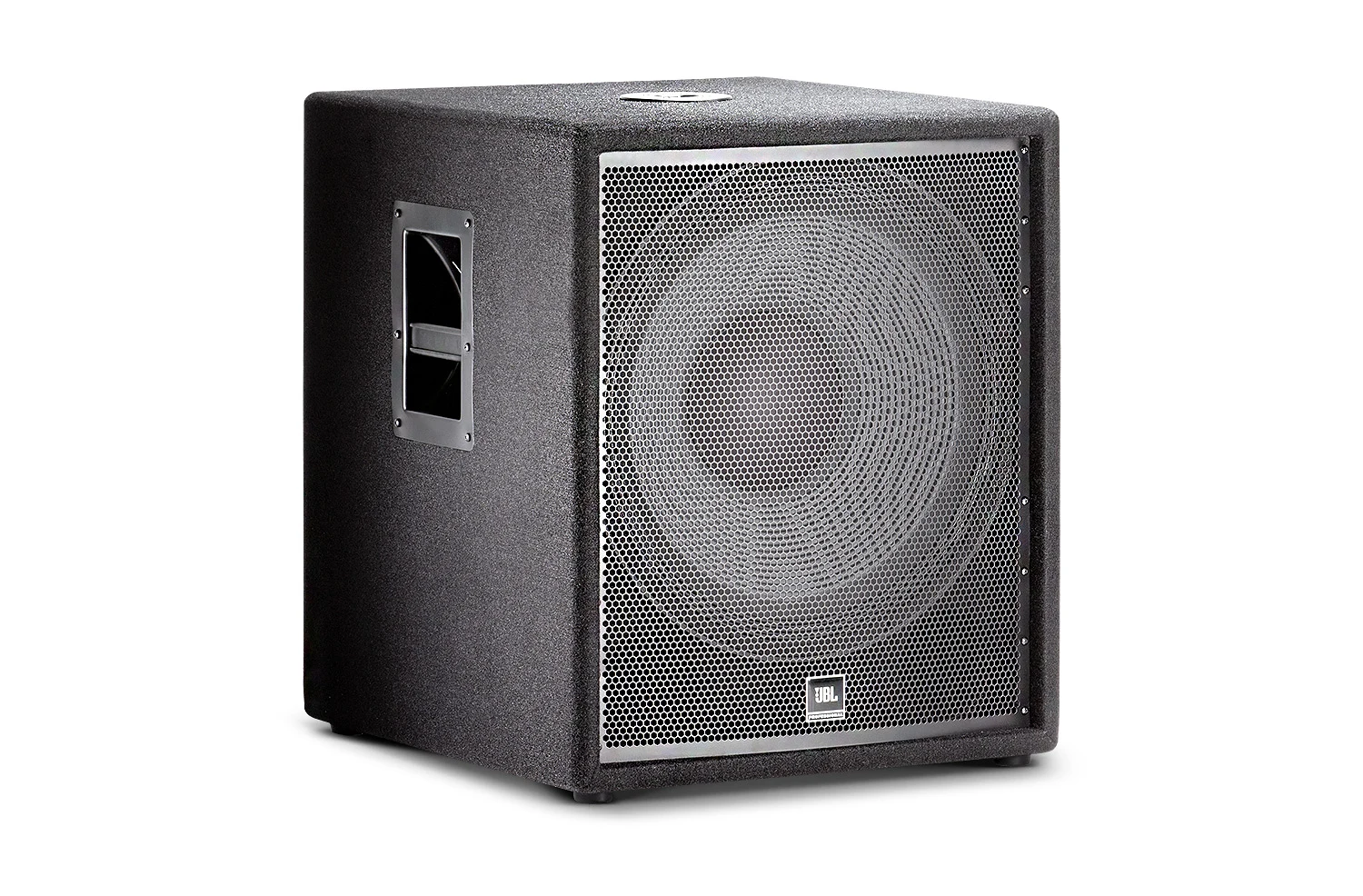

18" Compact Subwoofer

The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.



Características

  • Subwoofer compacto de 18 pol.
  • Capacidade de potência de 350 W (contínua), 1400 W (pico).
  • O invólucro resistente é construído a partir de MDF (Medium Density Fiberboard) de 19 mm (0,75 pol) utilizando adesivos avançados e tecnologia de fixação mecânica para durabilidade e desempenho aprimorado em baixas frequências. O invólucro é revestido em carpete preto.
  • Um receptáculo de suporte de poste de 35 mm em alumínio fundido montado no topo pode receber um poste opcional SS3BK para facilitar a utilização do JRX218S como base para um armário de altifalante médio-agudo.
  • São utilizadas pegas em aço maciço sem ressonância.
  • A atraente grelha de aço perfurado de calibre 18 protege os componentes contra danos.


Descarregamentos

Specifications
  Tamanho Carregado
file type icon JRX218S Spec Sheet
atualizado: abr 2019
300 KB abr 2019
Brochures
  Versão Idioma Tamanho Carregado
    3 MB out 2020
file type icon JBL 2025 PPA Brochure
en versão B, atualizado: ago 2025
en  8 MB ago 2025
Compliances
  Tamanho Carregado
100 KB out 2020
Images
  Tamanho Carregado

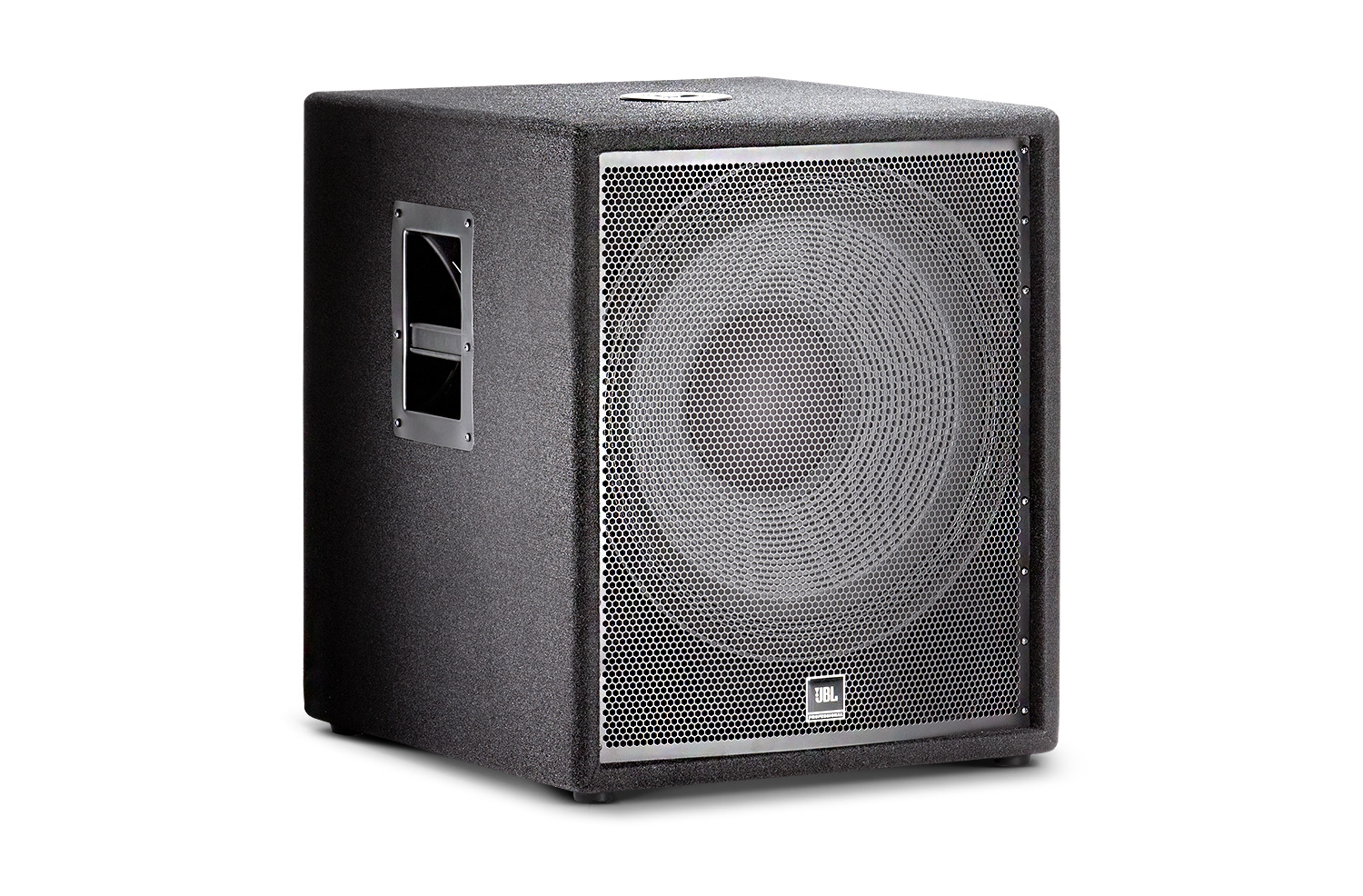

file type icon JRX218S Front Angle
atualizado: abr 2019
500 KB abr 2019

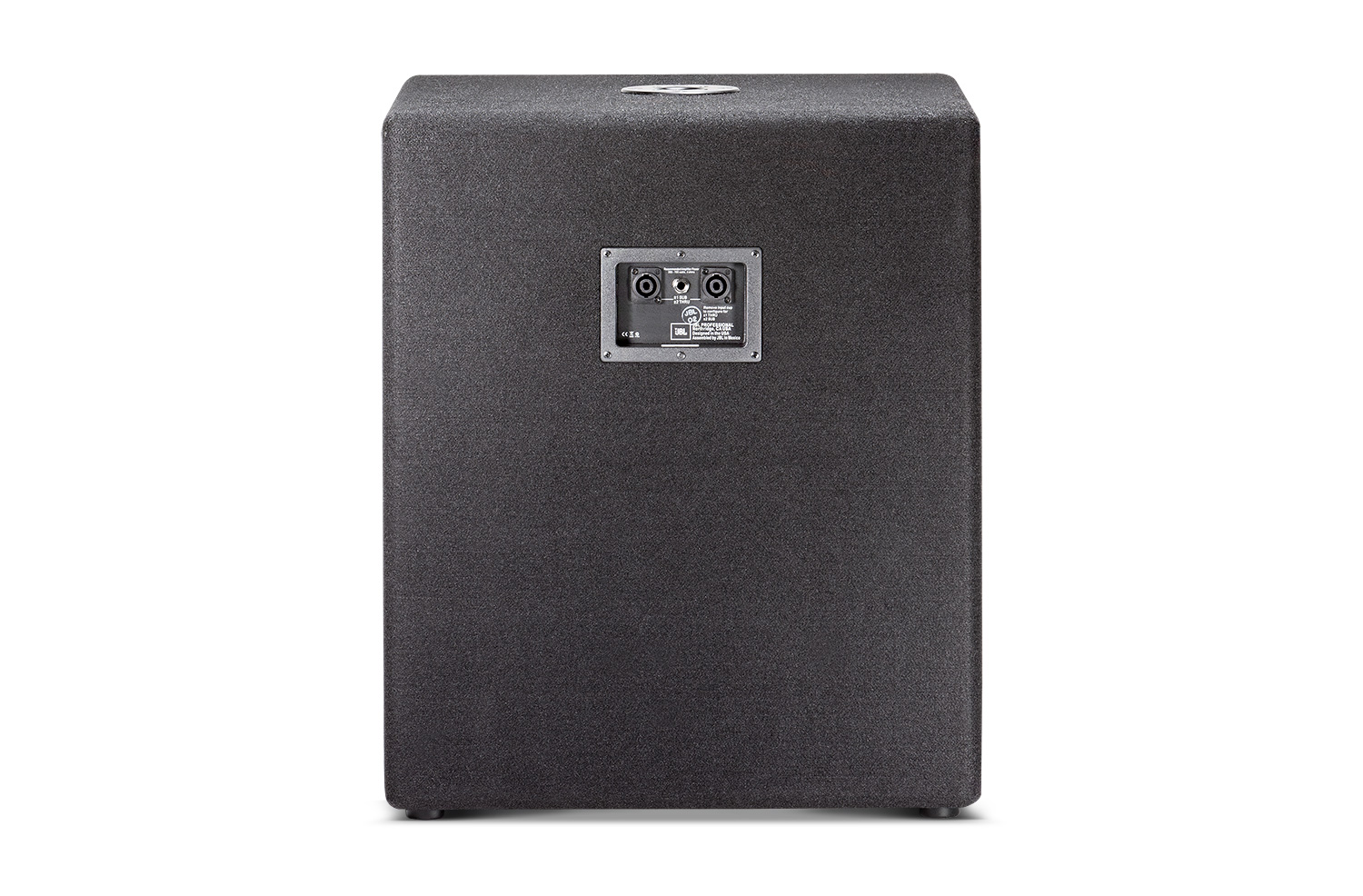

file type icon JRX218S Back
atualizado: abr 2019
300 KB abr 2019

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Power Rating 350 W / 1400 W
Frequency Range (-10dB) 34 Hz - 250 Hz
Frequency Response (±3 dB) 53 Hz - 250 Hz
Sensitivity (@1m) 98 dB SPL
Nominal Impedence 4 ohms
Recommended Amplifier Power 350 W to 700 W into 4 ohms
Maximum SPL (1m) 133 dB
Dimensions (H x W x D) 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in)
Net Weight 32.2 kg (71 lb)
LF Driver M118-4
Inputs Neutrik® Speakon® NL-4 (x2); parallel
Enclosure MDF (Medium Density Fiberboard) covered in black carpet.

Acessórios

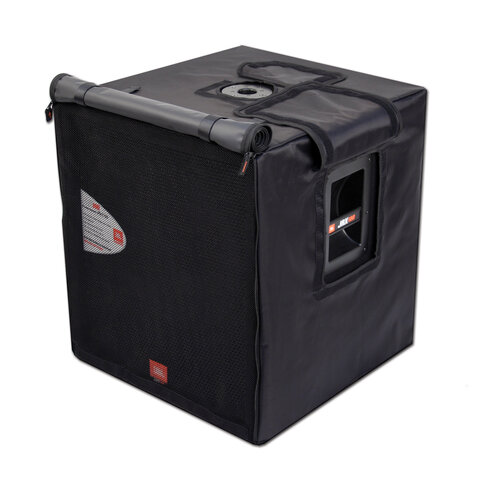

JRX218S-CVR-CX | Convertible Cover for JRX218S
JRX218S-CVR-CX Main photo
Imagens maiores
JRX218S-CVR-CX detail thumbnail #1 JRX218S-CVR-CX detail thumbnail #2 JRX218S-CVR-CX detail thumbnail #3

Convertible Cover for JRX218S. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.

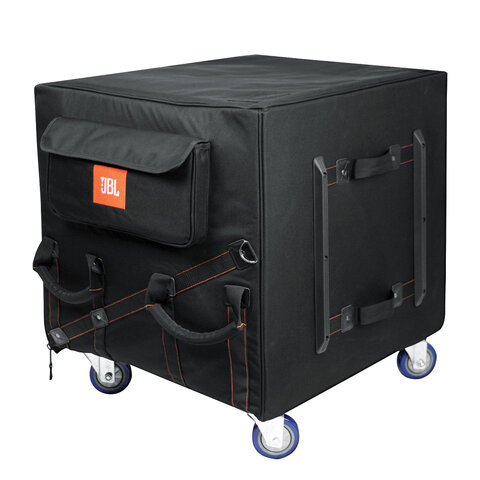

JBL-SUB-18T | Rolling Sub Transporter Bag for JBL 18" Sub
JBL-SUB-18T Main photo
Imagens maiores
JBL-SUB-18T detail thumbnail #1 JBL-SUB-18T detail thumbnail #2 JBL-SUB-18T detail thumbnail #3

Padded Sub Transporter. Water Resistant Black Nylon, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters. Fits EON518S, JRX118S, JRX118SP, PRX518S.


JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Imagens maiores
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900

Documentação
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Imagens maiores
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900

Documentação
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Imagens maiores
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products

Documentação
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Imagens maiores
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm

Documentação
