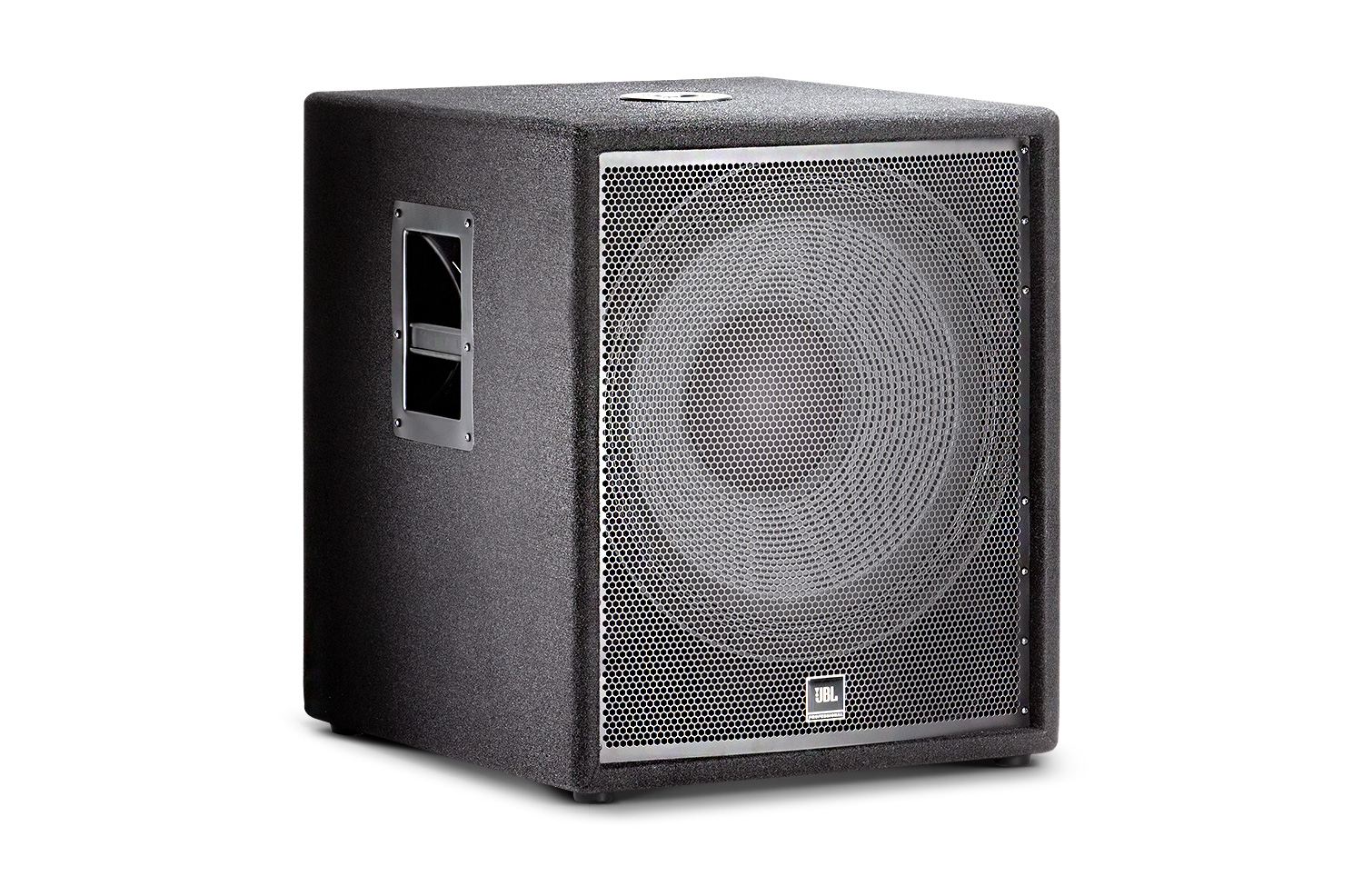

18" Compact Subwoofer
The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.
Gambar Lebih Besar
Fitur
- 18 in. compact subwoofer.
- 350 W (continuous), 1400 W (peak) power capacity.
- The rugged enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet.
- A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a midhigh speaker cabinet.
- Non-resonant, all steel handles are used.
- Attractive 18-gauge perforated steel grille protects components from damage.
Unduhan
Specifications
| Ukuran | |
|
|
298 KB |
Brochures
| Ukuran | |
|
|
2,54 MB |
|
|
8,45 MB |
versi B,
diperbarui: Agu 2025
Compliances
| Ukuran | |
|
|
119 KB |
Images
| Ukuran | |
|
|
479 KB |
|
|
316 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Suku Cadang & Servis
Spesifikasi
| Power Rating | 350 W / 1400 W |
| Frequency Range (-10dB) | 34 Hz - 250 Hz |
| Frequency Response (±3 dB) | 53 Hz - 250 Hz |
| Sensitivity (@1m) | 98 dB SPL |
| Nominal Impedence | 4 ohms |
| Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
| Net Weight | 32.2 kg (71 lb) |
| LF Driver | M118-4 |
| Inputs | Neutrik® Speakon® NL-4 (x2); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
Aksesori
JRX218S-CVR-CX | Convertible Cover for JRX218S
Gambar Lebih Besar
Convertible Cover for JRX218S. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
JBL-SUB-18T | Rolling Sub Transporter Bag for JBL 18" Sub
Gambar Lebih Besar
Padded Sub Transporter. Water Resistant Black Nylon, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters. Fits EON518S, JRX118S, JRX118SP, PRX518S.
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Gambar Lebih Besar
Penopang Speaker Tripod Aluminium dengan Bantuan Angkat dan Adaptor Speaker Terintegrasi. JBLTRIPOD-GA adalah penopang speaker yang sangat mudah digunakan berkat shock pneumatik internal yang secara harfiah mengangkat speaker untuk Anda. Shock internal penopang dengan mudah mengangkat speaker yang beratnya 35 lbs atau kurang tanpa usaha dari pengguna.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentasi
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36,2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30,5 KB]
-
JBL Tripod Gas Assist Open
[41,7 KB]
-
JBL Tripod Manual Adjust Open
[39,5 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Gambar Lebih Besar
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentasi
-
JBLTRIPOD-MA Data Sheet
[228 KB]
JBLPOLE-GA | JBL Gas Assist Speaker Pole
Gambar Lebih Besar
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentasi
-
JBL pole Gas Assist
[41,6 KB]
-
JBL pole Gas Assist detail
[70,2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Gambar Lebih Besar
Tiang Speaker Manual Adjust dengan Ujung Bawah Berulir M20, Tiang 38mm & 35mm. JBLPOLE-MA dilengkapi dengan kerah penyesuaian ketinggian luar biasa yang menampilkan knob "Z" ergonomis yang memberikan penyesuaian yang nyaman. Hasil pemasangan terkuat, kerah penyesuaian ketinggian mencegah masalah pengetatan berlebihan dan kerusakan yang terkait dengan semua desain plastik.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Dokumentasi
-
JBLPOLE-MA Data Sheet
[258 KB]
-
JBL pole Manual Adjust
[40,7 KB]
-
JBL pole Manual Adjust Detail
[87,7 KB]
