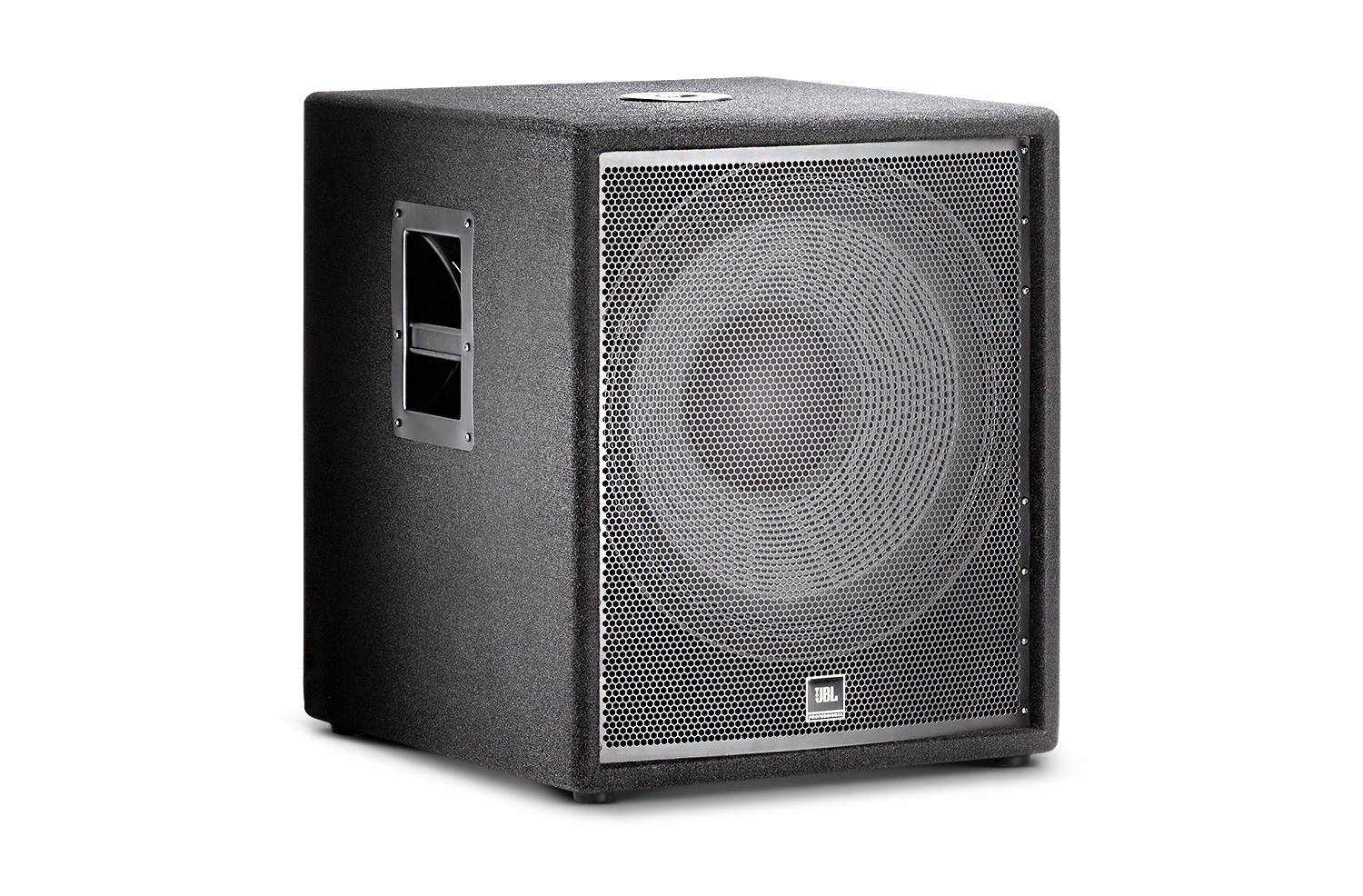

18" Compact Subwoofer
The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.
The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.
| Storlek | |
|
|
298 KB |
| Storlek | |
|
|
2,54 MB |
|
|
8,45 MB |
| Storlek | |
|
|
119 KB |
| Storlek | |
|
|
479 KB |
|
|
316 KB |
Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.
| Power Rating | 350 W / 1400 W |
| Frequency Range (-10dB) | 34 Hz - 250 Hz |
| Frequency Response (±3 dB) | 53 Hz - 250 Hz |
| Sensitivity (@1m) | 98 dB SPL |
| Nominal Impedence | 4 ohms |
| Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
| Net Weight | 32.2 kg (71 lb) |
| LF Driver | M118-4 |
| Inputs | Neutrik® Speakon® NL-4 (x2); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
Convertible Cover for JRX218S. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
Padded Sub Transporter. Water Resistant Black Nylon, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters. Fits EON518S, JRX118S, JRX118SP, PRX518S.
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
Manuellt justerbart högtalarstativ med M20-gängad nedre ände, 38 mm stativ och 35 mm. JBLPOLE-MA har en imponerande höjdjusteringskrage med ett ergonomiskt "Z"-vred som ger bekväm justering. Det starkaste fäste som tillverkats – höjdjusteringskragen förhindrar för hård åtdragning och de brottsproblem som är förknippade med konstruktioner helt i plast.
