SRX812P

12-inch 2-Way Multipurpose Powered Speaker

SRX812P
Większe obrazy

Głośnik zasilany 2-drożny 12-calowy uniwersalny

Seria SRX800 to kolejna generacja wysokowydajnego systemu głośników zasilanego, składającego się z trzech modeli pełnopasmowych i dwóch modeli subwooferów z szeroką gamą funkcji, które podnoszą serię SRX800 do najwyższej klasy wśród wszystkich konkurencyjnych systemów. Pełnopasmowy 12-calowy dwudrożny SRX812P wyposażony jest w legendarne sterowniki JBL, autorskie wzmacnianie 2000 W Crown, technologię Crown Front-End DriveCore, premium DSP JBL konfigurowalny przez użytkownika, tuning V5 kompatybilny z systemami turniejowymi Vertec i VTX, oraz opcje kontroli sieciowej HiQnet za pośrednictwem aplikacji iOS i Android. Opierając się na bogatej historii JBL w dziedzinie przełomowych technologii i projektowania głośników, seria SRX800 spełnia potrzeby domów turniejowych, instalacji i najbardziej wymagających aplikacji live sound, zapewniając możliwość wdrożenia kompleksowego rozwiązania bez kompromisów, wyposażonego w legendarny dźwięk i wydajność JBL, szeroką gamę opcji konfiguracji oraz kompatybilność z flagowymi systemami turniejowymi JBL.

Funkcje

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup
  • Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Więcej szczegółów

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

Pobrania

Data Sheets
  Rozmiar Przesłano
file type icon SRX812P Data Sheet
zaktualizowano: kwi 2019
1,88 MB kwi 2019
Specifications
  Rozmiar Przesłano
file type icon SRX812P Spec Sheet
zaktualizowano: gru 2019
746 KB gru 2019
Manuals
  Rozmiar Przesłano
file type icon SRX Connect Delay HelpGuide
zaktualizowano: paź 2020
188 KB paź 2020
file type icon SRX Connect EQ HelpGuide
zaktualizowano: paź 2020
373 KB paź 2020
file type icon SRX Connect Limiter HelpGuide
zaktualizowano: paź 2020
263 KB paź 2020
file type icon SRX Connect NormalView HelpGuide
zaktualizowano: paź 2020
427 KB paź 2020
file type icon SRX Connect Presets HelpGuide
zaktualizowano: paź 2020
286 KB paź 2020
file type icon SRX Connect Error Reporting HelpGuide
zaktualizowano: paź 2020
261 KB paź 2020
Brochures
  Wersja Język Rozmiar Przesłano
file type icon JBL 2025 PPA Brochure
en wersja B, zaktualizowano: sie 2025
en  8,45 MB sie 2025
Compliances
  Rozmiar Przesłano
file type icon SRX800 Series Declaration of Conformity
zaktualizowano: paź 2020
154 KB paź 2020
Software
  Rozmiar Przesłano
file type icon Software Support
zaktualizowano: kwi 2019
114 KB kwi 2019
Android download icon SRX Connect
wydano: sie 2023
sie 2023
Windows download icon HiQnet Audio Architect
wydano: lis 2020
lis 2020
iOS download icon SRX Connect
wydano: sie 2023
sie 2023
User Guides
  Rozmiar Przesłano
file type icon SRX 812P/815P/835P QuickStart Guide
zaktualizowano: lis 2020
1,75 MB lis 2020
file type icon SRX800 User Guide
zaktualizowano: kwi 2019
7,41 MB kwi 2019
Images
  Rozmiar Przesłano
file type icon SRX800 Driver
zaktualizowano: kwi 2019
158 KB kwi 2019
file type icon SRX800 Handle
zaktualizowano: kwi 2019
208 KB kwi 2019

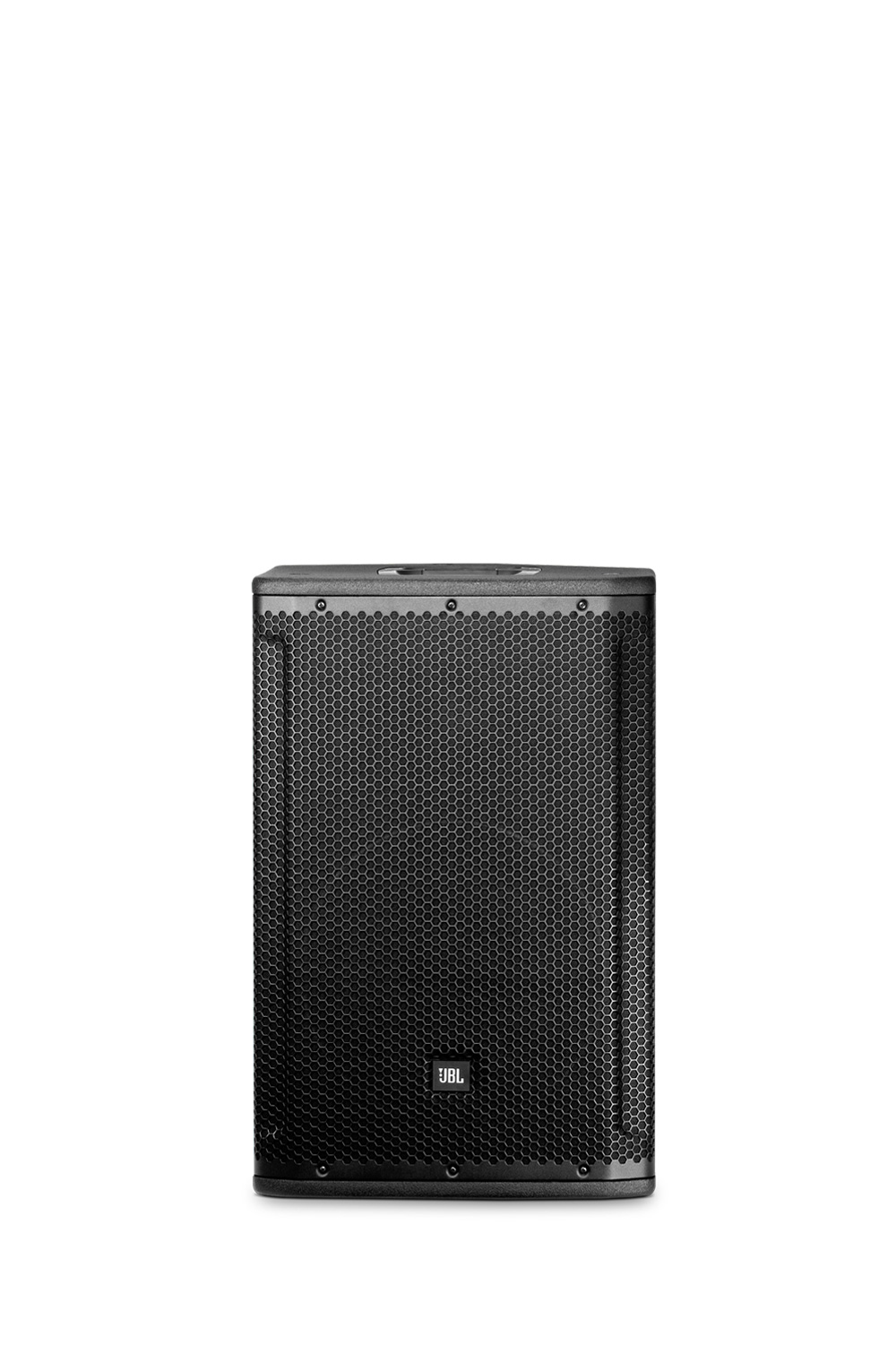

file type icon SRX812P Front
zaktualizowano: kwi 2019
211 KB kwi 2019
file type icon SRX812P Angle
zaktualizowano: kwi 2019
291 KB kwi 2019
file type icon SRX812P Angle No-Grill
zaktualizowano: kwi 2019
218 KB kwi 2019

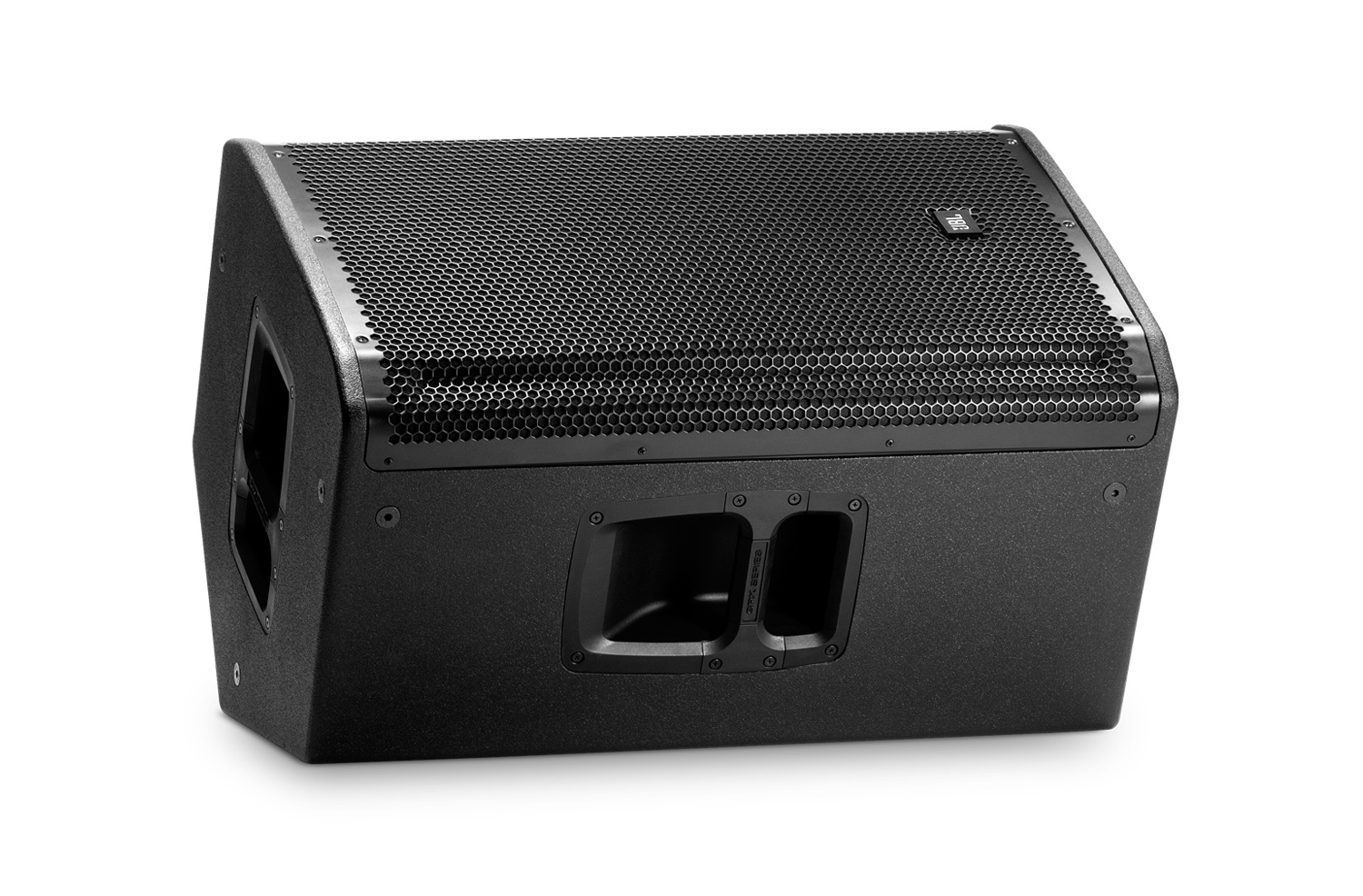

file type icon SRX812P Monitor
zaktualizowano: kwi 2019
345 KB kwi 2019
file type icon SRX812P Back
zaktualizowano: kwi 2019
228 KB kwi 2019

Jeśli któryś z powyższych linków wyświetla dziwne znaki w przeglądarce, kliknij plik prawym przyciskiem myszy, aby zapisać go na komputerze.

Części i serwis

Specyfikacje

System Type Self powered 12”, two-way, bass-reflex
Maximum SPL (1m) 136 dB
Frequency Range (-10dB) 40 Hz - 21 kHz
Frequency Response (±3 dB) 48 Hz - 20 kHz
Coverage Pattern 90° x 50°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Net Weight (each) 26.4 kg (58 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance NA - amplification is integrated
LF Driver 1 x 2272F, Differential Drive®, 12" diameter
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points

Akcesoria

SRX812P-CVR-DLX | Deluxe padded cover for SRX812P
SRX812P-CVR-DLX Main photo
Większe obrazy
SRX812P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX812P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
