JBL Professional PRX710

Immagini più grandi

Sistema di rinforzo sonoro multiuso autoamplificato
a due vie da 10"

PRX710 è un altoparlante compatto e ultraleggero della Serie PRX700. È stato progettato per fornire prestazioni massime in relazione al suo peso e alle sue dimensioni.

Caratteristiche

133 dB peak SPL
10" low-frequency driver for low-distortion and higher SPL
1.5" diameter next generation JBL neodymium compression driver
JBL designed waveguide for accurate coverage
Efficient Class-D amplifier technology
Normal and Boost user selectable EQ presets
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Line level and direct microphone input capability
Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
Integrated 36 mm pole mount socket
Integrated handle with injection molded backing cup for easy transport
Integrated M10 suspension points for easy setup
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

The PRX710 is the most compact and versatile speaker in the PRX700 Series. Designed to deliver maximum performance for its weight and size as a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX700 Series subwoofer, offering a high performance self-powered sub/sat system.
The PRX710 is comprised of a 10" woofer, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 100° by 60° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Download

Documenti

	Lingua	Dimensione	Caricato
PRX710 Data Sheet aggiornato: apr 2026		2,27 MB	apr 2026
PRX710 Spec Sheet aggiornato: apr 2026		834 KB	apr 2026
PRX710 User's Guide - English aggiornato: apr 2026		1,95 MB	apr 2026
PRX710 User's Guide - French aggiornato: apr 2026		898 KB	apr 2026
PRX710 User's Guide - German aggiornato: apr 2026		906 KB	apr 2026
PRX710 User's Guide - Spanish aggiornato: apr 2026		780 KB	apr 2026

Data Sheets

	Dimensione	Caricato
PRX710 Datasheet aggiornato: ott 2020	2,27 MB	ott 2020

Specifications

	Dimensione	Caricato
PRX710 Spec Sheet aggiornato: ott 2020	834 KB	ott 2020

Brochures

	Dimensione	Caricato
Portable Sound Full Line 2015 Catalog aggiornato: ott 2020	2,54 MB	ott 2020

CAD Drawings

	Dimensione	Caricato
PRX700 2D Drawings PDF aggiornato: ott 2020	704 KB	ott 2020
PRX700 2D Drawings CAD aggiornato: ott 2020	6,41 MB	ott 2020

Compliances

	Dimensione	Caricato
PRX700 Declaration of Conformity aggiornato: ott 2020	133 KB	ott 2020

Simulation Data

	Dimensione	Caricato
Ease SPK/DLL Files - Full JBL Pro Line aggiornato: mag 2024	21 MB	mag 2024

User Guides

	Dimensione	Caricato
PRX700 Users Guide aggiornato: ott 2020	1,95 MB	ott 2020
PRX700 Users Guide Spanish aggiornato: ott 2020	780 KB	ott 2020
PRX700 Users Guide French aggiornato: ott 2020	898 KB	ott 2020

Images

	Dimensione	Caricato

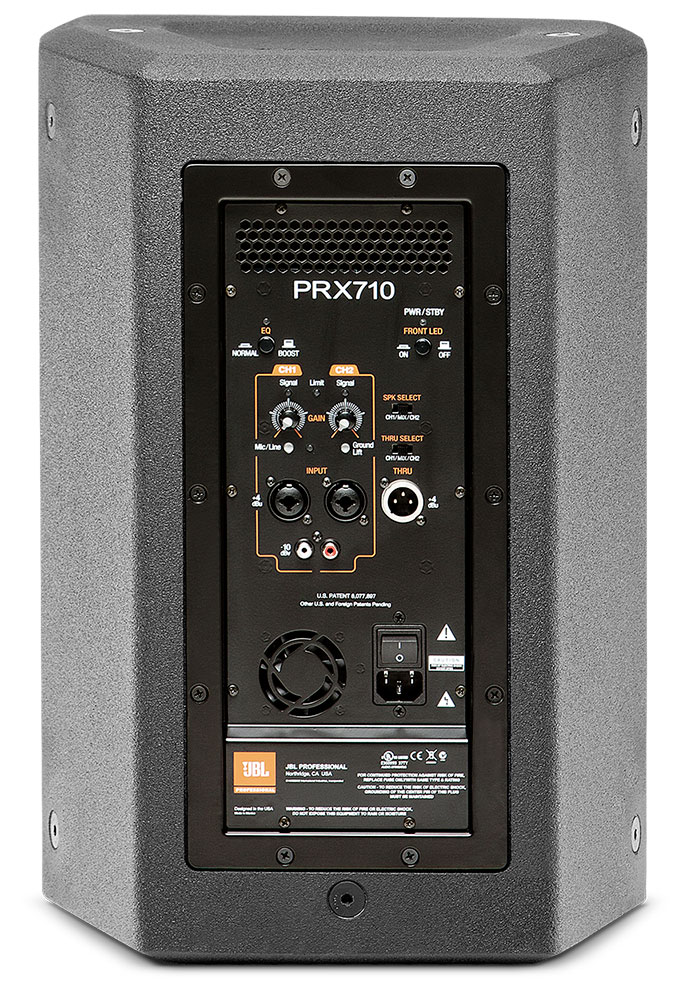

PRX710 Back aggiornato: ott 2020	222 KB	ott 2020
PRX710 Fr Angle No Grill aggiornato: ott 2020	209 KB	ott 2020

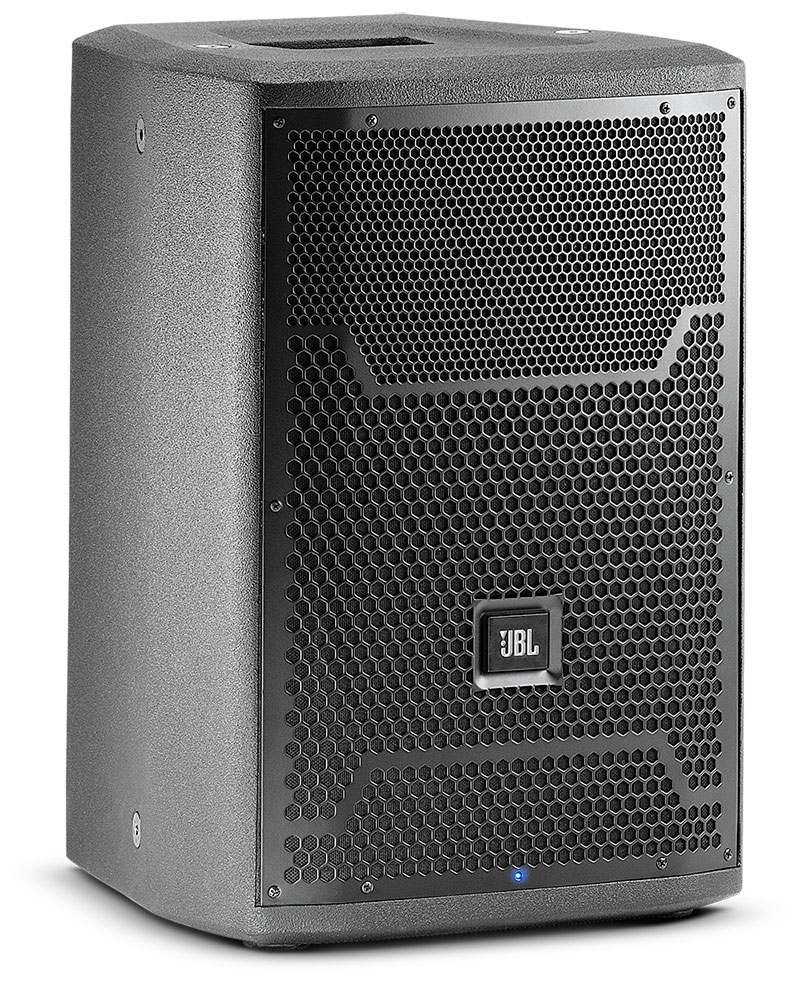

PRX710 Front Angle aggiornato: ott 2020	298 KB	ott 2020

Accessories

	Dimensione	Caricato
PRX700 Users Guide German aggiornato: ott 2020	906 KB	ott 2020

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Power Rating	1500 W
AC power input	100V - 240V~ 50/60 Hz
Frequency Range (-10dB)	Normal: 50 Hz – 19.6kHzBoost: 42.9 Hz – 20kHz
Frequency Response (±3 dB)	Normal: 63.5 Hz – 18.5kHzBoost: 53 Hz – 18.6kHz
Coverage Pattern	100° x 60° nominal
Directivity Index (DI)	9 dB
Directivity Factor (Q)	8
Crossover Frequency	1.9 kHz
Maximum SPL (1m)	133 dB
Signal Indicators	Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input)	dbx Type IV™ limiter circuit
Input Impedance	20K Ohms (balanced), 10K Ohms (unbalanced)
LF Driver	1 x JBL M110-4 250mm (10 in) woofer
HF Driver	1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
Enclosure	Trapezoidal, 18 mm, plywood
Suspension / Mounting	single 36 mm pole socket, 8 x M10 Suspension Points, 1 x M10 pull back point
Transport	1 x integrated handle with injection molded backing cup
Finish	Obsidian DuraFlex™ finish
Grille	Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors	2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Output Connectors	1 male XLR balanced output
Dimensions (H x W x D)	498.7 mm x 335.6 mm x 322.3 mm(19.63 in x 13.21 in x 12.69 in)
Net Weight	16.4 kg (36 lb)
