PRX710 (discontinued)

10" Two-Way Multipurpose Self-PoweredSound Reinforcement System

PRX710
Larger Images

10" Two-Way Multipurpose Self-Powered Sound
Reinforcement System

PRX710 is a compact and ultra-lightweight speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size.



特長

  • 133 dB peak SPL
  • 10" low-frequency driver for low-distortion and higher SPL
  • 1.5" diameter next generation JBL neodymium compression driver
  • JBL designed waveguide for accurate coverage
  • Efficient Class-D amplifier technology
  • Normal and Boost user selectable EQ presets
  • DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
  • Line level and direct microphone input capability
  • Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
  • Integrated 36 mm pole mount socket
  • Integrated handle with injection molded backing cup for easy transport
  • Integrated M10 suspension points for easy setup
  • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
  • Cloth backed, dent-resistant 16 gauge steel grilles

  • The PRX710 is the most compact and versatile speaker in the PRX700 Series. Designed to deliver maximum performance for its weight and size as a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX700 Series subwoofer, offering a high performance self-powered sub/sat system.
  • The PRX710 is comprised of a 10" woofer, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 100° by 60° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
    1000 lbs. each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.


Downloads

  Version Language Size Uploaded
file type icon PRX710 Data Sheet
en updated: 3月 2024
  en  2.27MB 3月 2024
file type icon PRX710 Spec Sheet
en updated: 3月 2024
  en  834KB 3月 2024
file type icon PRX710 User's Guide - English
en updated: 3月 2024
  en  1.95MB 3月 2024
file type icon PRX710 User's Guide - French
fr updated: 3月 2024
  fr  898KB 3月 2024
file type icon PRX710 User's Guide - German
de updated: 3月 2024
  de  906KB 3月 2024
file type icon PRX710 User's Guide - Spanish
es updated: 3月 2024
  es  780KB 3月 2024
Data Sheets
file type icon PRX710 Datasheet
updated: 10月 2020
    2.27MB 10月 2020
Specifications
file type icon PRX710 Spec Sheet
updated: 10月 2020
    834KB 10月 2020
Brochures
file type icon Portable Sound Full Line 2015 Catalog
updated: 10月 2020
    2.54MB 10月 2020
CAD Drawings
file type icon PRX700 2D Drawings PDF
updated: 10月 2020
    704KB 10月 2020
file type icon PRX700 2D Drawings CAD
updated: 10月 2020
    6.41MB 10月 2020
Compliances
file type icon PRX700 Declaration of Conformity
updated: 10月 2020
    133KB 10月 2020
User Guides
file type icon PRX700 Users Guide
updated: 10月 2020
    1.95MB 10月 2020
file type icon PRX700 Users Guide Spanish
updated: 10月 2020
    780KB 10月 2020
file type icon PRX700 Users Guide French
updated: 10月 2020
    898KB 10月 2020
Images

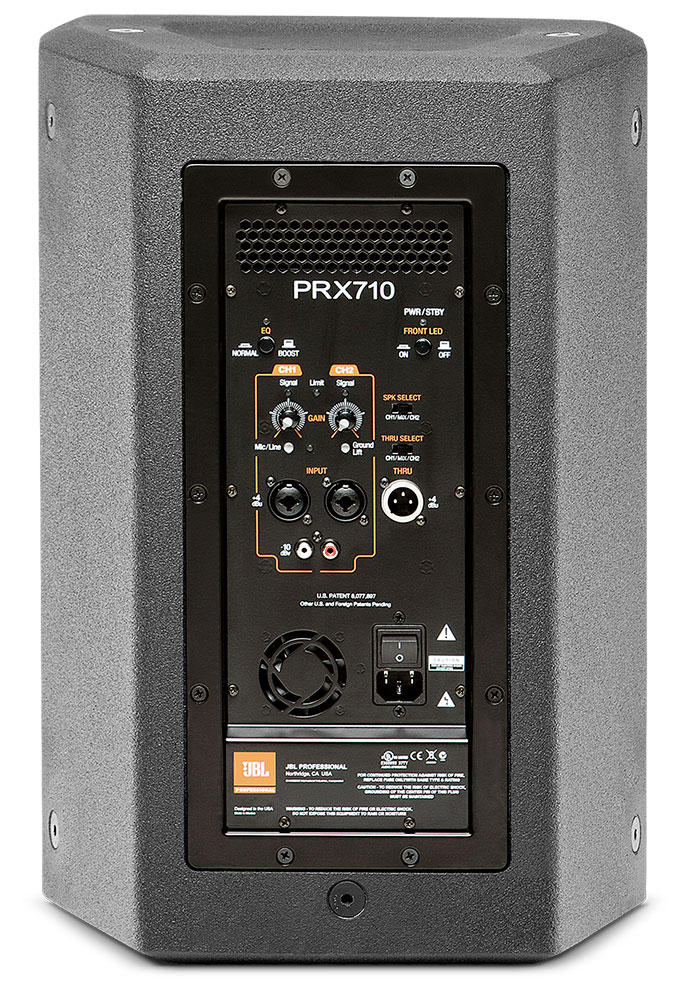

file type icon PRX710 Back
updated: 10月 2020
    222KB 10月 2020

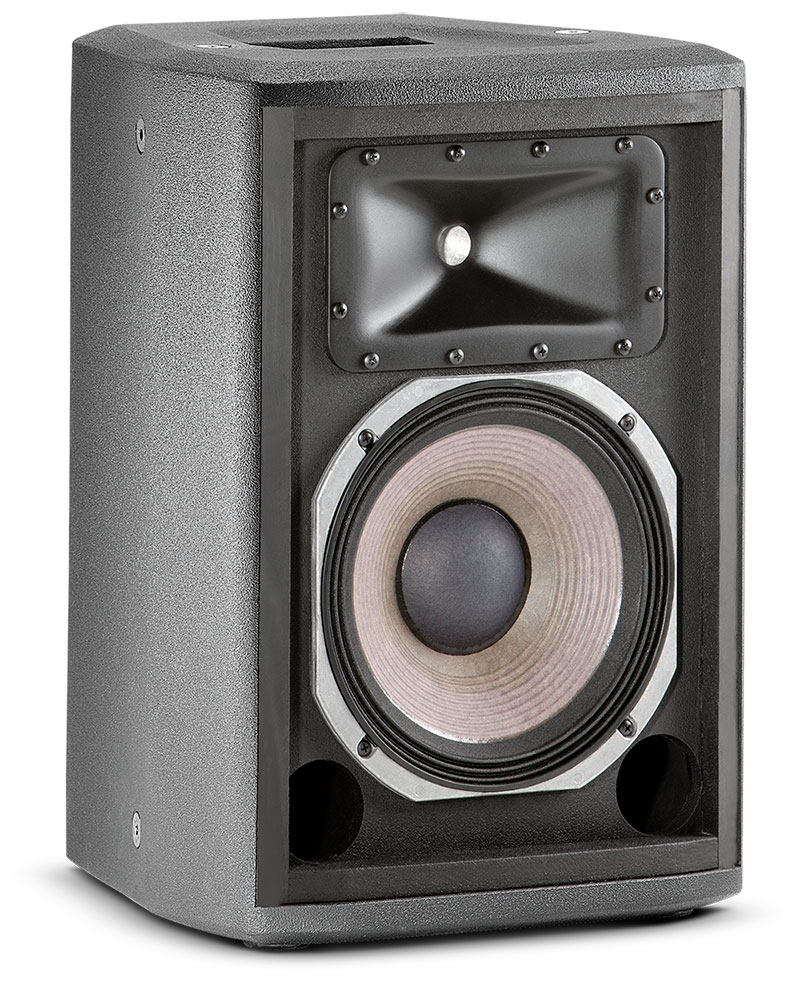

file type icon PRX710 Fr Angle No Grill
updated: 10月 2020
    209KB 10月 2020

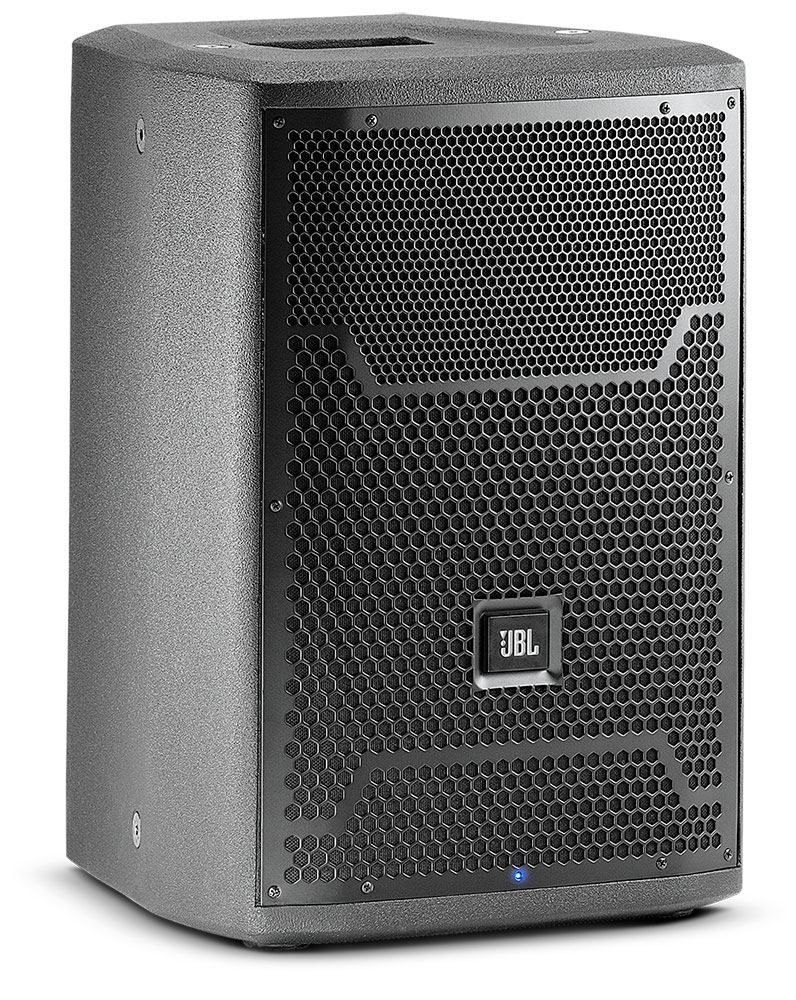

file type icon PRX710 Front Angle
updated: 10月 2020
    298KB 10月 2020
Accessories
file type icon PRX700 Users Guide German
updated: 10月 2020
    906KB 10月 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21MB 3月 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Power Rating 1500 W
AC power input 100V - 240V~ 50/60 Hz
Frequency Range (-10dB) Normal: 50 Hz – 19.6kHzBoost: 42.9 Hz – 20kHz
Frequency Response (±3 dB) Normal: 63.5 Hz – 18.5kHzBoost: 53 Hz – 18.6kHz
Coverage Pattern 100° x 60° nominal
Directivity Index (DI) 9 dB
Directivity Factor (Q) 8
Crossover Frequency 1.9 kHz
Maximum SPL (1m) 133 dB
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input) dbx Type IV™ limiter circuit
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
LF Driver 1 x JBL M110-4 250mm (10 in) woofer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
Enclosure Trapezoidal, 18 mm, plywood
Suspension / Mounting single 36 mm pole socket, 8 x M10 Suspension Points, 1 x M10 pull back point
Transport 1 x integrated handle with injection molded backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Output Connectors 1 male XLR balanced output
Dimensions (H x W x D) 498.7 mm x 335.6 mm x 322.3 mm(19.63 in x 13.21 in x 12.69 in)
Net Weight 16.4 kg (36 lb)
