LSR6332 (arrêté)

Linear Spatial Reference Studio Monitor System

LSR6332
Grandes images

Linear Spatial Reference Studio Monitor System

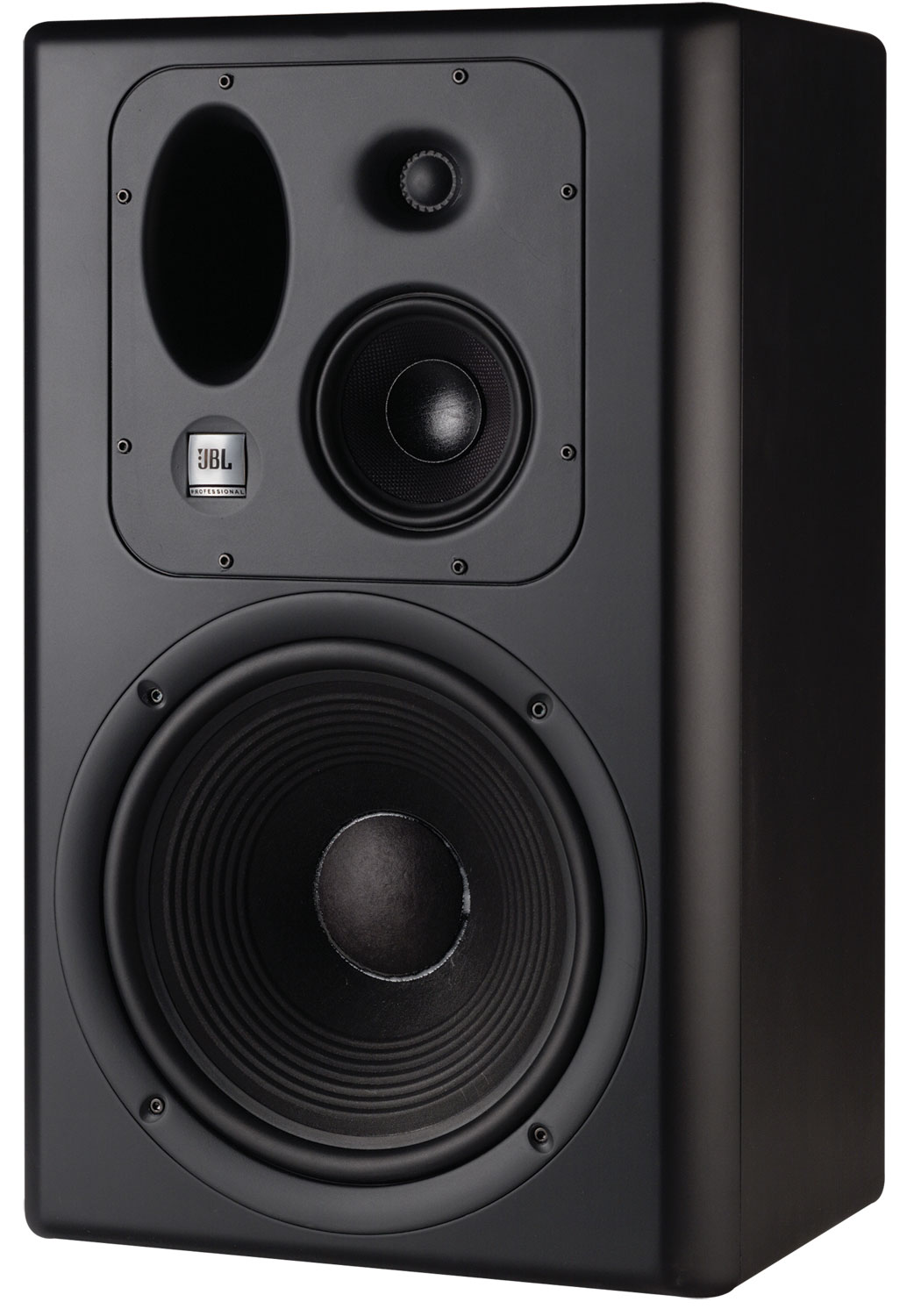

The LSR6332 incorporates a 12" Differential Drive® dual coil woofer, 5" Kevlar™ midrange speaker and 1" titanium composite tweeter. THX® pm3 Approved.



Caractéristiques

  • Advanced Linear Spatial Reference design ensures flatter response at the mix position.
  • Differential Drive® technology with dynamic braking for extended low frequency response and low
    power compression.
  • Neodymium midrange with 2" voice coil and Kevlar™ cone material for extended frequency response
    and low distortion.
  • Titanium composite high frequency transducer with elliptical oblate spheroidal waveguide and damped polepiece.
  • High-Density baffle for low enclosure resonance and stable inertial ground
  • Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
  • Magnetically shielded for use near video monitors.
  • Reinforced enclosure and convenient mounting points allow mounted installation.
  • Midrange/high frequency sub-baffle may be rotated by user for horizontal or vertical orientation.
  • Available as mirror image left and right models.


Téléchargements

  Version Language Size Uploaded
Specifications
file type icon LSR6332 Spec Sheet
updated: avr. 2019
    651 ko avr. 2019
Brochures
file type icon LSR 6300 Brochure
updated: oct. 2020
    5,89 Mo oct. 2020
file type icon Recording & Broadcast Full Line Catalog
updated: oct. 2020
    1,81 Mo oct. 2020
Tech Notes
file type icon Tech Note: The New JBL LSR6300 Series Studio Monitors
updated: oct. 2019
    627 ko oct. 2019
Helpful Links
file type icon RMC White Paper
updated: oct. 2020
    189 ko oct. 2020
file type icon RMC Graph Paper
updated: oct. 2020
    60 ko oct. 2020
User Guides
file type icon RMC User Guide
updated: oct. 2020
    2,58 Mo oct. 2020
Install Guides
file type icon R&B Mounting Brackets
updated: oct. 2020
    26,2 ko oct. 2020
Images
file type icon LSR6332 Left Angle
updated: avr. 2019
    143 ko avr. 2019
Owner's Manuals
file type icon LSR6300 Manual
updated: oct. 2020
    815 ko oct. 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: mars 2022
    21 Mo mars 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Input Impedance 4 ohm (Nominal)
Anechoic Sensitivity 93 dB/2.83 V/1 m (90 dB/ 1 W/ 1 m)
Frequency Response +1. -1.5 dB (60 Hz – 22 kHz)
Low Frequency Extension -3 dB: 54 Hz-10 dB: 35 Hz
Enclosure Resonance Frequency 33 Hz
Long Term Maximum Power (IEC265-5) 200 W continuous average; 800 W peak
Recommended Amplifier Power 150 W - 1000 W (rating into 4-ohm load)
High Frequency Control 0 dB, -1 dB (2.5 to 20 kHz)
Distortion, 96 dB SPL, 1 m 2nd Harmonic (below 120 Hz): <1.5%3rd Harmonic (below 120 Hz): <1%2nd Harmonic (120 Hz to 20 kHz): <0.5%3rd Harmonic (120 Hz to 20 kHz): <0.4%
Distortion, 102 dB SPL, 1 m 2nd Harmonic (below 120 Hz): <1.5%3rd Harmonic (below 120 Hz): <1%2nd Harmonic (80 Hz to 20kHz): <1%3rd Harmonic (80 Hz to 20kHz): <1%(<0.4%, 250 Hz - 20 kHz)
Power Nonlinearity 30 W (20 Hz to 20 kHz): <0.4 dB100 W (20 Hz to 20 kHz): <1.0 dB
Low-Mid Frequency Crossover 4th Order Acoustic Linkwitz-Riley: 250 Hz
Mid-High Frequency Crossover 4th Order Acoustic Linkwitz-Riley: 2.2 kHz
