Pre-Install In-Ceiling Backcan

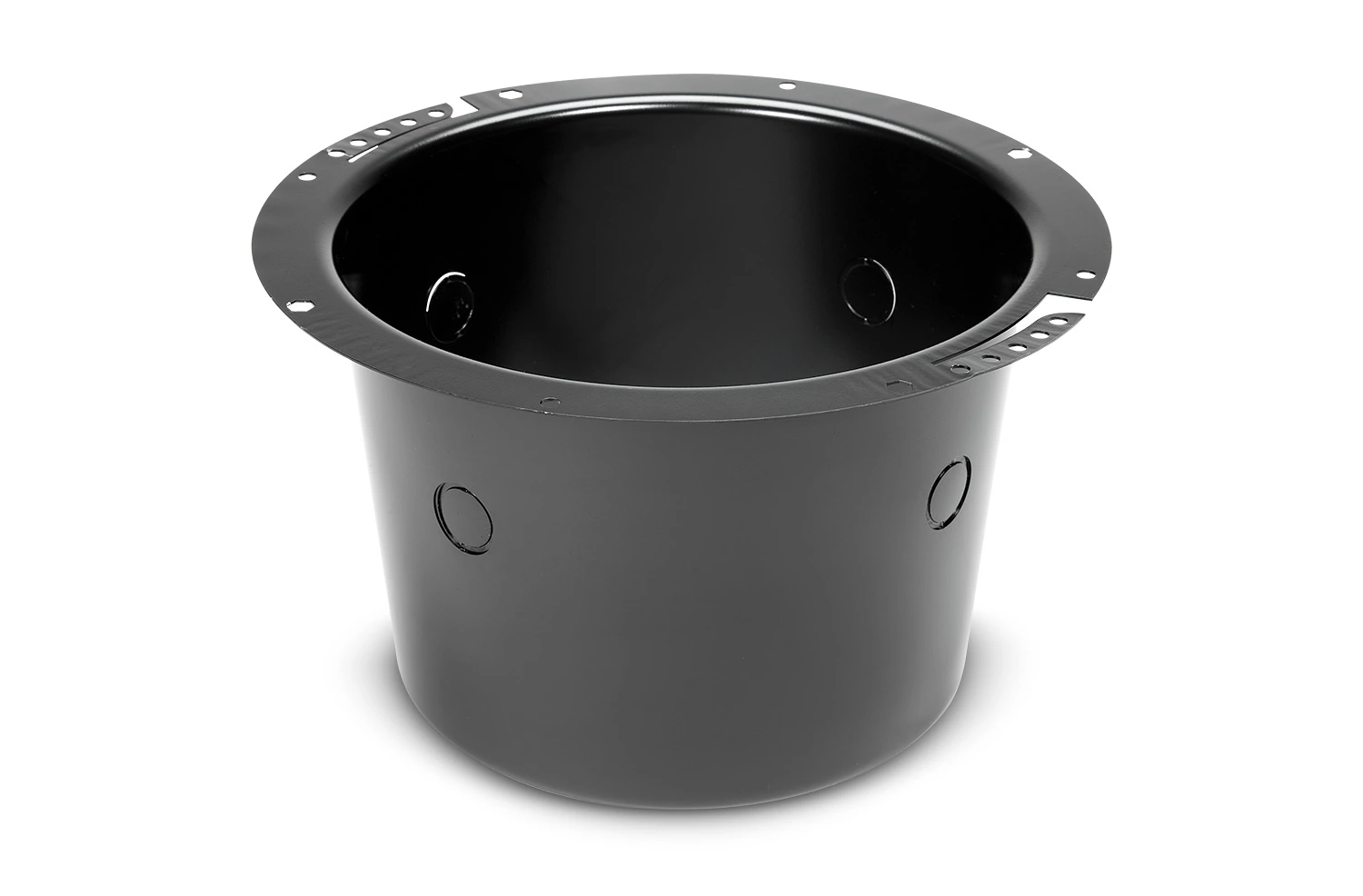

The MTC-81BB8 is designed for use in applications requiring preinstalled backcans and is compatible with ceiling speakers having a 286 mm (11.25 in) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81TB8 tile bridge for suspended ceilings.


  • Fits 8138 speaker and MTC-81TB8 Tile Bridge
  • Extra-large 7.4 liter (0.26 cu ft) volume allows for extra bass
  • Industry standard 286 mm (11.25 in) mounting circle
  • Five conduit knockouts
  • Nesting during storage minimizes storage space requirements


  Version Language Size Uploaded
file type icon MTC-81BB8 Spec Sheet
updated: oct. 2020
    176 ko oct. 2020
file type icon 8138 Frequently Asked Questions
updated: oct. 2020
    31,5 ko oct. 2020
file type icon MTC-81BB8 Hi Res Image
updated: oct. 2020
    9,15 Mo oct. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Internal Volume 7.4 liters (0.26 cu ft)
Knockouts 22 mm (0.87 in) diameter opening
Five (5) locations 4 on side of can1 on top of panel of can
Suspension Tabs 2 flexible perforated mounting straps, one on each side.
Attachment Points 4 clip-nuts on 286 mm (11.25 in) mounting circle fix M4 tapping screws for attaching tile bridge to backcan, plus 4 thru holes providing clearance for screws from speaker to attach to tile bridge (see assembly drawing).
Material 16 gauge (1.3 mm thick) steel, finished in black polymer E-coating for a high level of rust resistance.
Dimensions (H x W x D) 178 mm (7 in) height x 300 mm (11.75 in) width and depth
Net Weight (each) 1.1 kg (2.5 lbs)
Shipping Weight (ea) 1.5 kg (3.2 lbs)
Associated Models 8138 200 mm (8 in) ceiling speakerMTC-81TB8 tile bridge for 600 mm (24 in) ceiling tile applications.
