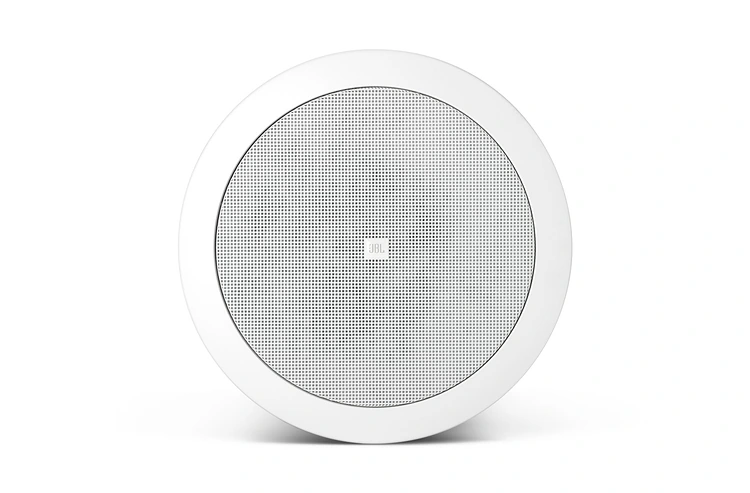

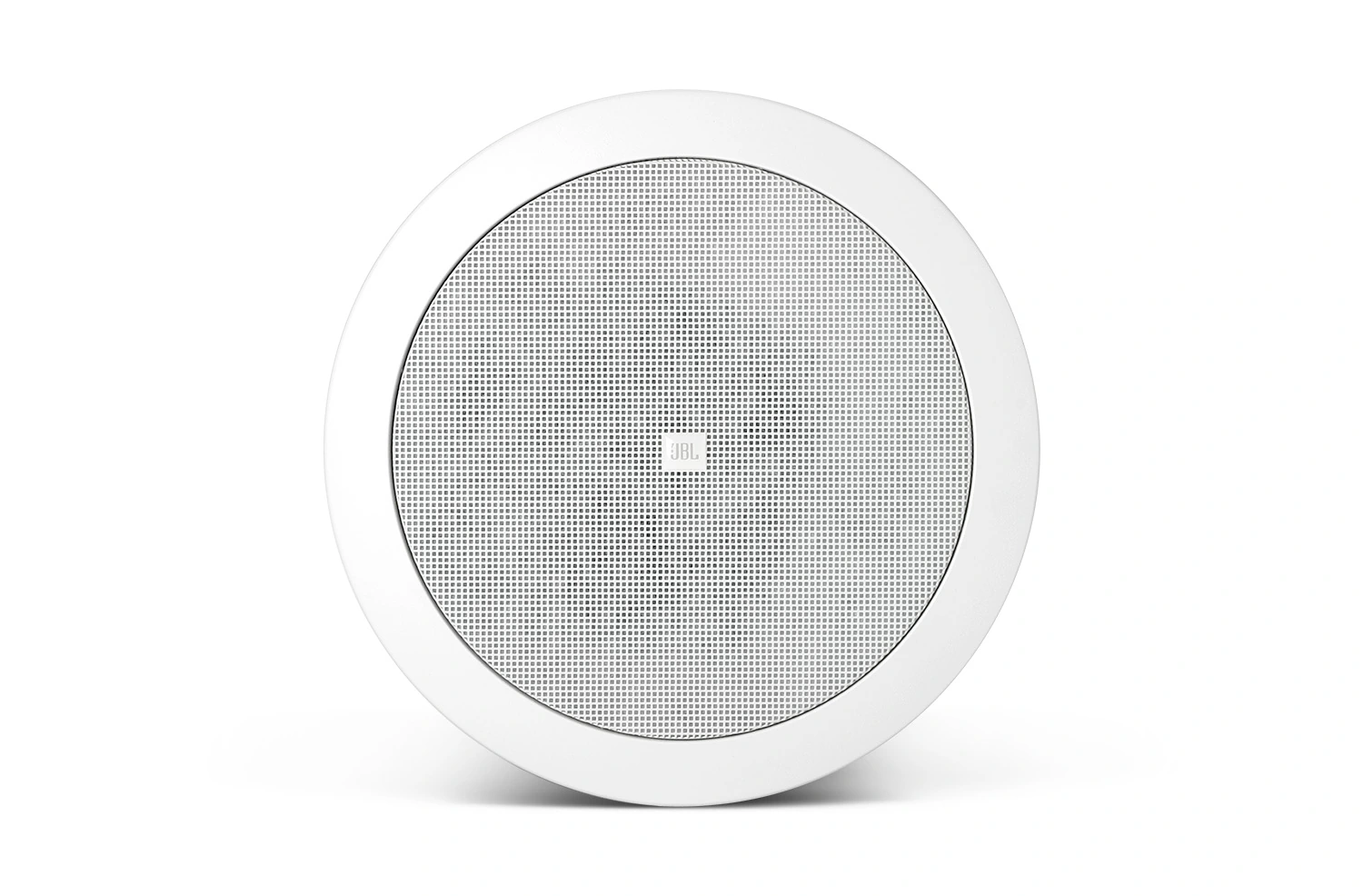

The Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Caractéristiques

  • Extremely wide 150°coverage.
  • Smooth frequency response.
  • Components:
    4.5 in (115 mm) woofer, injection molded graphite cone with butyl rubber surround.
    .5 in (12 mm) polycarbonate tweeter for extended response.
  • Control 24C Micro is 8 ohms and handles 15 W.
  • Shallow 4 in (100 mm) depth.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Téléchargements

  Version Language Size Uploaded
Data Sheets
file type icon Control 24C/CT Micro Spec Sheet
version B, updated: oct. 2020
  1,48 Mo oct. 2020
Manuals
file type icon Control 24C/CT Micro Manual
version D, updated: nov. 2020
  380 ko nov. 2020
file type icon MTC-TCD Thick-Ceiling Dogear
updated: oct. 2019
    41,7 ko oct. 2019
file type icon Ceiling Speaker Accessory Guide
updated: oct. 2019
    127 ko oct. 2019
CAD Drawings
file type icon Control Surface Mount 2D Drawings
updated: oct. 2020
    674 ko oct. 2020
file type icon Control Contractor Ceiling Speakers 3D Drawing
updated: oct. 2020
    3,42 Mo oct. 2020
BIM Objects
file type icon CONTROL 24C MICRO BIM Object
updated: août 2019
    août 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: déc. 2019
    179 ko déc. 2019
Software
platform icon Ceiling Speaker System Worksheet
version 2, updated: fév. 2020
2     11,3 ko fév. 2020
platform icon Ceiling Subwoofer Worksheet
updated: nov. 2020
    13,4 ko nov. 2020
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: mai 2023
12-10-21    24 Mo mai 2023
Accessories
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
updated: sept. 2021
    204 ko sept. 2021
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: mai 2023
  557 ko mai 2023
Install Guides
file type icon Guide to Business Music
updated: oct. 2020
    52,4 ko oct. 2020
file type icon CC Ceiling Speakers: Myth versus Reality
updated: oct. 2020
    23,9 ko oct. 2020
file type icon Metric Ceiling Speaker System Worksheet
updated: oct. 2020
    13,7 ko oct. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range 85 Hz - 25 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
30 Watts Continuous Program Power
15 Watts Continuous Pink Noise (60W peak), 100 hrs
Sensitivity 86 dB (100 Hz - 10 kHz)
Crossover Frequency 3.5 kHz
Maximum SPL (1m) 98 dB (104 dB peak)
Coverage Angle 150° conical
Impedance 7.1 ohms
Input Connectors Screw-down terminals.
Drivers LF Driver: 115 mm (4.5 in)
HF Driver: 12 mm (0.5 in)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-O
Ceiling Cutout Size 167 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard
Optional Accessories MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket
Plenum Usage Yes, backcan included

Accessories

MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 Main photo
Grandes images

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

  • Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
    Includes (at product release):
    • Control 24C/CT Micro & 24CT MicroPlus
    • Control 24C/CT, 26C/CT, 19CS/CST
    • Control 47C/T, 47LP, 47HC, 40CS/T, 42C
    • Control 226C/T
    • 8124/8128
    • Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
  • Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
  • 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
  • Multiple C-ring mounting holes. Additional hole locations drillable by installer.
  • One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).

Documentation

Assistance/FAQ
