Background Music Ceiling Loudspeaker

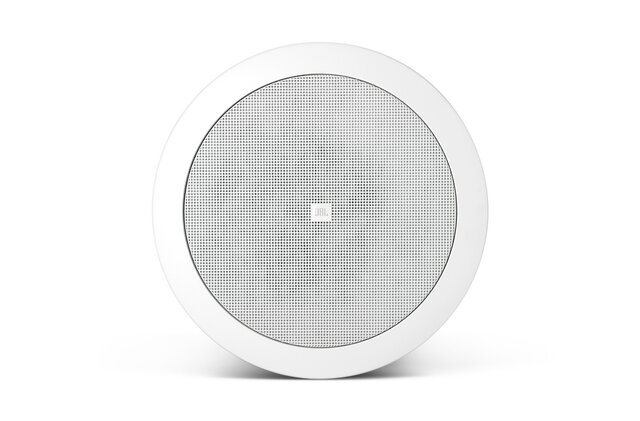

The Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.
Larger Images
Features
- Extremely wide 150°coverage.
- Smooth frequency response.
- Components:
4.5 in (115 mm) woofer, injection molded graphite cone with butyl rubber surround.
.5 in (12 mm) polycarbonate tweeter for extended response. - Control 24C Micro is 8 ohms and handles 15 W.
- Shallow 4 in (100 mm) depth.
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Downloads
| Size | ||||
Data Sheets | ||||
Control 24C/CT Micro Spec Sheet
version B,
updated: Oct 2020
|
1.48 MB | |||
Manuals | ||||
|
Control 24C/CT Micro Manual
version D,
updated: Nov 2020
|
380 KB | |||
|
MTC-TCD Thick-Ceiling Dogear
updated: Oct 2019
|
41.7 KB | |||
|
Ceiling Speaker Accessory Guide
updated: Oct 2019
|
127 KB | |||
CAD Drawings | ||||
Control Surface Mount 2D Drawings
updated: Oct 2020
|
674 KB | |||
|
Control Contractor Ceiling Speakers 3D Drawing
updated: Oct 2020
|
3.42 MB | |||
Bim Objects | ||||
|
CONTROL 24C MICRO BIM Object
updated: Aug 2019
|
||||
Compliances | ||||
|
JBL Control Series Passive Speakers DoC
updated: Dec 2019
|
179 KB | |||
Software | ||||
|
Ceiling Speaker System Worksheet
version 2,
updated: Feb 2020
|
11.3 KB | |||
|
Ceiling Subwoofer Worksheet
updated: Nov 2020
|
13.4 KB | |||
Simulation Data | ||||
|
JBL Pro ALL CLF Files
version 12-10-21,
updated: May 2023
|
24 MB | |||
Accessories | ||||
|
MTC-CS-Teth1 Press-In Grille Safety Tether
updated: Sep 2021
|
204 KB | |||
Speaker Tunings | ||||
|
Commercial, CBT, and AWC Tunings 220616
version A,
updated: May 2023
|
557 KB | |||
Install Guides | ||||
|
Guide to Business Music
updated: Oct 2020
|
52.4 KB | |||
|
CC Ceiling Speakers: Myth versus Reality
updated: Oct 2020
|
23.9 KB | |||
|
Metric Ceiling Speaker System Worksheet
updated: Oct 2020
|
13.7 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Range | 85 Hz - 25 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hrs |
| Sensitivity | 86 dB (100 Hz - 10 kHz) |
| Crossover Frequency | 3.5 kHz |
| Maximum SPL (1m) | 98 dB (104 dB peak) |
| Coverage Angle | 150° conical |
| Impedance | 7.1 ohms |
| Input Connectors | Screw-down terminals. |
| Drivers | LF Driver: 115 mm (4.5 in) HF Driver: 12 mm (0.5 in) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-O |
| Ceiling Cutout Size | 167 mm (6.6 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard |
| Optional Accessories | MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket |
| Plenum Usage | Yes, backcan included |
Accessories
MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
Larger Images
Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 is an accessory tile rail for installing many of
JBL’s ceiling loudspeakers into 4 ft by 4
ft
(1200 x 1200 mm; 48 x 48 inch)
ceiling tiles in suspended ceiling
applications.
- Can be used with any JBL ceiling
speakers having the C-ring/tile-rail
mounting system.
Includes (at product release):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list. - Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
- 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
- Multiple C-ring mounting holes. Additional hole locations drillable by installer.
- One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
Documentation
-
MTC-48TRx12 Spec Sheet (revB)
[77.2 KB]
