LSR2328P
Descontinuado

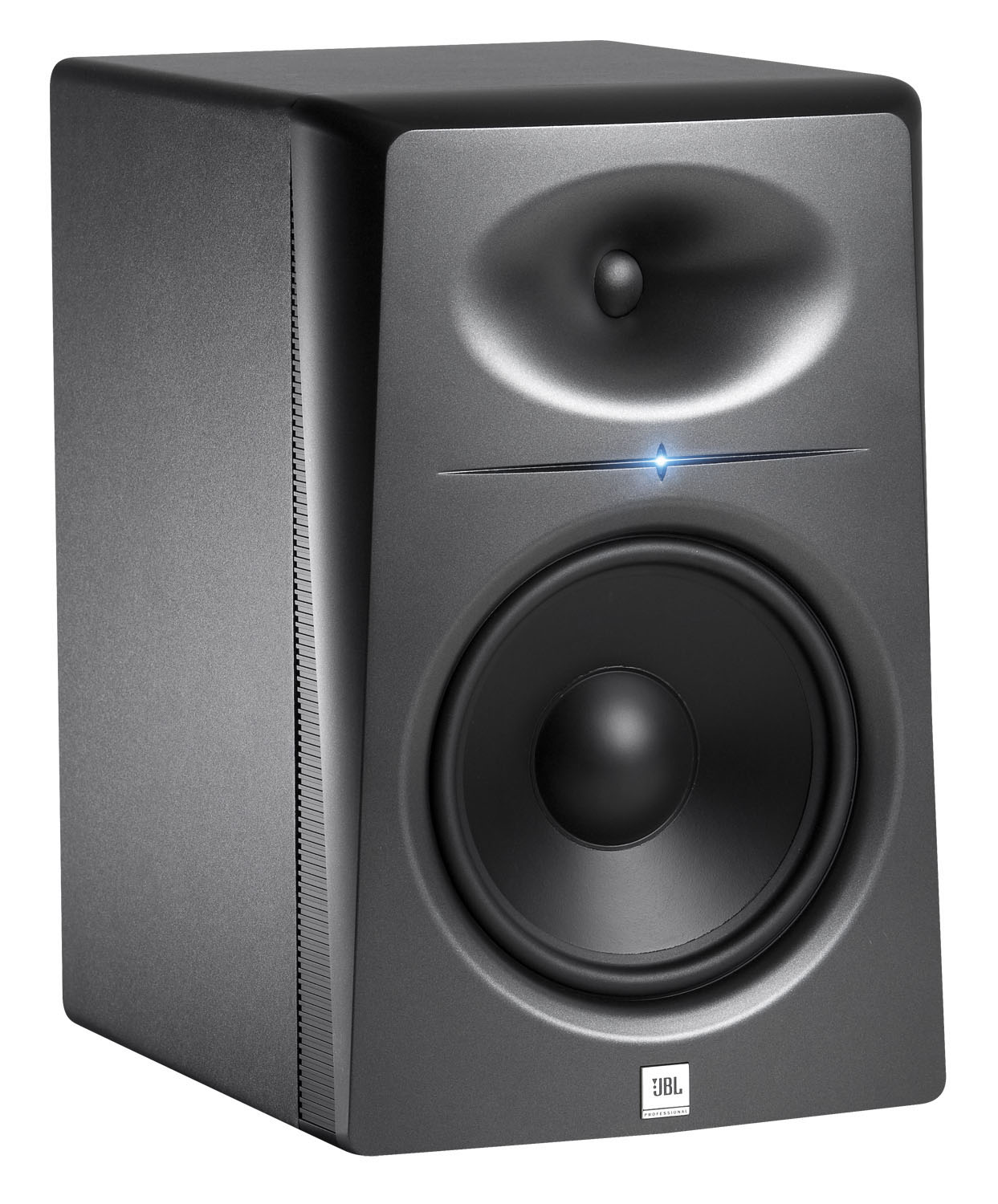

8" Two-Way Bi-Amplified Powered Studio Monitor

Imágenes más grandes

8" Two-Way Bi-Amplified Powered Studio Monitor

The LSR2328P Bi-Amplified Two-Way Model is based on an 8" (203 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker’s response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware

Características

  • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors
  • Magnetic Shielding
  • Level Control
  • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads.

Descargas

Manuals
  Idioma Tamaño Subido
file type icon LSR2300 User's Guide French
fr actualizado: oct 2019
fr  5,92 MB oct 2019
file type icon LSR2300 User's Guide German
de actualizado: oct 2019
de  5,82 MB oct 2019
file type icon LSR2300 User's Guide Spanish
es actualizado: oct 2019
es  5,92 MB oct 2019
Brochures
  Tamaño Subido
file type icon LSR2300 Brochure
actualizado: oct 2020
1,37 MB oct 2020
Compliances
  Tamaño Subido
127 KB oct 2019
Images
  Tamaño Subido
file type icon LSR2328P Hi Res Photo
actualizado: oct 2020
249 KB oct 2020
Install Guides
  Tamaño Subido
file type icon R&B Mounting Brackets
actualizado: oct 2020
26,2 KB oct 2020
User Guides
  Tamaño Subido
file type icon LSR2300 Users Guide
actualizado: oct 2020
5,91 MB oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range 37 Hz - 20 kHz
Max SPL Continous Each / Pair: > 104 dB / > 110 dB
Max SPKL Peak Each / Pair: > 117 dB / > 123 dB
Input Sensitivity 92 dB SPL / 1m @ -10dBV Balanced Input
Drivers (LF / HF) 8" (203 mm) 238G1" (25 mm) 231H
LF Trim + 2 dB / -3 dB
HF trim + 2.5 dB / - 2.5 dB
CONEXIONES DE ENTRADA Balanced XLR, 1/4" TRS, RCA
Amplifier Power Rating LF/HF: 95 W / 70 W
Frecuencia de crossover 2.0 kHz 4th-order Acoustic Linkwitz-Riley
Enclosure 18 mm (3/4 in) MDF
Acabado Metallic Anthracite Pain / Dark Matte Black PVC
Dimensions (H x W x D) 397 mm x 254 mm x 335 mm (15.6 in x 10 in x 13.2 in)
PESO NETO 12.7 Kg (28 lb)
