LSR2328P (停产)

8" Two-Way Bi-Amplified Powered Studio Monitor


8" Two-Way Bi-Amplified Powered Studio Monitor

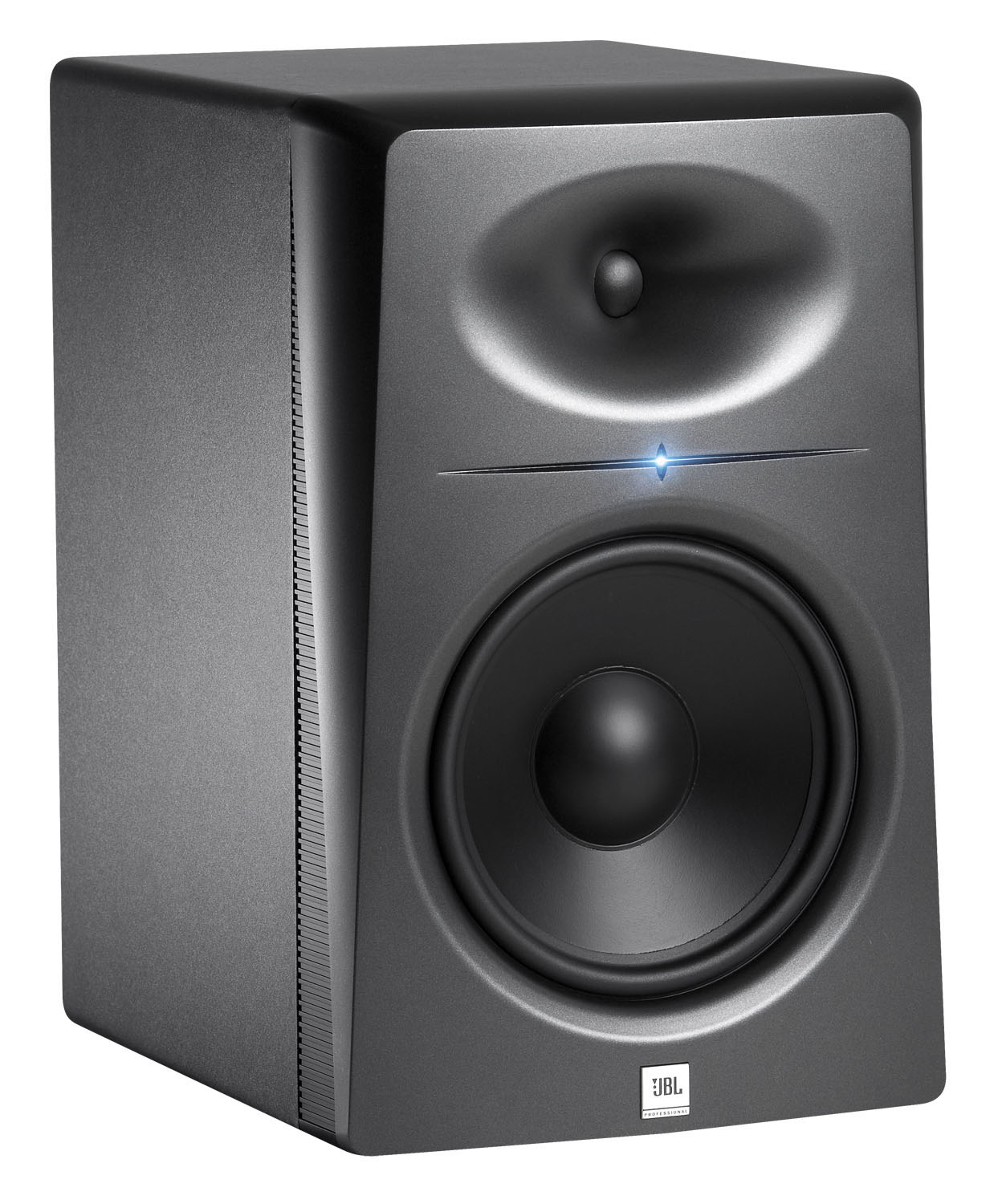

The LSR2328P Bi-Amplified Two-Way Model is based on an 8" (203 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker’s response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware


  • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors
  • Magnetic Shielding
  • Level Control
  • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads.


  Version Language Size Uploaded
file type icon LSR2300 User's Guide French
fr updated: 10月23日
  fr  5.9 MB 10月23日
file type icon LSR2300 User's Guide German
de updated: 10月23日
  de  5.8 MB 10月23日
file type icon LSR2300 User's Guide Spanish
es updated: 10月23日
  es  5.9 MB 10月23日
file type icon LSR2300 Brochure
updated: 10月22日
    1.4 MB 10月22日
file type icon LSR2300 Series Declaration of Conformity
updated: 10月18日
    127.5 KB 10月18日
file type icon LSR2328P Hi Res Photo
updated: 10月22日
    248.9 KB 10月22日
Install Guides
file type icon R&B Mounting Brackets
updated: 10月22日
    26.2 KB 10月22日
User Guides
file type icon LSR2300 Users Guide
updated: 10月22日
    5.9 MB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


频率范围 37 Hz - 20 kHz
Max SPL Continous Each / Pair: > 104 dB / > 110 dB
Max SPKL Peak Each / Pair: > 117 dB / > 123 dB
输入的灵敏度 92 dB SPL / 1m @ -10dBV Balanced Input
Drivers (LF / HF) 8" (203 mm) 238G1" (25 mm) 231H
LF Trim + 2 dB / -3 dB
HF trim + 2.5 dB / - 2.5 dB
输入接口 Balanced XLR, 1/4" TRS, RCA
Amplifier Power Rating LF/HF: 95 W / 70 W
分频点 2.0 kHz 4th-order Acoustic Linkwitz-Riley
Enclosure 18 mm (3/4 in) MDF
外观颜色 Metallic Anthracite Pain / Dark Matte Black PVC
尺寸(高 x 宽 x 厚) 397 mm x 254 mm x 335 mm (15.6 in x 10 in x 13.2 in)
净重量 12.7 Kg (28 lb)
