LSR2328P
ยกเลิกการผลิต

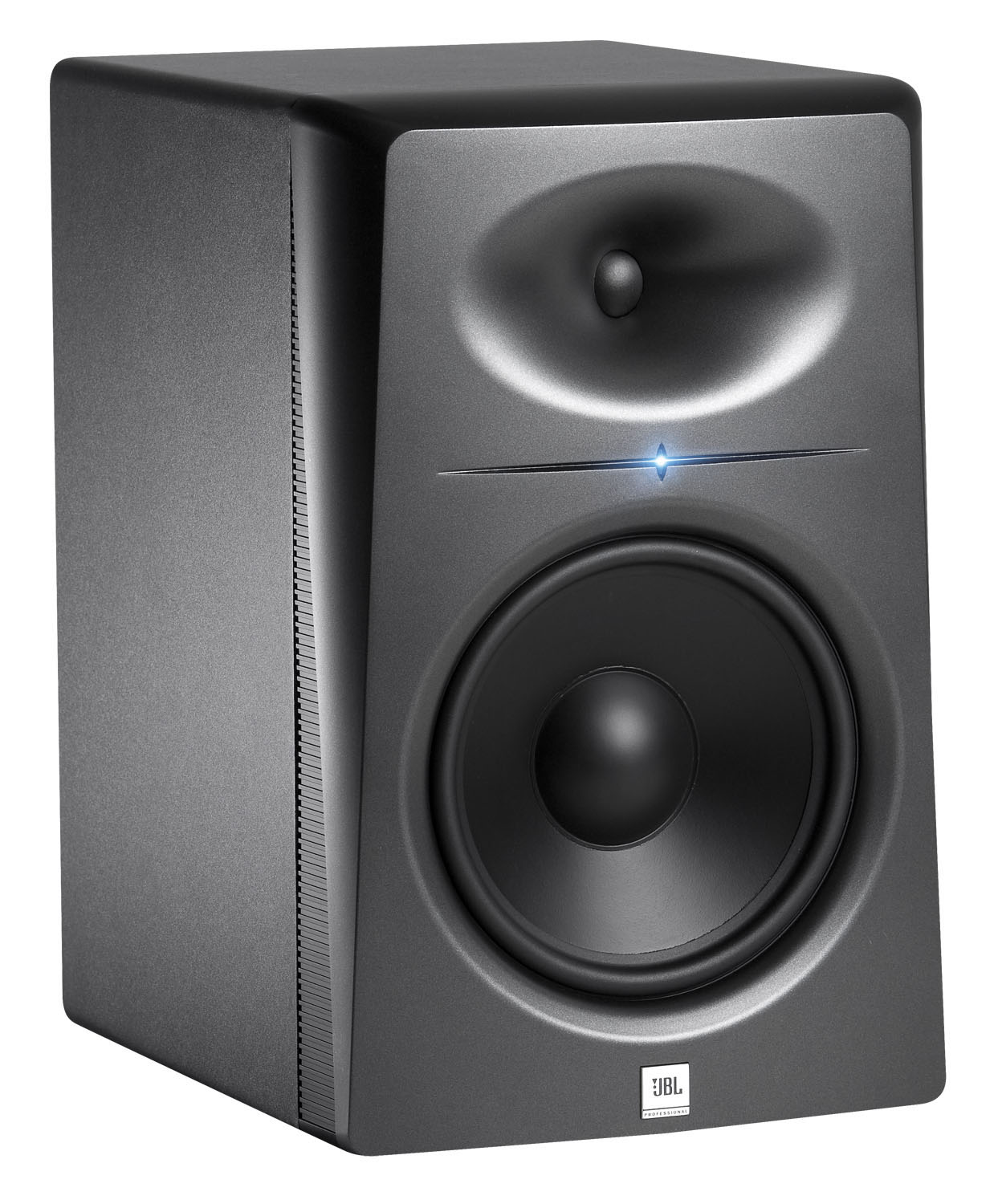

8" Two-Way Bi-Amplified Powered Studio Monitor

รูปภาพขนาดใหญ่

8" Two-Way Bi-Amplified Powered Studio Monitor

The LSR2328P Bi-Amplified Two-Way Model is based on an 8" (203 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker’s response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware

คุณสมบัติ

  • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors
  • Magnetic Shielding
  • Level Control
  • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads.

การดาวน์โหลด

Manuals
  ภาษา ขนาด อัปโหลดแล้ว
file type icon LSR2300 User's Guide French
fr อัปเดต: ต.ค. 2019
fr  5.92 เมกะไบต์ ต.ค. 2019
file type icon LSR2300 User's Guide German
de อัปเดต: ต.ค. 2019
de  5.82 เมกะไบต์ ต.ค. 2019
file type icon LSR2300 User's Guide Spanish
es อัปเดต: ต.ค. 2019
es  5.92 เมกะไบต์ ต.ค. 2019
Brochures
  ขนาด อัปโหลดแล้ว
file type icon LSR2300 Brochure
อัปเดต: ต.ค. 2020
1.37 เมกะไบต์ ต.ค. 2020
Compliances
  ขนาด อัปโหลดแล้ว
file type icon LSR2300 Series Declaration of Conformity
อัปเดต: ต.ค. 2019
127 กิโลไบต์ ต.ค. 2019
Images
  ขนาด อัปโหลดแล้ว
file type icon LSR2328P Hi Res Photo
อัปเดต: ต.ค. 2020
249 กิโลไบต์ ต.ค. 2020
Install Guides
  ขนาด อัปโหลดแล้ว
file type icon R&B Mounting Brackets
อัปเดต: ต.ค. 2020
26.2 กิโลไบต์ ต.ค. 2020
User Guides
  ขนาด อัปโหลดแล้ว
file type icon LSR2300 Users Guide
อัปเดต: ต.ค. 2020
5.91 เมกะไบต์ ต.ค. 2020

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

อะไหล่และบริการ

ข้อมูลจำเพาะ

Frequency Range 37 Hz - 20 kHz
Max SPL Continous Each / Pair: > 104 dB / > 110 dB
Max SPKL Peak Each / Pair: > 117 dB / > 123 dB
Input Sensitivity 92 dB SPL / 1m @ -10dBV Balanced Input
Drivers (LF / HF) 8" (203 mm) 238G1" (25 mm) 231H
LF Trim + 2 dB / -3 dB
HF trim + 2.5 dB / - 2.5 dB
Input Connectors Balanced XLR, 1/4" TRS, RCA
Amplifier Power Rating LF/HF: 95 W / 70 W
Crossover Frequency 2.0 kHz 4th-order Acoustic Linkwitz-Riley
Enclosure 18 mm (3/4 in) MDF
Finish Metallic Anthracite Pain / Dark Matte Black PVC
Dimensions (H x W x D) 397 mm x 254 mm x 335 mm (15.6 in x 10 in x 13.2 in)
Net Weight 12.7 Kg (28 lb)
