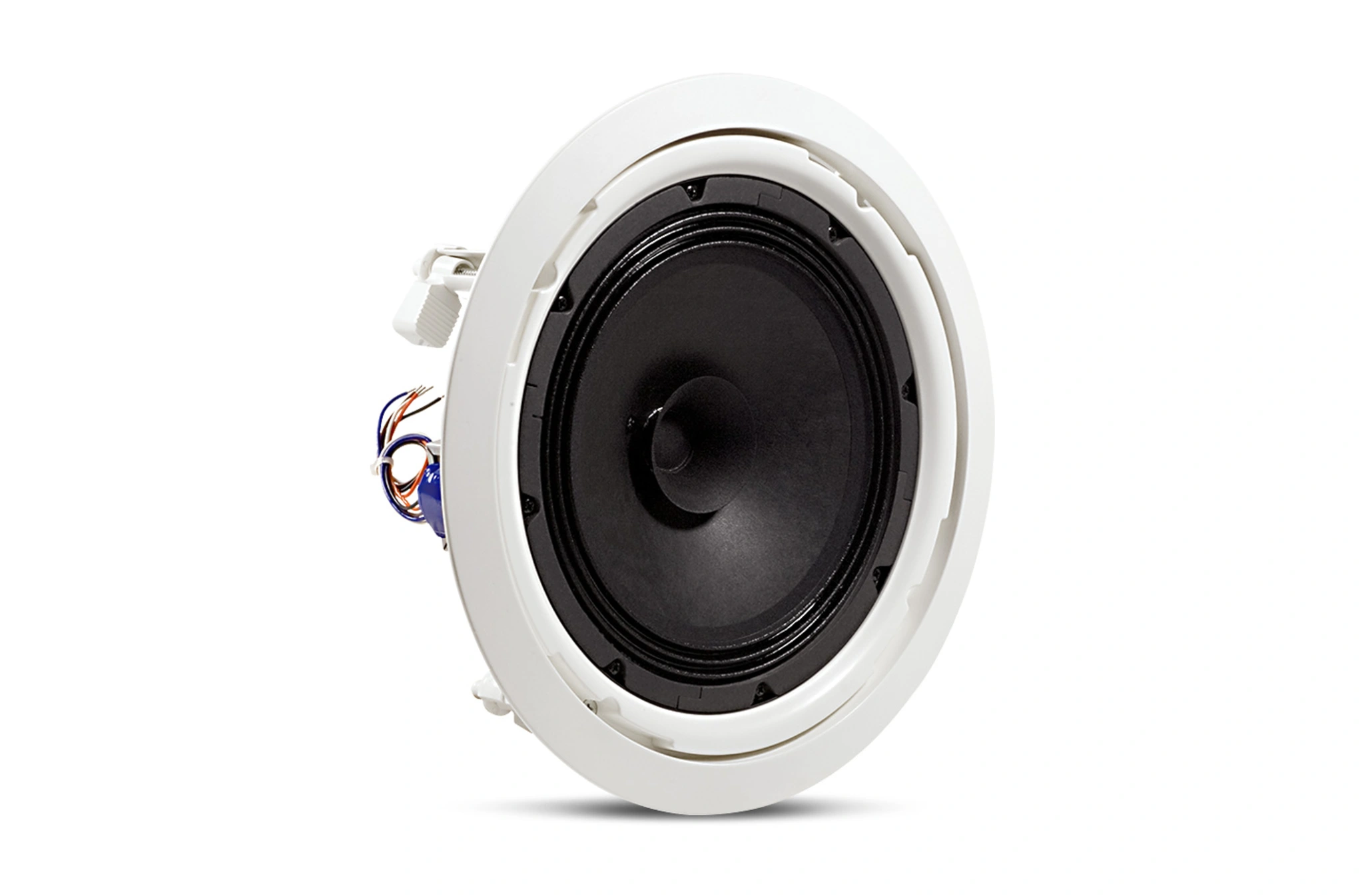

JBL Professional 8128

Imágenes más grandes

8-inch, Full-range, In-Ceiling Loudspeaker

The 8128 is a 8-inch, full-range, cost-effective loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation.

Características

Clear, High-Fidelity Performance
Dog-ears for easy retrofit installations
High Sensitivity (97 db, 1W, 1m) for Maximum Power Efficiency
6W Transformer for use of 70V / 100V Distributed Lines

Descargas

Specifications

	Tamaño	Subido
8100 Series Spec Sheet actualizado: mar 2021	88,5 KB	mar 2021

Manuals

	Versión	Tamaño	Subido
Ceiling Speaker Accessory Guide versión B, actualizado: ene 2024	B	231 KB	ene 2024

Brochures

	Versión	Idioma	Tamaño	Subido
8100 Series Bochure actualizado: oct 2020			820 KB	oct 2020
Control Contractor Brochure (2024) versión D, actualizado: feb 2024	D		14 MB	feb 2024
JBL Commercial Brochure actualizado: abr 2020			1,64 MB	abr 2020

Compliances

	Tamaño	Subido
8100 Series Declaration of Conformity actualizado: oct 2020	80,2 KB	oct 2020

Software

	Versión	Tamaño	Subido
Distributed System Design (DSD) versión 3.9, actualizado: nov 2025	3.9	612 KB	nov 2025

Simulation Data

	Versión	Tamaño	Subido
JBL Pro ALL CLF Files versión 12-10-21, actualizado: may 2023	12-10-21	24 MB	may 2023

Speaker Tunings

	Versión	Tamaño	Subido
Commercial, CBT, and AWC Tunings 220616 versión A, actualizado: may 2023	A	557 KB	may 2023

Images

	Tamaño	Subido
8128 Hi Res Photo actualizado: oct 2020	479 KB	oct 2020

Quick Start Guides

	Tamaño	Subido
Quick Start Guide - JBL 8100 Series actualizado: jun 2025	412 KB	jun 2025

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Drivers	8 in (200 mm), Full-range Driver
Frequency Range	50 Hz – 16 kHz
Sensitivity	97 dB (1 kHz – 8 kHz)
Coverage Angle	90° conical
Transformer Taps	6W, 3W, 1.5W (0.75W at 70V only)
CONEXIONES DE ENTRADA	Bare wires
Dimensions (Diameter x Depth)	11.3 in (287mm) x 4.1in (105mm)
PESO	3lb (1.4kg)
Included Accessories	Sculpted Grille
Optional Accessories	MTC-8124C C-ring, MTC-Rail tile rails
Power Rating	See transformer taps
Maximum SPL (1m)	105 dB (top 70V/100V tap)
Color	White
Backcan	No
Baffle/Rim	Plastic
Ceiling Cutout Size	260 mm diameter (10.1 in)
Plenum Usage	Not intended for use in return air plenums

Accesorios

MTC-48TRx12 | Carril para Baldosas de Techo de 4' x 4'

Imágenes más grandes

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
Includes (at product release):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
Multiple C-ring mounting holes. Additional hole locations drillable by installer.
One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
