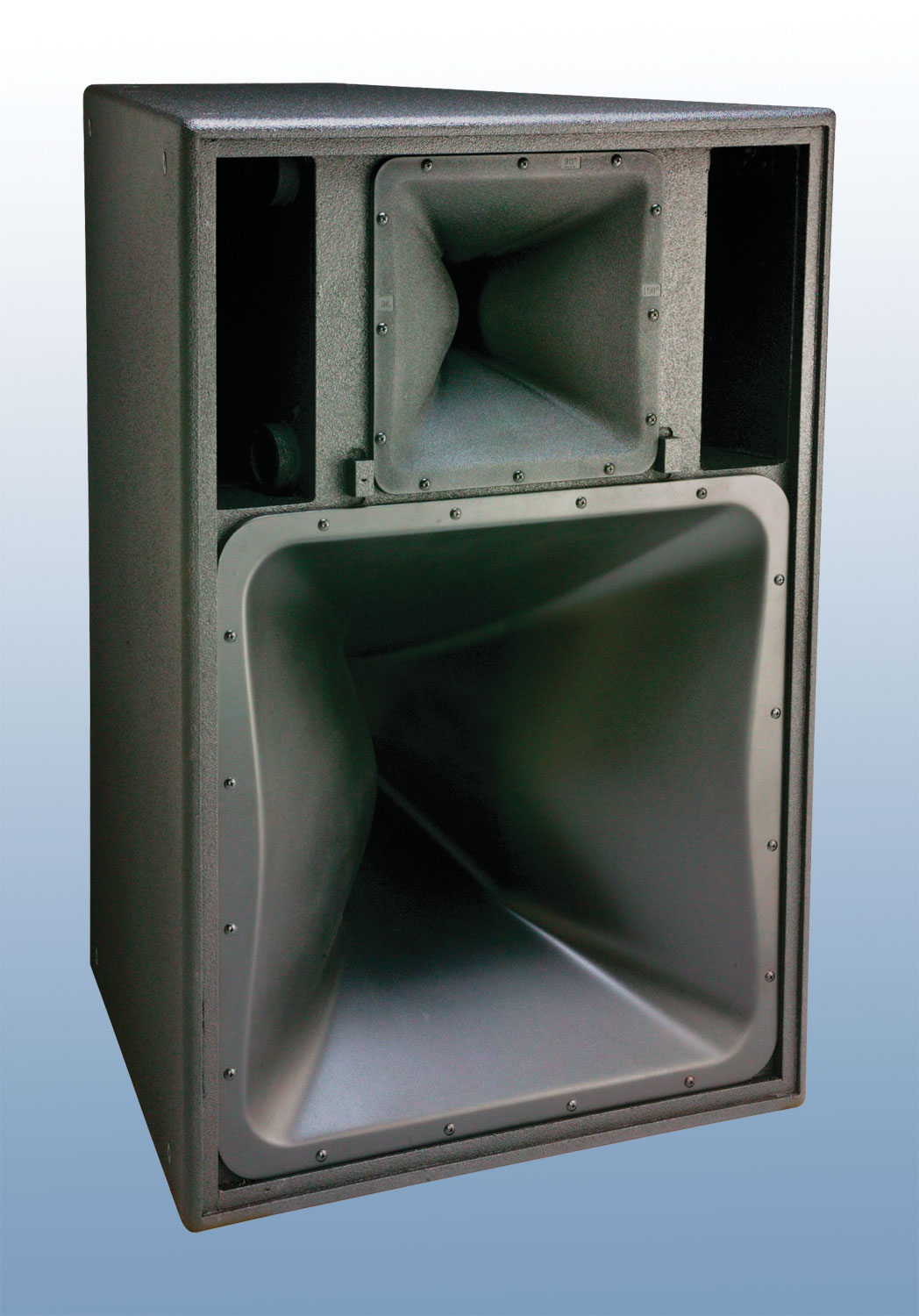

JBL Professional PD5322/43 /64 /95

Imágenes más grandes

Precision Directivity Full Range Three-Way Loudspeakers

The PD5322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.

Características

Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
Large format neodymium HF driver provides clear, intelligible high frequency projection.
Large PT™ Progressive Transition™ waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.

Descargas

Specifications

	Tamaño	Subido
PD5322/43 Spec Sheet actualizado: jul 2019	139 KB	jul 2019
PD5322/95 Spec Sheet actualizado: jul 2019	99,9 KB	jul 2019
PD5322/64 Spec Sheet actualizado: jul 2019	98,4 KB	jul 2019

Manuals

	Tamaño	Subido
PD5000 Product Range actualizado: oct 2019	290 KB	oct 2019

CAD Drawings

	Tamaño	Subido
PD5000 Series 2D DXF Files actualizado: oct 2019	2,93 MB	oct 2019
PD5000 2D CAD actualizado: oct 2020	4,94 MB	oct 2020
PD5000 3D CAD actualizado: oct 2020	170 KB	oct 2020
PD5000 2D PDF actualizado: oct 2020	662 KB	oct 2020

Compliances

	Tamaño	Subido
PD5000 Series Declaration of Conformity actualizado: oct 2019	91,7 KB	oct 2019

Tech Notes

	Tamaño	Subido
Tech Note: Basic PD5322 and PD5122 Array Applications actualizado: oct 2020	3,97 MB	oct 2020

Simulation Data

	Versión	Tamaño	Subido
JBL Pro ALL CLF Files versión 12-10-21, actualizado: may 2023	12-10-21	24 MB	may 2023

Images

	Tamaño	Subido
PD5322-95.jpg actualizado: oct 2020	204 KB	oct 2020
PD5322-64.jpg actualizado: oct 2020	201 KB	oct 2020
PD5322-43 Photo actualizado: oct 2020	14,3 MB	oct 2020

Speaker Tunings

	Tamaño	Subido
PD5000 Tunings actualizado: may 2023	2,35 MB	may 2023

Information documents

	Tamaño	Subido
Line Array or Point-and-Shoot Speakers? actualizado: oct 2019	1,01 MB	oct 2019

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range	41 Hz to 17 kHz (-10 dB)
Respuesta de frecuencia	49 Hz to 15 kHz ( ± 3 dB)
Coverage Pattern	/43: 40° x 30°/64: 60° x 40°/95: 90° x 50°
Crossover Modes	Tri-amp / Bi-amp (passive mid-high) switchable
Passive Crossover	6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES)	LF: 1600 W (6400 W peak), 2 hrs. 1200 W (4800 W peak), 100 hrs MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
System Power Rating	LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m)	LF: 128 dB SPL (134 dB peak)MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak)
System Sensitivity (1w @ 1m)	Passive Mode: 111 dB-SPL (mid/high section only)
LF Driver	2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil
Mid Frequency Driver	CMCD-82H cone midrange compression driver with integral 200 mm (8 in) Differential Drive® dual 75 mm (3 in) voice coil driver
HF Driver	2431H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment	20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories)
Acabado	Black DuraFlex™ finish. White (-WH) available upon request
Optional Weather Resistant Versions	WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
Grille	Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
CONEXIONES DE ENTRADA	Neutrik Speakon® NL8, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation)	991 x 673 x 706 mm (39.0 x 26.5 x 27.8 in)
PESO NETO	87.3 kg (192 lb)
Optional Accessories	229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
