| Frequency Range |
41 Hz to 17 kHz (-10 dB) |
| Frequency Response |
49 Hz to 15 kHz ( ± 3 dB) |
| Coverage Pattern |
/43: 40° x 30°/64: 60° x 40°/95: 90° x 50° |
| Crossover Modes |
Tri-amp / Bi-amp (passive mid-high) switchable |
| Passive Crossover |
6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz |
| Transducer Power Rating (AES) |
LF: 1600 W (6400 W peak), 2 hrs. 1200 W (4800 W peak), 100 hrs MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs |
| System Power Rating |
LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) |
LF: 128 dB SPL (134 dB peak)MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak) |
| System Sensitivity (1w @ 1m) |
Passive Mode: 111 dB-SPL (mid/high section only) |
| LF Driver |
2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil |
| Mid Frequency Driver |
CMCD-82H cone midrange compression driver with integral 200 mm (8 in) Differential Drive® dual 75 mm (3 in) voice coil driver |
| HF Driver |
2431H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil |

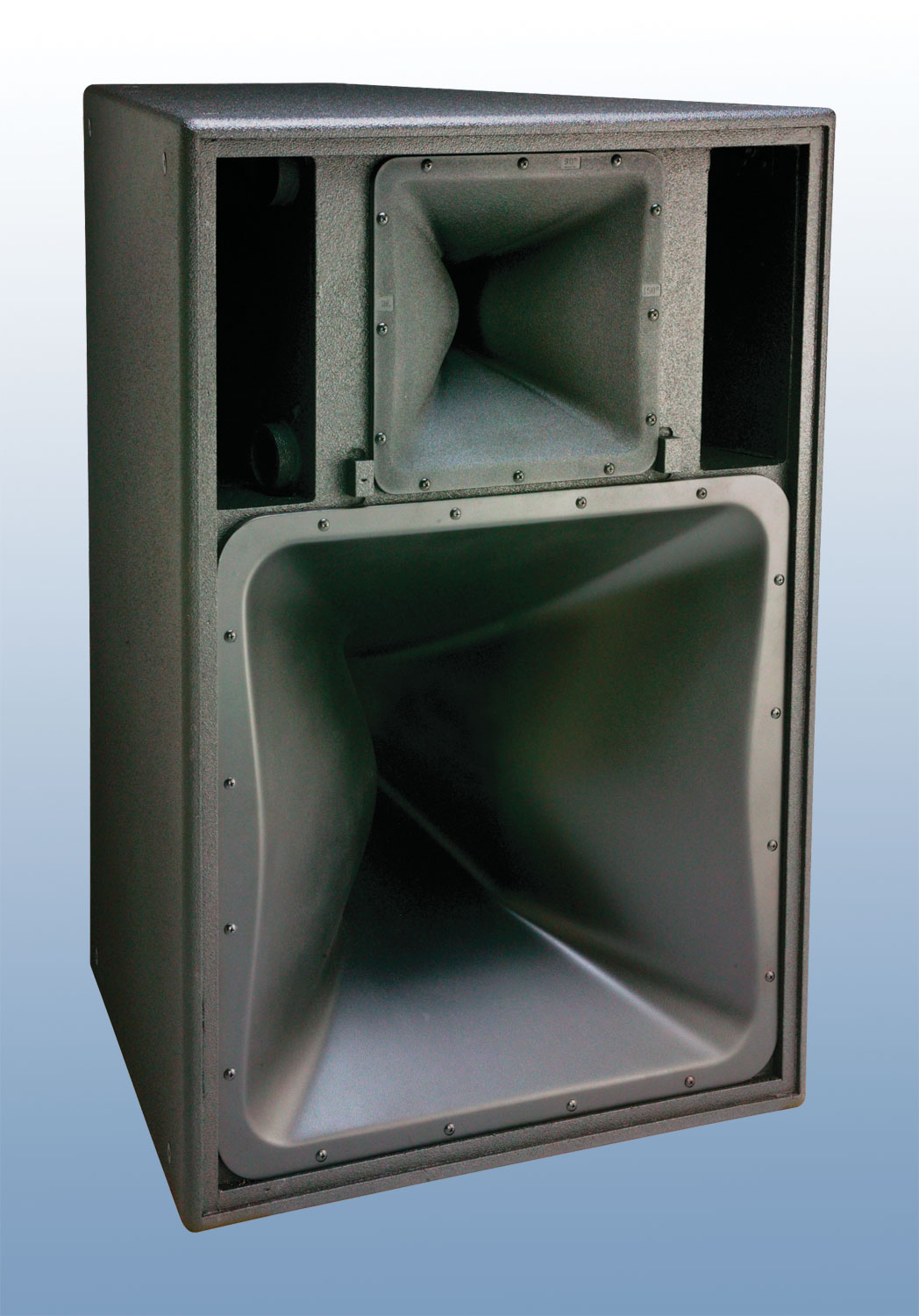

| Enclosure |
Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment |
20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories) |
| Finish |
Black DuraFlex™ finish. White (-WH) available upon request |
| Optional Weather Resistant Versions |
WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. |
| Grille |
Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units) |
| Input Connectors |
Neutrik Speakon® NL8, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through. |
| Environmental |
Mil-Std 810; IP-x3 per IEC529. |
| Dimensions (H x W x D in vertical orientation) |
991 x 673 x 706 mm (39.0 x 26.5 x 27.8 in) |
| Net Weight |
87.3 kg (192 lb) |
| Optional Accessories |
229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts. |
