PD5322/43 /64 /95 (停产)

Precision DirectivityFull Range Three-Way Loudspeakers

较大的图像

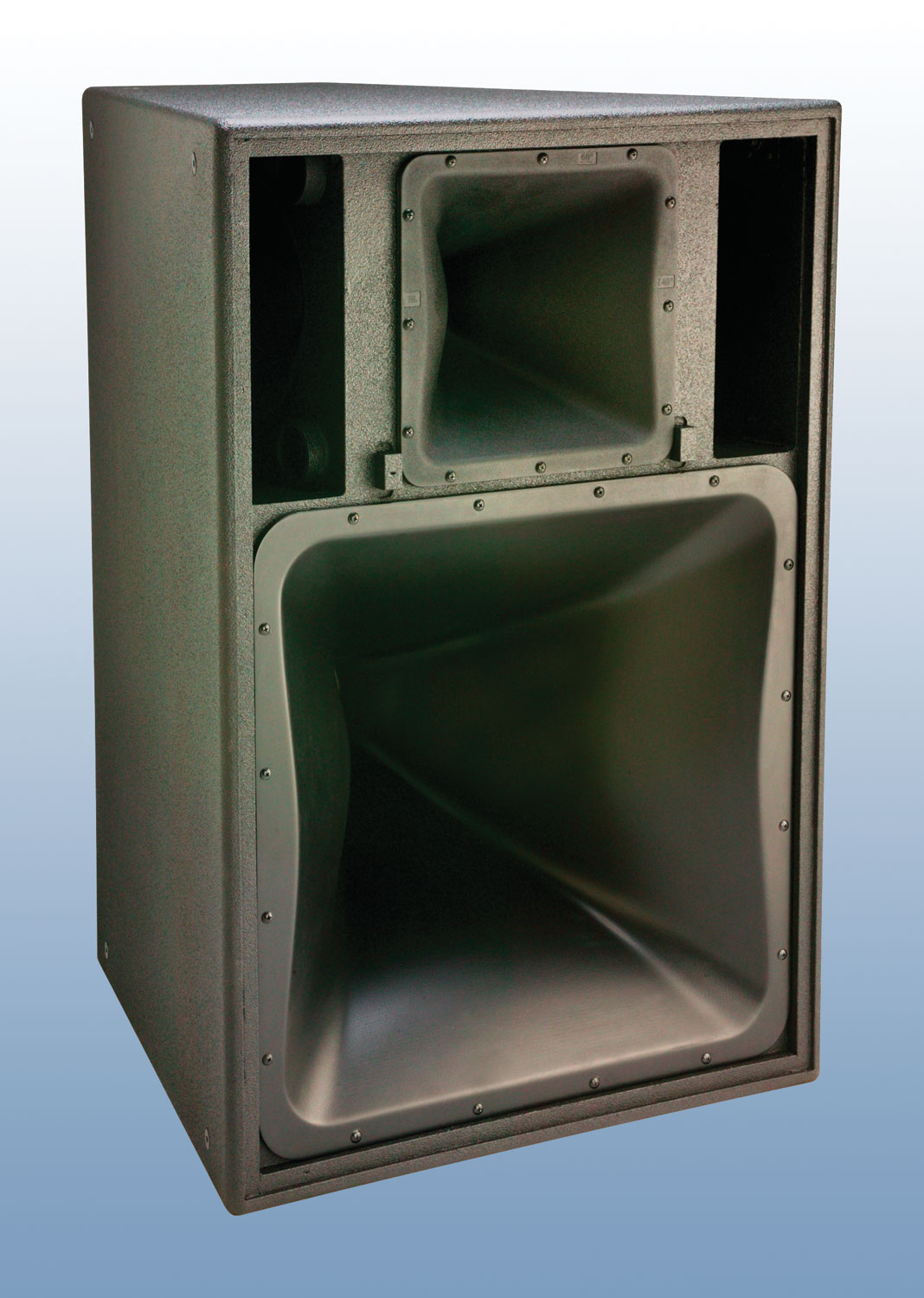

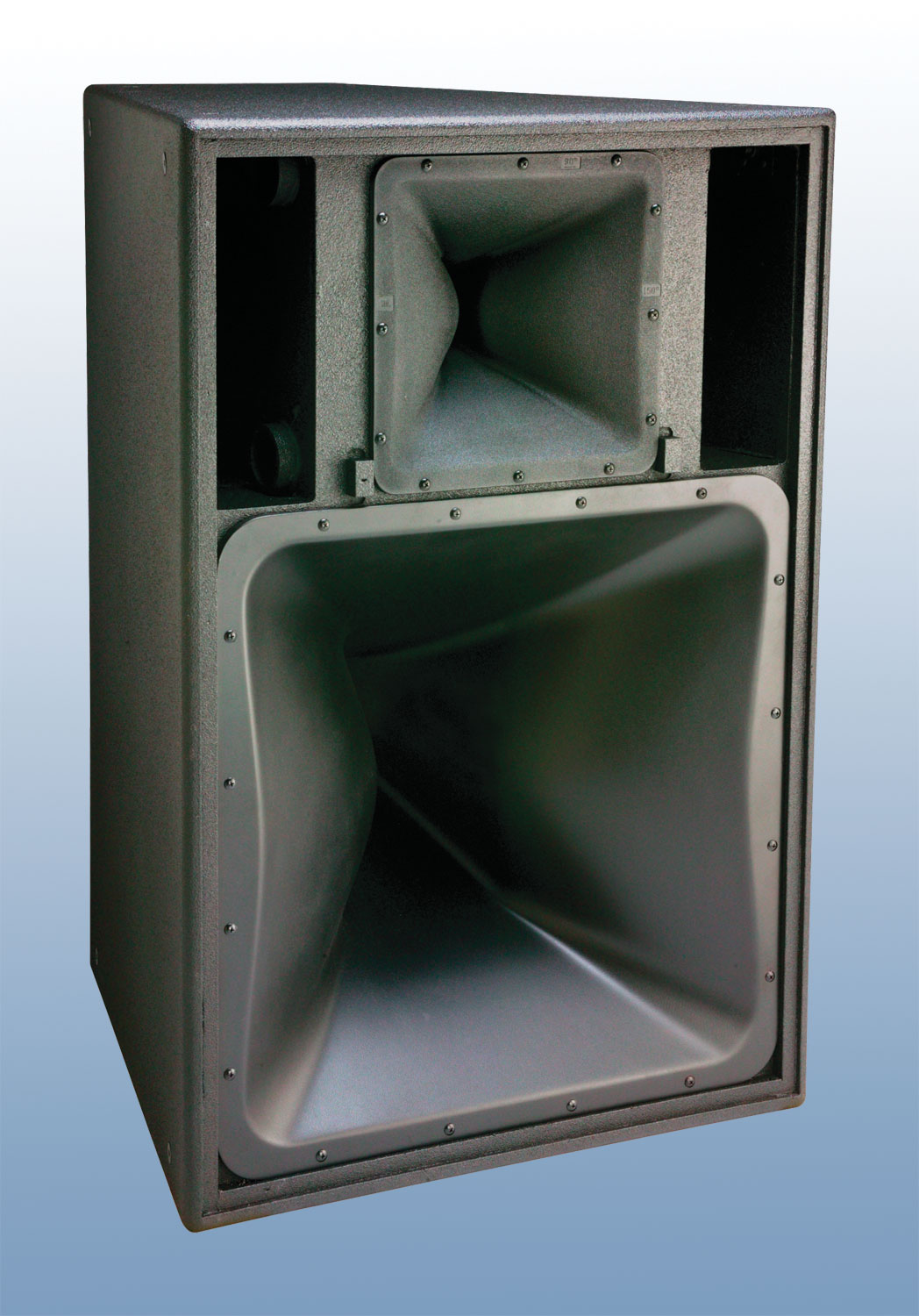

Precision Directivity Full Range Three-Way Loudspeakers

The PD5322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.

特点

  • Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
  • High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
  • Large format neodymium HF driver provides clear, intelligible high frequency projection.
  • Large PT™ Progressive Transition™ waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.

下载

  Version Language Size Uploaded
Specifications
PD5322/43 Spec Sheet
updated: 7月16日
    138.5 KB 7月16日
PD5322/95 Spec Sheet
updated: 7月16日
    99.9 KB 7月16日
PD5322/64 Spec Sheet
updated: 7月16日
    98.4 KB 7月16日
Manuals
PD5000 Product Range
updated: 10月18日
    290.4 KB 10月18日
CAD Drawings
PD5000 Series 2D DXF Files
updated: 10月18日
    2.9 MB 10月18日
PD5000 2D CAD
updated: 4月29日
    4.9 MB 4月29日
PD5000 3D CAD
updated: 4月29日
    170.0 KB 4月29日
PD5000 2D PDF
updated: 4月29日
    662.1 KB 4月29日
Compliances
PD5000 Series Declaration of Conformity
updated: 10月18日
    91.7 KB 10月18日
Tech Notes
Tech Note: Basic PD5322 and PD5122 Array Applications
updated: 10月18日
    4.0 MB 10月18日
Images
updated: 10月18日
    204.2 KB 10月18日
updated: 10月18日
    201.5 KB 10月18日
PD5322-43 Photo
updated: 10月18日
    14.3 MB 10月18日
Speaker Tunings
PD5000 Tunings
updated: 10月18日
    2.3 MB 10月18日
Information Documents
Line Array or Point-and-Shoot Speakers?
updated: 10月18日
    1.0 MB 10月18日
Clf Files
CLF Files
version 03-16-20, updated: 3月16日
03-16-20    22.5 MB 3月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 41 Hz to 17 kHz (-10 dB)

频率响应

49 Hz to 15 kHz ( ± 3 dB)
覆盖范围 /43: 40° x 30°/64: 60° x 40°/95: 90° x 50°
Crossover Modes Tri-amp / Bi-amp (passive mid-high) switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES) LF: 1600 W (6400 W peak), 2 hrs. 1200 W (4800 W peak), 100 hrs MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
系统额定功率 LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) LF: 128 dB SPL (134 dB peak)MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak)
System Sensitivity (1w @ 1m) Passive Mode: 111 dB-SPL (mid/high section only)
低频驱动单元 2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil
Mid Frequency Driver CMCD-82H cone midrange compression driver with integral 200 mm (8 in) Differential Drive® dual 75 mm (3 in) voice coil driver
HF 驱动程序 2431H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories)
外观颜色 Black DuraFlex™ finish. White (-WH) available upon request
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
网罩 Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
输入连接器 Neutrik Speakon® NL8, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
环境 Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 991 x 673 x 706 mm (39.0 x 26.5 x 27.8 in)
净重量 87.3 kg (192 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
