CBT 50LA-1

Constant Beamwidth Technology™ Line Array Column Loudspeaker

Larger Images

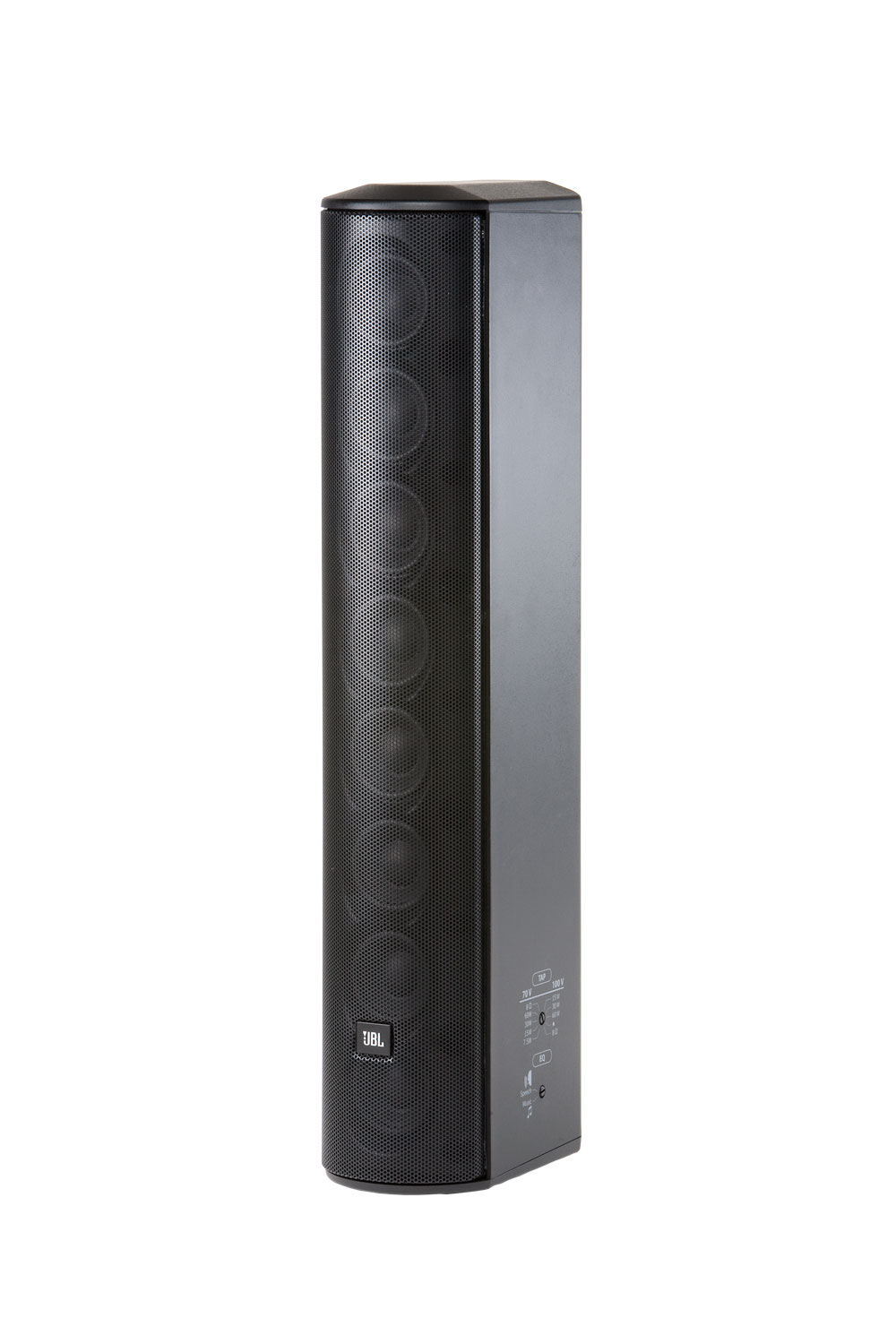

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

Features

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
  • Swivel (pan) / tilt wall bracket included.

Downloads

  Version Language Size Uploaded
Specifications
CBT 50LA-1 Spec Sheet
updated: Apr 29, 2019
    2.37 MB Apr 29, 2019
Brochures
CBT Brochure
updated: Apr 29, 2019
    973 KB Apr 29, 2019
CAD Drawings
CBT 50LA-1/100LA-1 Wall Bracket PDF
updated: Nov 02, 2019
    33.2 KB Nov 02, 2019
CBT 2D DXF/PDF Drawing
updated: Apr 29, 2019
    1.23 MB Apr 29, 2019
CBT 3D DXF Drawings
updated: Apr 29, 2019
    8.14 MB Apr 29, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
CBT-1 Series Declaration of Conformity
updated: Oct 31, 2019
    144 KB Oct 31, 2019
Software
CBT Calculator
version 1.3.0.1, updated: Feb 25, 2020
1.3.0.1     3.66 MB Feb 25, 2020
Tech Notes
Tech Note: Volume 1, #35
updated: Apr 29, 2019
    2.23 MB Apr 29, 2019
Accessories
CBT Suspension Bracket
updated: Apr 29, 2019
    305 KB Apr 29, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020
Install Guides
CBT Quick Start Guide
updated: Apr 29, 2019
    1.15 MB Apr 29, 2019
MTC-PC2 & MTC-PC3 Installation
updated: Sep 30, 2019
    42.5 KB Sep 30, 2019
MTC-CBT-FM1/FM2 Flush-Mount Wall Brackets for CBT Speakers
updated: Nov 02, 2019
    297 KB Nov 02, 2019
CBT 50LA-1/100LA-1 Bracket Installation Guide
updated: Apr 29, 2019
    277 KB Apr 29, 2019
CBT Stand-Mount Bracket Guide
updated: Oct 09, 2019
    476 KB Oct 09, 2019
CBT Flush-mount Bracket
updated: Apr 29, 2019
    338 KB Apr 29, 2019
Information Documents
CBT Cabinet Painting Instructions
updated: Oct 18, 2019
    17.2 KB Oct 18, 2019
Images
CBT Family Hi-Res Image
updated: Oct 18, 2019
    237 KB Oct 18, 2019
CBT 50LA Hi Res Image
updated: Apr 29, 2019
    106 KB Apr 29, 2019
Faqs
CBT Frequently Asked Questions
updated: Apr 29, 2019
    193 KB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Drivers Eight 50 mm(2 in) Full-Range
Frequency Response (-10dB) 80 Hz – 20 kHz
Coverage Angle Vertical 20° (1.5 kHz - 16 kHz, ±10°)
Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity 93 dB (speech mode, 2 kHz - 14 kHz)89 dB (music mode, 300 Hz - 18 kHz)
Impedance 8 ohms
Power Rating 150W (600W peak), 2 hrs
100 W (400W peak), 100 hrs
Maximum SPL (1m) Speech mode: 115 dB cont ave (121 peak)
Music mode: 111 dB cont ave (117 peak)
Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color Black or White (-WH)
Insert Points Ten M6 insert points on back panel.
Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)
Net Weight 4.1 kg (9.0 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
