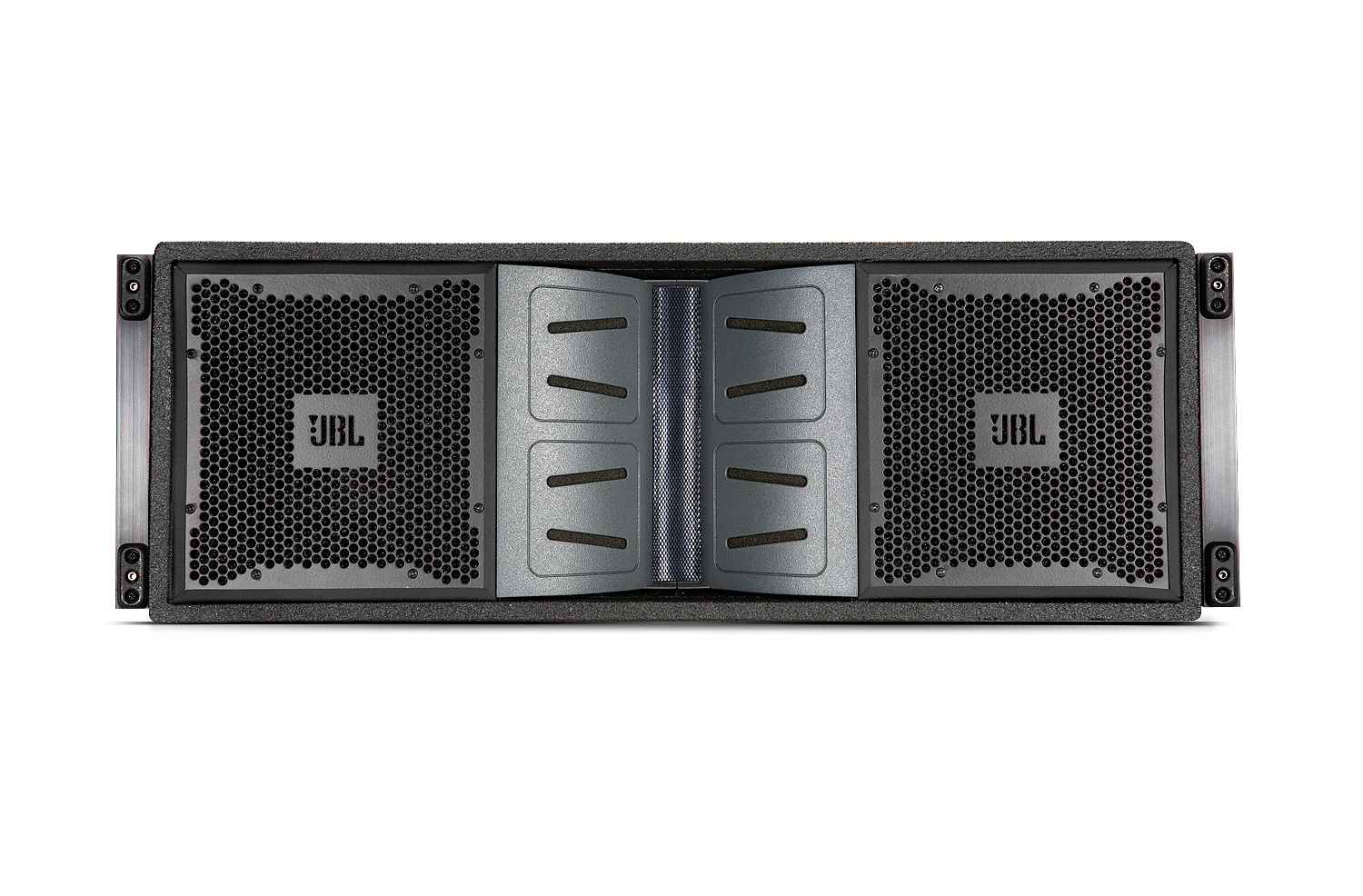

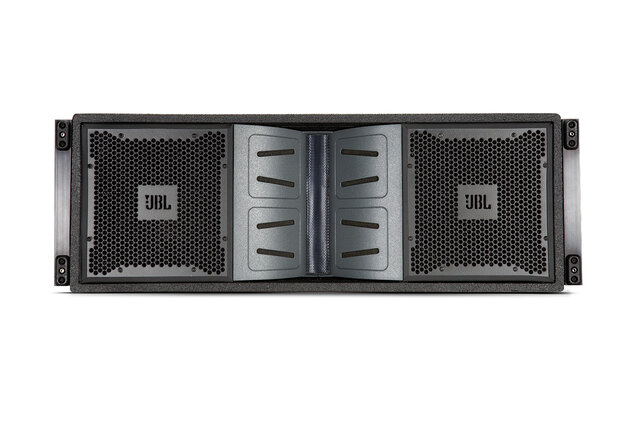

VT4886

Subcompact Passive Three-Way High Directivity Line Array Element

Larger Images

Subcompact Passive Three-Way High Directivity Line Array Element

The VT4886 Subcompact Passive Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a wide variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations.

Features

  • A true 3-way system, unique to the subcompact category
  • Highest component density in its class, highest SPL output in its class
  • Variable curvature vertical (0-15 degrees) or modular, constant curvature horizontal line array
  • Integrated Mid/High waveguide provides precise vertical wavefront control and optimized 110 degree
    horizontal dispersion
  • Four midrange transducers with Thermomaster® cooling and Radiation Boundary Integrator® technology
  • Low frequency diffraction absorber eliminates cavity resonance and cabinet edge diffraction effects
  • Flexible installation accessories and dedicated OEM factory presets provide unparalleled application versatility

Downloads

  Version Language Size Uploaded
Specifications
VT4886 Spec Sheet
updated: Oct 22, 2020
    368 KB Oct 22, 2020
Brochures
Vertec Subcompact Brochure
updated: Oct 22, 2020
    869 KB Oct 22, 2020
CAD Drawings
Array Frame 3D DXF
updated: Oct 22, 2020
    71.2 KB Oct 22, 2020
VT4886 3D DXF
updated: Oct 22, 2020
    34.3 KB Oct 22, 2020
VT4886 2D PDF
updated: Oct 22, 2020
    76.4 KB Oct 22, 2020
VT4886 2D DXF
updated: Oct 22, 2020
    1.7 MB Oct 22, 2020
Compliances
VerTec Series Declaration of Conformity
updated: Oct 18, 2019
    144 KB Oct 18, 2019
Software
Vertec Line Array Calculator
version , updated: Jan 23, 2020
    18 MB Jan 23, 2020
PerformanceManager
version , updated: Dec 22, 2020
    108 MB Dec 22, 2020
Speaker Tunings
VT4886/VT4883 All DSP Platforms
updated: Oct 22, 2020
    37.9 MB Oct 22, 2020
Vertec All DSP Platforms
updated: Oct 22, 2020
    96.3 MB Oct 22, 2020
Helpful Links
Considerations for Deployment of Line Arrays
updated: Oct 22, 2020
    518 KB Oct 22, 2020
AES Paper: J and Spiral Arrays
updated: Oct 22, 2020
    324 KB Oct 22, 2020
Directional Radiation Characteristics - Line Array
updated: Oct 22, 2020
    1.12 MB Oct 22, 2020
AES Paper: Pressure Response of Line Source
updated: Oct 22, 2020
    388 KB Oct 22, 2020
High Frequency Components for High Output Line Arrays
updated: Oct 22, 2020
    2.94 MB Oct 22, 2020
AES Journal Article: Analysis of Line Arrays
updated: Oct 22, 2020
    856 KB Oct 22, 2020
Ease Data
VerTec EASE DLL
version 3.0, updated: Dec 04, 2020
3.0    1.19 MB Dec 04, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 65 Hz - 20 kHz (-10 dB)
Frequency Response 75 Hz- 18 kHz (+/- 3 dB)
Continuous Power Rating 900W
Horizontal Coverage Angle 110 degrees nominal (averaged 250 Hz - 16 kHz) (-6 dB)

Accessories

JBL-VERTEC-SYS1 | Transport Case for Vertec Subcompact 4886/4883
JBL-VERTEC-SYS1 Main photo
Larger Images

Rotomolded Transporter Case for Vertec Subcompact Array. Includes (2) Caster boards, Hardware Tray + Array Frame Storage, and Rugged Rotomolded Cover. Designed for use with VT4886 & VT4883.
