Subcompact Passive Three-Way High Directivity Line Array Element


Subcompact Passive Three-Way High Directivity Line Array Element

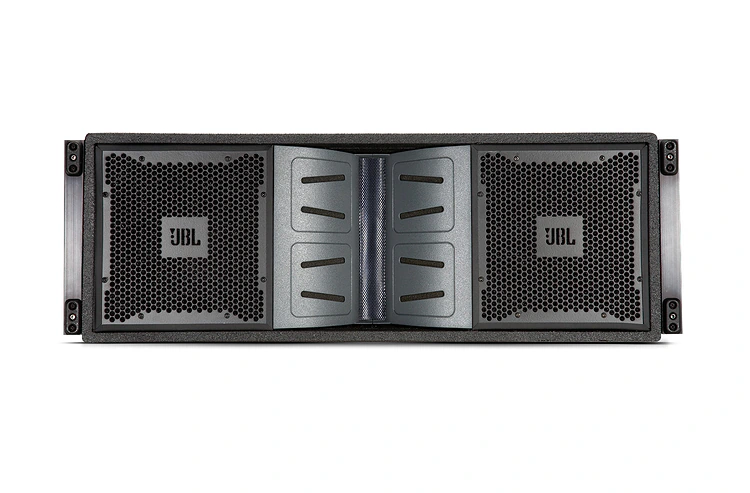

The VT4886 Subcompact Passive Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a wide variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations.


  • A true 3-way system, unique to the subcompact category
  • Highest component density in its class, highest SPL output in its class
  • Variable curvature vertical (0-15 degrees) or modular, constant curvature horizontal line array
  • Integrated Mid/High waveguide provides precise vertical wavefront control and optimized 110 degree
    horizontal dispersion
  • Four midrange transducers with Thermomaster® cooling and Radiation Boundary Integrator® technology
  • Low frequency diffraction absorber eliminates cavity resonance and cabinet edge diffraction effects
  • Flexible installation accessories and dedicated OEM factory presets provide unparalleled application versatility


  Version Language Size Uploaded
VT4886 Spec Sheet
updated: 10月22日
    368.2 KB 10月22日
Vertec Subcompact Brochure
updated: 10月22日
    869.1 KB 10月22日
CAD Drawings
Array Frame 3D DXF
updated: 10月22日
    71.2 KB 10月22日
VT4886 3D DXF
updated: 10月22日
    34.3 KB 10月22日
VT4886 2D PDF
updated: 10月22日
    76.4 KB 10月22日
VT4886 2D DXF
updated: 10月22日
    1.7 MB 10月22日
VerTec Series Declaration of Conformity
updated: 10月18日
    144.2 KB 10月18日
Vertec Line Array Calculator
version 1.3.1, updated: 1月23日
1.3.1     18.0 MB 1月23日
version, updated: 5月28日     106.6 MB 5月28日
Speaker Tunings
VT4886/VT4883 All DSP Platforms
updated: 10月22日
    37.9 MB 10月22日
Vertec All DSP Platforms
updated: 10月22日
    96.3 MB 10月22日
Helpful Links
Considerations for Deployment of Line Arrays
updated: 10月22日
    518.3 KB 10月22日
AES Paper: J and Spiral Arrays
updated: 10月22日
    324.0 KB 10月22日
Directional Radiation Characteristics - Line Array
updated: 10月22日
    1.1 MB 10月22日
AES Paper: Pressure Response of Line Source
updated: 10月22日
    387.8 KB 10月22日
High Frequency Components for High Output Line Arrays
updated: 10月22日
    2.9 MB 10月22日
AES Journal Article: Analysis of Line Arrays
updated: 10月22日
    856.0 KB 10月22日
Ease Data
version 3.0, updated: 12月04日
3.0    1.2 MB 12月04日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


频率范围 65 Hz - 20 kHz (-10 dB)


75 Hz- 18 kHz (+/- 3 dB)
Continuous Power Rating 900W
Horizontal Coverage Angle 110 degrees nominal (averaged 250 Hz - 16 kHz) (-6 dB)


JBL-VERTEC-SYS1 | Transport Case for Vertec Subcompact 4886/4883
JBL-VERTEC-SYS1 Main photo

Rotomolded Transporter Case for Vertec Subcompact Array. Includes (2) Caster boards, Hardware Tray + Array Frame Storage, and Rugged Rotomolded Cover. Designed for use with VT4886 & VT4883.
