Full Range / Low Frequency

Larger Images

Full Range / Low Frequency

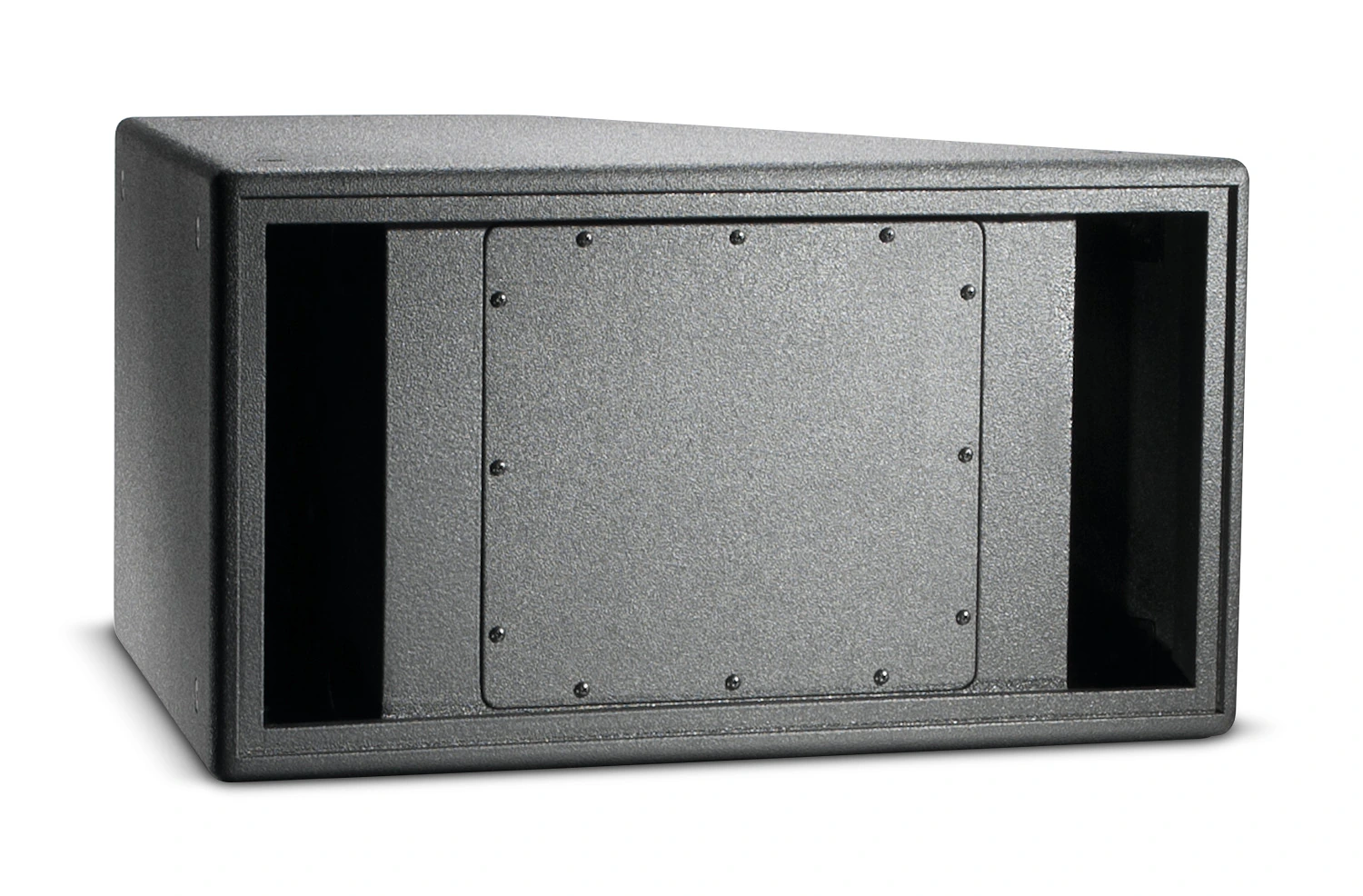

The PD5122 is intended for use as a flown or ground supported, high power low frequency module used in conjunction with mid/high-only or fullrange systems of the PD5000 series.


  • Dual high power 300 mm (12 in) low frequency drivers.
  • Designed to extend LF pattern control of PD6322 systems.
  • Slot-loaded configuartion duplicates LF performance of PD6322.

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.


  Version Language Size Uploaded
file type icon PD5122 Spec Sheet
updated: Oct 2020
    297 KB Oct 2020
file type icon Weather Resistant Configurations
en version A, updated: May 2023
en  86.1 KB May 2023
file type icon AE/PD Connector Pinout Guide
updated: Oct 2019
    8.25 KB Oct 2019
file type icon PD5000 Product Range
updated: Oct 2019
    290 KB Oct 2019
file type icon PD6000 Brochure
updated: Oct 2020
    17.1 MB Oct 2020
CAD Drawings
file type icon PD6000 3D DXF Drawings
updated: Oct 2020
    125 KB Oct 2020
file type icon PD5000 2D PDF
updated: Oct 2020
    662 KB Oct 2020
file type icon PD5000 2D CAD
updated: Oct 2020
    4.94 MB Oct 2020
file type icon PD5000 3D CAD
updated: Oct 2020
    170 KB Oct 2020
file type icon PD5000 Series Declaration of Conformity
updated: Oct 2019
    91.7 KB Oct 2019
Tech Notes
file type icon Tech Note: Basic PD5322 and PD5122 Array Applications
updated: Oct 2020
    3.97 MB Oct 2020
Speaker Tunings
file type icon PD6000 Series Tunings
updated: Oct 2020
    12.2 MB Oct 2020
Information Documents
file type icon Line Array or Point-and-Shoot Speakers?
updated: Oct 2019
    1.01 MB Oct 2019
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: May 2021
  en  5.71 MB May 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range (-10dB) 41 Hz to 1 kHz
Frequency Response (±3 dB) 49 Hz to 300 Hz
Transducer Power Rating (AES) 1600W (6400 W peak) 2 hrs
System Power Rating P1200 W (4800 W peak), 100 hrs
Maximum SPL (1m) 128 dB-SPL cont avg (134 peak)
Input Modes Drivers Parallel / Drivers Discrete
Nominal Impedance 4 ohms in parallel-drive mode
Sensitivity 116 dB-SPL
LF Driver 2 x JBL 2206H 300 mm (12 in) VGC drivers with 100 mm (4 in) voice coil with minimal power compression and low distortion
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply
Waveguides MF: PT-N64MF 600 x 600 mm (24 x 24 in) HF: PT-H64HF 300 x 300 mm (12 x 12 in)
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 357 x 673 x 706 mm (14.1 x 26.5 x 27.8 in)
Net Weight (each) 36.4 kg (80 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
Nominal LF Driver Impedance 4 ohms in parallel-drive mode
2 x 8 ohms in discrete drive mode
