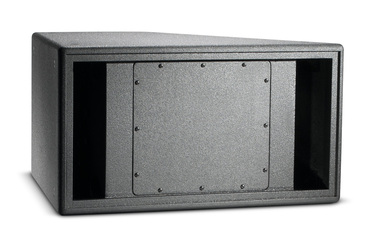

Dual 12-inch Low Frequency Extension Unit
The PD5122 is intended for use as a flown or ground supported, high power low frequency module used in conjunction with mid/high-only or fullrange systems of the PD5000 series.
Größere Bilder
Eigenschaften
- Zwei leistungsstarke 300-mm-Tieftontreiber (12 Zoll).
- Zur Erweiterung der Tieftonrichtcharakteristik-Kontrolle von PD6322-Systemen konzipiert.
- Die Slot-Loaded-Konfiguration entspricht der Tieftonleistung des PD6322.
Um die Zuverlässigkeit unter Wettereinflüssen zu verbessern und Wassereintritt zu reduzieren, können die Gehäusemaße der Modelle WRC und WRX von den Standardmaßen abweichen. Wenden Sie sich an CustomAudio@harman.com, um Zeichnungen und/oder Maßinformationen der Modelle WRC und WRX zu erhalten.
Downloads
Specifications
| Größe | |
|
|
297 KB |
Manuals
| Größe | |
|
|
86,1 KB |
|
|
8,25 KB |
|
|
290 KB |
Version A,
aktualisiert: Mai 2023
Brochures
| Größe | |
|
|
17,1 MB |
|
|
5,71 MB |
CAD Drawings
| Größe | |
|
|
662 KB |
|
|
4,94 MB |
|
|
170 KB |
Compliances
| Größe | |
|
|
91,7 KB |
Tech Notes
| Größe | |
|
|
3,97 MB |
Preset Libraries
| Größe | |
|
|
12,2 MB |
Information documents
| Größe | |
|
|
1,01 MB |
Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.
Teile & Service
Spezifikationen
| Frequency Range (-10dB) | 41 Hz to 1 kHz |
| Frequency Response (±3 dB) | 49 Hz to 300 Hz |
| Transducer Power Rating (AES) | 1600W (6400 W peak) 2 hrs |
| System Power Rating | P1200 W (4800 W peak), 100 hrs |
| Maximum SPL (1m) | 128 dB-SPL cont avg (134 peak) |
| Input Modes | Drivers Parallel / Drivers Discrete |
| Nominal Impedance | 4 ohms in parallel-drive mode |
| Sensitivity | 116 dB-SPL |
| LF Driver | 2 x JBL 2206H 300 mm (12 in) VGC drivers with 100 mm (4 in) voice coil with minimal power compression and low distortion |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply |
| Waveguides | MF: PT-N64MF 600 x 600 mm (24 x 24 in) HF: PT-H64HF 300 x 300 mm (12 x 12 in) |
| Suspension Attachment | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories). |
| Finish | Black DuraFlex™ finish. White (-WH) available upon request. |
| Optional Weather Resistant Versions | WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments. |
| Grille | Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units) |
| Input Connectors | Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through. |
| Environmental | Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX. |
| Dimensions (H x W x D in vertical orientation) | 357 x 673 x 706 mm (14.1 x 26.5 x 27.8 in) |
| Net Weight (each) | 36.4 kg (80 lb) |
| Optional Accessories | 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts. |
| Nominal LF Driver Impedance | 4 ohms in parallel-drive mode 2 x 8 ohms in discrete drive mode |
