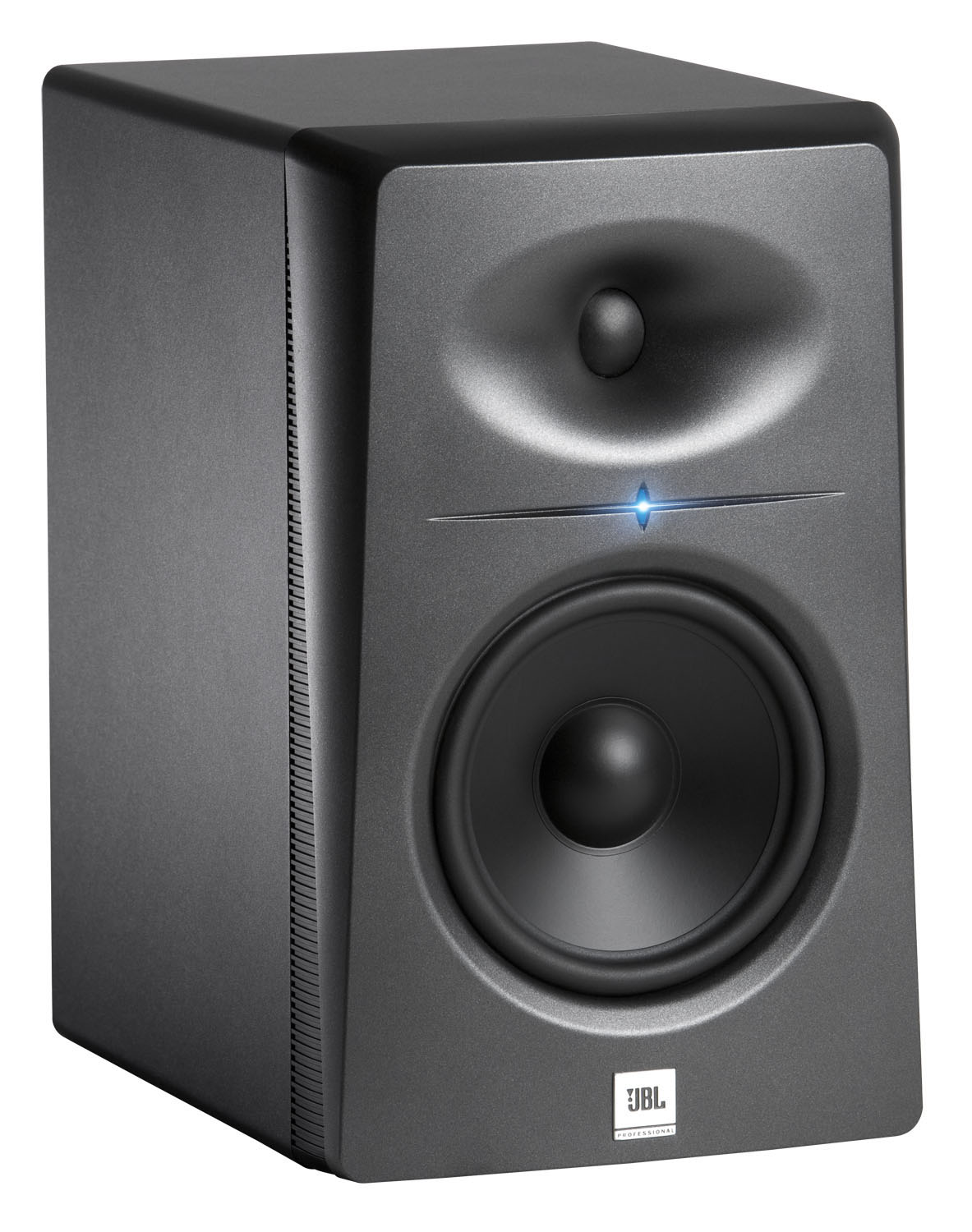

LSR2325P (discontinued)

5" Two-Way Bi-Amplified Powered Studio Monitor

LSR2325P
Larger Images

5" Two-Way Bi-Amplified Powered Studio Monitor

The LSR2325P Bi-Amplified Two-Way Model is based on a 5" (132 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker’s response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware.

Features

  • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors
  • Level Control
  • Magnetic Shielding
  • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads.

Downloads

  Version Language Size Uploaded
Manuals
file type icon LSR2300 User's Guide French
fr updated: Oct 23
  fr  5.92 MB Oct 23
file type icon LSR2300 User's Guide German
de updated: Oct 23
  de  5.82 MB Oct 23
file type icon LSR2300 User's Guide Spanish
es updated: Oct 23
  es  5.92 MB Oct 23
Brochures
file type icon LSR2300 Brochure
updated: Oct 22
    1.37 MB Oct 22
Compliances
file type icon LSR2300 Series Declaration of Conformity
updated: Oct 18
    127 KB Oct 18
User Guides
file type icon LSR2300 Users Guide
updated: Oct 22
    5.91 MB Oct 22
Images
file type icon LSR2325P Hi Res photo
updated: Oct 22
    218 KB Oct 22
Install Guides
file type icon R&B Mounting Brackets
updated: Oct 22
    26.2 KB Oct 22

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 43 Hz - 20 kHz
Max SPL Continous Each / Pair: > 101 dB / > 107 dB
Max SPKL Peak Each / Pair: > 112 dB / > 118 dB
Drivers (LF / HF) 5” (132 mm) 235G1” (25 mm) 231H
LF Trim + 2 dB / -3 dB
HF trim + 2.5 dB / - 2.5 dB
Input Connectors Balanced XLR, 1/4" TRS, RCA
Amplifier Power Rating LF/HF: 55 W / 35 W
Input Sensitivity 92 dB SPL / 1m @ -10dBV Balanced Input
Crossover Frequency 1.7 kHz 4th-order Acoustic Linkwitz-Riley
Enclosure 15 mm (5/8 in) MDF
Finish Metallic Anthracite Pain / Dark Matte Black PVC
Dimensions (H x W x D) 303 mm x 187 mm x 258 mm (11.9 in x 7.4 in x 10 in)
Net Weight 7.7 Kg (16 lb)
