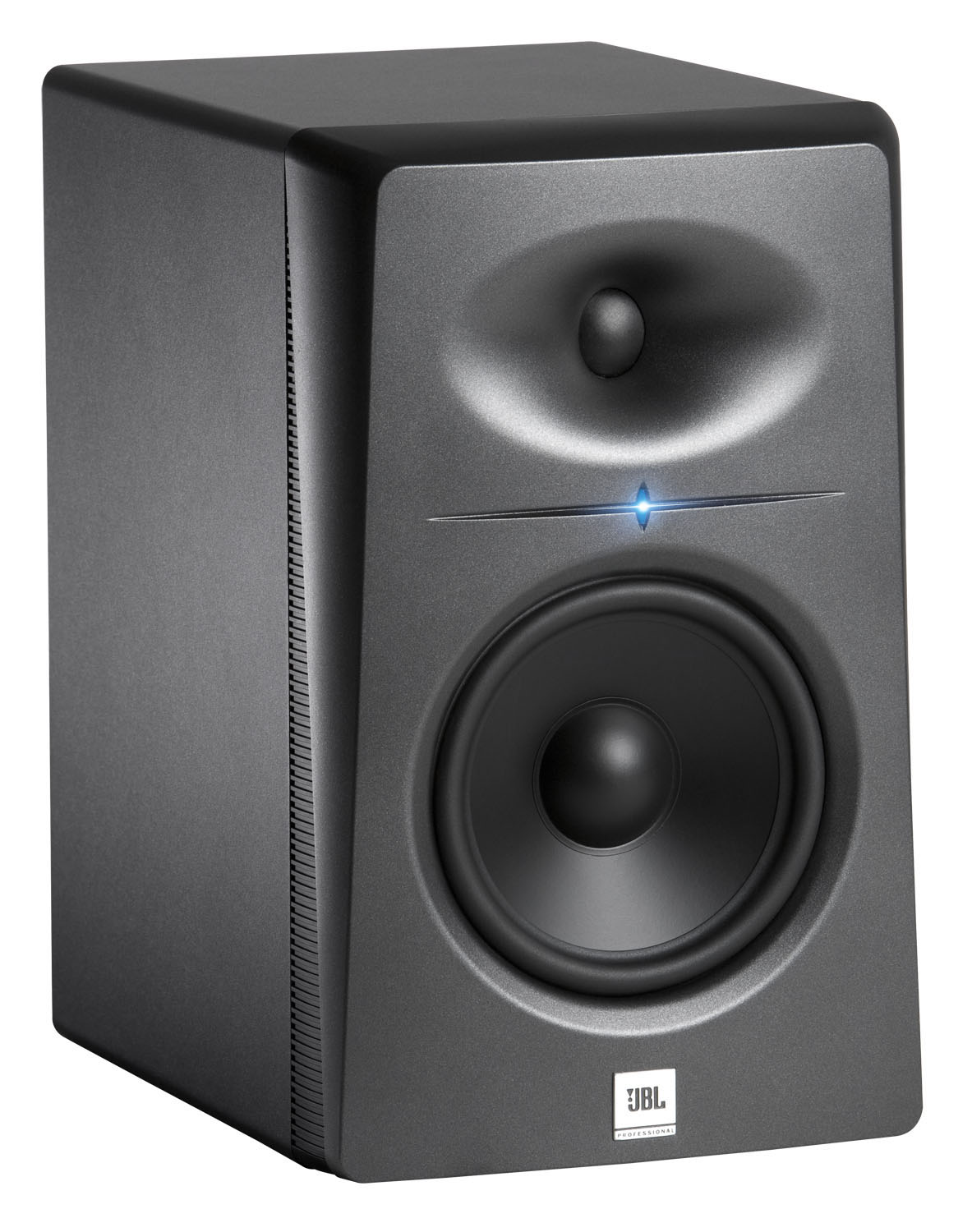

LSR2325P
متوقف

5" Two-Way Bi-Amplified Powered Studio Monitor

صور أكبر

5" Two-Way Bi-Amplified Powered Studio Monitor

The LSR2325P Bi-Amplified Two-Way Model is based on a 5" (132 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker’s response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware.

الميزات

  • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors
  • Level Control
  • Magnetic Shielding
  • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads.

التنزيلات

Manuals
  اللغة الحجم تاريخ التحميل
file type icon LSR2300 User's Guide French
fr تم التحديث: أكتوبر 2019
fr  5.92 MB أكتوبر 2019
file type icon LSR2300 User's Guide German
de تم التحديث: أكتوبر 2019
de  5.82 MB أكتوبر 2019
file type icon LSR2300 User's Guide Spanish
es تم التحديث: أكتوبر 2019
es  5.92 MB أكتوبر 2019
Brochures
  الحجم تاريخ التحميل
file type icon LSR2300 Brochure
تم التحديث: أكتوبر 2020
1.37 MB أكتوبر 2020
Compliances
  الحجم تاريخ التحميل
file type icon LSR2300 Series Declaration of Conformity
تم التحديث: أكتوبر 2019
127 KB أكتوبر 2019
User Guides
  الحجم تاريخ التحميل
file type icon LSR2300 Users Guide
تم التحديث: أكتوبر 2020
5.91 MB أكتوبر 2020
Images
  الحجم تاريخ التحميل
file type icon LSR2325P Hi Res photo
تم التحديث: أكتوبر 2020
218 KB أكتوبر 2020
Install Guides
  الحجم تاريخ التحميل
file type icon R&B Mounting Brackets
تم التحديث: أكتوبر 2020
26.2 KB أكتوبر 2020

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Frequency Range 43 Hz - 20 kHz
Max SPL Continous Each / Pair: > 101 dB / > 107 dB
Max SPKL Peak Each / Pair: > 112 dB / > 118 dB
Drivers (LF / HF) 5” (132 mm) 235G1” (25 mm) 231H
LF Trim + 2 dB / -3 dB
HF trim + 2.5 dB / - 2.5 dB
Input Connectors Balanced XLR, 1/4" TRS, RCA
Amplifier Power Rating LF/HF: 55 W / 35 W
Input Sensitivity 92 dB SPL / 1m @ -10dBV Balanced Input
Crossover Frequency 1.7 kHz 4th-order Acoustic Linkwitz-Riley
Enclosure 15 mm (5/8 in) MDF
Finish Metallic Anthracite Pain / Dark Matte Black PVC
Dimensions (H x W x D) 303 mm x 187 mm x 258 mm (11.9 in x 7.4 in x 10 in)
Net Weight 7.7 Kg (16 lb)
