LSR2325P
Arrêté

5" Two-Way Bi-Amplified Powered Studio Monitor

LSR2325P
Grandes images

5" Two-Way Bi-Amplified Powered Studio Monitor

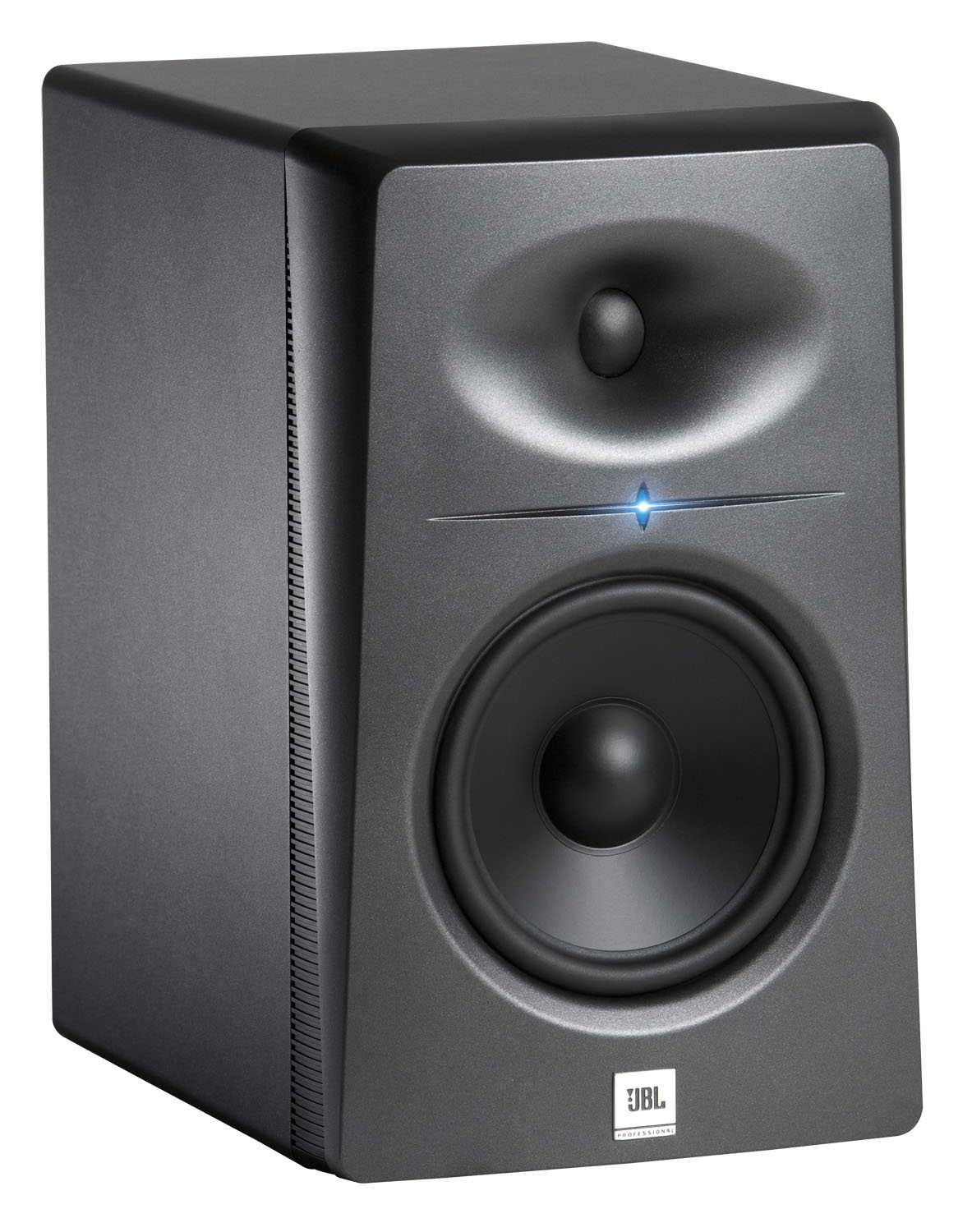

The LSR2325P Bi-Amplified Two-Way Model is based on a 5" (132 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker’s response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware.

Caractéristiques

  • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors
  • Level Control
  • Magnetic Shielding
  • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads.

Téléchargements

Manuals
  Langue Taille Téléchargé
file type icon LSR2300 User's Guide French
fr mis à jour : oct. 2019
fr  5,92 Mo oct. 2019
file type icon LSR2300 User's Guide German
de mis à jour : oct. 2019
de  5,82 Mo oct. 2019
file type icon LSR2300 User's Guide Spanish
es mis à jour : oct. 2019
es  5,92 Mo oct. 2019
Brochures
  Taille Téléchargé
file type icon LSR2300 Brochure
mis à jour : oct. 2020
1,37 Mo oct. 2020
Compliances
  Taille Téléchargé
127 ko oct. 2019
User Guides
  Taille Téléchargé
file type icon LSR2300 Users Guide
mis à jour : oct. 2020
5,91 Mo oct. 2020
Images
  Taille Téléchargé
file type icon LSR2325P Hi Res photo
mis à jour : oct. 2020
218 ko oct. 2020
Install Guides
  Taille Téléchargé
file type icon R&B Mounting Brackets
mis à jour : oct. 2020
26,2 ko oct. 2020

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range 43 Hz - 20 kHz
Max SPL Continous Each / Pair: > 101 dB / > 107 dB
Max SPKL Peak Each / Pair: > 112 dB / > 118 dB
Drivers (LF / HF) 5” (132 mm) 235G1” (25 mm) 231H
LF Trim + 2 dB / -3 dB
HF trim + 2.5 dB / - 2.5 dB
Input Connectors Balanced XLR, 1/4" TRS, RCA
Amplifier Power Rating LF/HF: 55 W / 35 W
Input Sensitivity 92 dB SPL / 1m @ -10dBV Balanced Input
Crossover Frequency 1.7 kHz 4th-order Acoustic Linkwitz-Riley
Enclosure 15 mm (5/8 in) MDF
Finish Metallic Anthracite Pain / Dark Matte Black PVC
Dimensions (H x W x D) 303 mm x 187 mm x 258 mm (11.9 in x 7.4 in x 10 in)
Net Weight 7.7 Kg (16 lb)
