CSS-BB8x6

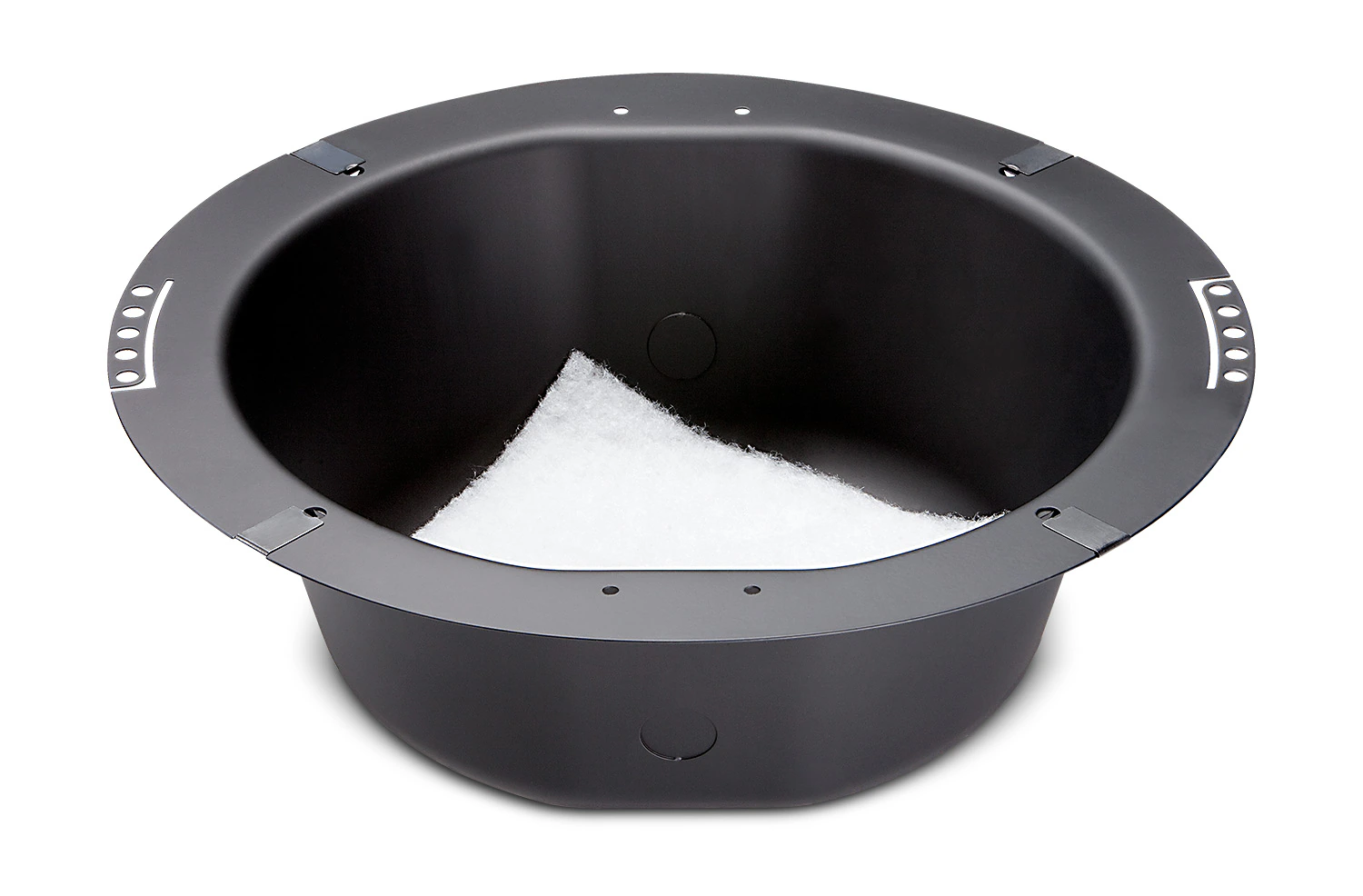

8" Backcan for CSS8008 or CSS8018 speaker

较大的图像

8" Backcan for CSS8008 or CSS8018 speaker

CSS-BB8x6

下载

  Version Language Size Uploaded
Specifications
CSS8004/CSS8008/CSS8018 Spec Sheet
updated: 4月29日
    1.2 MB 4月29日
Brochures
Commercial Series Introductory Sheet
updated: 10月18日
    249.8 KB 10月18日
Images
CSS-BB8x6 Hi-Res Image
updated: 4月29日
    50.7 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Compatibility CSS-8008 and CSS-8018 speaker, CSS-TR4/8 tile rails

尺寸

108 deep x 334 diameter mm (4.3 x 13.2 in)
Bolt Mount Circle 4 points on 286 mm (11.25 in) diameter
Air Space 4.0 liters (0.15 cu ft)
材料 Steel, zinc-plated, powder-coated
Conduit Knockouts Five (5) knockouts:4 on sides spaced at 90° and1 at center of top panel
结合点 4 points on 286 mm (11.25 in) diameter with clip nuts for 4 screws.
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling Speaker. CUL Listed. In accordance with IEC60849/EN60849.
Net Weight (ea) 0.87 kg (2.0 lb)
Shipping Weight (ea) 1.04 kg (2.3 lb)

随附配件

4 pcs M4 x 8 mm machine screws for attaching two tiles rails to backcan
